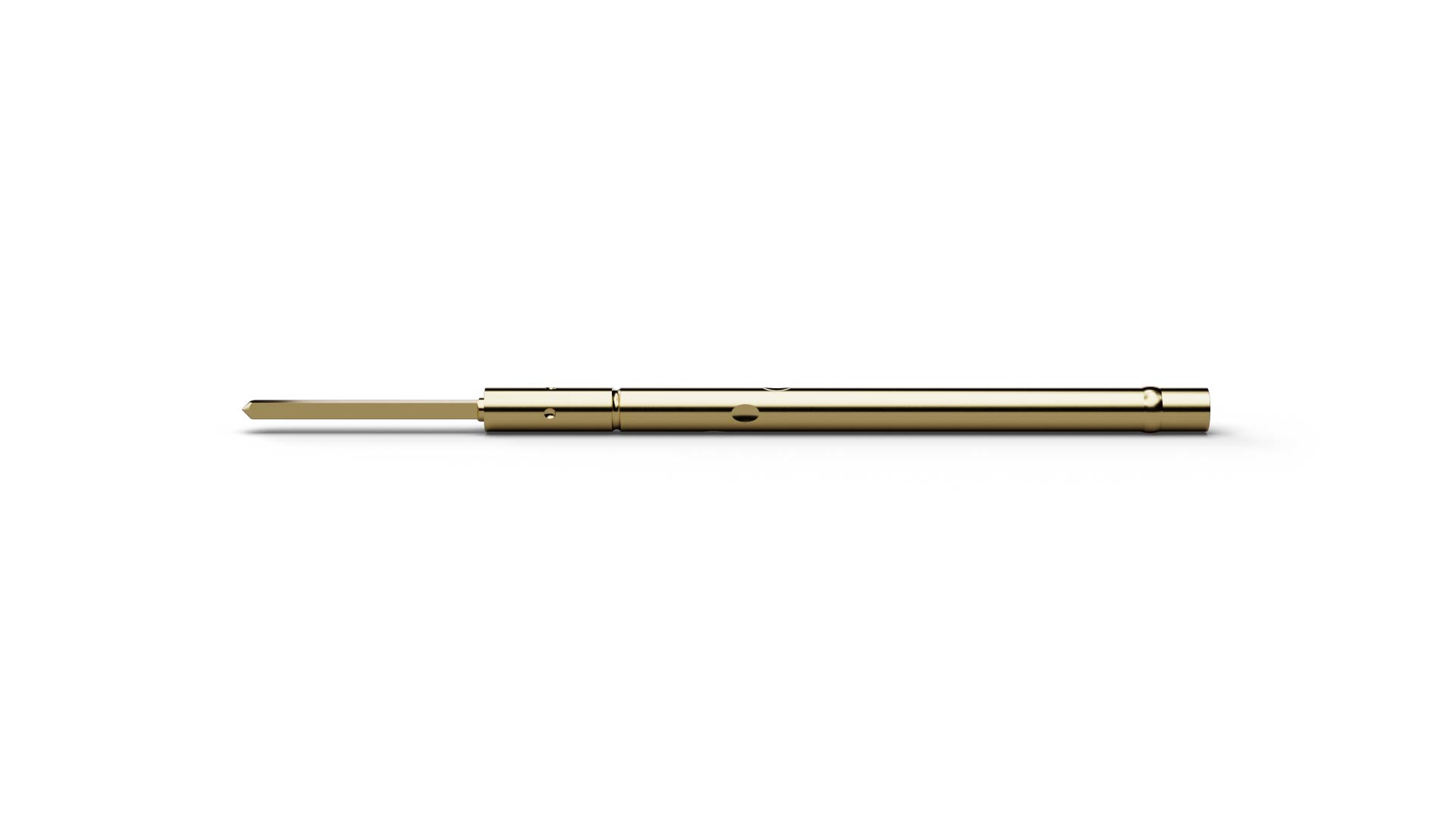

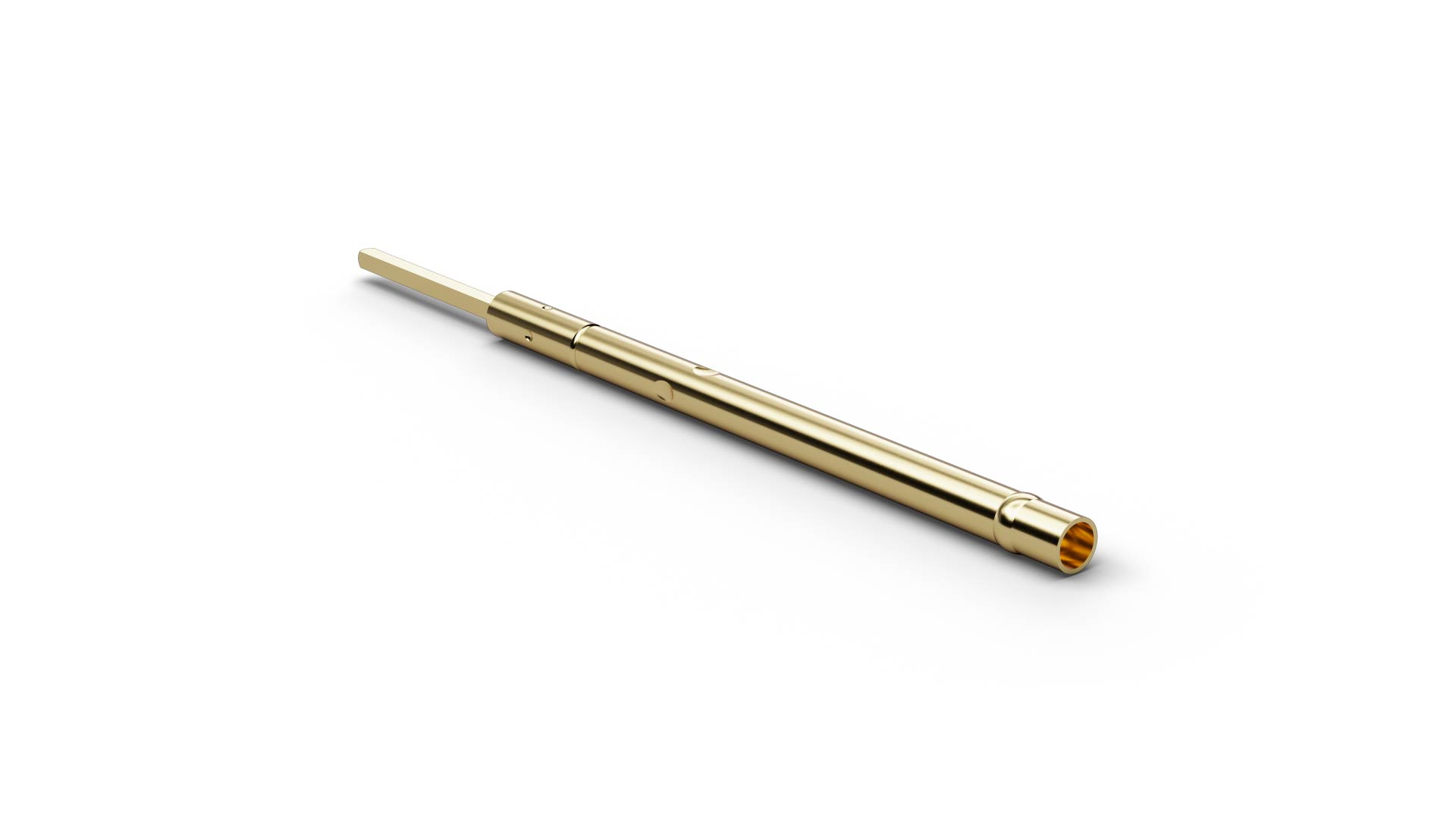

H100WW10-2.5S1 Perspective 1 H100WW10-2.5S1 Perspective 2

Basic Contact Probes (100 mil) H100WW10-2.5S1

Item number 1107897

Technical data sheet

Quantity

Technical data

General
Type/family H100
Pitch (mm/mil) 2,54 / 100
Dimensions
Total length (mm) 36.8
Press ring diameter (mm) 1.81
Outer diameter (mm) 1.68
Materials and surfaces
Material, Coating Nickel silver, Gold
Mechanical specifications
Connection Wire Wrap
Electrical specifications
Continuous current (A) 5

Graphics

H100WW10-2.5S1 Overview of similar Receptacles H100WW10-2.5S1 Family designation
