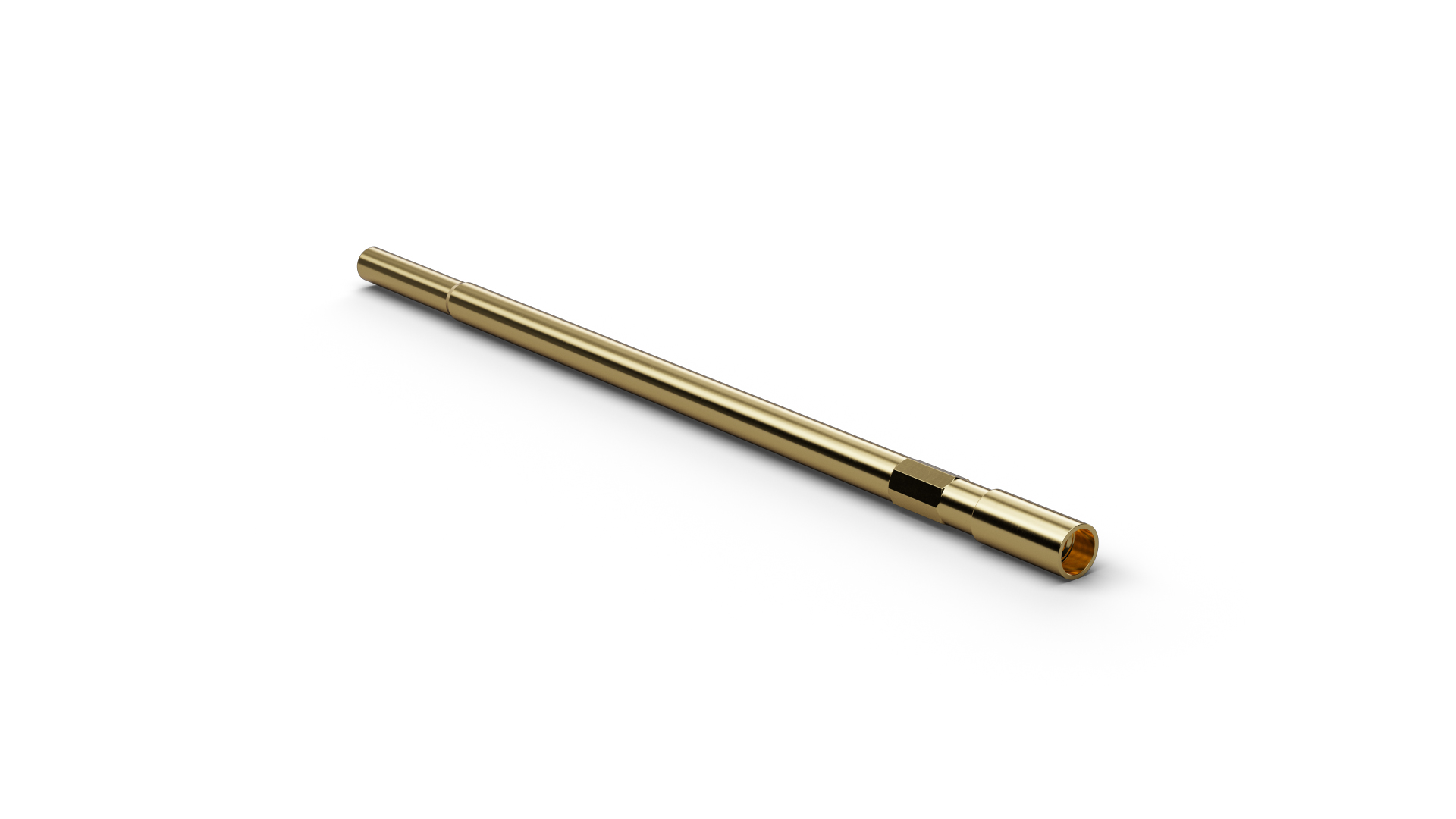

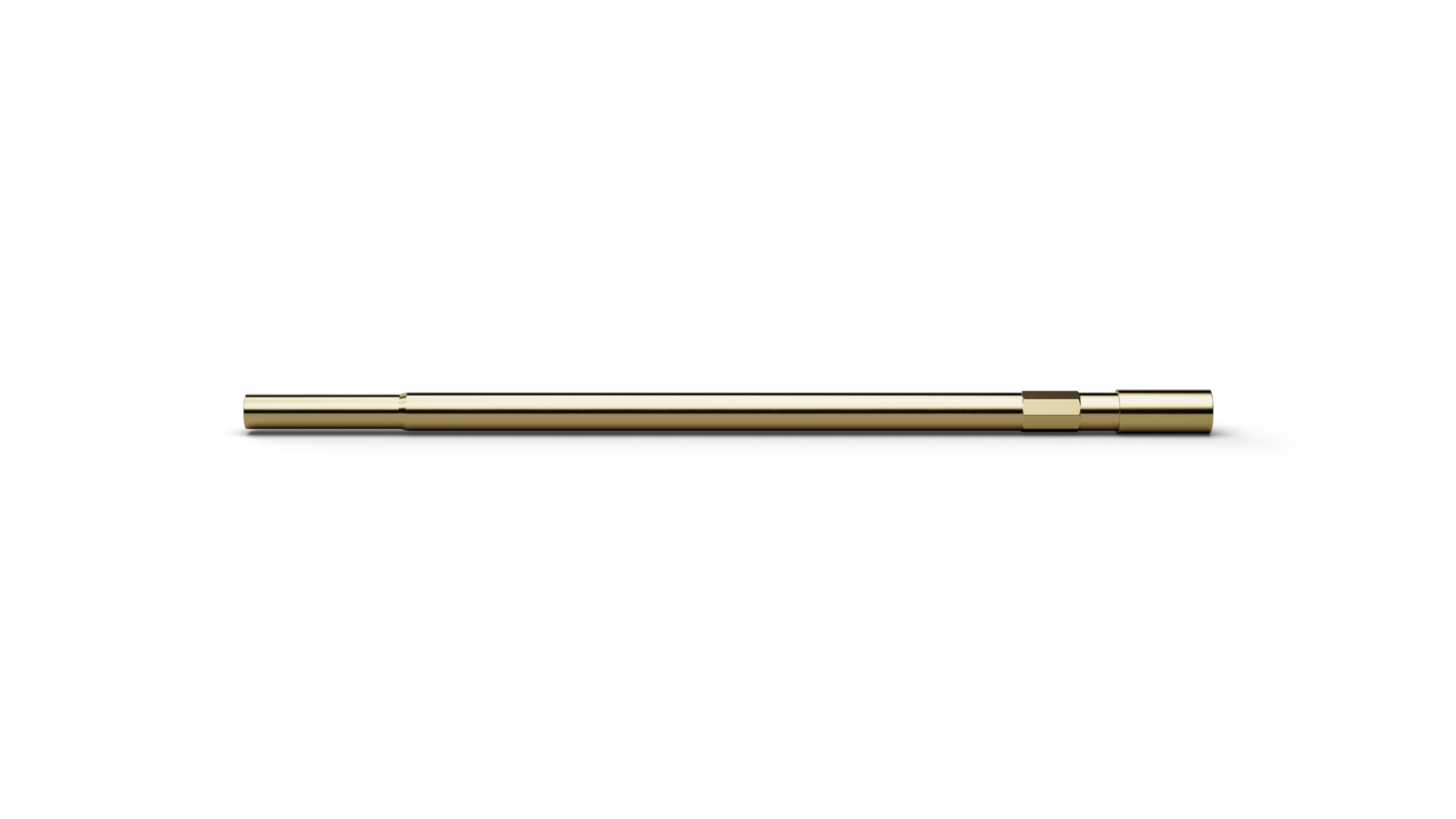

H730LARD (item number 1109766) is a receptacle for the compatible Basic Threaded Probe and defines its installed position in the test fixture. As a Receptacle, H730LARD guides and positions the matching Contact Probe; depending on the design, the Receptacle can also provide electrical connection or insulation and supports controlled probe replacement during maintenance. Relevant integration data includes pitch 1.27 mm / 50 mil, thread M0.9 x 0.175, length 25 mm, connection type Solder Connection. When selecting H730LARD, the matching probe family, installation dimensions and any required connection or insulation design should be considered together.
