Technical data
| General | |
|---|---|
| Structure | Basic Contact Probe |
| Type/family | HCF731 |
| Pitch (mm/mil) | 2,40 / 94 |
| Temperature | -45°C...+200°C |
| Dimensions | |
|---|---|
| Total length (mm) | 27.9 |
| Protrusion height (mm) | 9.4 |
| Tip style diameter (mm) | 1.3 |
| Barrel diameter (mm) | 1.37 |
| Collar diameter (mm) | 1.85 |
| Press ring diameter (mm) | 1.85 |
| Materials and surfaces | |
|---|---|
| Tip style | 06 |
| Tip style material | Beryllium copper |
| Tip style plating | Gold |
| Plunger material | Beryllium copper |
| Plunger plating | Gold |
| Barrel material | Brass |
| Barrel plating | Gold |
| Spring material | High-grade steel |
| Spring plating | Uncoated |
| Mechanical specifications | |
|---|---|
| Preload (cN) | 145 |
| Spring force (cN) | 500 |
| Nominal travel (mm) | 3.5 |
| Maximum travel (mm) | 4.4 |
| Pointing accuracy +/- (mm) | 0.08 |
| Thread | M1,4 |
| Tool size (mm) | 1,4 |
| Electrical specifications | |
|---|---|
| Continuous current (A) | 5 |
| Typical contact resistance (mOhm) | 30 |

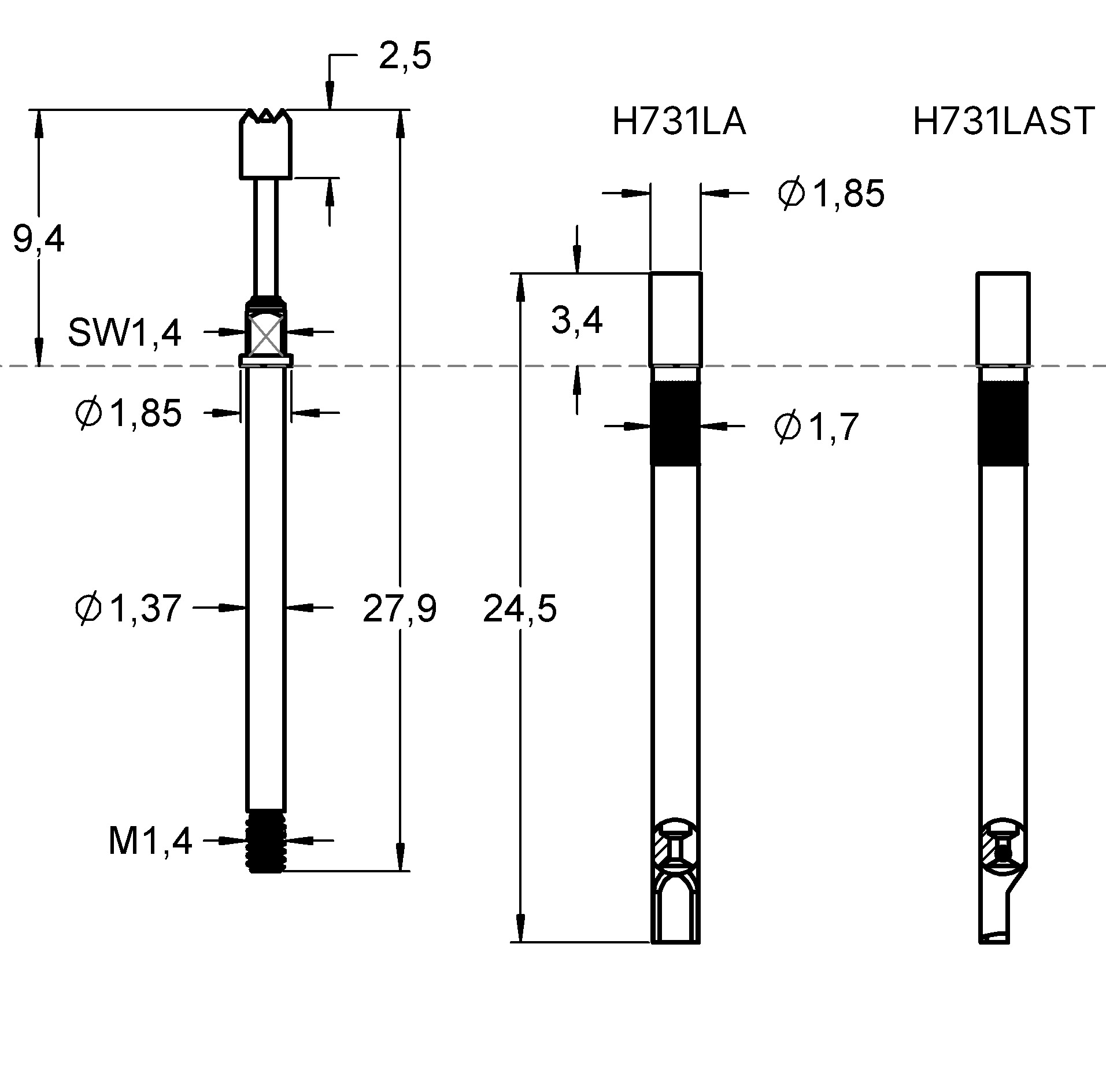

Graphics
Beschreibung des Produkts

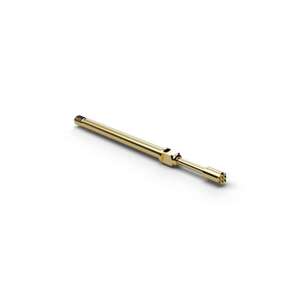

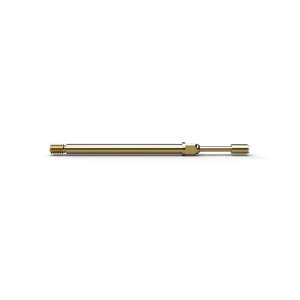

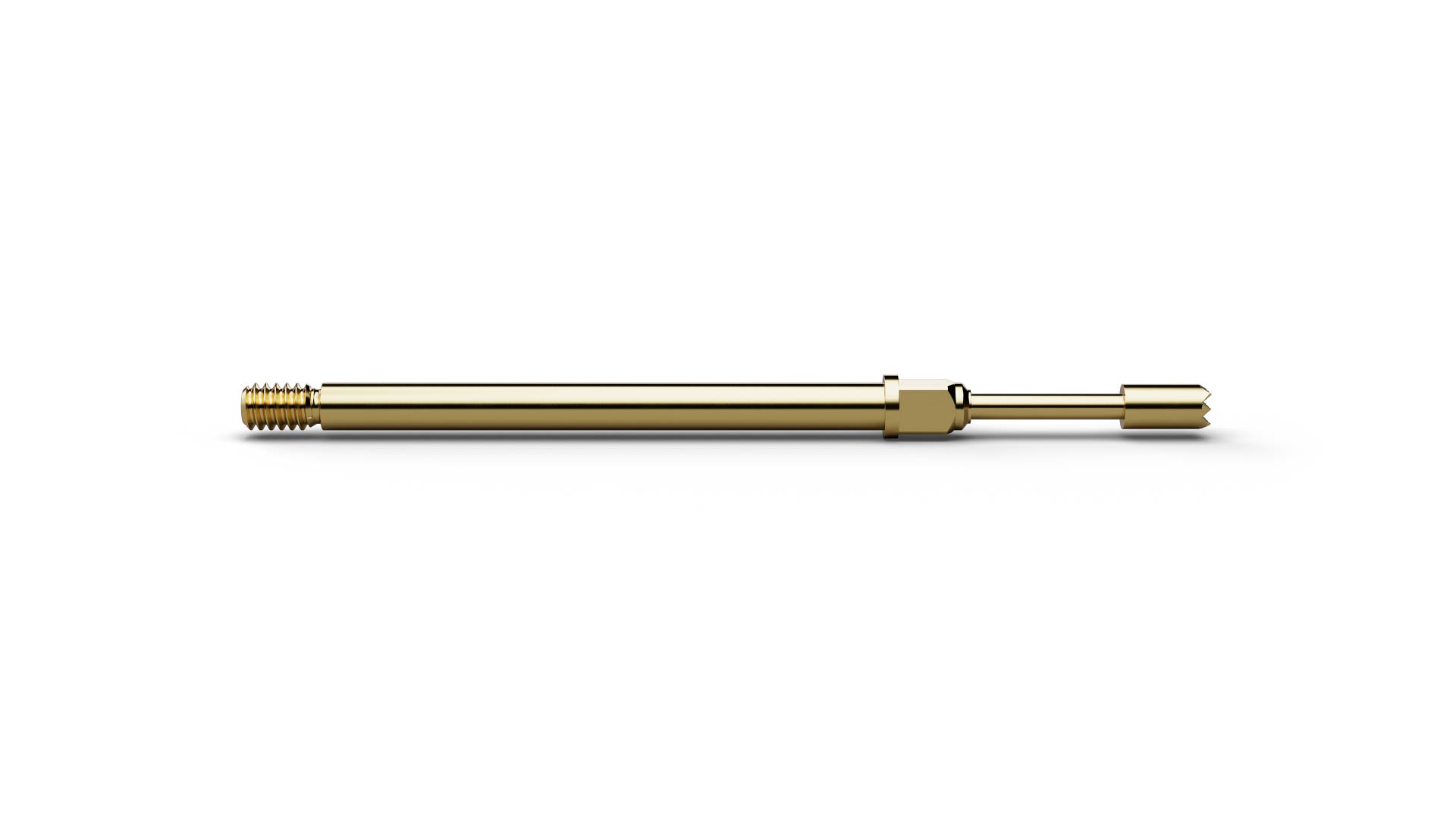

HCF73106B130G500 (item number 1116880) belongs to the Basic Contact Probe range for precise, repeatable contacting of electronic test points. With tip style 06 (Serrated stepped), HCF73106B130G500 combines ICT/FCT use with a geometry intended for wires, pins and wire-wrap posts; the geometry is also suited to slightly bent contacts. The design combines a pitch of 2.4 mm / 94 mil with tip style 06 (Serrated stepped) and a tip diameter of 1.3 mm. For HCF73106B130G500, spring force is 500 cN at a nominal travel of 3.5 mm. For HCF73106B130G500, the specified continuous current is 5 A.
