Technical data
| General | |
|---|---|
| Structure | Coaxial Probe |
| Type/family | HF77 |
| Pitch (mm/mil) | 7,5/295 |
| Temperature | -45°C...+100°C |

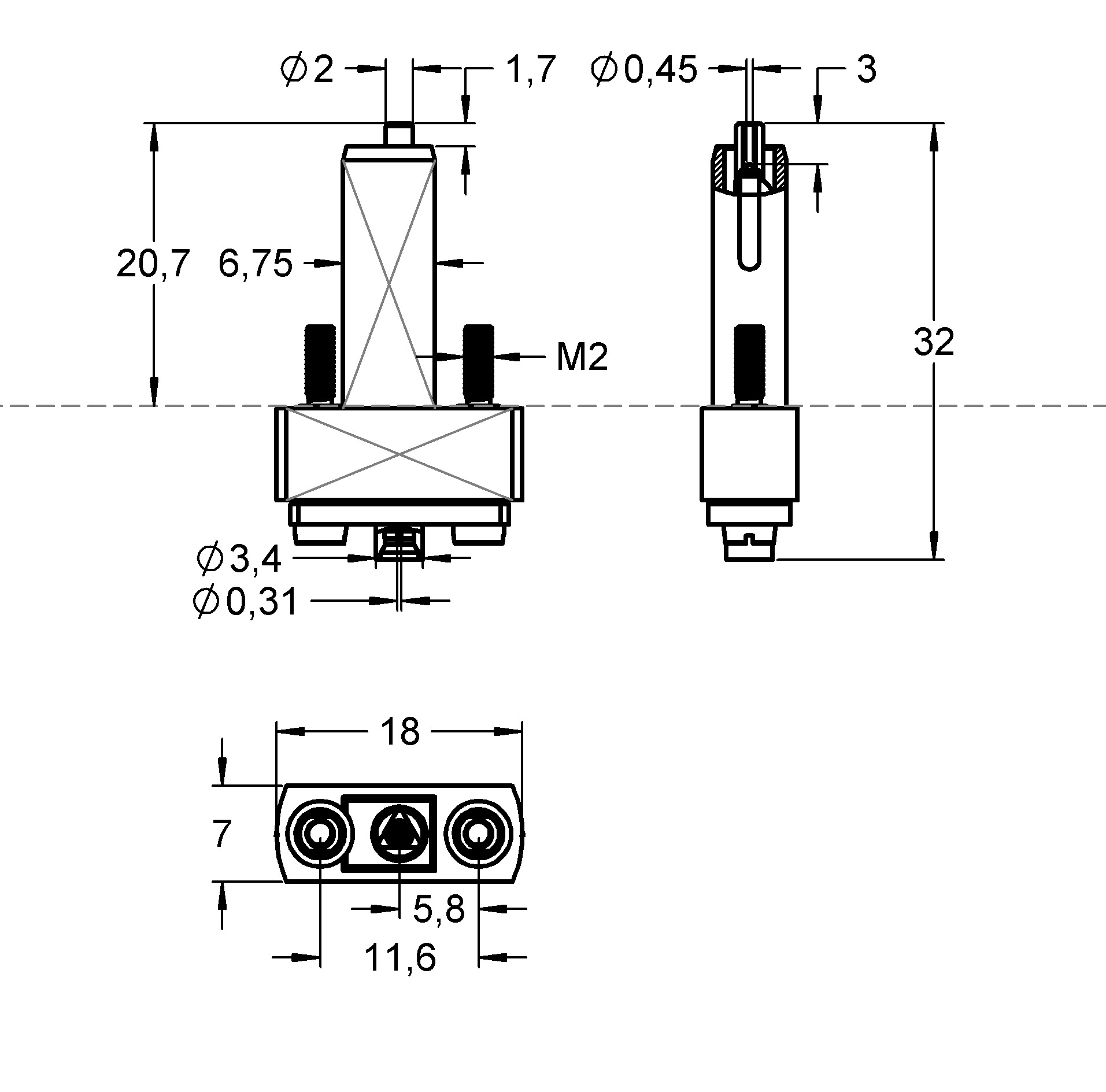

| Dimensions | |
|---|---|
| Total length (mm) | 32 |
| Protrusion height (mm) | 29.4 |
| Tip style diameter (mm) | 0.31 |
| Inside/outside distance (mm) | 2.2 |
| Tip style diameter (mm) 2 | 0.45 |
| Materials and surfaces | |
|---|---|

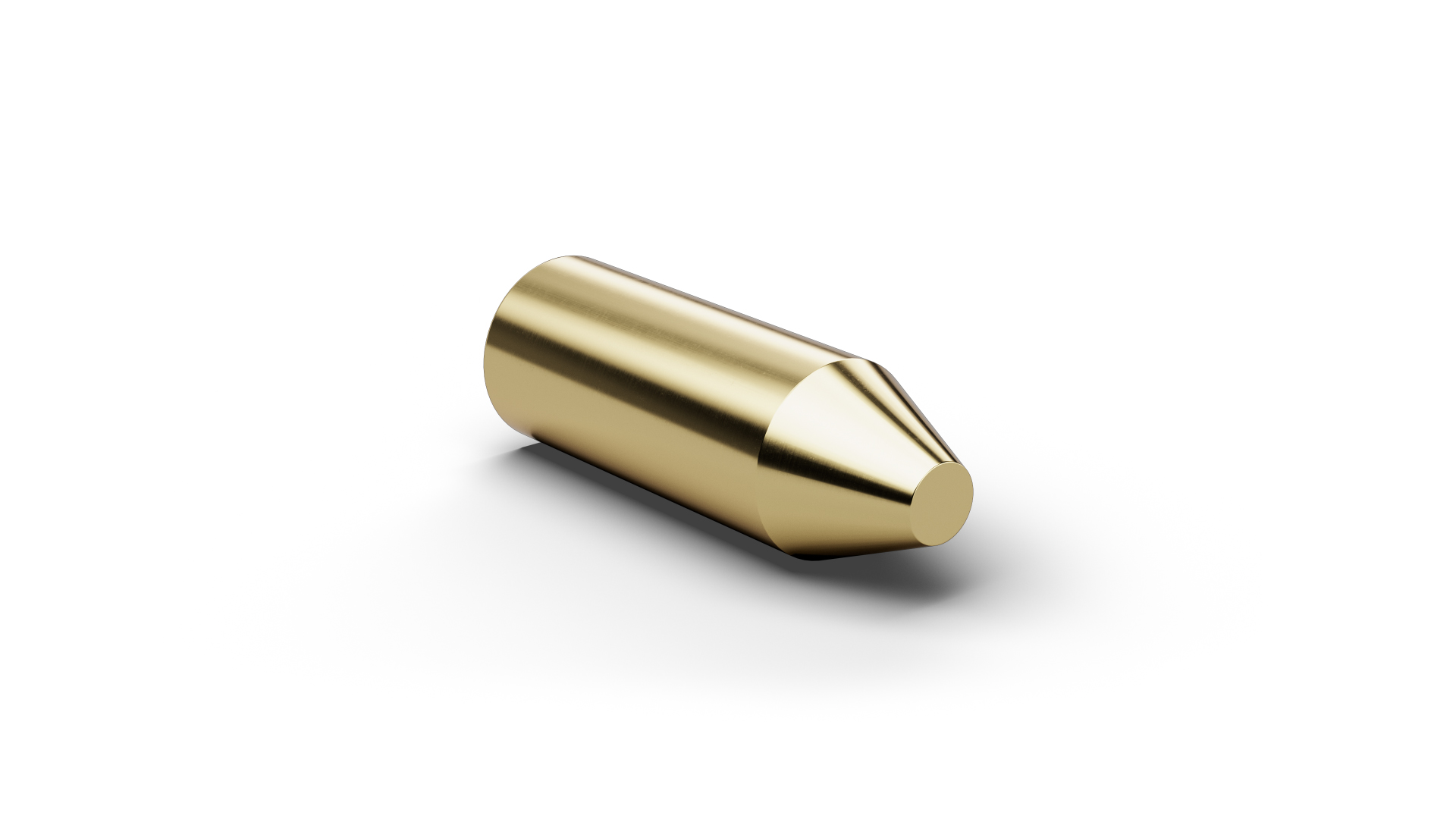

| Tip style | 39 |
| Tip style 2 | 16 |
| Plunger material | Beryllium copper |
| Plunger plating | Gold |
| Spring material | High-grade steel |
| Spring plating | Uncoated |
| Plunger material 2 | Beryllium copper |
| Plunger plating 2 | Gold |
| Spring material 2 | Spring steel |
| Spring plating 2 | Gold |
| Mechanical specifications | |
|---|---|
| Preload (cN) | 230 |
| Spring force (cN) | 420 |
| Nominal travel (mm) | 2 |
| Maximum travel (mm) | 2.8 |
| Connection | Connection Element |
| DUT | MATE-AX Male 1 Pos |
| Electrical specifications | |
|---|---|
| Continuous current (A) | 0.5 |
| Impedance (ohm) | 50 |
| Frequency (GHz) | 12 |
| Continuous current (A) 2 | 0.1 |
| Internal contact specifications | |
|---|---|
| Nominal travel (mm) 2 | 0.5 |
| Maximum travel (mm) 2 | 1.8 |
| Preload (cN) 2 | 95 |
| Spring force (cN) 2 | 120 |

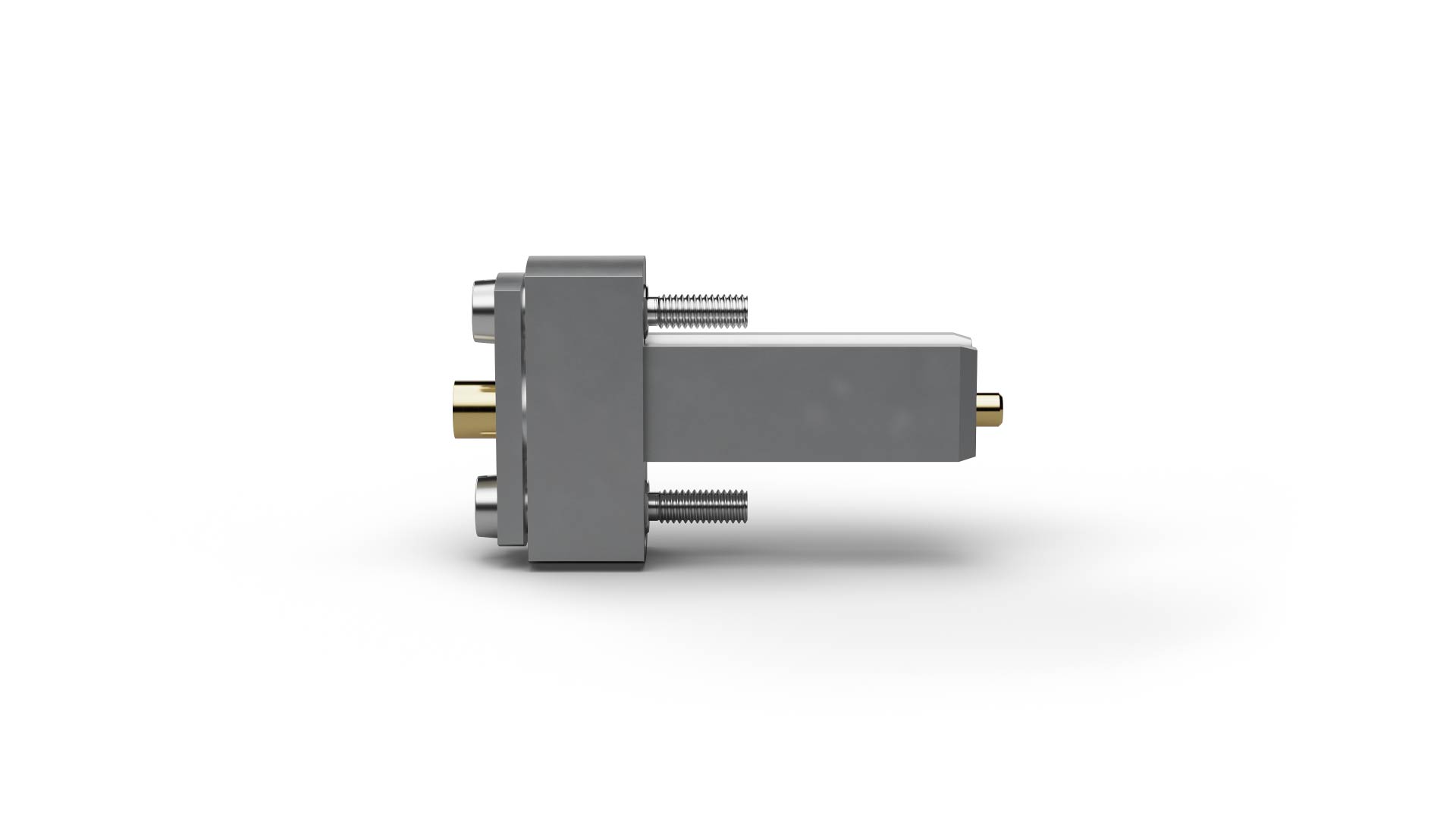

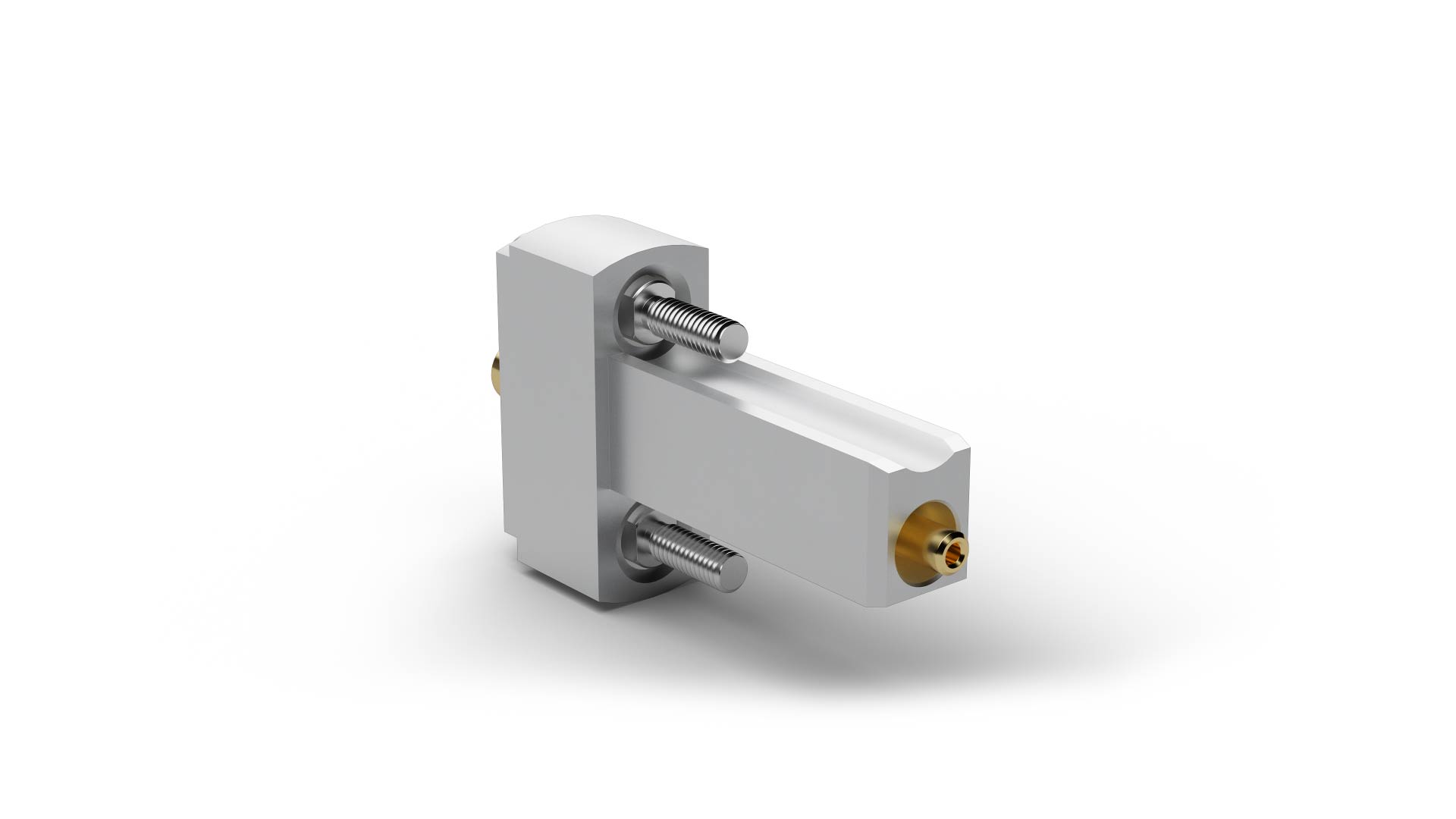

Graphics
Beschreibung des Produkts
The High Frequency Probe HF77MATEAXm0112G540MSMPmFV2 (item number 1116970) is designed for reliable transmission of high-frequency signals in test and measurement applications. With a defined impedance of 50 Ω, HF77MATEAXm0112G540MSMPmFV2 supports controlled signal routing and helps minimize reflections and signal loss at the test interface. The frequency range of HF77MATEAXm0112G540MSMPmFV2 extends up to 12 GHz, and this version is intended for contacting MATE-AX Male 1 Pos connectors. On HF77MATEAXm0112G540MSMPmFV2, spring forces of 420 cN on the outer contact and 120 cN on the inner contact provide defined mechanical contacting.
