Home › Products › Product Finder › HV02G52B060N190-M

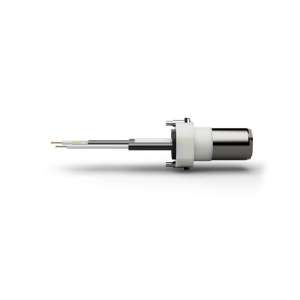

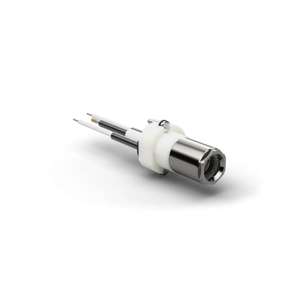

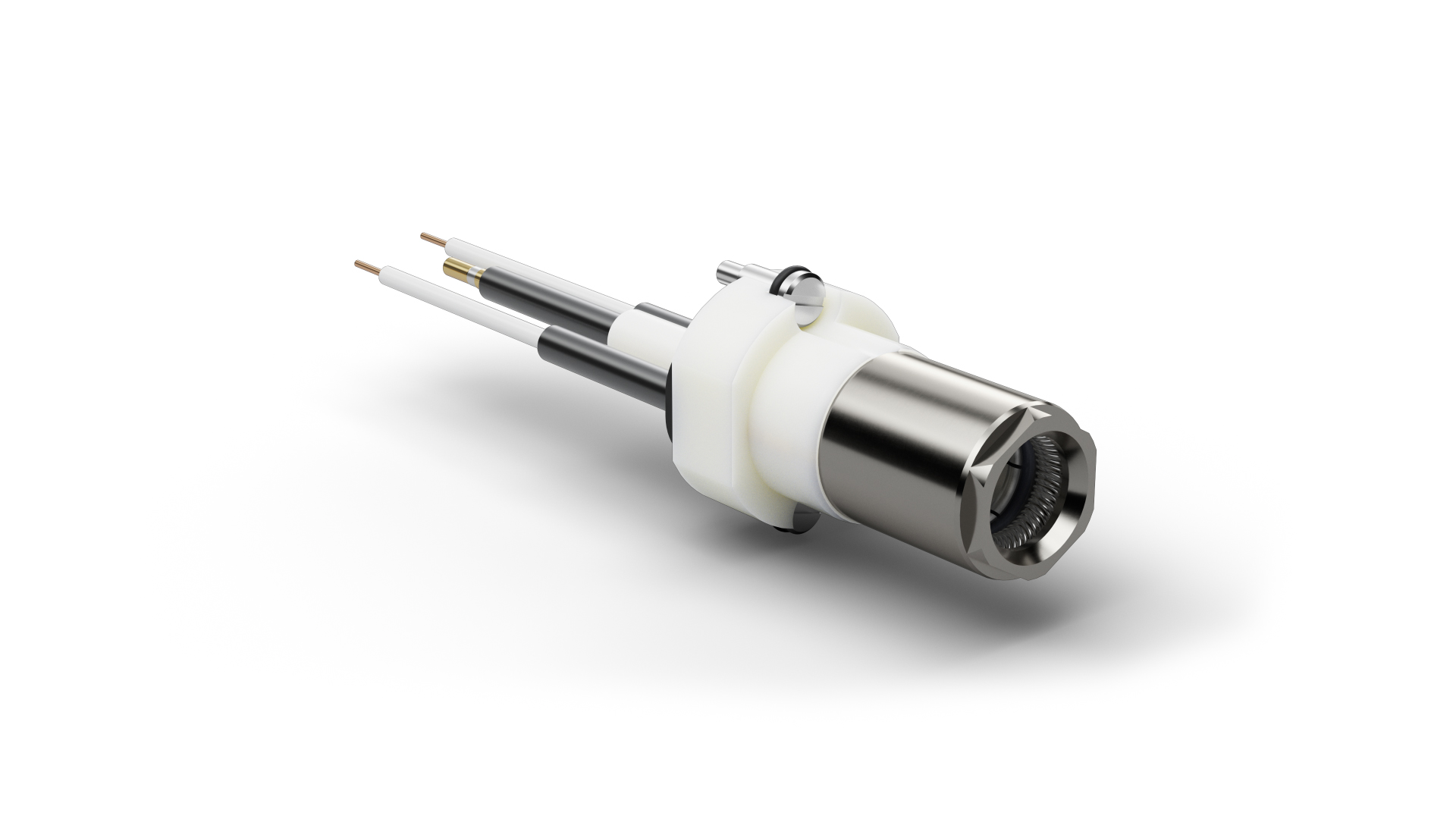

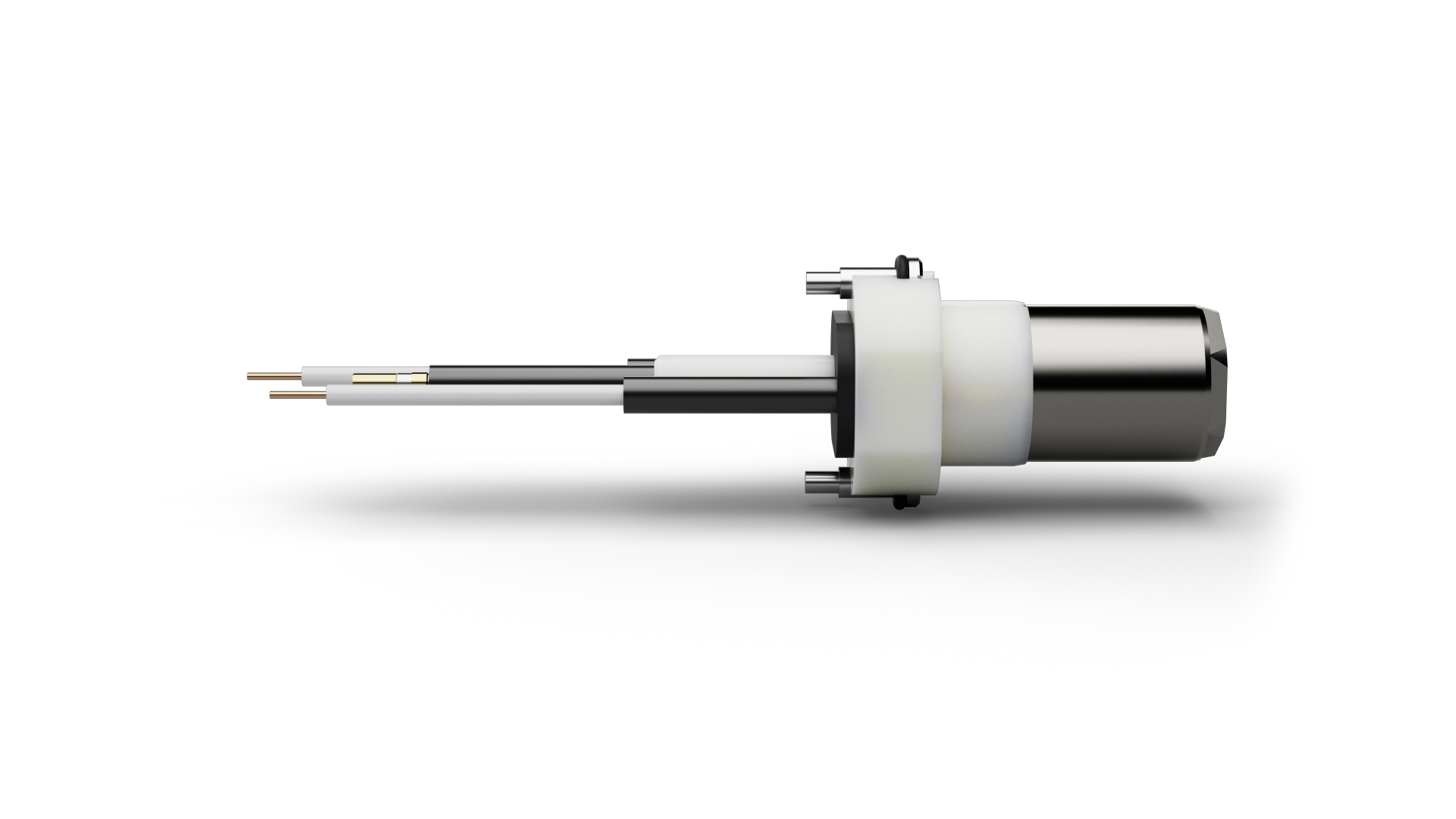

HV02G52B060N190-M Perspective 1 HV02G52B060N190-M Perspective 2

HV02G52B060N190-M

Item number 1119426

Technical data sheet

Quantity

Technical data

General
Type/family HV02
Dimensions
Total length (mm) 48.4
Tip style diameter (mm) 12
Materials and surfaces
Plunger material Brass
Plunger plating Nickel

Graphics

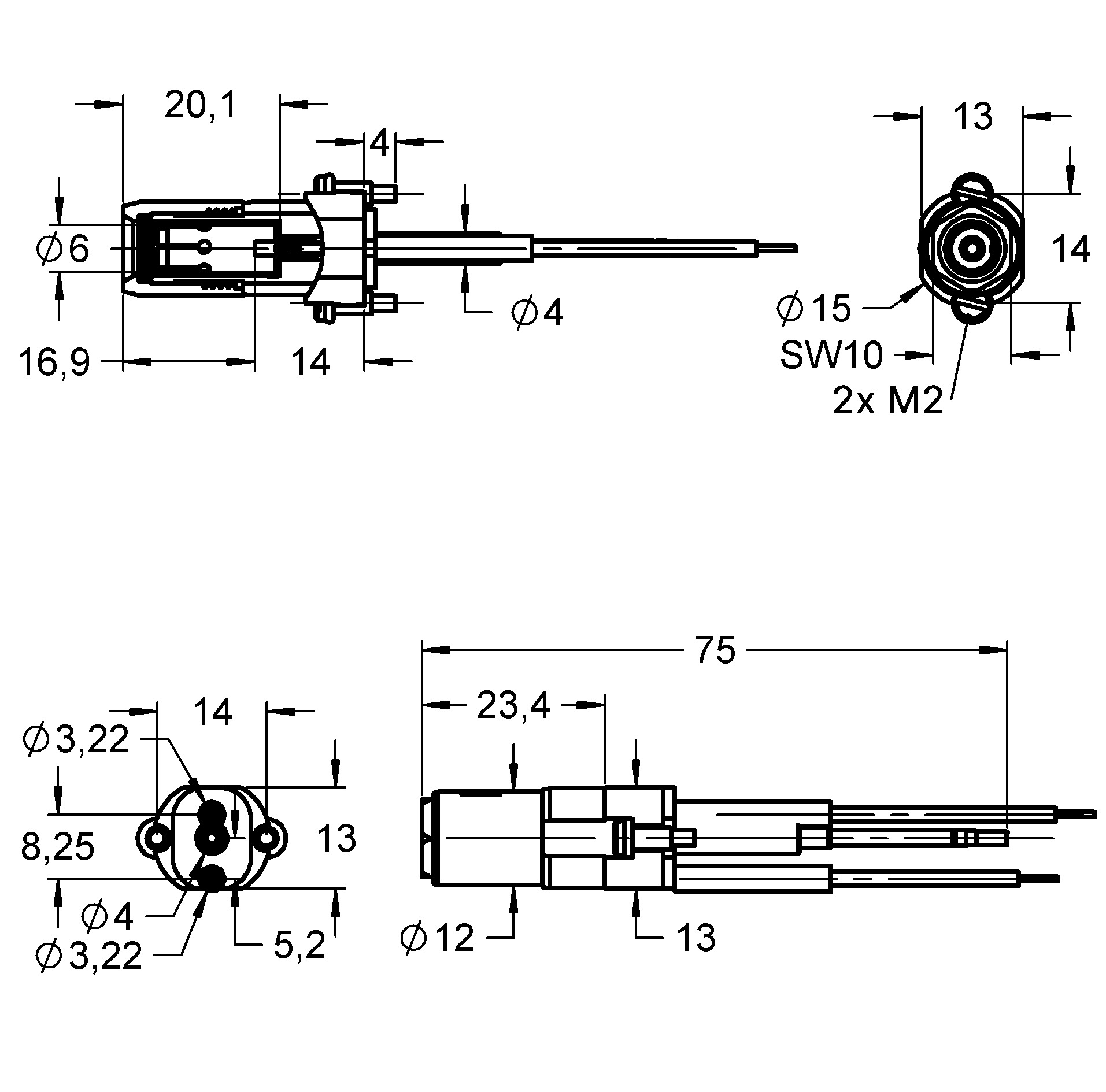

HV02G52B060N190-M Family designation

Beschreibung des Produkts

The Kelvin Probe HV02G52B060N190-M (item number 1119426) is a Contact Probe for precise four-wire resistance measurements. The separate current and voltage paths in HV02G52B060N190-M support four-wire measurements in which lead and contact resistance have minimal influence on the result. Overall length is 48.4 mm. Selection should consider contact geometry, the separated current/voltage paths and the required measurement accuracy.
