Technical data
| General | |
|---|---|
| Structure | Basic Contact Probe |
| Type/family | F772 |
| Pitch (mm/mil) | 2,54 / 100 |
| Temperature | -45°C...+200°C |
| Additional definition | H |
| Dimensions | |
|---|---|
| Total length (mm) | 32 |
| Protrusion height (mm) | 10 |
| Tip style diameter (mm) | 2 |
| Barrel diameter (mm) | 1.66 |
| Press ring diameter (mm) | 2.05 |
| Materials and surfaces | |
|---|---|
| Tip style | 05 |
| Plunger material | Beryllium copper |
| Plunger plating | Gold |
| Barrel material | Nickel silver |
| Barrel plating | Gold |
| Spring material | High-grade steel |
| Spring plating | Uncoated |
| Mechanical specifications | |
|---|---|
| Preload (cN) | 100 |
| Spring force (cN) | 300 |
| Nominal travel (mm) | 4 |
| Maximum travel (mm) | 5 |
| Pointing accuracy +/- (mm) | 0.08 |
| Electrical specifications | |
|---|---|
| Continuous current (A) | 5 |
| Typical contact resistance (mOhm) | 100 |
Graphics
Beschreibung des Produkts

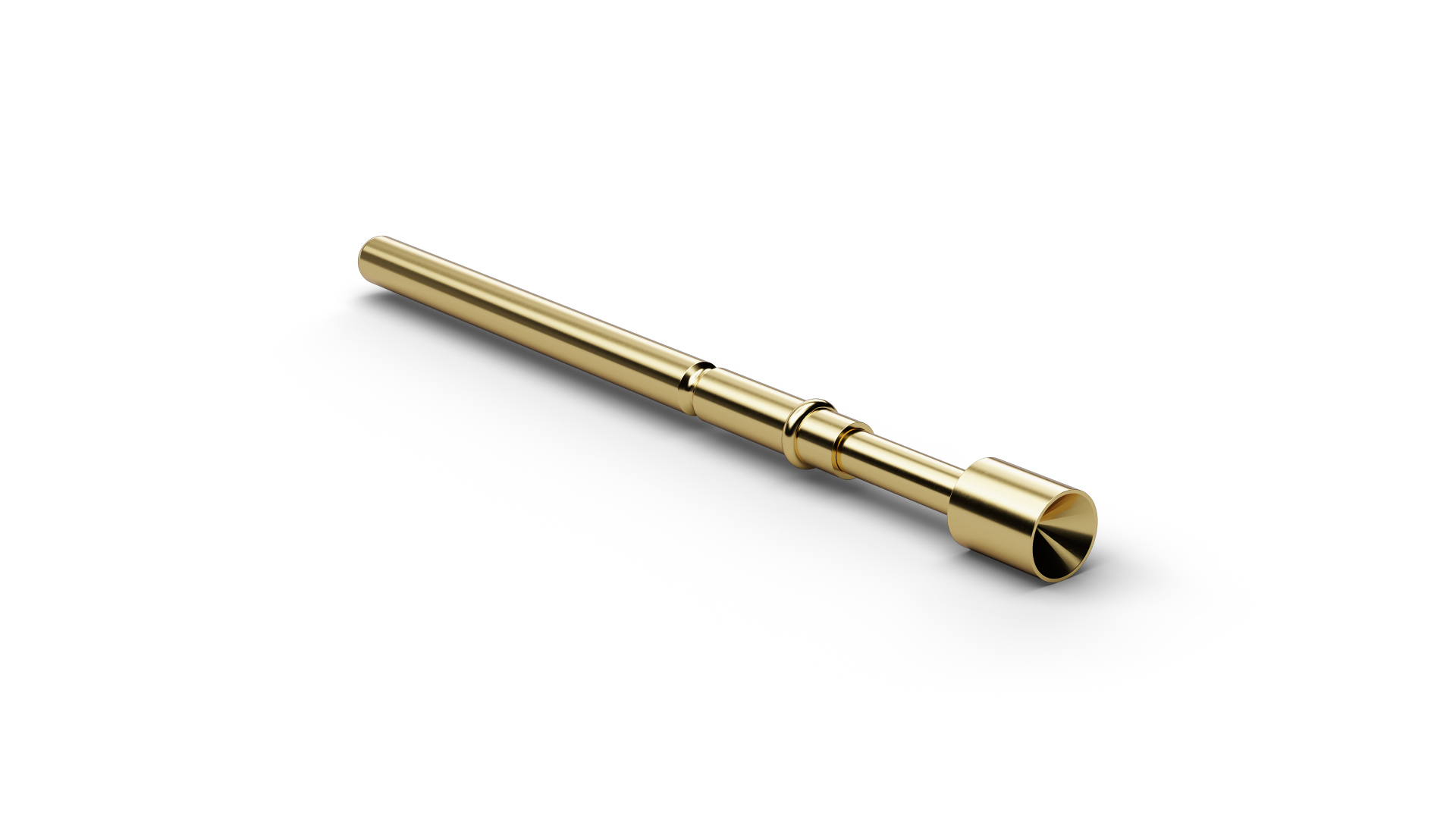

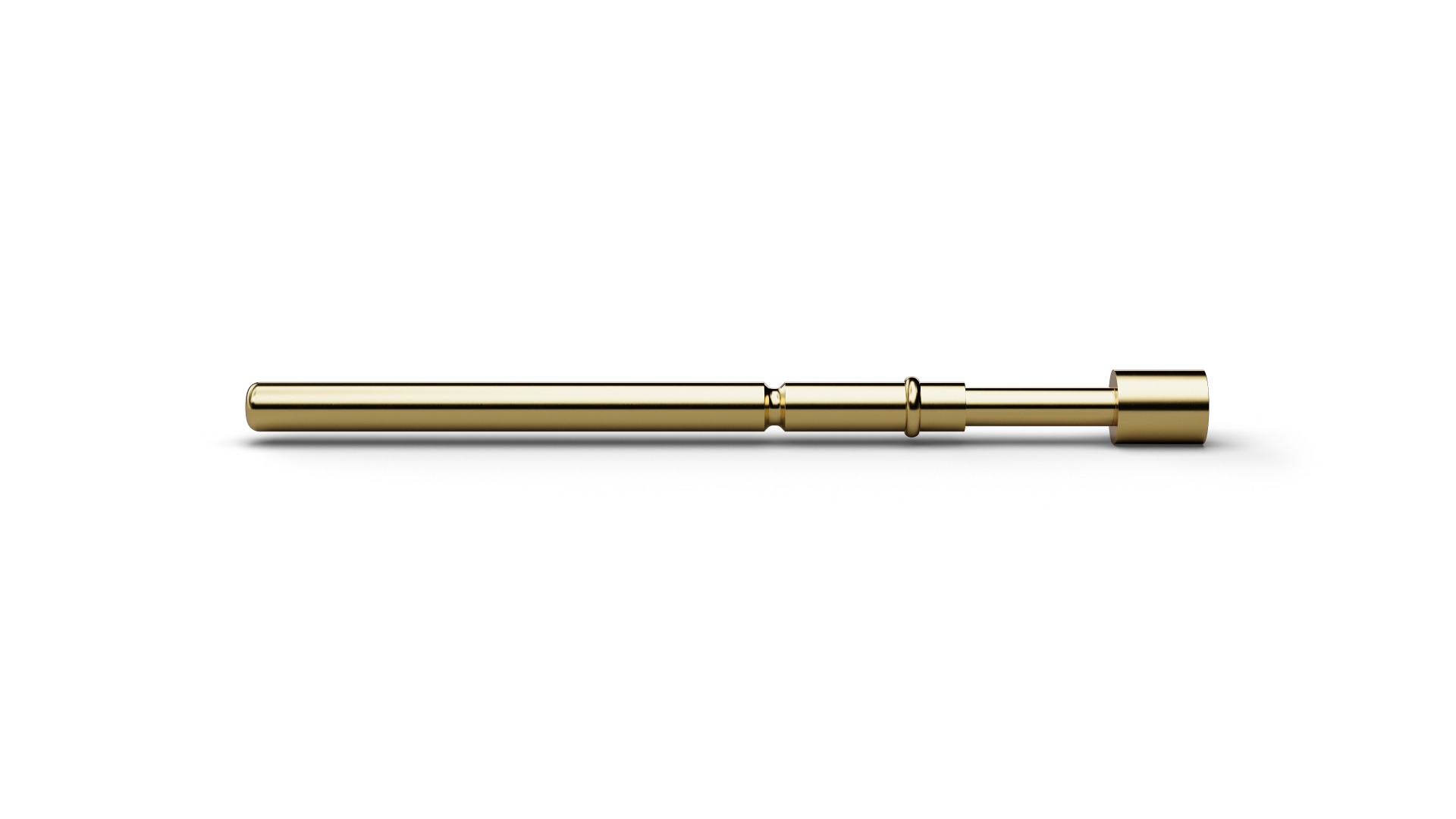

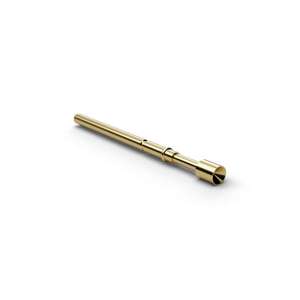

As a Basic Contact Probe, F77205B200G300H (item number 1125579) establishes a spring-loaded electrical connection to the test point. With tip style 05 (Concave stepped), F77205B200G300H combines ICT/FCT use with a geometry intended for pins and wire-wrap posts with a guided, smooth contacting action. F77205B200G300H combines a pitch of 2.54 mm / 100 mil with tip style 05 (Concave stepped) and a tip diameter of 2 mm. For F77205B200G300H, spring force is 300 cN at a nominal travel of 4 mm. The electrical rating of F77205B200G300H combines 5 A continuous current with 100 mΩ typical contact resistance. The plunger in F77205B200G300H is made of beryllium copper and is gold-plated. As an H version, F77205B200G300H extends the operating range to high-temperature applications up to 200 °C.
