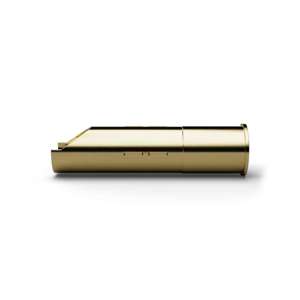

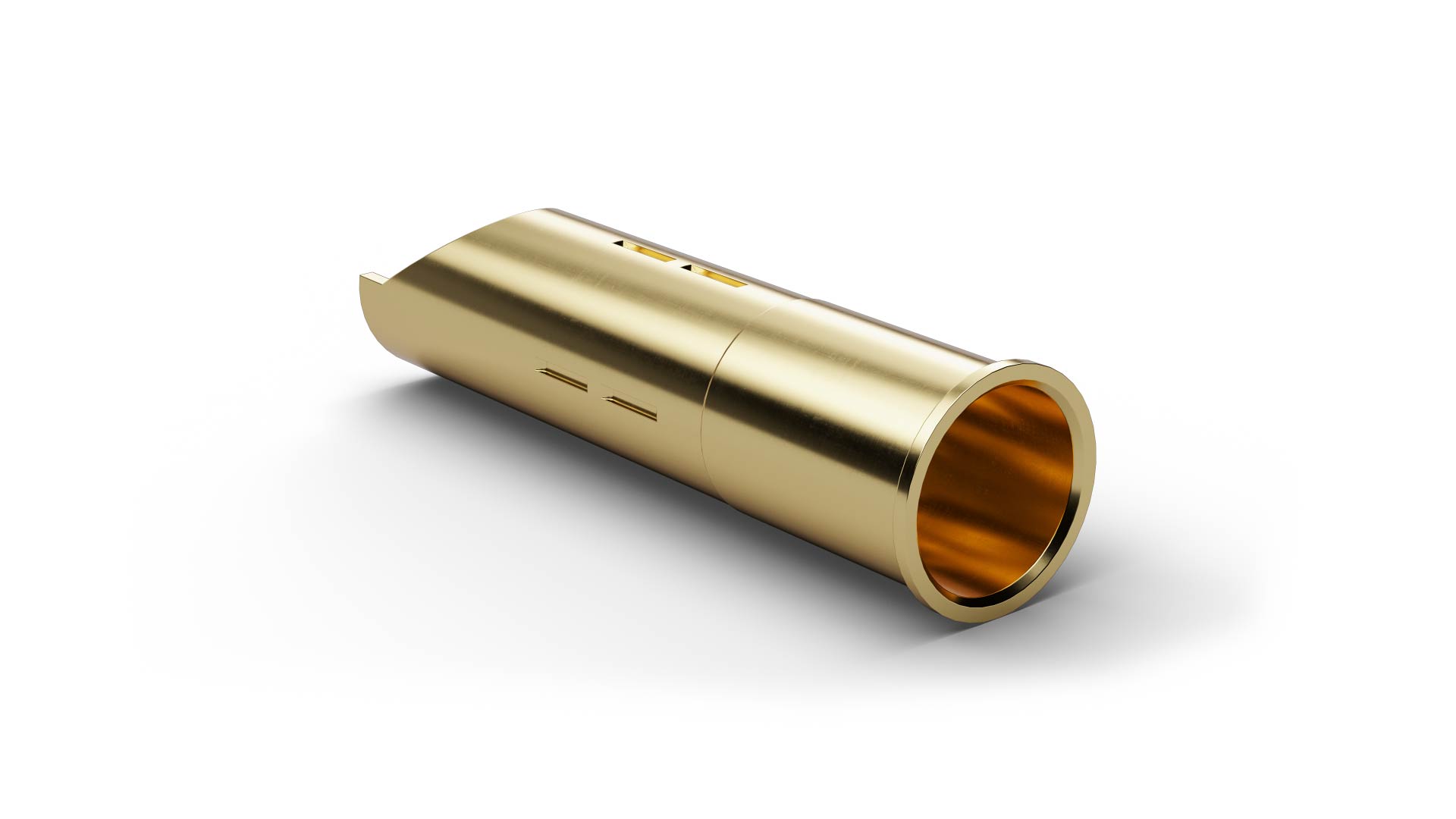

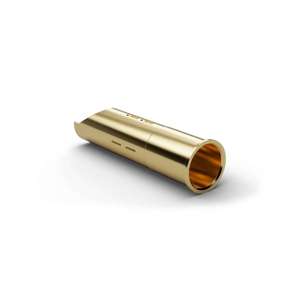

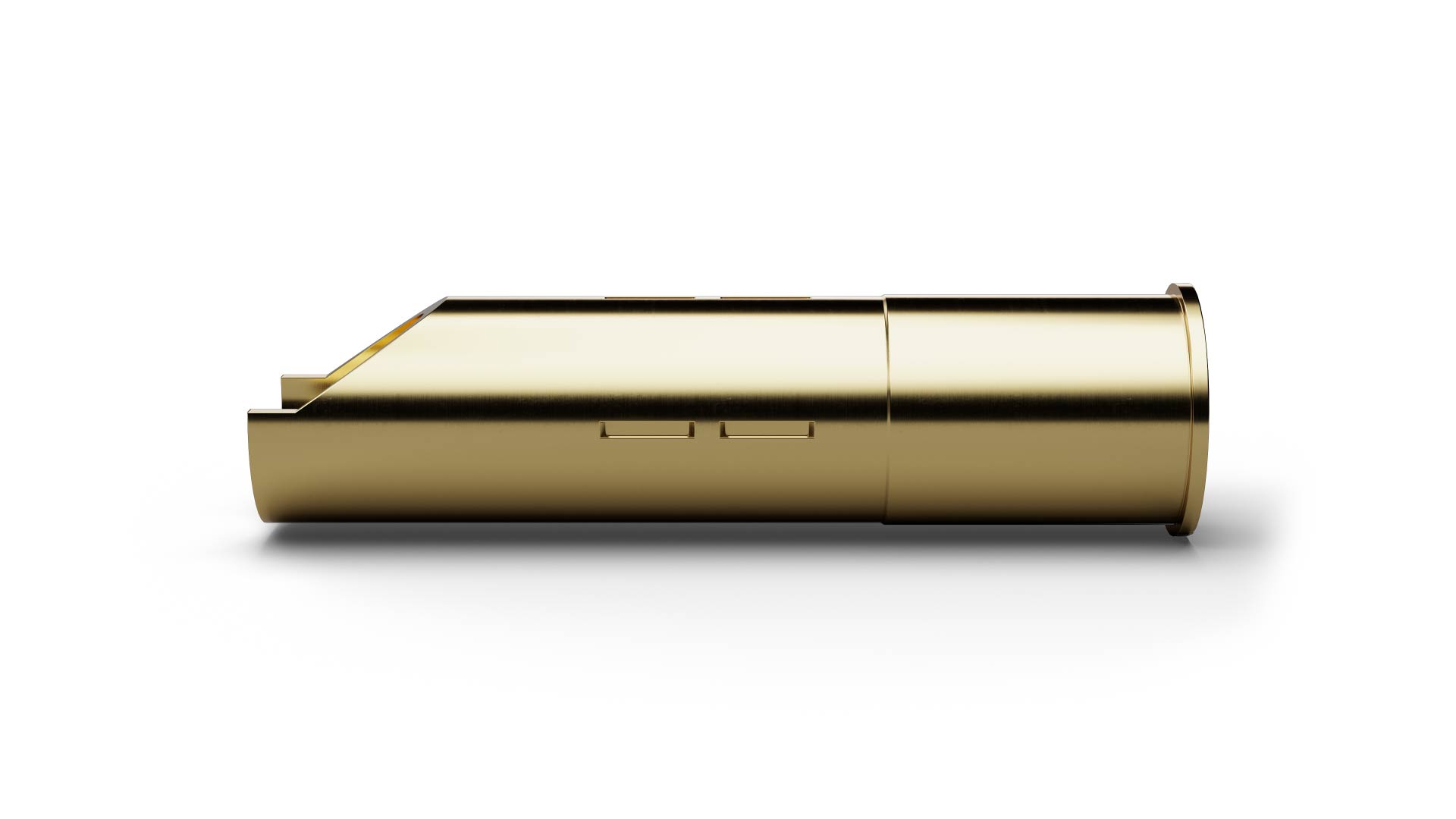

HP265LA Perspective 1 HP265LA Perspective 2

Pogo Connectors (≤ 5,00mm / 200mil) HP265LA

Item number 1131050

Technical data sheet

Quantity

Technical data

General
Type/family P-T / P265T-L150
Pitch (mm/mil) 3,50 / 138
Additional definition Solder tight
Dimensions
Total length (mm) 12
Press ring diameter (mm) 3
Outer diameter (mm) 2.95
Collar height (mm) 0.2
Materials and surfaces
Material, Coating Brass, Gold
Mechanical specifications
Connection Solder Connection
Electrical specifications
Continuous current (A) 25

Graphics

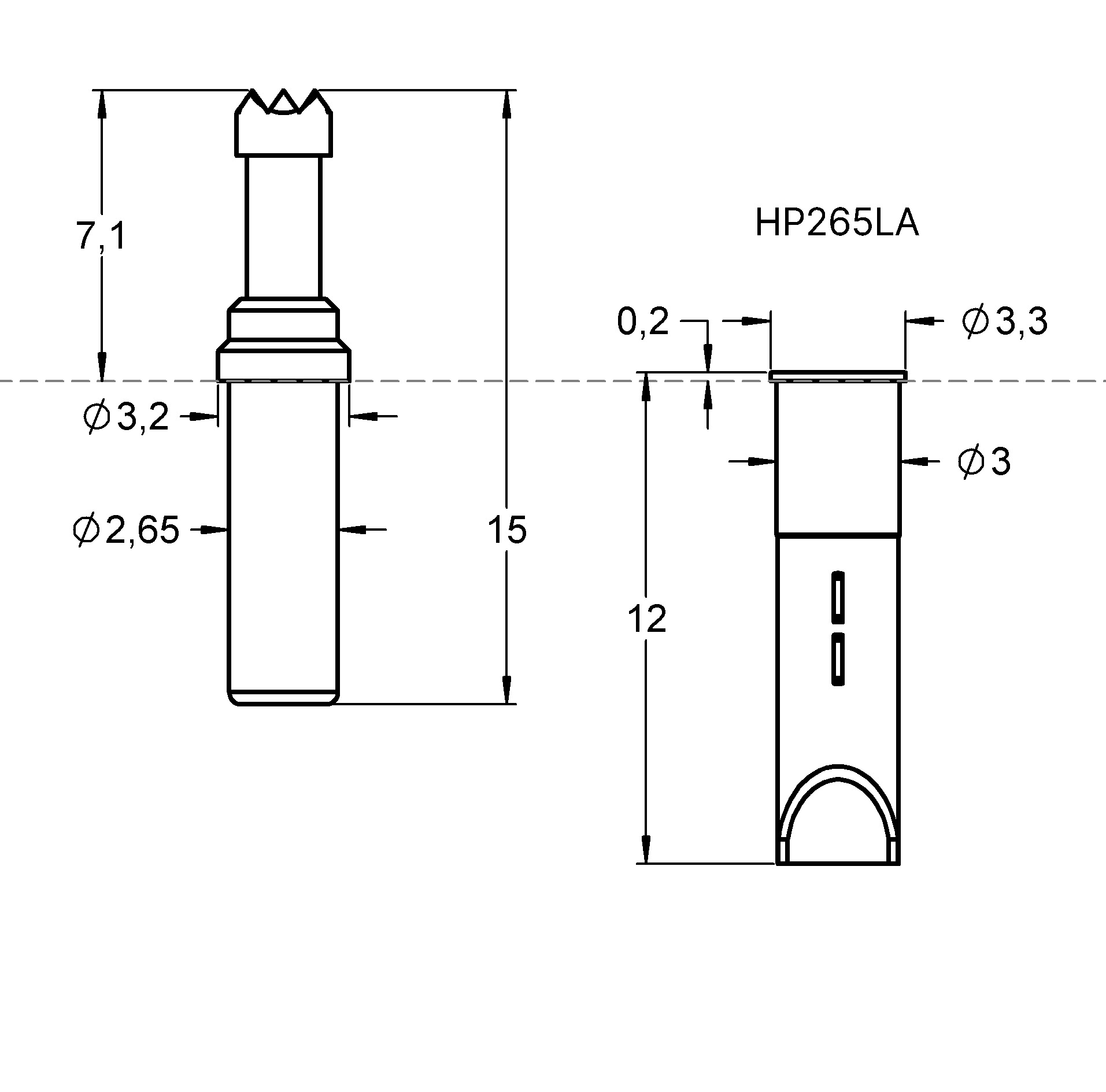

HP265LA Family designation
