Technical data
| General | |
|---|---|
| Type/family | H810 |
| Pitch (mm/mil) | 2,54 / 100 |
| Additional definition | Combi |
| Dimensions | |
|---|---|
| Total length (mm) | 51.9 |
| Outer diameter (mm) | 2.1 |
| Collar height (mm) | 0.3 |
| Materials and surfaces | |
|---|---|
| Material, Coating | Brass, Gold |
| Mechanical specifications | |
|---|---|
| Connection | Solder Connection |
| Electrical specifications | |
|---|---|
| Continuous current (A) | 3 |

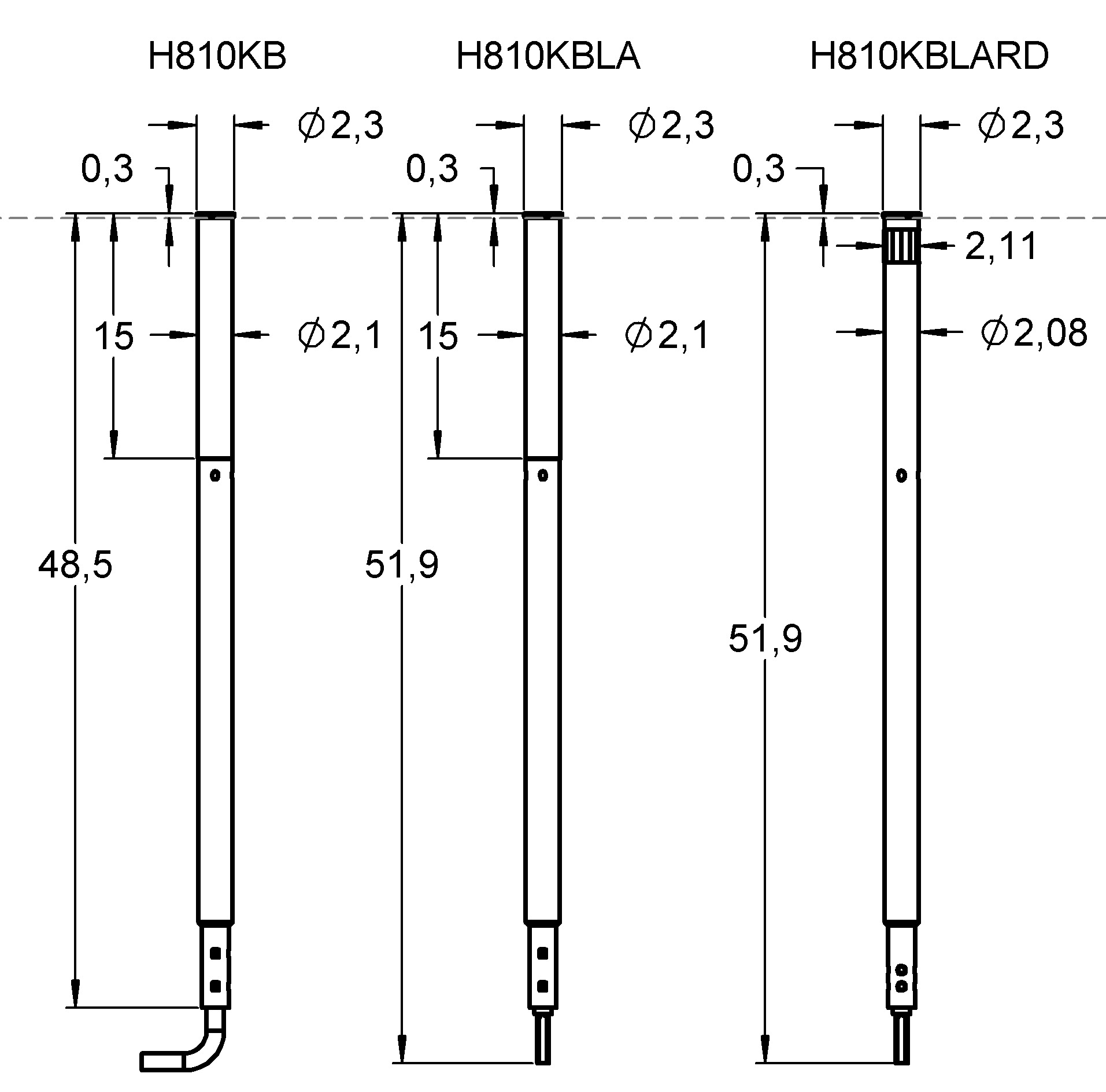

Graphics
Beschreibung des Produkts

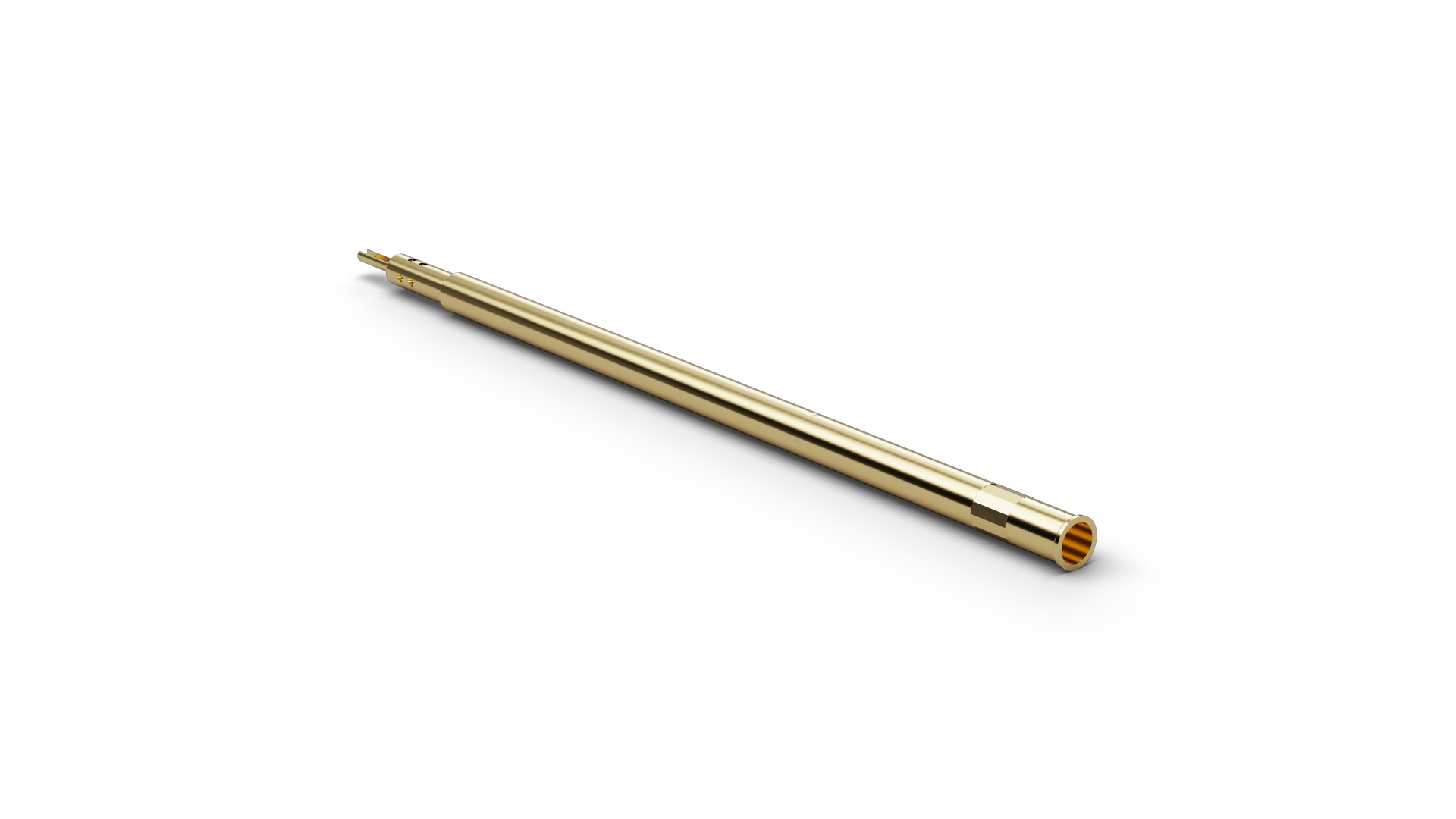

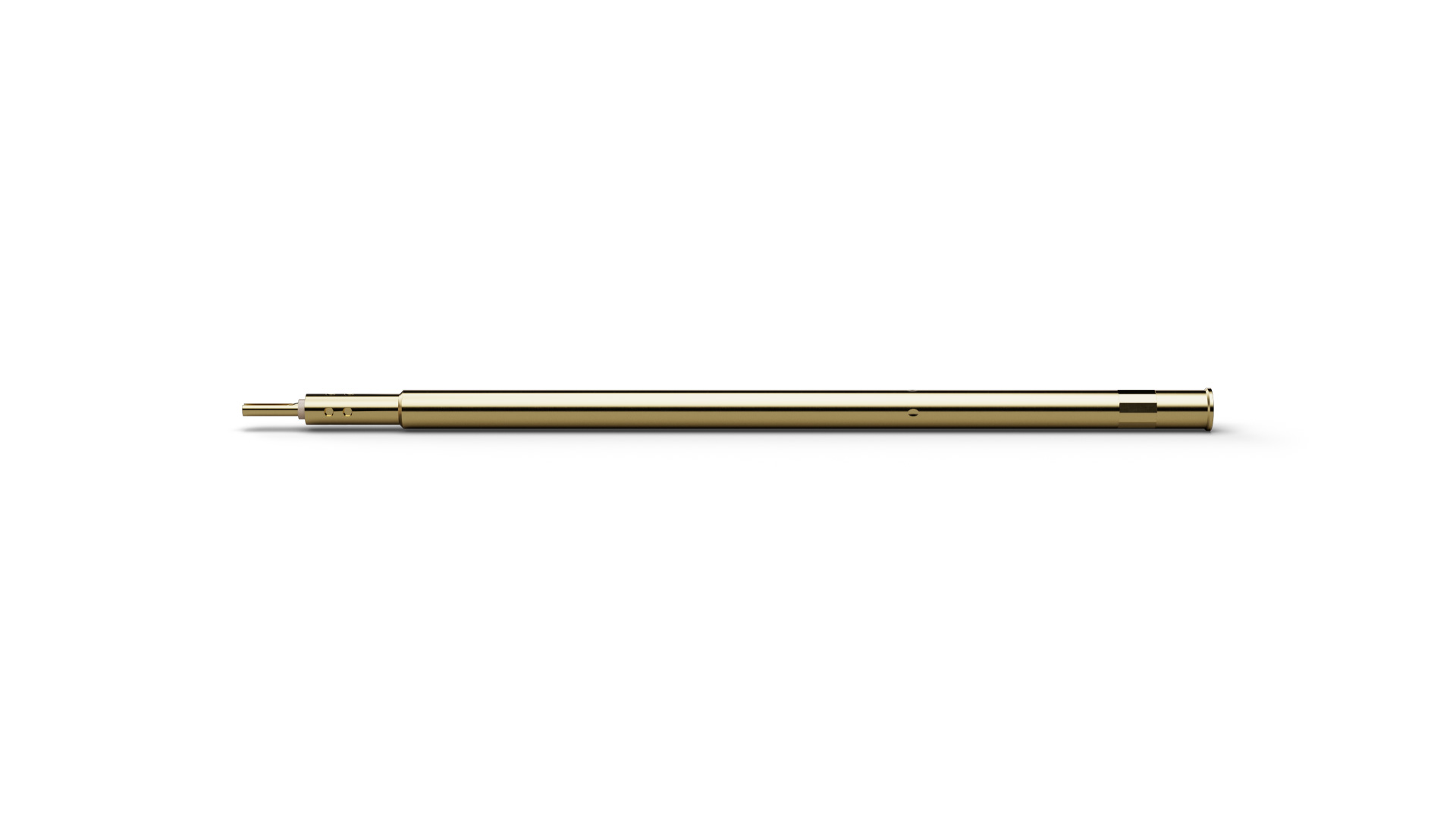

As a receptacle for a compatible Contact Probe, H810KBLARD (item number 1131938) provides mechanical guidance and positioning within the test fixture or contacting module. The version specified for H810KBLARD is Combi. The electrical connection of H810KBLARD uses a solder connection. Key installation dimensions are outside diameter 2.1 mm, length 51.9 mm. The Receptacle H810KBLARD is designed for a pitch of 2.54 mm / 100 mil. The Receptacle H810KBLARD is made of brass and is gold-plated.
