Technical data
| General | |
|---|---|
| Type/family | F888 |
| Pitch (mm/mil) | 5,00 / 197 |
| Temperature | -45°C...+100°C |
| Dimensions | |
|---|---|
| Total length (mm) | 15 |
| Protrusion height (mm) | 8.95 |
| Tip style diameter (mm) | 3 |
| Barrel diameter (mm) | 3.46 |
| Collar diameter (mm) | 4.4 |
| Press ring diameter (mm) | 4.4 |
| Materials and surfaces | |
|---|---|

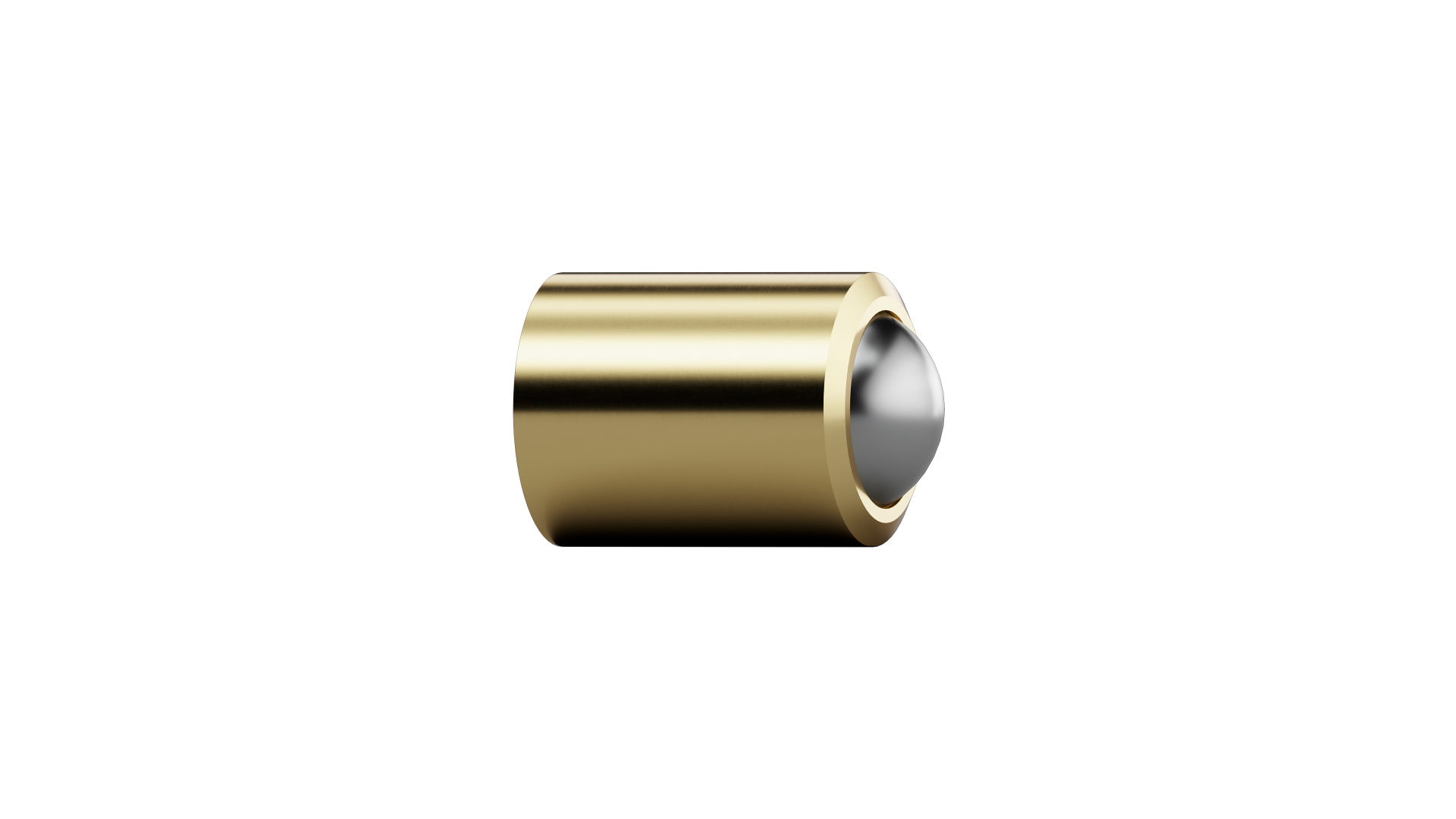

| Tip style | 90 |
| Plunger material | Steel |
| Plunger plating | Uncoated |
| Barrel material | Brass |
| Barrel plating | Gold |
| Spring material | Spring steel |
| Spring plating | Uncoated |
| Mechanical specifications | |
|---|---|
| Preload (cN) | 90 |
| Spring force (cN) | 130 |
| Nominal travel (mm) | 0.8 |
| Maximum travel (mm) | 0.85 |
| Thread | M4X0,35 |
| Tool size (mm) | 3 |
| Electrical specifications | |
|---|---|
| Continuous current (A) | 1 |
| Typical contact resistance (mOhm) | 25 |
| Switch type | NO (Normal Open) |
| Switch travel (mm) | 0.35 |
| Continuous current (A) 2 | 5 |

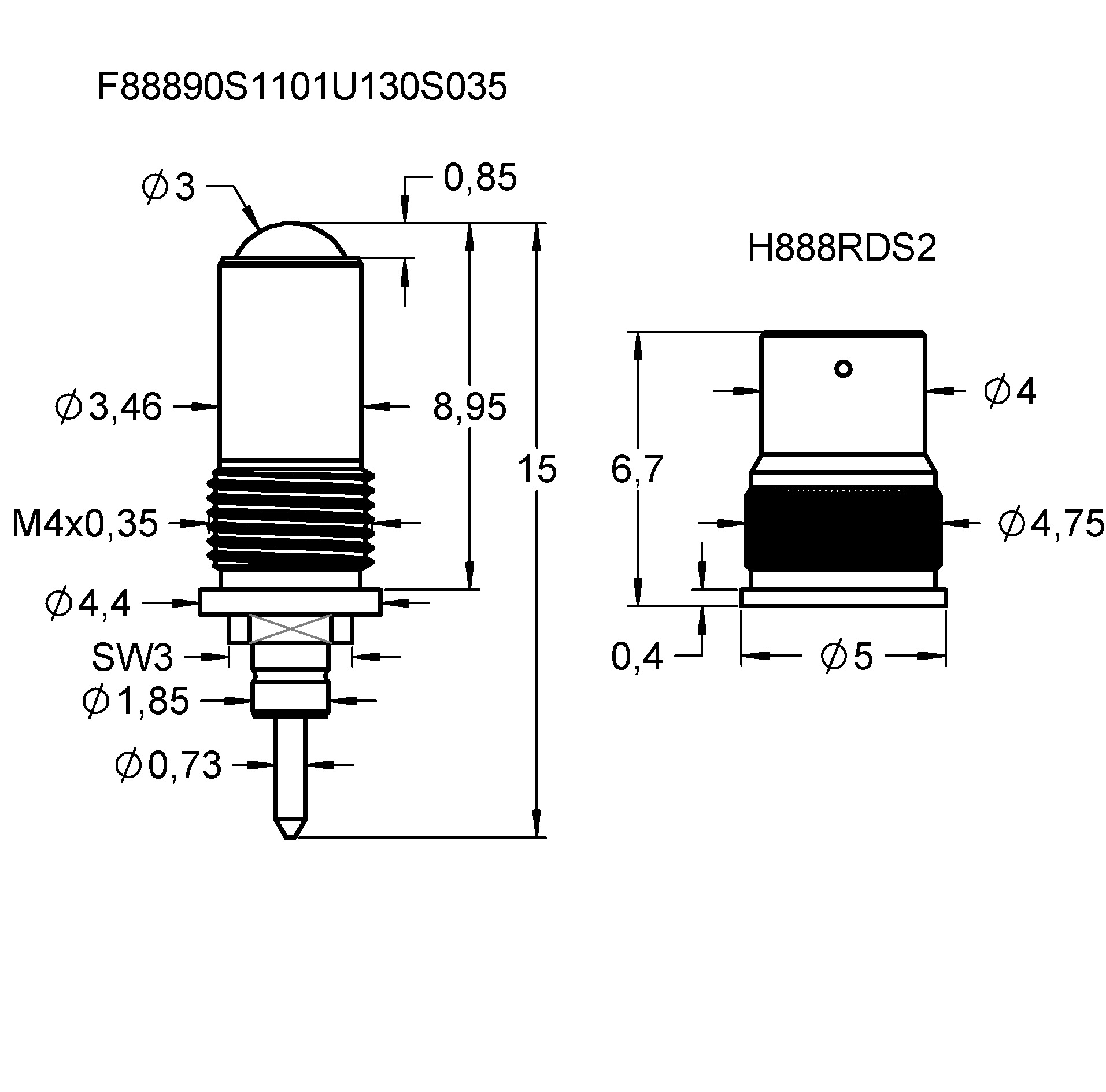

Graphics
Beschreibung des Produkts

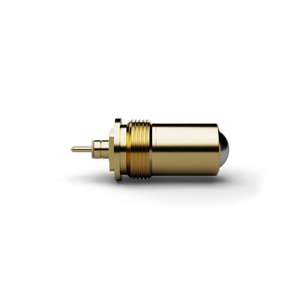

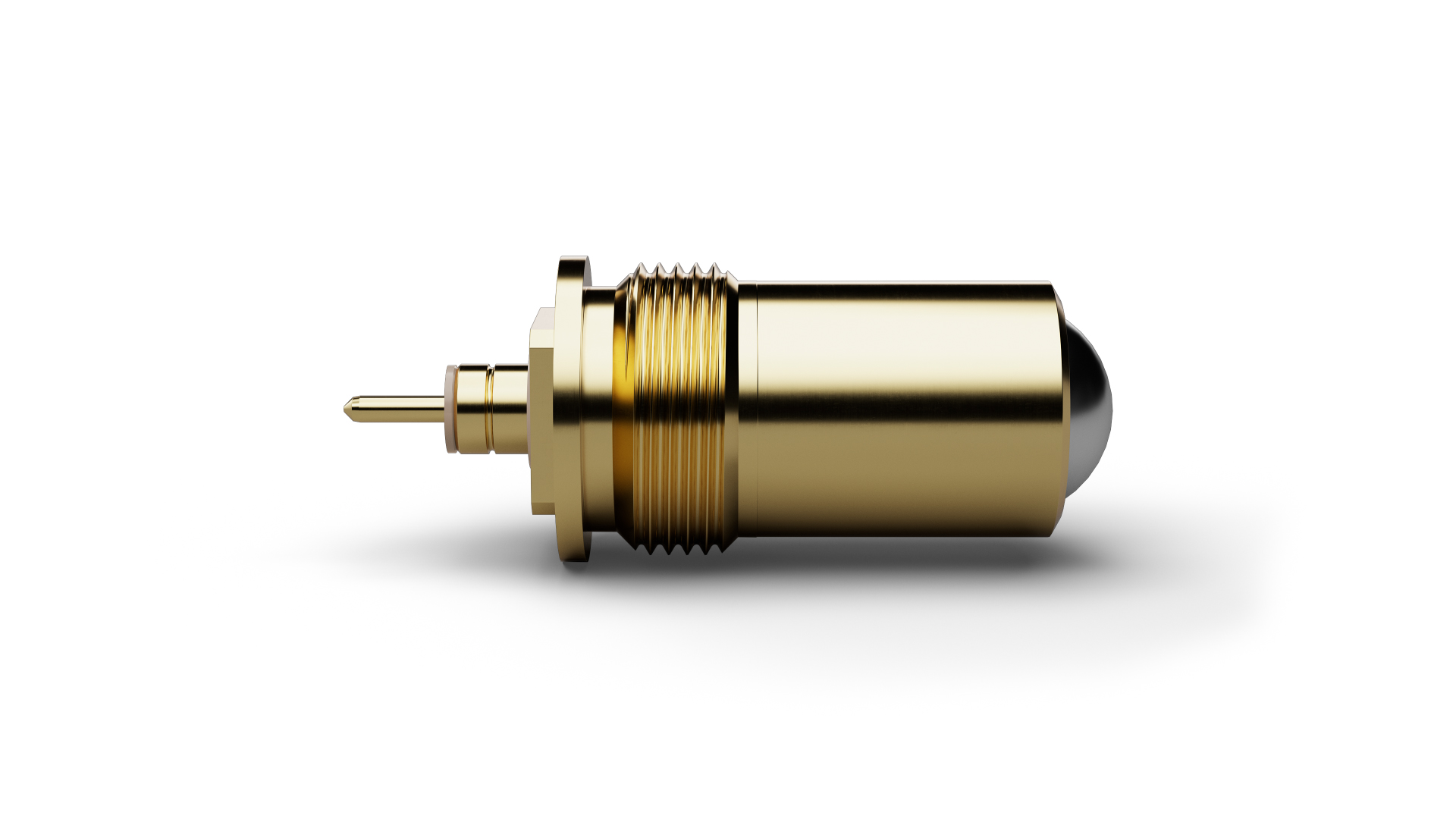

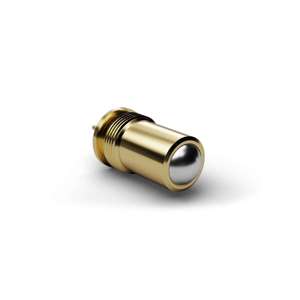

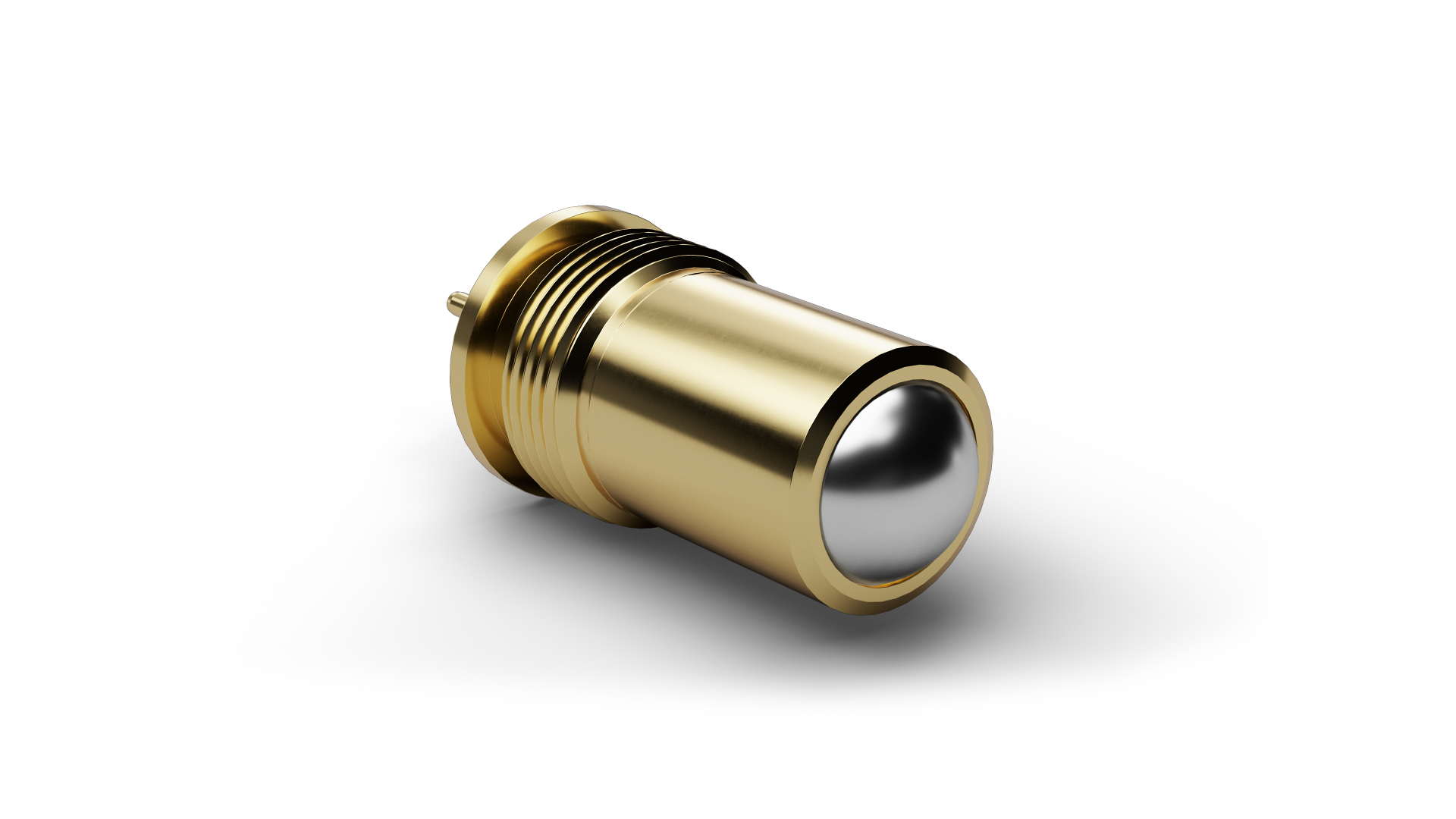

The Switch Probe F88890S1101U130S035 (item number 1132733) combines spring-loaded contacting with a defined switching or sensing function. F88890S1101U130S035 combines electrical contacting with a switching signal so that DUT presence or position can be evaluated directly in the test sequence. F88890S1101U130S035 is used for presence and position testing and sends an electrical signal to the test system when the defined actuation travel is reached. For F88890S1101U130S035, spring force is 130 cN at a nominal travel of 0.8 mm. F88890S1101U130S035 is rated for 1 A continuous current with a typical contact resistance of 25 mΩ. F88890S1101U130S035 combines a pitch of 5 mm / 197 mil with tip style 90 (Rolling ball) and a tip diameter of 3 mm.
