Technical data
| General | |
|---|---|
| Structure | Basic Contact Probe |
| Type/family | P / P197-L053 |
| Pitch (mm/mil) | 3,00 / 118 |
| Temperature | -45°C...+200°C |

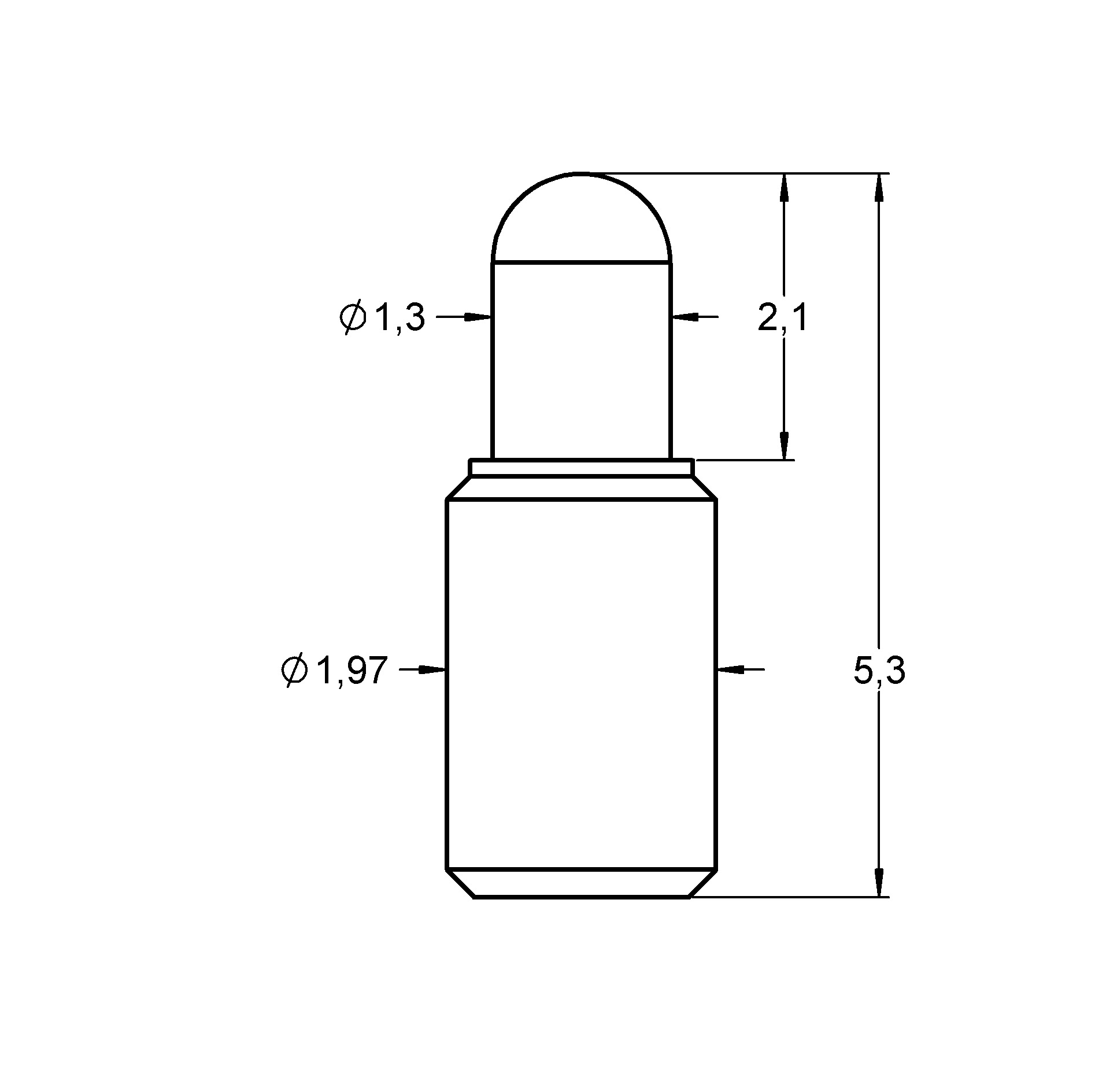

| Dimensions | |
|---|---|
| Total length (mm) | 5.3 |
| Protrusion height (mm) | 2.8 |
| Tip style diameter (mm) | 1.3 |
| Barrel diameter (mm) | 1.97 |
| Materials and surfaces | |
|---|---|
| Tip style | 11 |
| Plunger material | Beryllium copper |
| Plunger plating | Gold |
| Barrel material | Brass |
| Barrel plating | Gold |
| Spring material | High-grade steel |
| Spring plating | Uncoated |
| Mechanical specifications | |
|---|---|
| Preload (cN) | 40 |
| Spring force (cN) | 100 |
| Nominal travel (mm) | 1 |
| Maximum travel (mm) | 1.2 |
| Pointing accuracy +/- (mm) | 0.08 |
| Electrical specifications | |
|---|---|
| Continuous current (A) | 9 |
| Typical contact resistance (mOhm) | 100 |

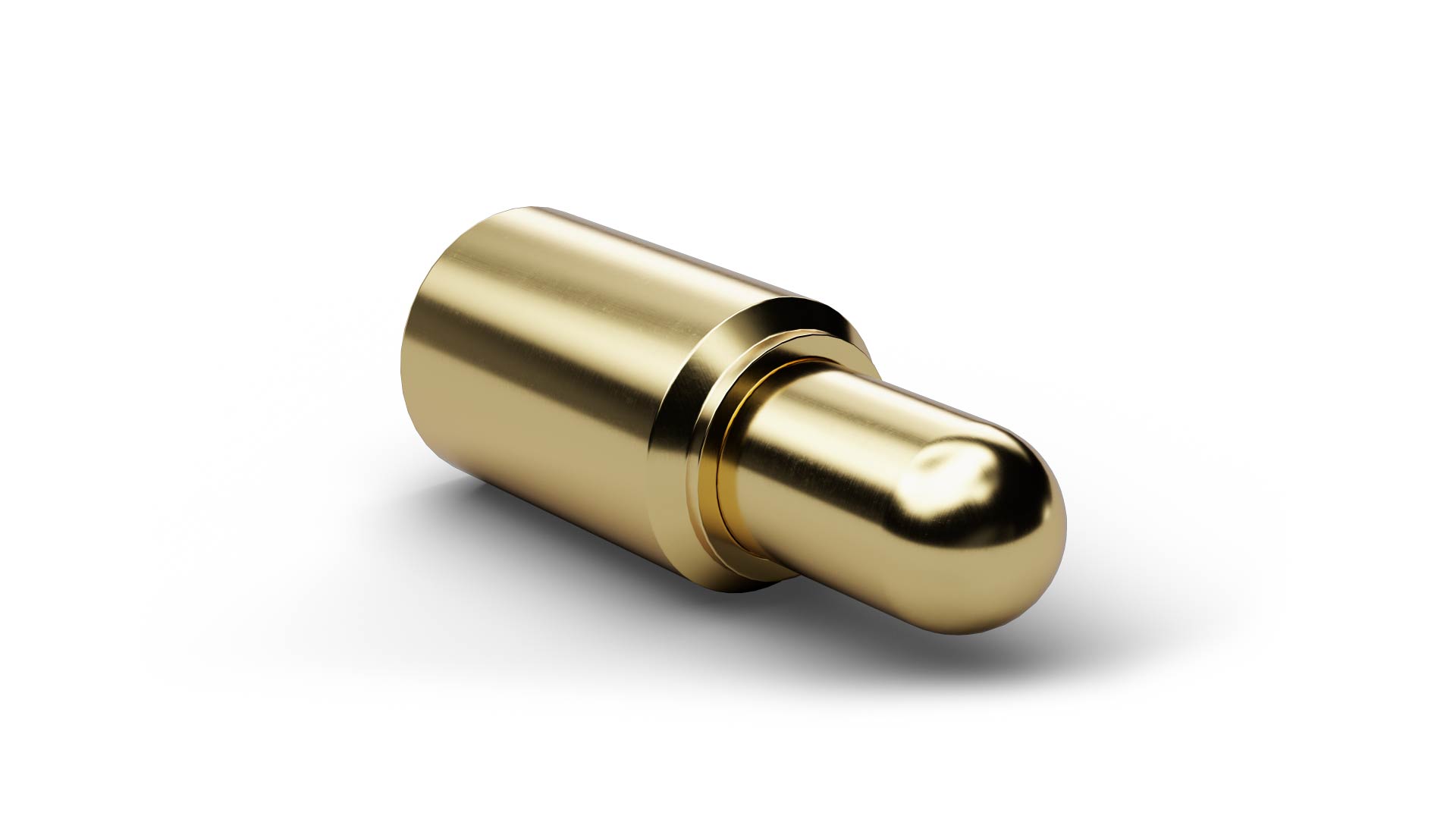

Graphics
