Technical data
| General | |
|---|---|
| Structure | Coaxial Probe |
| Type/family | HCF348 |
| Pitch (mm/mil) | 7,60 / 300 |
| Temperature | -45°C...+200°C |
| Dimensions | |
|---|---|
| Total length (mm) | 52.1 |
| Protrusion height (mm) | 8.5 |
| Tip style diameter (mm) | 6 |
| Barrel diameter (mm) | 5.8 |
| Collar diameter (mm) | 6.4 |
| Press ring diameter (mm) | 6.4 |
| Materials and surfaces | |
|---|---|
| Tip style | 06 |
| Plunger material | Beryllium copper |
| Plunger plating | Gold |
| Barrel material | Brass |
| Barrel plating | Silver |
| Spring material | Spring steel |
| Spring plating | Gold |
| Mechanical specifications | |
|---|---|
| Preload (cN) | 400 |
| Spring force (cN) | 700 |
| Nominal travel (mm) | 4.4 |
| Maximum travel (mm) | 5.5 |
| Thread | M5 |
| Tool size (mm) | 6 |
| Electrical specifications | |
|---|---|
| Continuous current (A) | 100 |
| Typical contact resistance (mOhm) | 5 |
Graphics
Beschreibung des Produkts

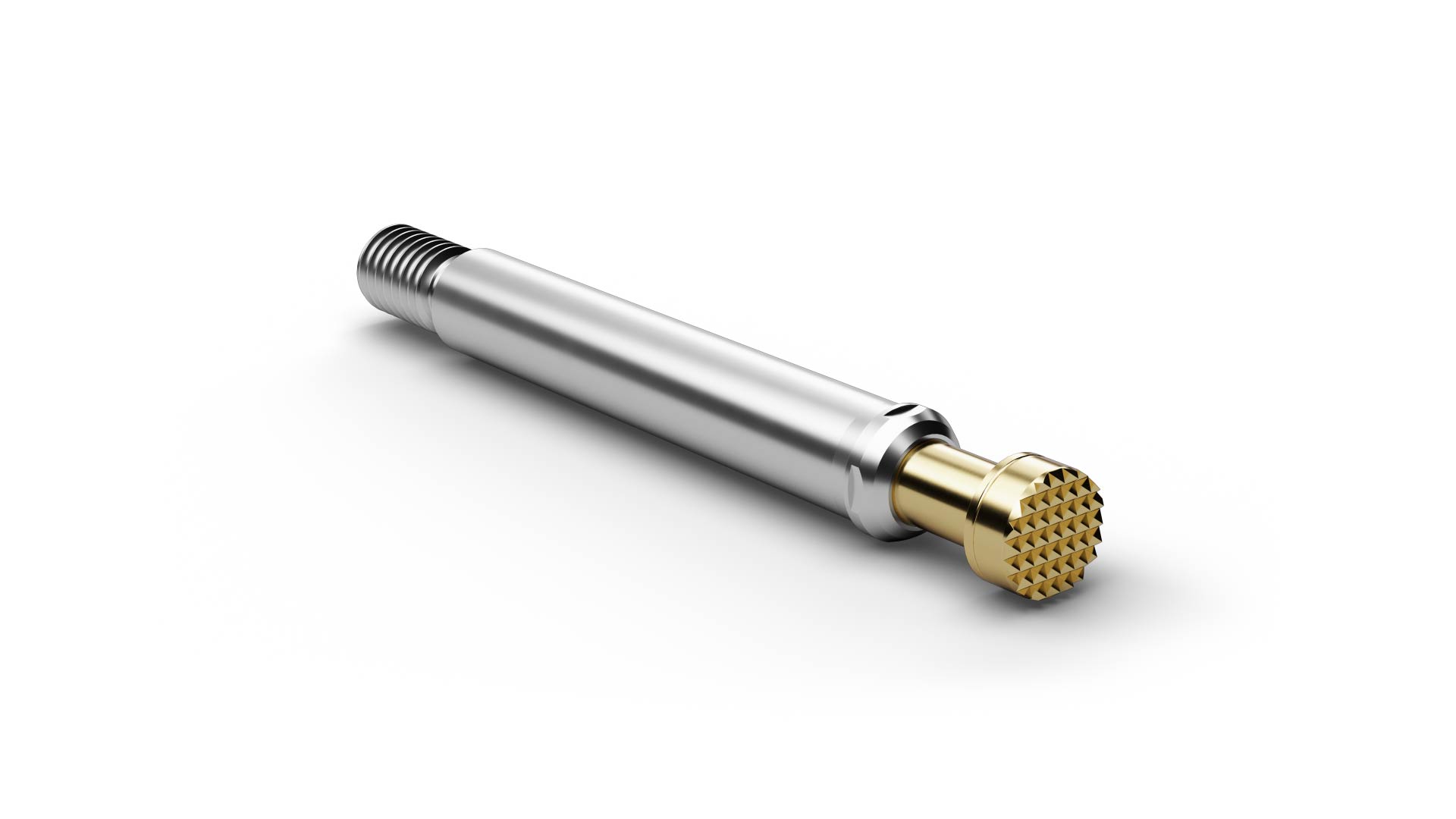

The Coaxial High Current Probe HCF34806B600G700A (item number 1133491) is designed for safe transmission of high electrical currents in test and contacting applications. HCF34806B600G700A focuses on current capacity and low transition losses, as required in battery testing, formation and other e-mobility applications. For HCF34806B600G700A, contact resistance, contact force and thermal behavior must be considered together because they influence voltage drop and temperature rise at the contact point. The intended application area for HCF34806B600G700A includes battery and power-electronics testing. The electrical rating of HCF34806B600G700A combines 100 A continuous current with 5 mΩ typical contact resistance. HCF34806B600G700A operates with 700 cN spring force and 4.4 mm nominal travel.
