Technical data
| General | |
|---|---|
| Structure | Coaxial Probe |
| Type/family | HF77 |
| Pitch (mm/mil) | 4,00 / 157 |
| Temperature | -45°C...+100°C |

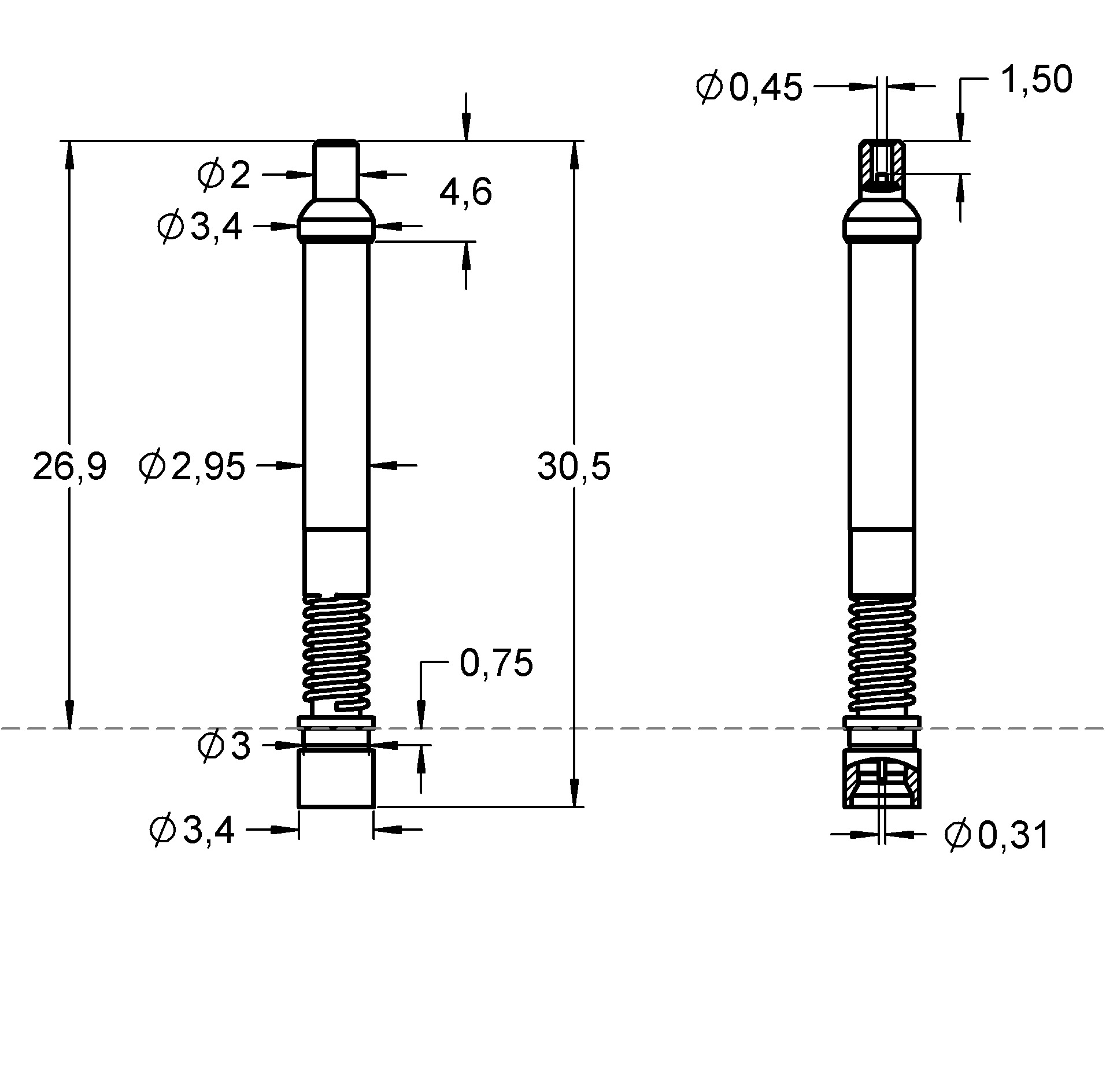

| Dimensions | |
|---|---|
| Total length (mm) | 30.5 |
| Tip style diameter (mm) | 2 |
| Barrel diameter (mm) | 2.95 |
| Inside/outside distance (mm) | 1.5 |
| Tip style diameter (mm) 2 | 0.45 |
| Materials and surfaces | |
|---|---|
| Tip style | 16 |
| Tip style 2 | 16 |
| Plunger material | Beryllium copper |
| Plunger plating | Gold |
| Barrel material | Brass |
| Barrel plating | Gold |
| Spring material | High-grade steel |
| Spring plating | Uncoated |
| Plunger material 2 | Beryllium copper |
| Plunger plating 2 | Gold |
| Spring material 2 | Spring steel |
| Spring plating 2 | Gold |
| Mechanical specifications | |
|---|---|
| Preload (cN) | 230 |
| Spring force (cN) | 420 |
| Nominal travel (mm) | 2 |
| Maximum travel (mm) | 2.8 |
| Connection | Plug |
| DUT | SMK Male 1 Pos |
| Electrical specifications | |
|---|---|
| Continuous current (A) | 0.5 |
| Impedance (ohm) | 50 |
| Frequency (GHz) | 12 |
| Continuous current (A) 2 | 0.1 |
| Internal contact specifications | |
|---|---|
| Nominal travel (mm) 2 | 0.5 |
| Maximum travel (mm) 2 | 1.8 |
| Preload (cN) 2 | 95 |
| Spring force (cN) 2 | 120 |

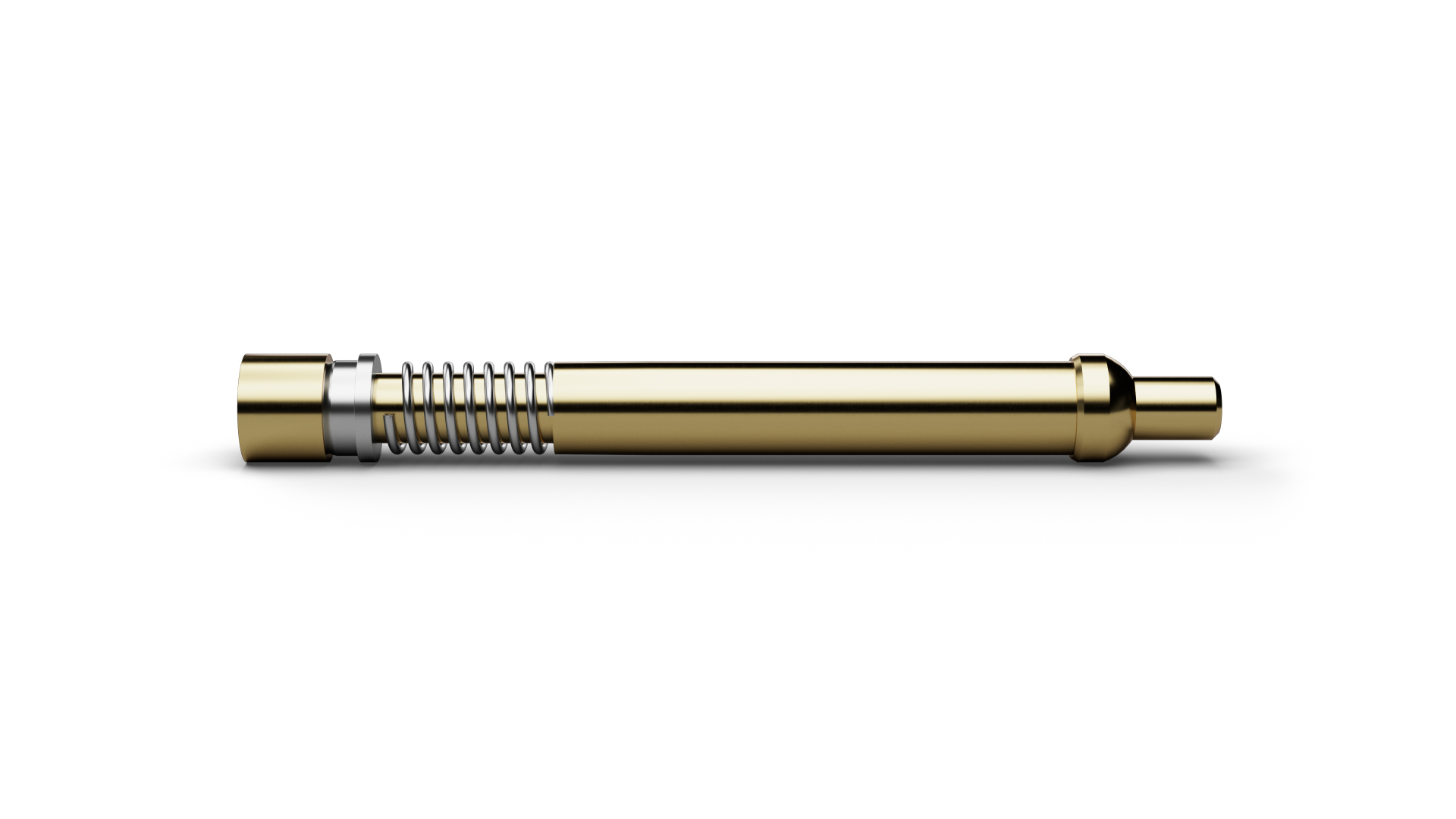

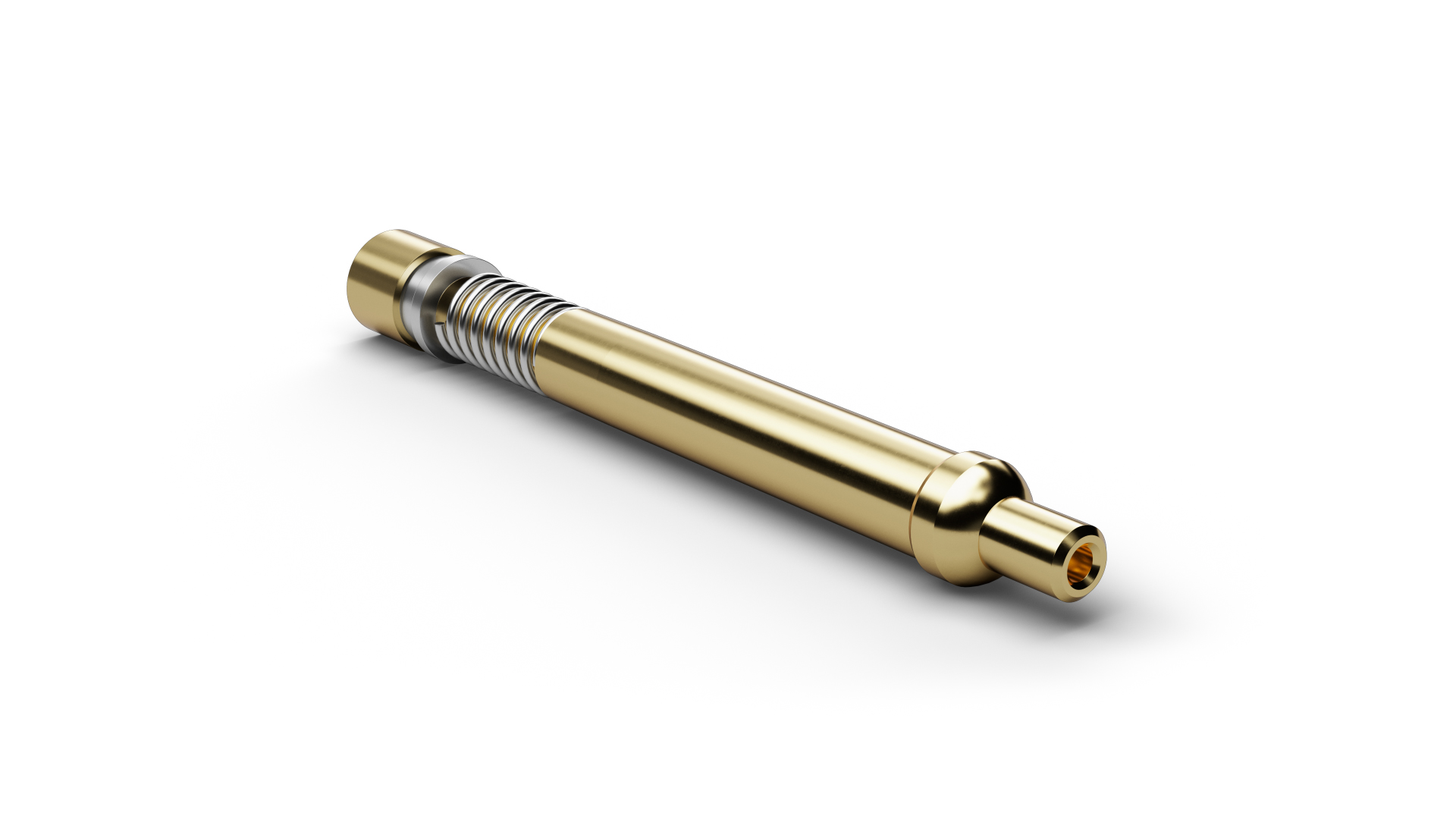

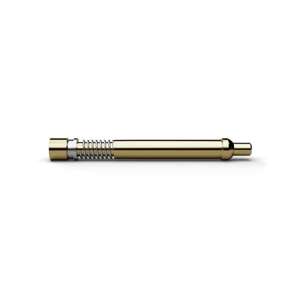

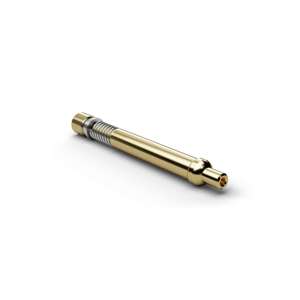

Graphics
