Technical data
| General | |
|---|---|
| Structure | Basic Contact Probe |
| Type/family | HCF724 |
| Pitch (mm/mil) | 2,54 / 100 |
| Temperature | -45°C...+200°C |

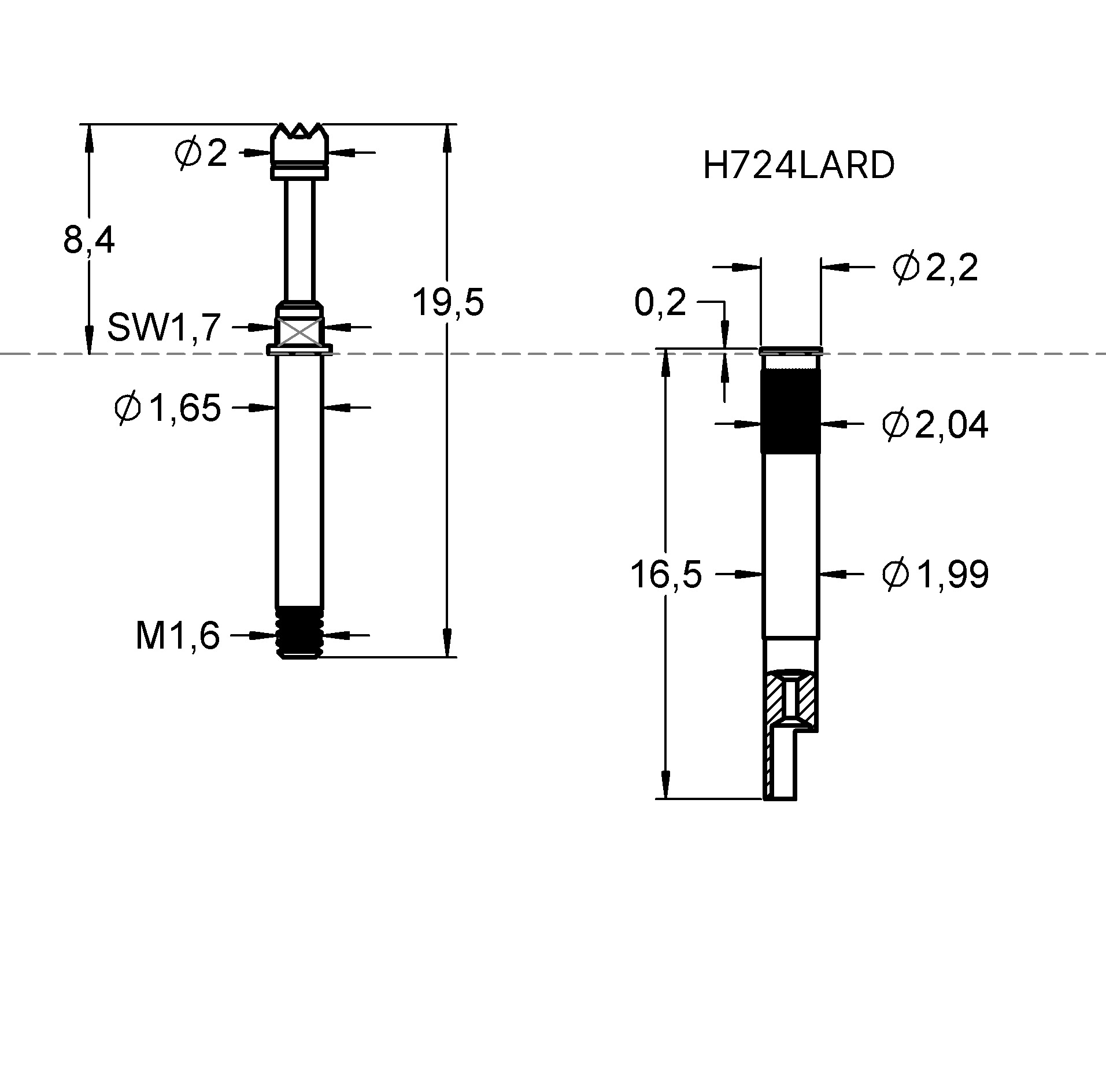

| Dimensions | |
|---|---|
| Total length (mm) | 19.5 |
| Protrusion height (mm) | 8.4 |
| Tip style diameter (mm) | 2 |
| Barrel diameter (mm) | 1.65 |
| Collar diameter (mm) | 2.3 |
| Materials and surfaces | |
|---|---|
| Tip style | 06 |
| Plunger material | Beryllium copper |
| Plunger plating | Gold |
| Barrel material | Brass |
| Barrel plating | Silver |
| Spring material | Spring steel |
| Spring plating | Gold |
| Mechanical specifications | |
|---|---|
| Preload (cN) | 50 |
| Spring force (cN) | 150 |
| Nominal travel (mm) | 3.5 |
| Maximum travel (mm) | 4.5 |
| Pointing accuracy +/- (mm) | 0.08 |
| Thread | M1,6 |
| Tool size (mm) | 1,7 |
| Connection | Thread |
| Electrical specifications | |
|---|---|
| Continuous current (A) | 20 |
| Typical contact resistance (mOhm) | 10 |
Graphics
Beschreibung des Produkts

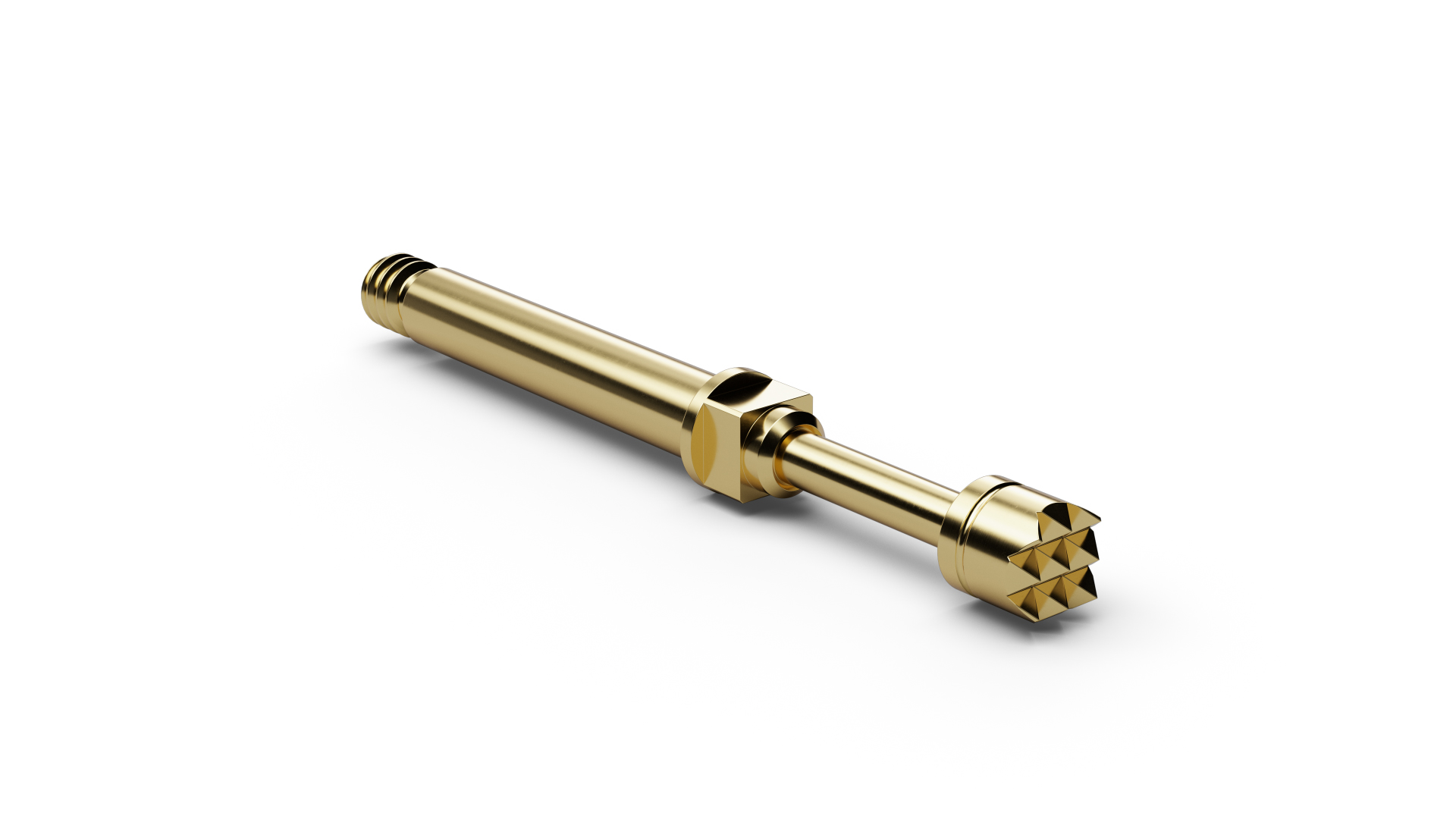

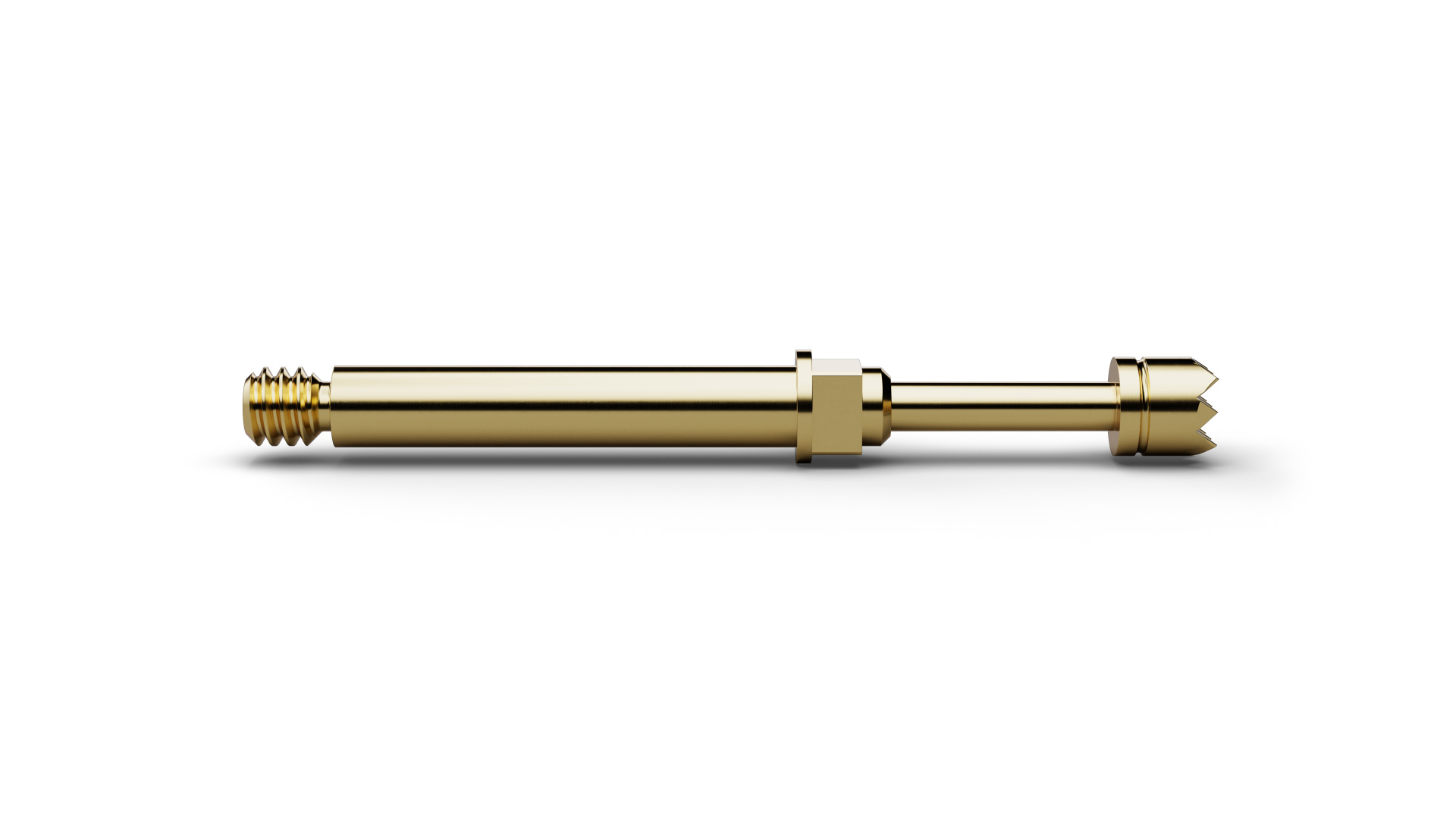

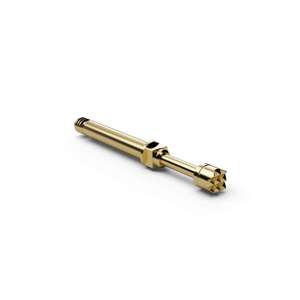

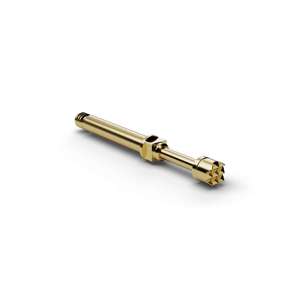

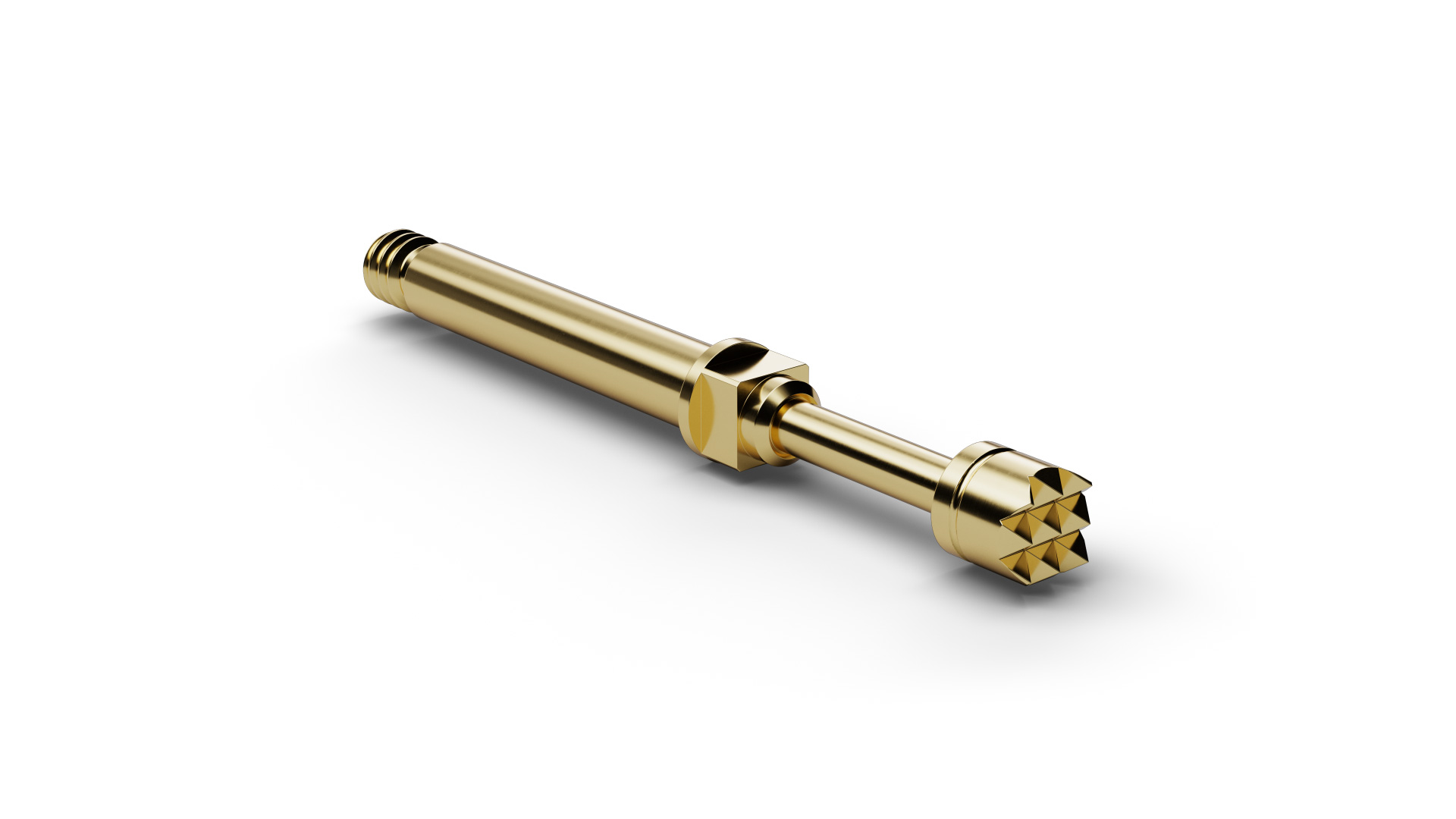

The High Current Probe HCF72406B200G150A (item number 1135465) is designed for safe transmission of high electrical currents in test and contacting applications. HCF72406B200G150A focuses on current capacity and low transition losses, as required in battery testing, formation and other e-mobility applications. For HCF72406B200G150A, contact resistance, contact force and thermal behavior must be considered together because they influence voltage drop and temperature rise at the contact point. The electrical rating of HCF72406B200G150A combines 20 A continuous current with 10 mΩ typical contact resistance. For HCF72406B200G150A, spring force is 150 cN at a nominal travel of 3.5 mm. On HCF72406B200G150A, tip style 06 (Serrated stepped) has a diameter of 2 mm.
