Technical data
| General | |
|---|---|
| Structure | Step Probe |
| Type/family | F732SP |
| Pitch (mm/mil) | 2,54 / 100 |
| Temperature | -45°C...+100°C |
| Additional definition | SP |
| Dimensions | |
|---|---|
| Total length (mm) | 36.2 |
| Protrusion height (mm) | 10.8 |
| Tip style diameter (mm) | 1.1 |
| Barrel diameter (mm) | 1.65 |
| Collar diameter (mm) | 2.3 |
| Press ring diameter (mm) | 2.3 |
| A – pin diameter (mm) | 1.1 |
| B – plate diameter (mm) | 1.8 |
| C – pin length (mm) | 3 |
| Materials and surfaces | |
|---|---|
| Tip style | 11 |
| Plunger material | Beryllium copper |
| Plunger plating | Gold |
| Barrel material | Brass |
| Barrel plating | Gold |
| Spring material | Spring steel |
| Spring plating | Silver |
| Mechanical specifications | |
|---|---|
| Preload (cN) | 60 |
| Spring force (cN) | 150 |
| Nominal travel (mm) | 4 |
| Maximum travel (mm) | 5 |
| Pointing accuracy +/- (mm) | 0.08 |
| Thread | M1,6 |
| Tool size (mm) | 1,7 |
| Electrical specifications | |
|---|---|
| Continuous current (A) | 5 |
| Typical contact resistance (mOhm) | 20 |
Graphics
Beschreibung des Produkts

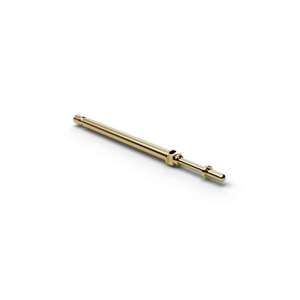

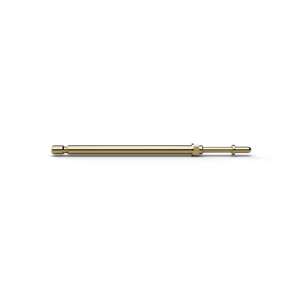

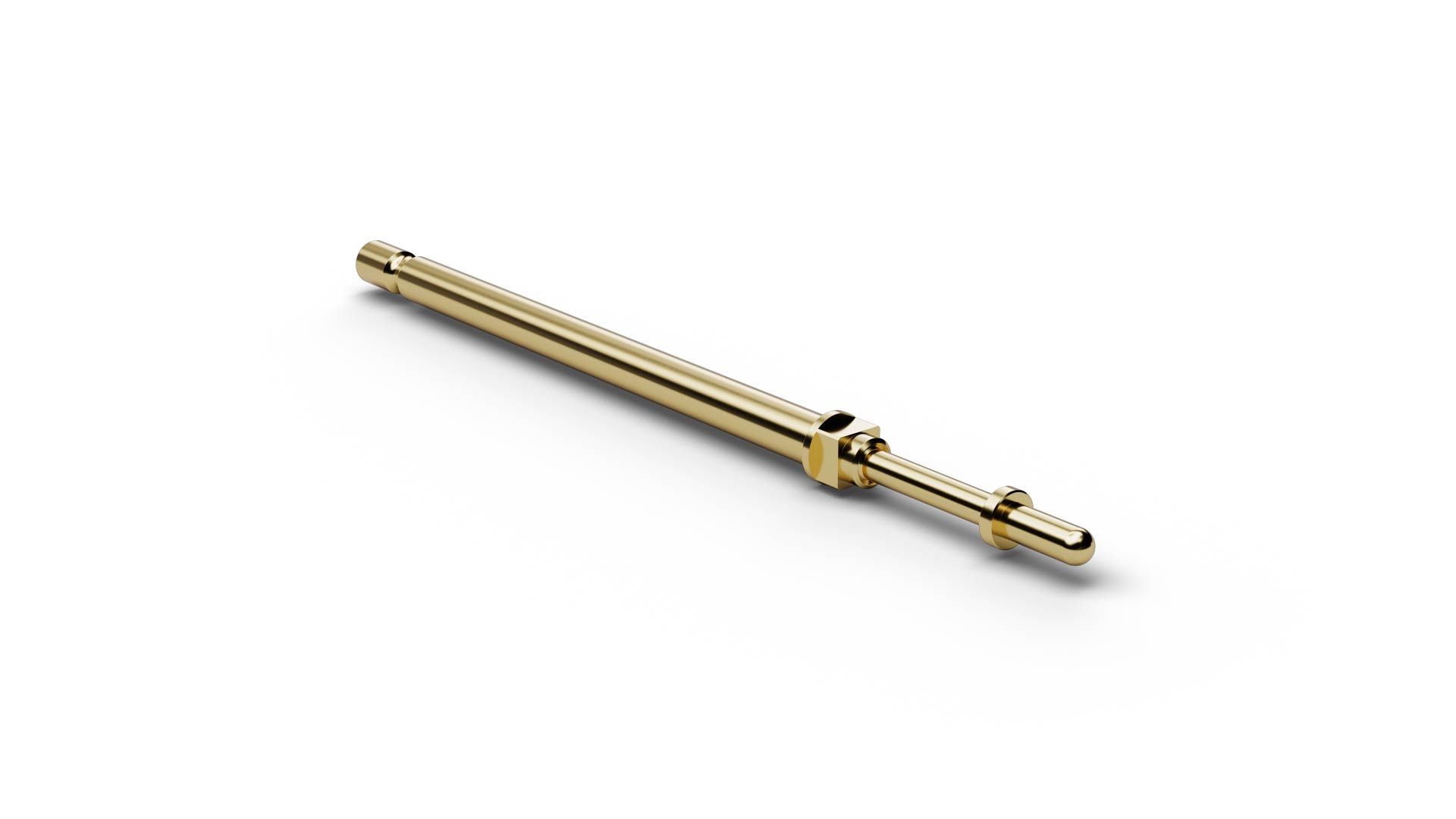

F73211B0105G150SP (item number 1142387) belongs to the Step Probe range for electrical position and presence checks in wire-harness testing. On F73211B0105G150SP, electrical contact is established only at the intended penetration depth, making the Step Probe suitable for position and presence checks on connectors. Contact geometry is characterized by pin diameter 1.1 mm, plate diameter 1.8 mm, pin length 3 mm. On F73211B0105G150SP, a pitch of 2.54 mm / 100 mil is combined with 150 cN spring force and 4 mm nominal travel. F73211B0105G150SP is specified for 5 A continuous current. The plunger in F73211B0105G150SP is made of beryllium copper and is gold-plated.
