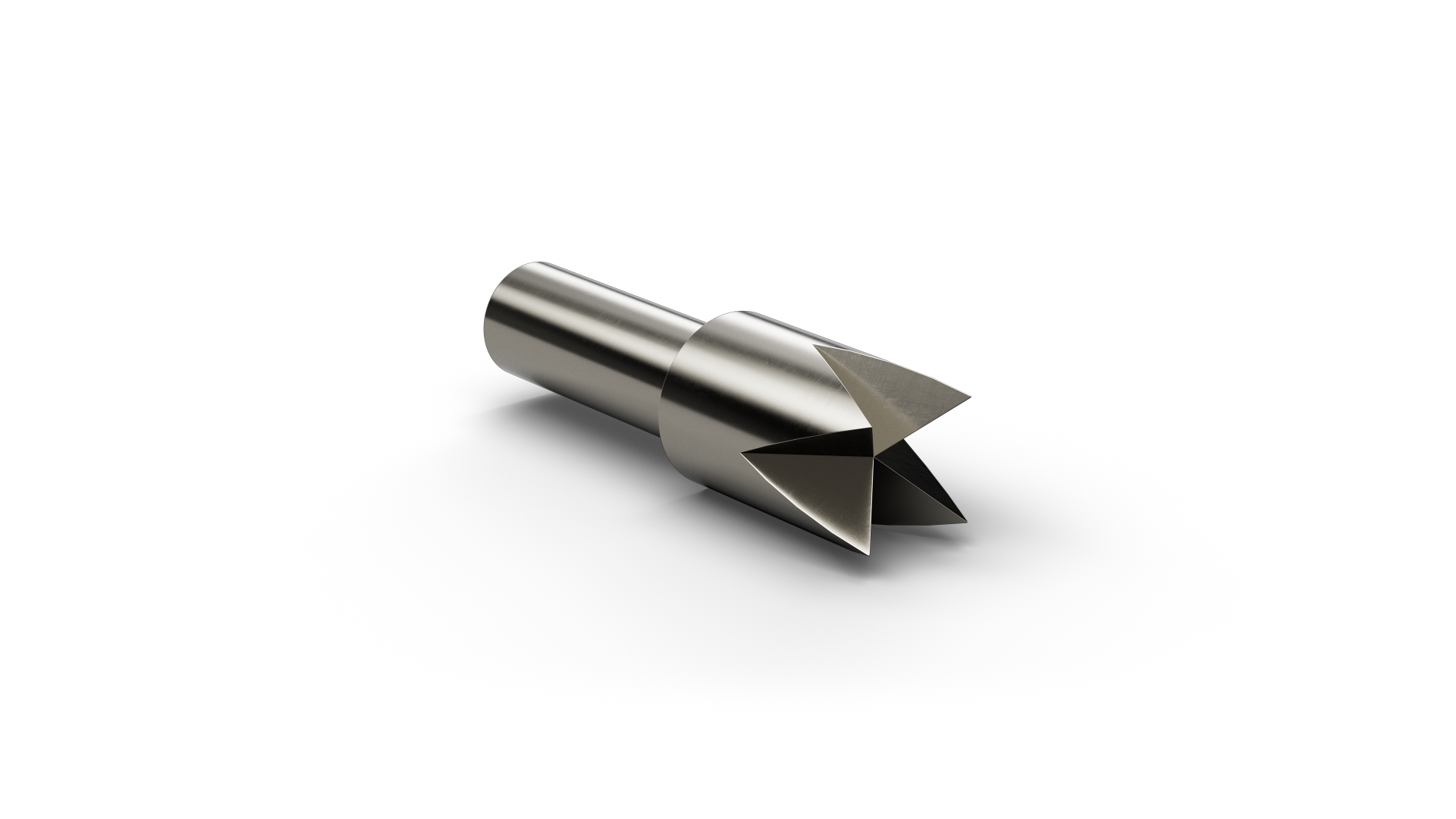

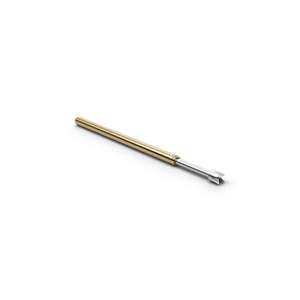

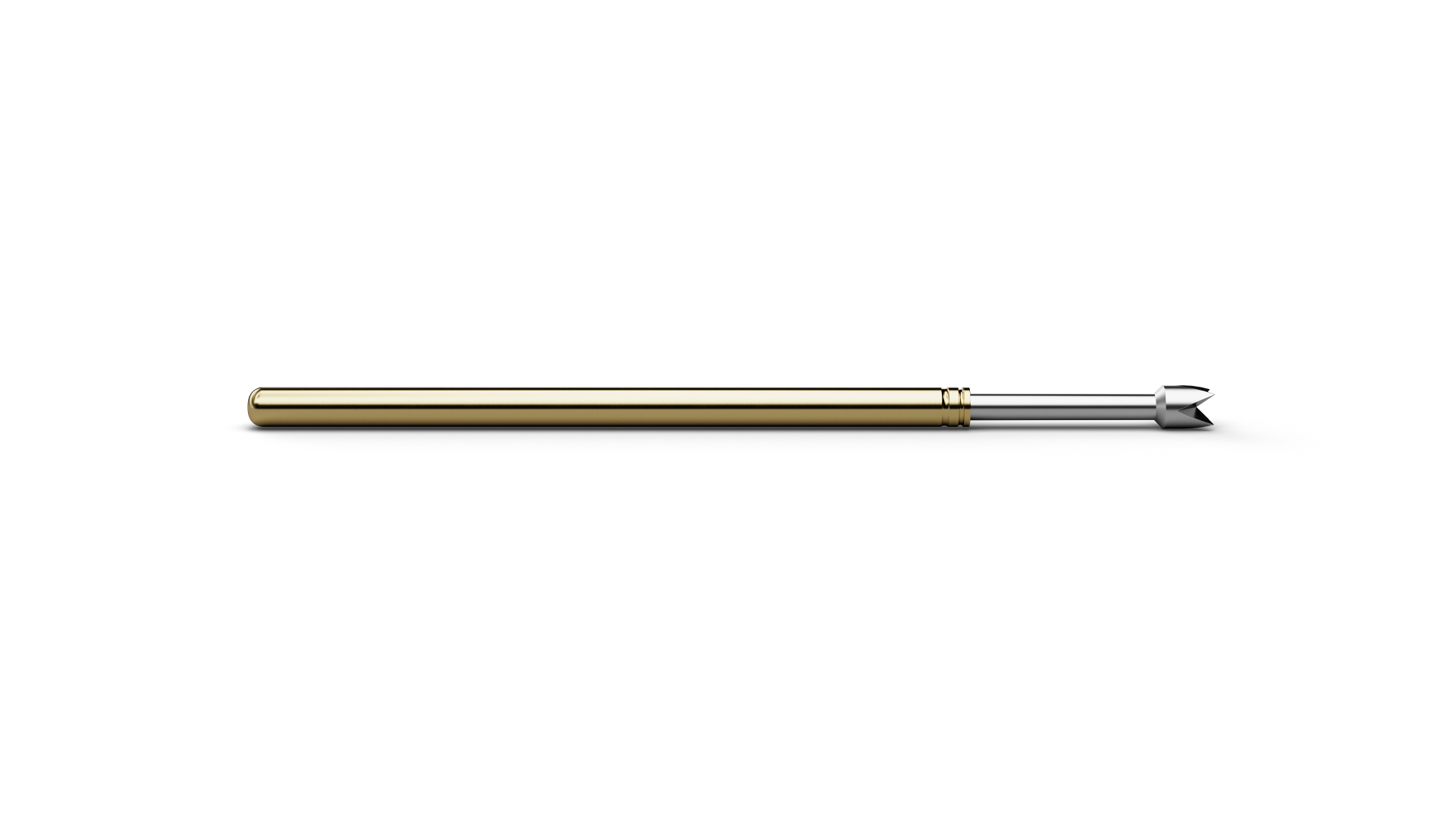

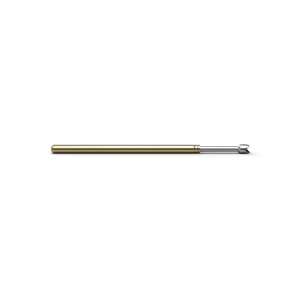

As a Basic Contact Probe, F10014S150P200HP (item number 1142392) establishes a spring-loaded electrical connection to the test point. With tip style 14 (4-point crown stepped (self-cleaning)), F10014S150P200HP combines ICT/FCT use with a geometry intended for pad surfaces and soldered pins where the crown geometry can penetrate residues or oxide layers. F10014S150P200HP combines a pitch of 2.54 mm / 100 mil with tip style 14 (4-point crown stepped (self-cleaning)) and a tip diameter of 1.5 mm. F10014S150P200HP operates with 200 cN spring force and 4.3 mm nominal travel. The electrical rating of F10014S150P200HP combines 5 A continuous current with 40 mΩ typical contact resistance. Two features address difficult surface conditions on F10014S150P200HP: Progressive Coating reduces contamination sensitivity, while the HP spring provides increased preload at the start of the contact stroke.
