Technical data
| General | |
|---|---|
| Structure | Basic Contact Probe |
| Type/family | F772 |
| Pitch (mm/mil) | 2,54 / 100 |
| Temperature | -45°C...+80°C |
| Additional definition | EXX |
| Dimensions | |
|---|---|
| Total length (mm) | 35 |
| Protrusion height (mm) | 13 |
| Tip style diameter (mm) | 1.8 |
| Barrel diameter (mm) | 1.66 |
| Collar diameter (mm) | 2.04 |
| Press ring diameter (mm) | 2.04 |
| Materials and surfaces | |
|---|---|

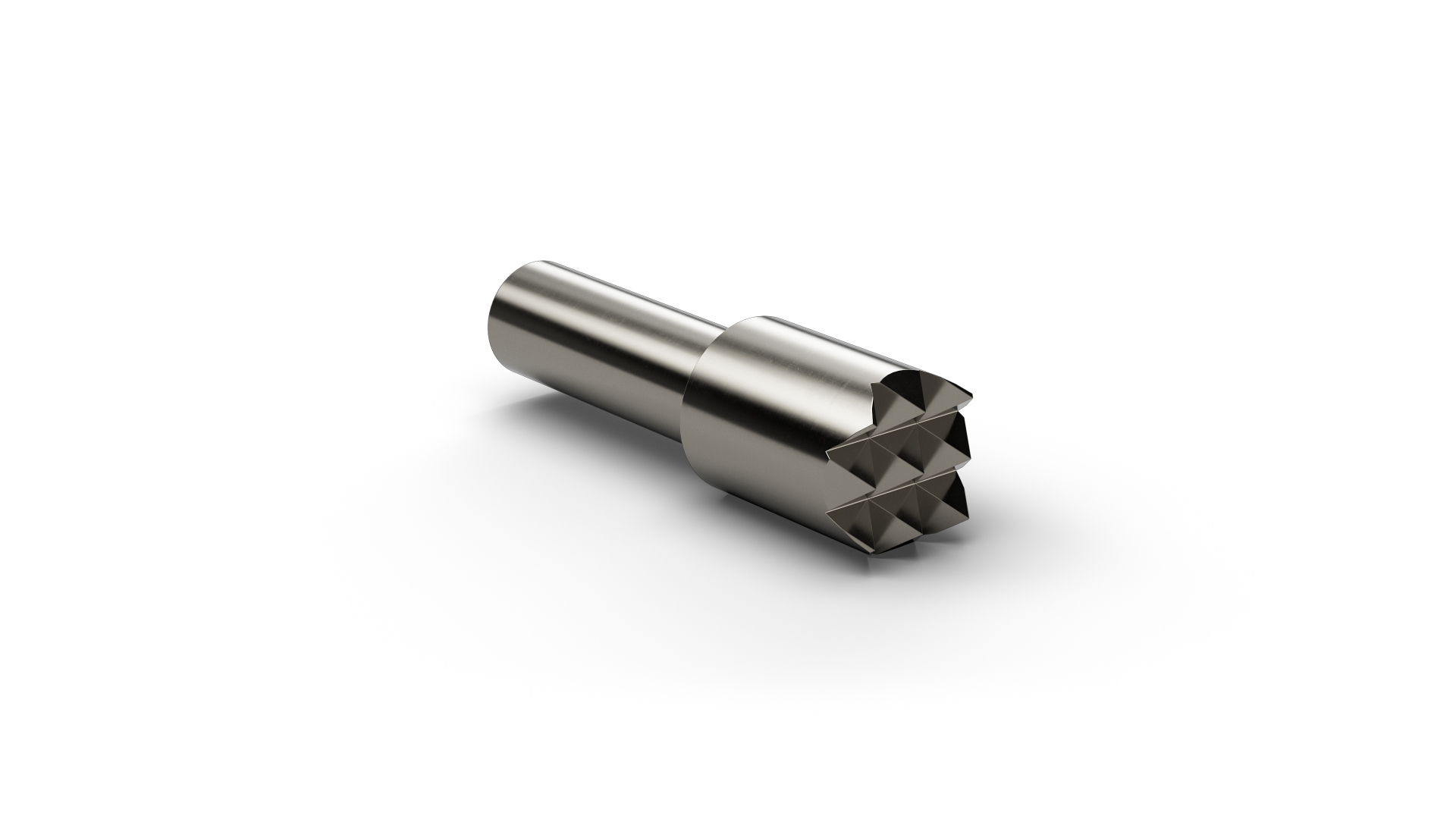

| Tip style | 06 |
| Plunger material | Steel |
| Plunger plating | Progressive |
| Barrel material | Nickel silver |
| Barrel plating | Gold |
| Spring material | Spring steel |
| Spring plating | Silver |
| Mechanical specifications | |
|---|---|
| Preload (cN) | 60 |
| Spring force (cN) | 300 |
| Nominal travel (mm) | 4 |
| Maximum travel (mm) | 5 |
| Pointing accuracy +/- (mm) | 0.08 |
| Electrical specifications | |
|---|---|
| Continuous current (A) | 5 |
| Typical contact resistance (mOhm) | 25 |
Graphics
Beschreibung des Produkts

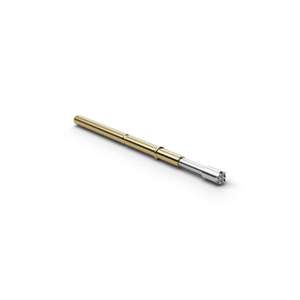

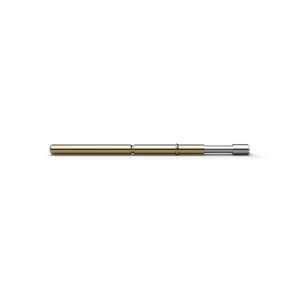

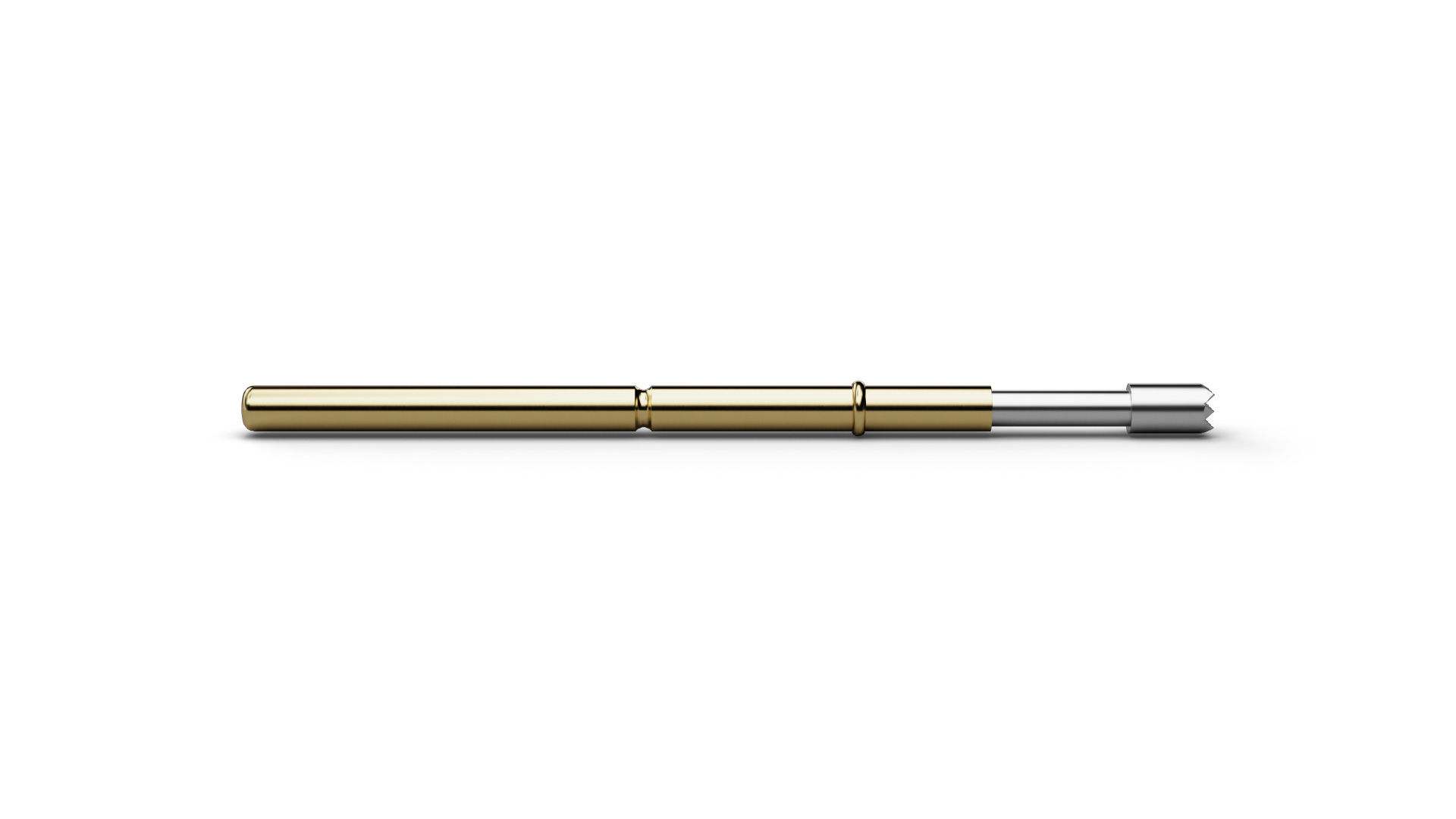

As a Basic Contact Probe, F77206S180P300E13 (item number 1142416) establishes a spring-loaded electrical connection to the test point. With tip style 06 (Serrated stepped), F77206S180P300E13 combines ICT/FCT use with a geometry intended for wires, pins and wire-wrap posts; the geometry is also suited to slightly bent contacts. F77206S180P300E13 combines a pitch of 2.54 mm / 100 mil with tip style 06 (Serrated stepped) and a tip diameter of 1.8 mm. F77206S180P300E13 operates with 300 cN spring force and 4 mm nominal travel. The electrical rating of F77206S180P300E13 combines 5 A continuous current with 25 mΩ typical contact resistance. The plunger in F77206S180P300E13 is made of steel and uses Progressive Coating.
