Technical data
| General | |
|---|---|
| Structure | Basic Contact Probe |
| Type/family | F100 |
| Pitch (mm/mil) | 2,54 / 100 |
| Temperature | -45°C...+80°C |
| Dimensions | |
|---|---|
| Total length (mm) | 33.3 |
| Protrusion height (mm) | 8.5 |
| Tip style diameter (mm) | 3 |
| Barrel diameter (mm) | 1.37 |
| Materials and surfaces | |
|---|---|
| Tip style | 06 |
| Plunger material | Beryllium copper |
| Plunger plating | Gold |
| Barrel material | Bronze |
| Barrel plating | Gold |
| Spring material | Spring steel |
| Spring plating | Silver |
| Mechanical specifications | |
|---|---|
| Preload (cN) | 90 |
| Spring force (cN) | 225 |
| Nominal travel (mm) | 4.3 |
| Maximum travel (mm) | 6.4 |
| Pointing accuracy +/- (mm) | 0.08 |
| Electrical specifications | |
|---|---|
| Continuous current (A) | 5 |
| Typical contact resistance (mOhm) | 20 |
Graphics
Beschreibung des Produkts

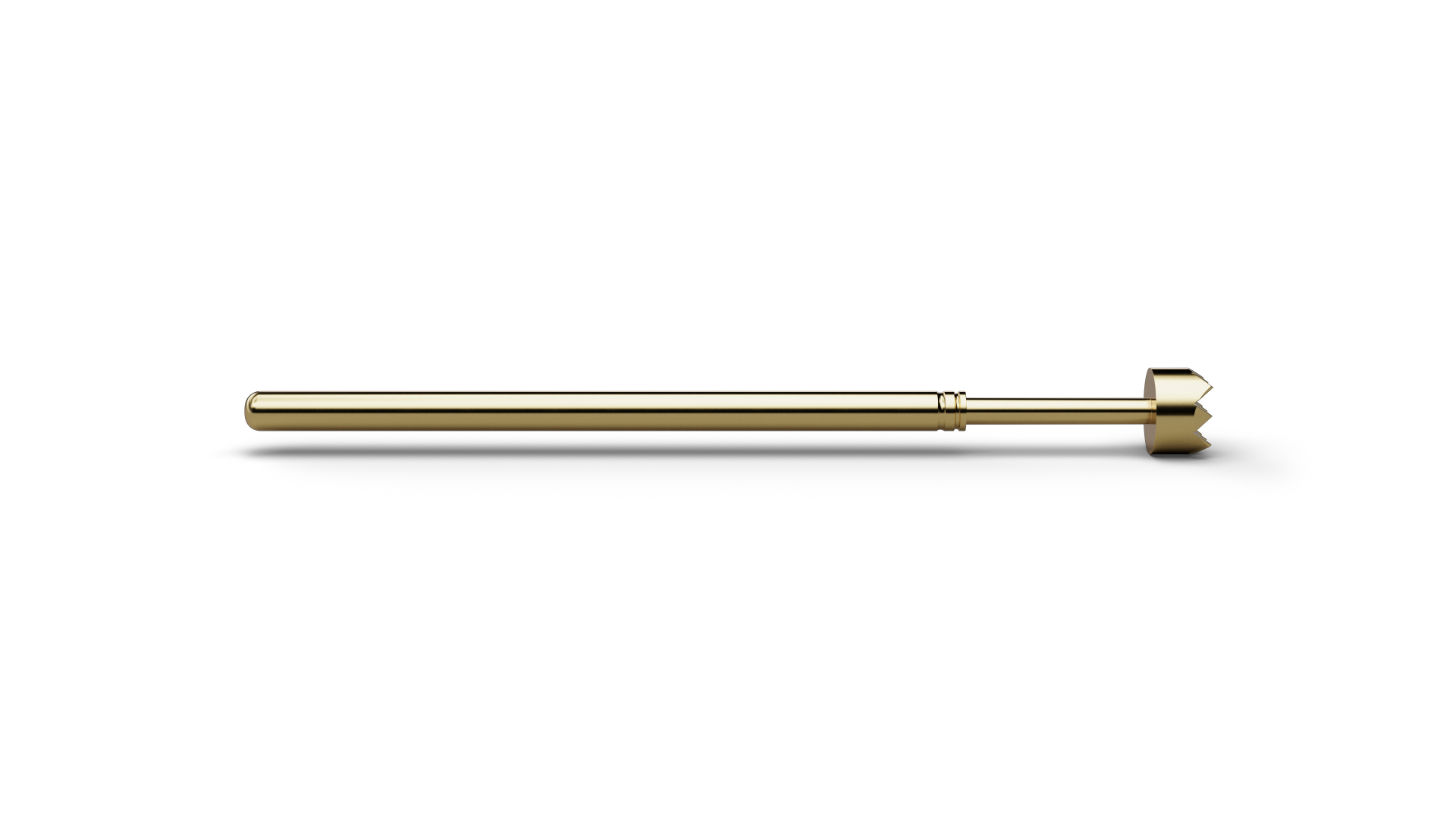

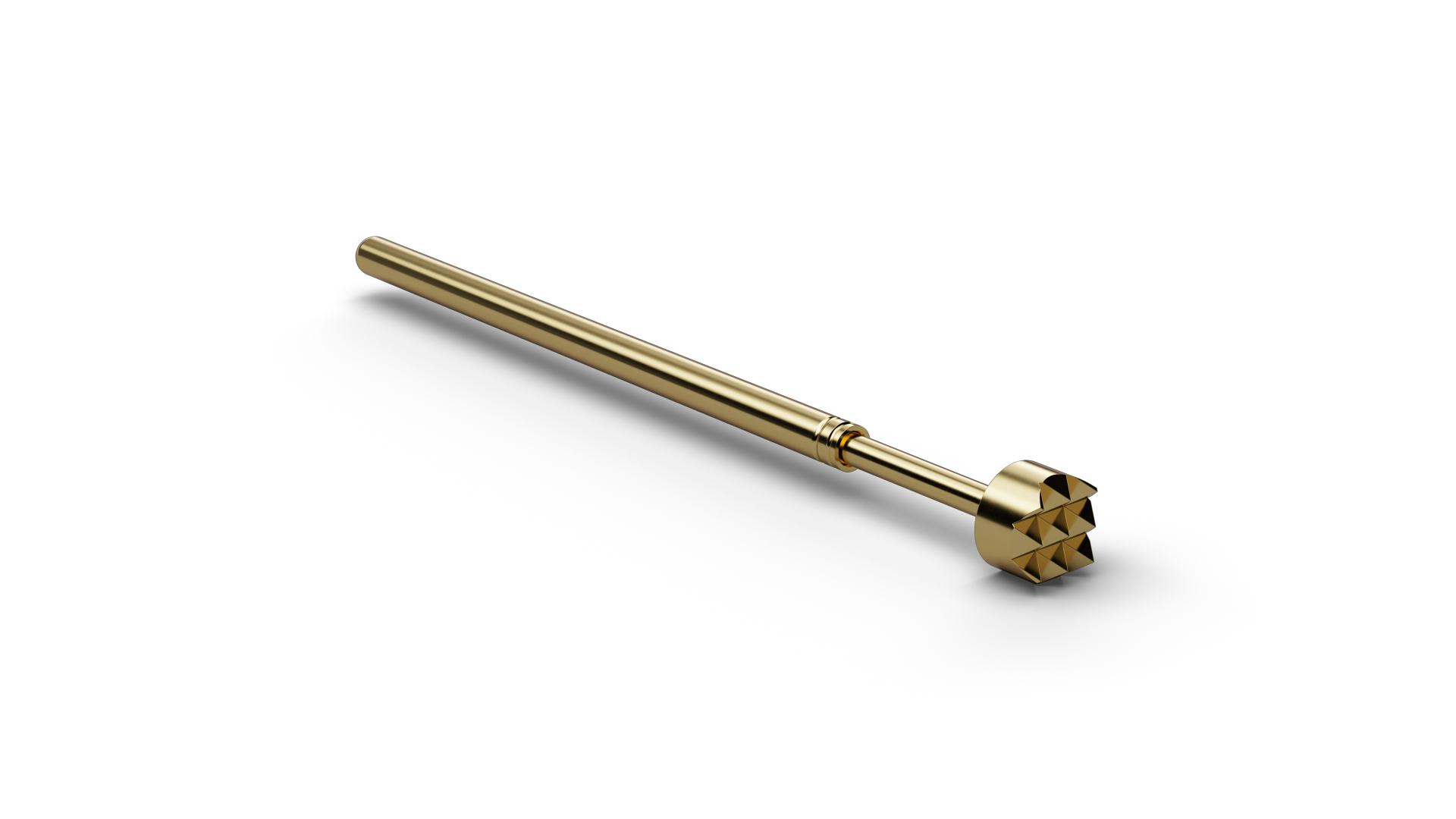

As a Basic Contact Probe, F10006B300G225 (item number 1143799) establishes a spring-loaded electrical connection to the test point. With tip style 06 (Serrated stepped), F10006B300G225 combines ICT/FCT use with a geometry intended for wires, pins and wire-wrap posts; the geometry is also suited to slightly bent contacts. F10006B300G225 combines a pitch of 2.54 mm / 100 mil with tip style 06 (Serrated stepped) and a tip diameter of 3 mm. For F10006B300G225, spring force is 225 cN at a nominal travel of 4.3 mm. F10006B300G225 is rated for 5 A continuous current with a typical contact resistance of 20 mΩ. The plunger in F10006B300G225 is made of beryllium copper and is gold-plated.
