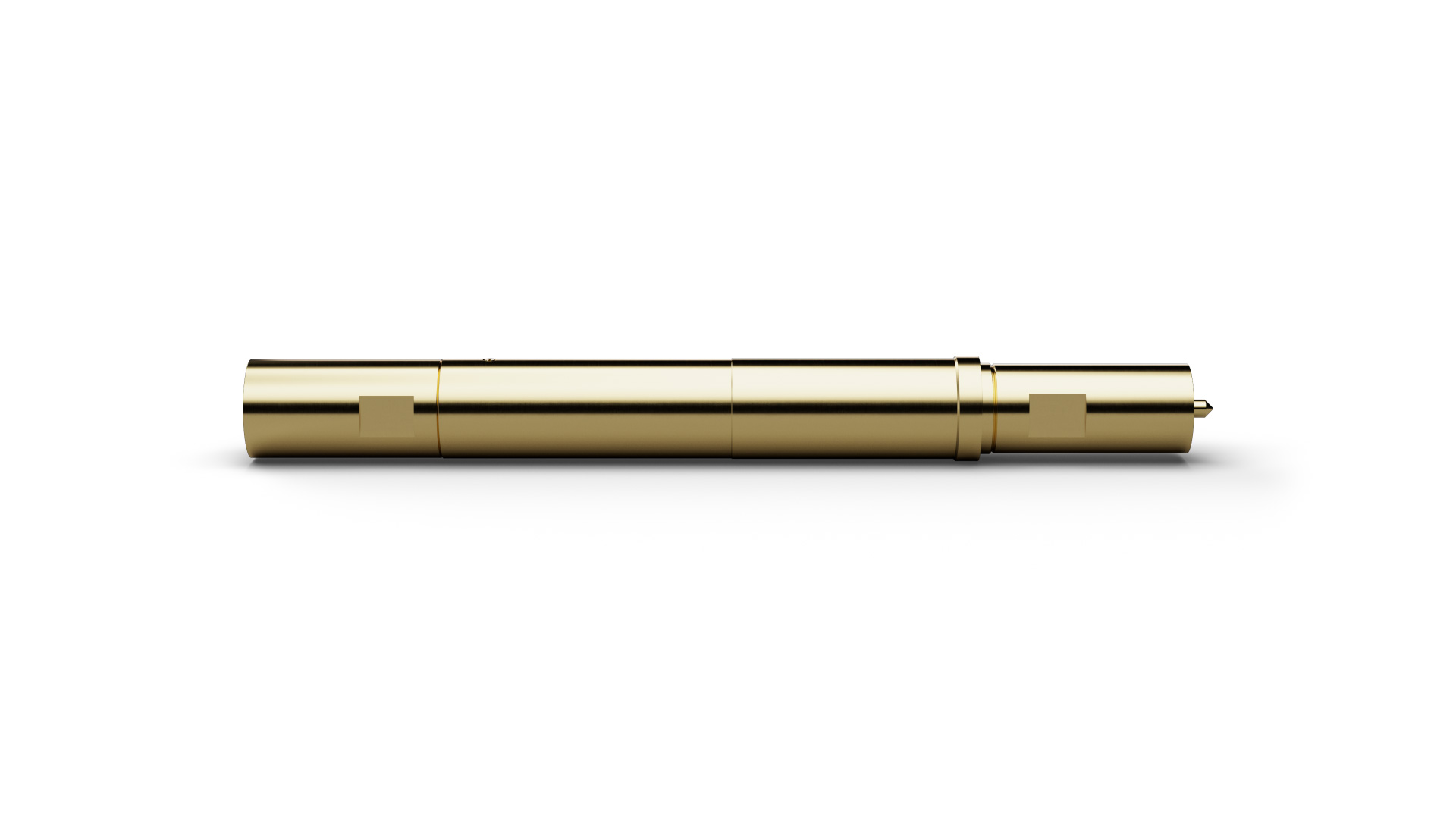

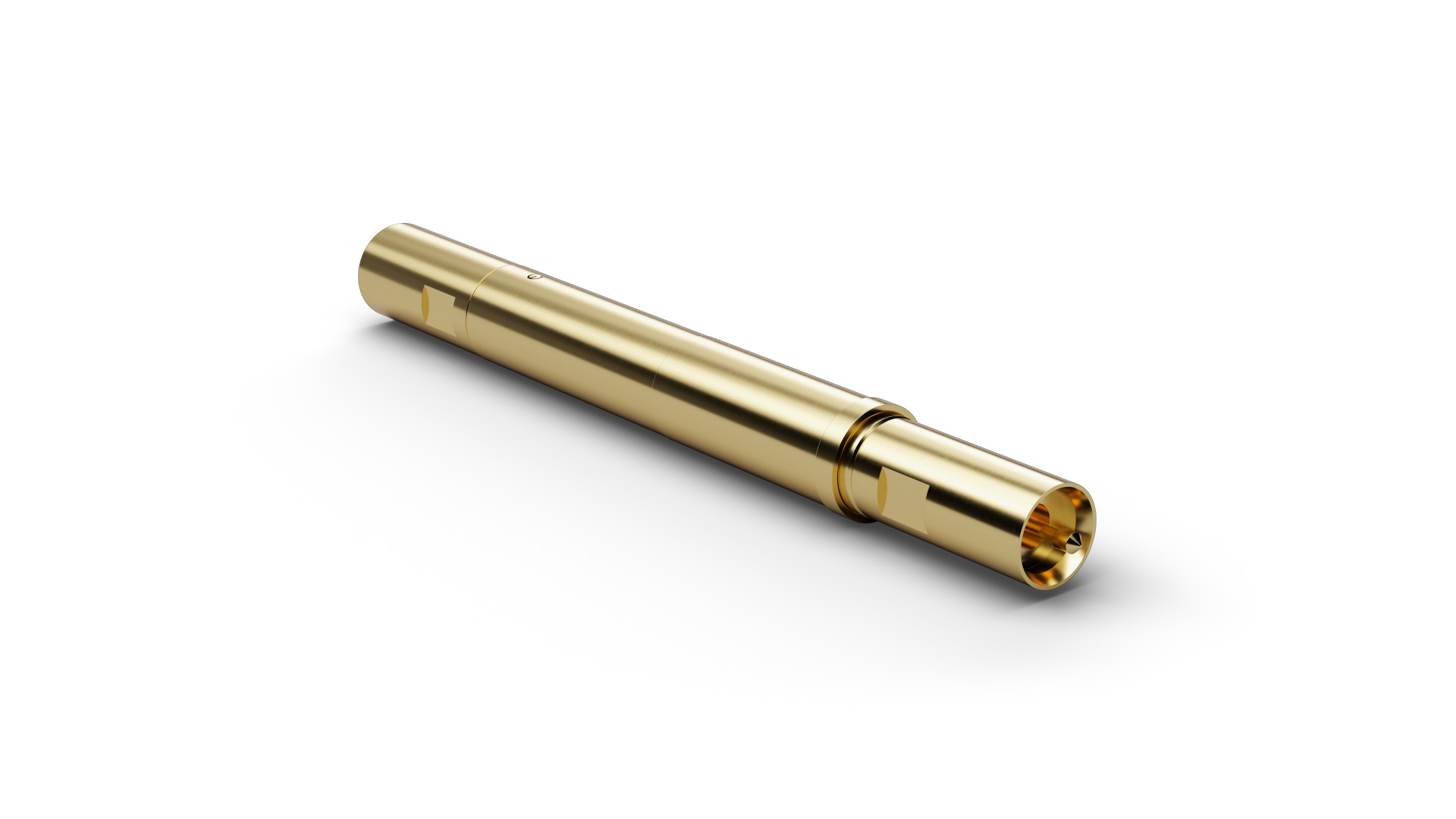

Technical data
| General | |
|---|---|
| Structure | Coaxial Probe |
| Type/family | HF860 |
| Pitch (mm/mil) | 6,00 / 236 |
| Temperature | -45°C...+100°C |

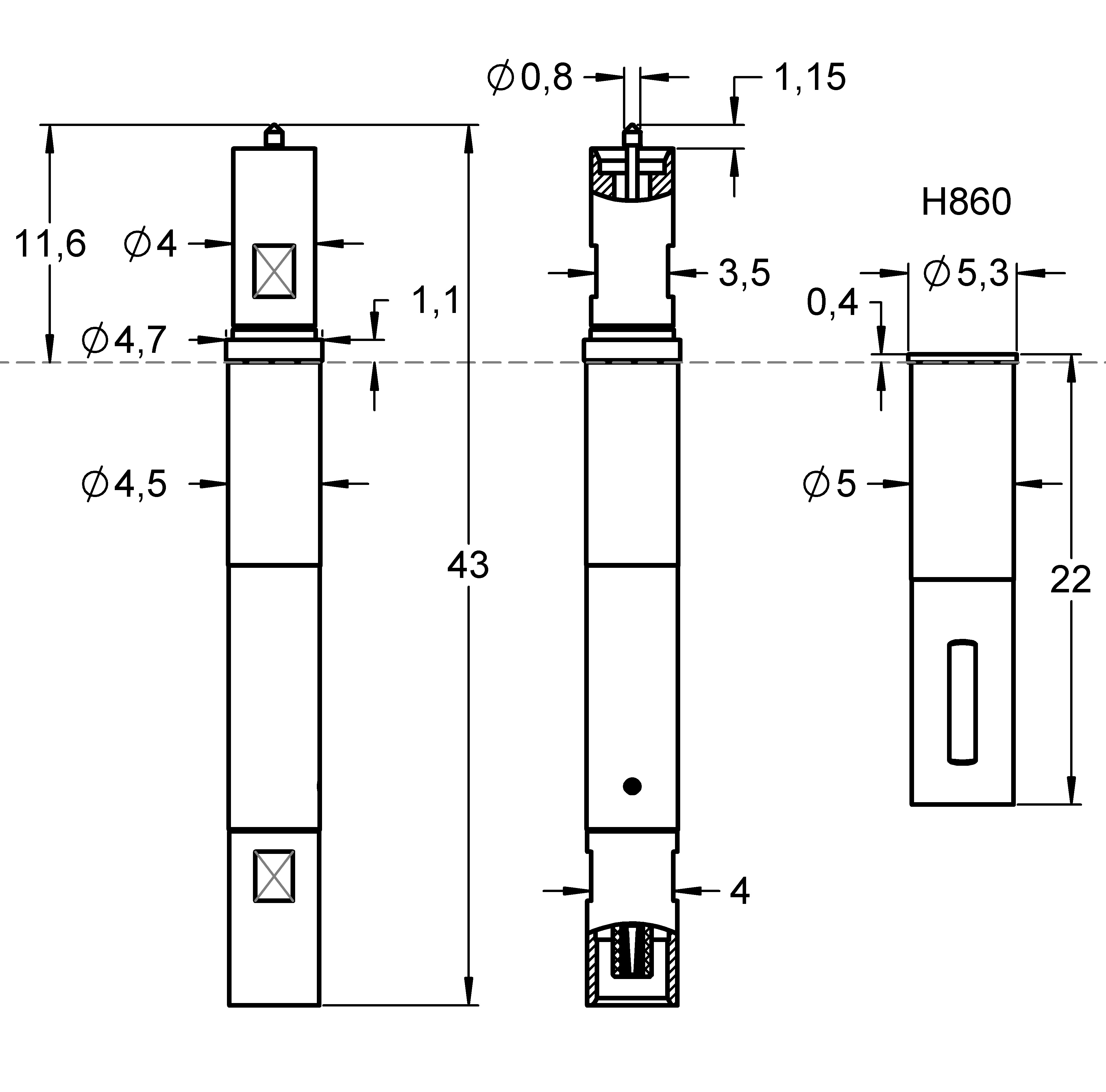

| Dimensions | |
|---|---|
| Total length (mm) | 43 |
| Protrusion height (mm) | 11.5 |
| Tip style diameter (mm) | 4 |
| Barrel diameter (mm) | 4.5 |
| Collar diameter (mm) | 4.7 |
| Inside/outside distance (mm) | 1.15 |
| Tip style diameter (mm) 2 | 0.8 |
| Materials and surfaces | |
|---|---|
| Tip style | 00 |
| Tip style 2 | 02 |
| Plunger material | Beryllium copper |
| Plunger plating | Gold |
| Barrel material | Brass |
| Barrel plating | Gold |
| Spring material | High-grade steel |
| Spring plating | Uncoated |
| Plunger material 2 | Beryllium copper |
| Plunger plating 2 | Gold |
| Spring material 2 | Spring steel |
| Spring plating 2 | Gold |
| Mechanical specifications | |
|---|---|
| Preload (cN) | 90 |
| Spring force (cN) | 400 |
| Nominal travel (mm) | 4 |
| Maximum travel (mm) | 5 |
| Tool size (mm) | 3,5 / 4,0 |
| DUT | SMP-Female |
| Electrical specifications | |
|---|---|
| Continuous current (A) | 10 |
| Impedance (ohm) | 50 |
| Frequency (GHz) | 6 |
| Continuous current (A) 2 | 3 |
| Internal contact specifications | |
|---|---|
| Nominal travel (mm) 2 | 2 |
| Maximum travel (mm) 2 | 3.7 |
| Preload (cN) 2 | 75 |
| Spring force (cN) 2 | 130 |
