Technical data
| General | |
|---|---|
| Structure | Basic Contact Probe |
| Type/family | F504 |
| Pitch (mm/mil) | 2,54 / 100 |
| Temperature | -45°C...+80°C |

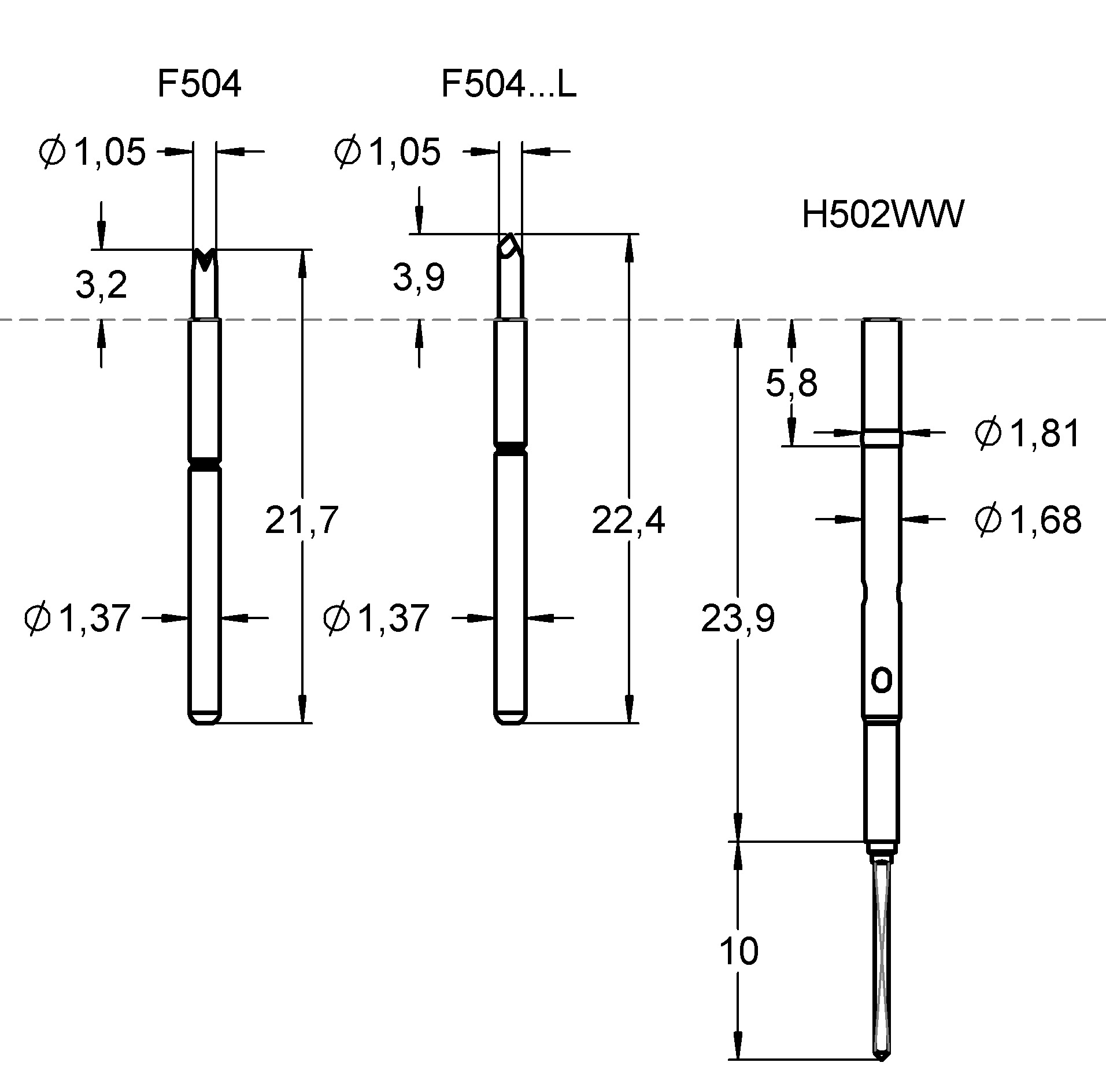

| Dimensions | |
|---|---|
| Total length (mm) | 22.4 |
| Protrusion height (mm) | 3.2 |
| Tip style diameter (mm) | 1.04 |
| Barrel diameter (mm) | 1.37 |
| Materials and surfaces | |
|---|---|
| Tip style | 03 |
| Plunger material | Beryllium copper |
| Plunger plating | Gold |
| Barrel material | Nickel silver |
| Barrel plating | Gold |
| Spring material | Spring steel |
| Spring plating | Gold |
| Mechanical specifications | |
|---|---|
| Preload (cN) | 20 |
| Spring force (cN) | 100 |
| Nominal travel (mm) | 2.4 |
| Maximum travel (mm) | 3.2 |
| Pointing accuracy +/- (mm) | 0.05 |
| Electrical specifications | |
|---|---|
| Continuous current (A) | 5 |
| Typical contact resistance (mOhm) | 35 |
Graphics
Beschreibung des Produkts

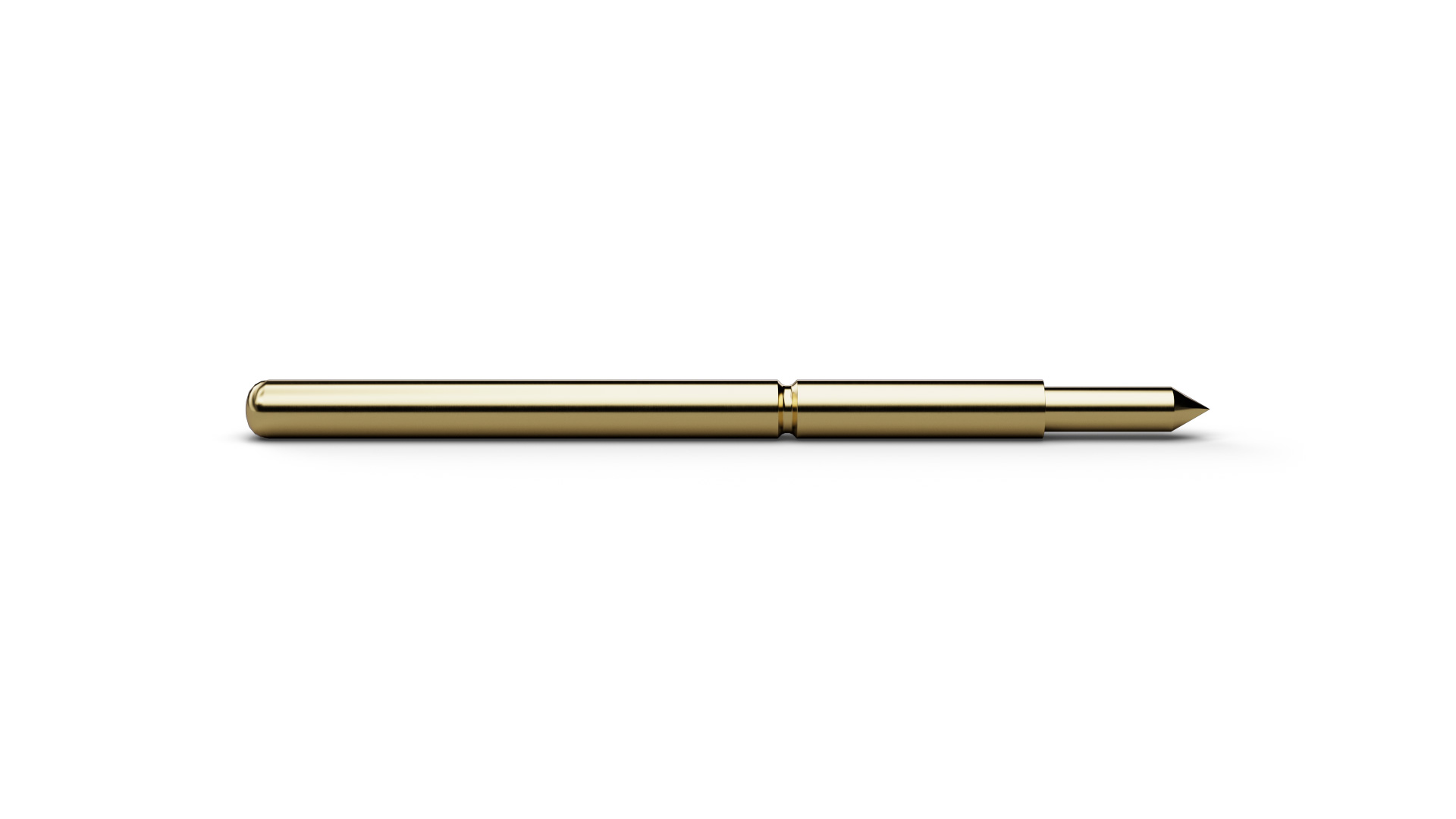

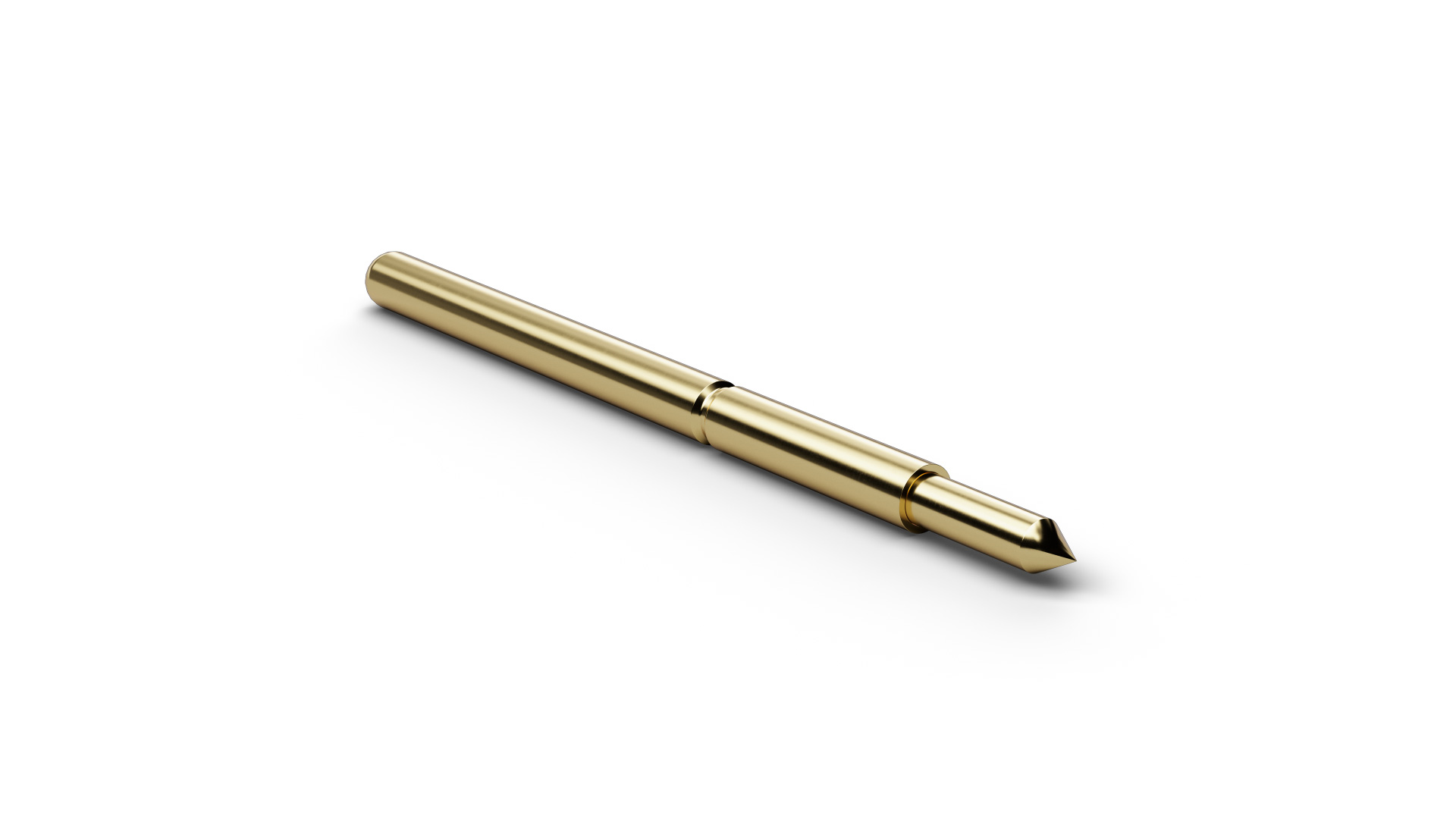

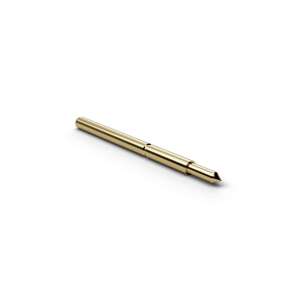

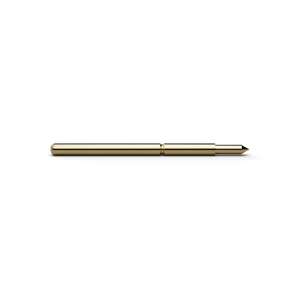

F50403B105G100L224 (item number 1163671) is a Contact Probe for defined interfaces within electronic test setups. F50403B105G100L224 provides a standardized contact or interface element for repeatable transfer of test and measurement signals between fixture and test system. F50403B105G100L224 combines a pitch of 2.54 mm / 100 mil with tip style 03 (Conical 60°) and a tip diameter of 1.04 mm. F50403B105G100L224 operates with 100 cN spring force and 2.4 mm nominal travel. F50403B105G100L224 is specified for 5 A continuous current.
