Technical data
| General | |
|---|---|
| Structure | Basic Contact Probe |
| Type/family | F075 |
| Pitch (mm/mil) | 1,90 / 75 |
| Temperature | -45°C...+80°C |
| Dimensions | |
|---|---|
| Total length (mm) | 33.1 |
| Protrusion height (mm) | 8.5 |
| Tip style diameter (mm) | 1.2 |
| Barrel diameter (mm) | 1.02 |
| Materials and surfaces | |
|---|---|
| Tip style | 35 |
| Plunger material | Steel |
| Plunger plating | Longtime Gold |
| Barrel material | Bronze |
| Barrel plating | Gold |
| Spring material | Spring steel |
| Spring plating | Silver |
| Mechanical specifications | |
|---|---|
| Preload (cN) | 70 |
| Spring force (cN) | 150 |
| Nominal travel (mm) | 4.3 |
| Maximum travel (mm) | 6.4 |
| Pointing accuracy +/- (mm) | 0.08 |
| Electrical specifications | |
|---|---|
| Continuous current (A) | 4 |
| Typical contact resistance (mOhm) | 40 |

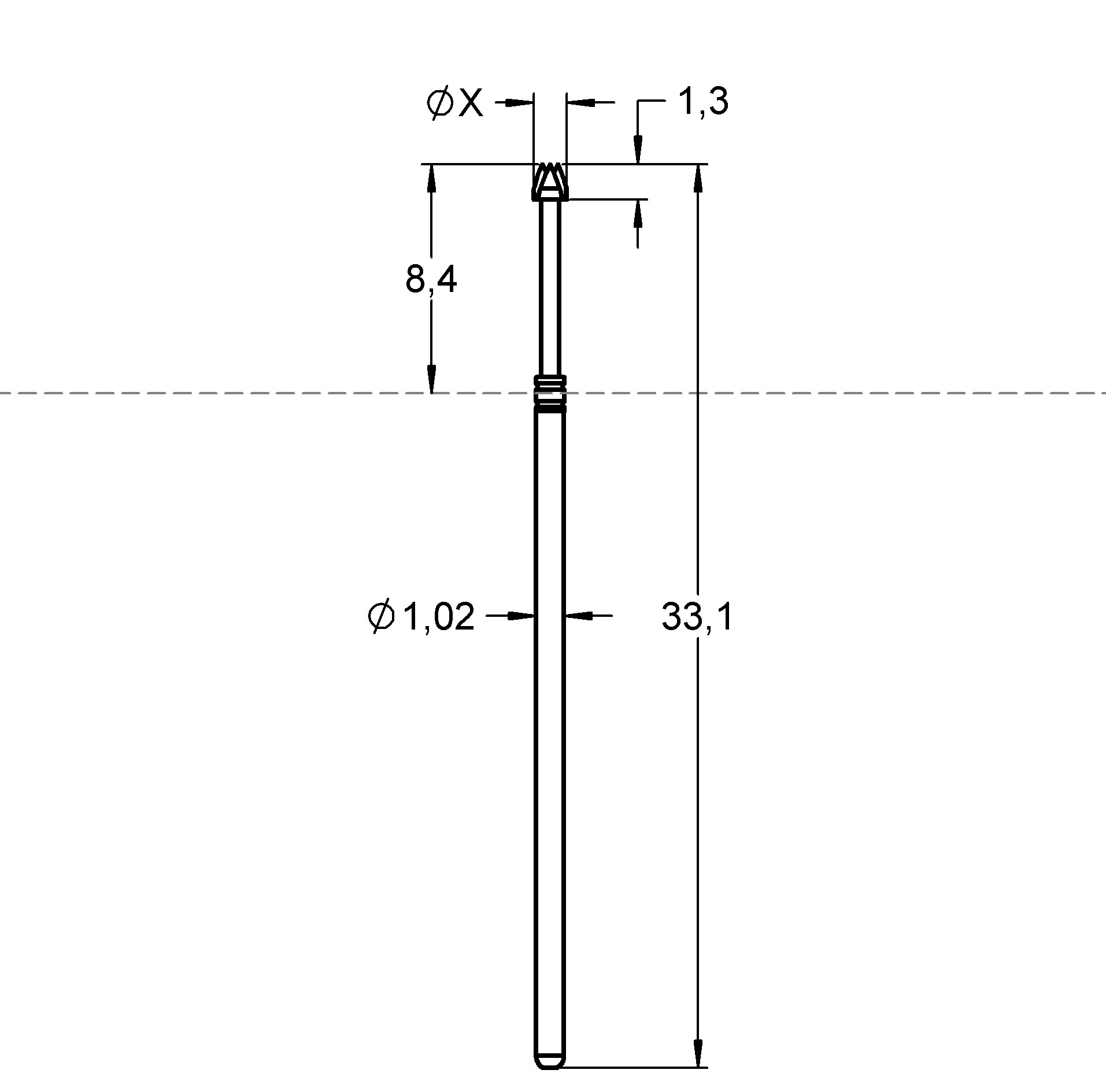

Graphics
Beschreibung des Produkts
F07535S120L150 (item number 1166505) belongs to the Basic Contact Probe range for precise, repeatable contacting of electronic test points. With tip style 35 (3-point crown stepped (self-cleaning)), F07535S120L150 combines ICT/FCT use with a geometry intended for solder pads and vias. F07535S120L150 combines a pitch of 1.9 mm / 75 mil with tip style 35 (3-point crown stepped (self-cleaning)) and a tip diameter of 1.2 mm. For F07535S120L150, spring force is 150 cN at a nominal travel of 4.3 mm. For F07535S120L150, the specified continuous current is 4 A.
