Home › Products › Product Finder › H075LA-10.0

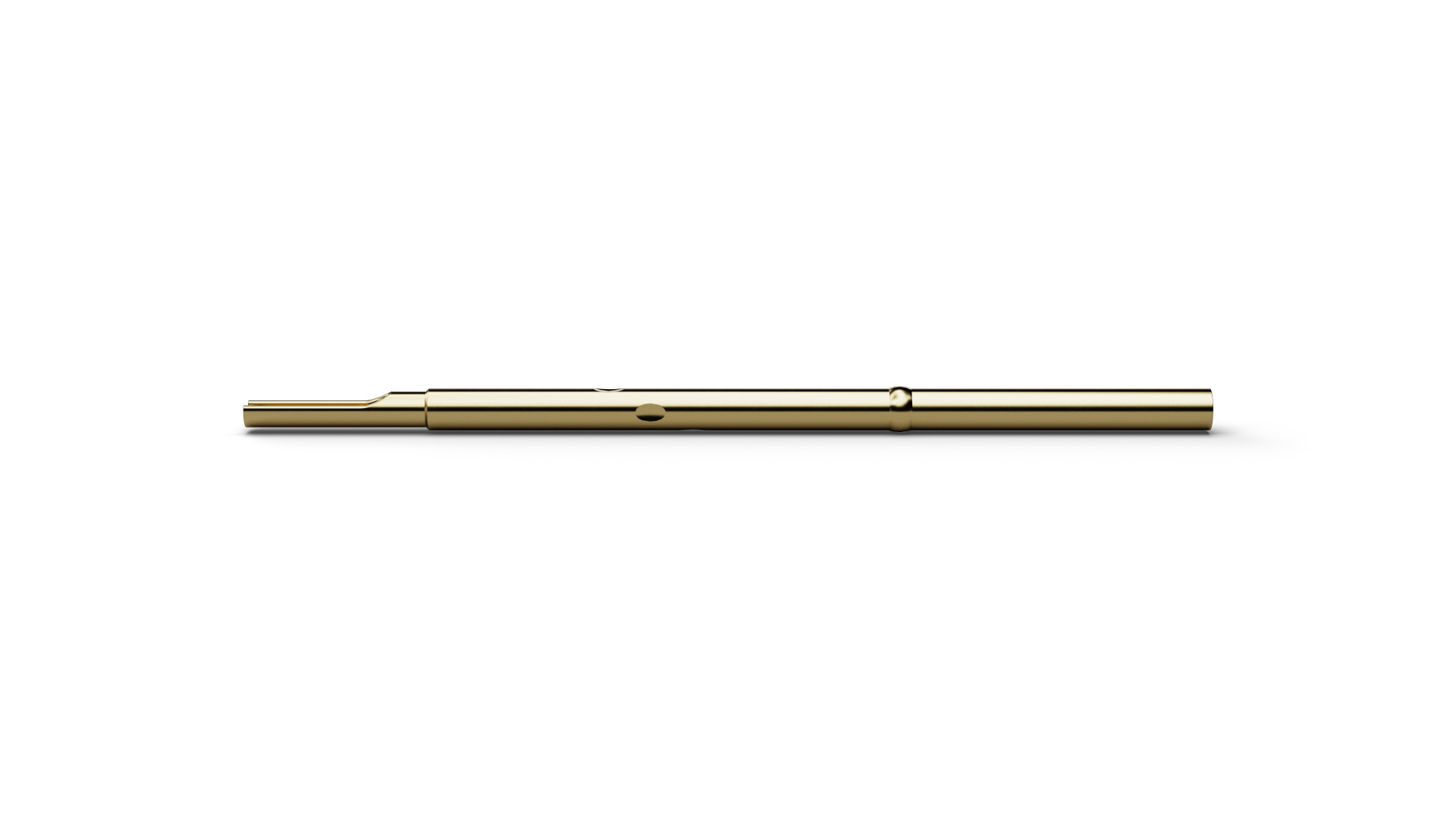

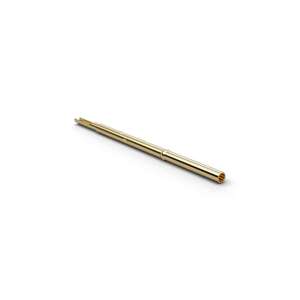

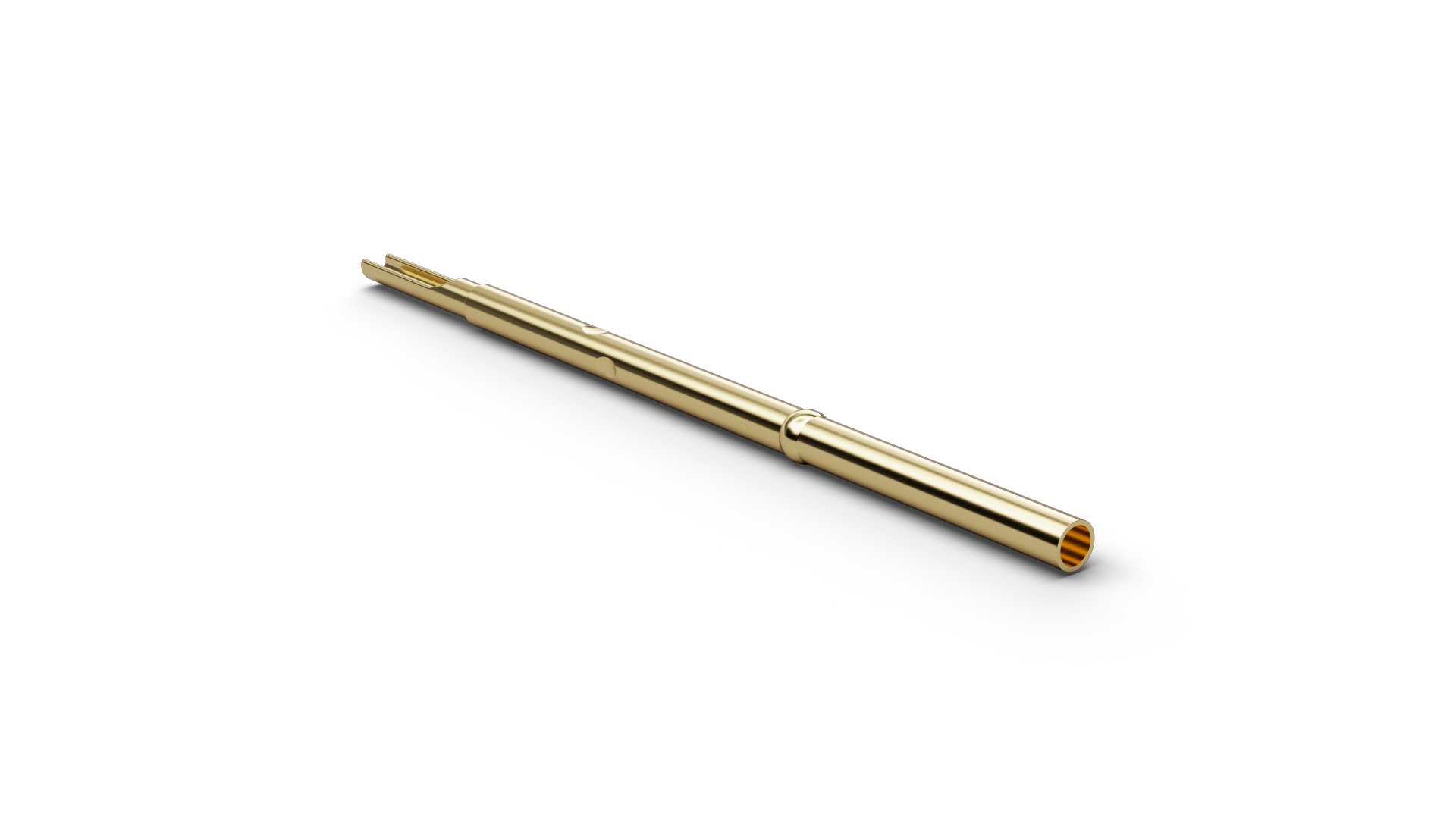

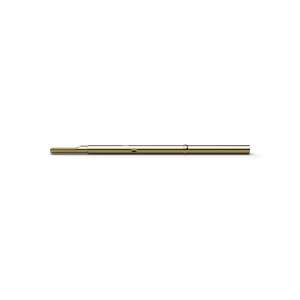

H075LA-10.0 Perspective 1 H075LA-10.0 Perspective 2

H075LA-10.0

Item number 1167150

Technical data sheet

Quantity

Technical data

General
Type/family H075
Pitch (mm/mil) 1,90 / 75
Additional definition Solder tight
Dimensions
Total length (mm) 30
Press ring diameter (mm) 1.47
Outer diameter (mm) 1.3
Collar height (mm) 0.7
Materials and surfaces
Material, Coating Nickel silver, Gold
Mechanical specifications
Connection Solder Connection
Electrical specifications
Continuous current (A) 4

Beschreibung des Produkts

As a receptacle for a compatible Contact Probe, H075LA-10.0 (item number 1167150) provides mechanical guidance and positioning within the test fixture or contacting module. H075LA-10.0 uses a solder-tight construction for the specified installation concept. The electrical connection of H075LA-10.0 uses a solder connection. Key installation dimensions are outside diameter 1.3 mm, length 30 mm. The Receptacle H075LA-10.0 is designed for a pitch of 1.9 mm / 75 mil. The Receptacle H075LA-10.0 is made of nickel silver and is gold-plated.
