Technical data
| General | |
|---|---|
| Type/family | KT836K0X |
| Temperature | -45°C...+250°C |

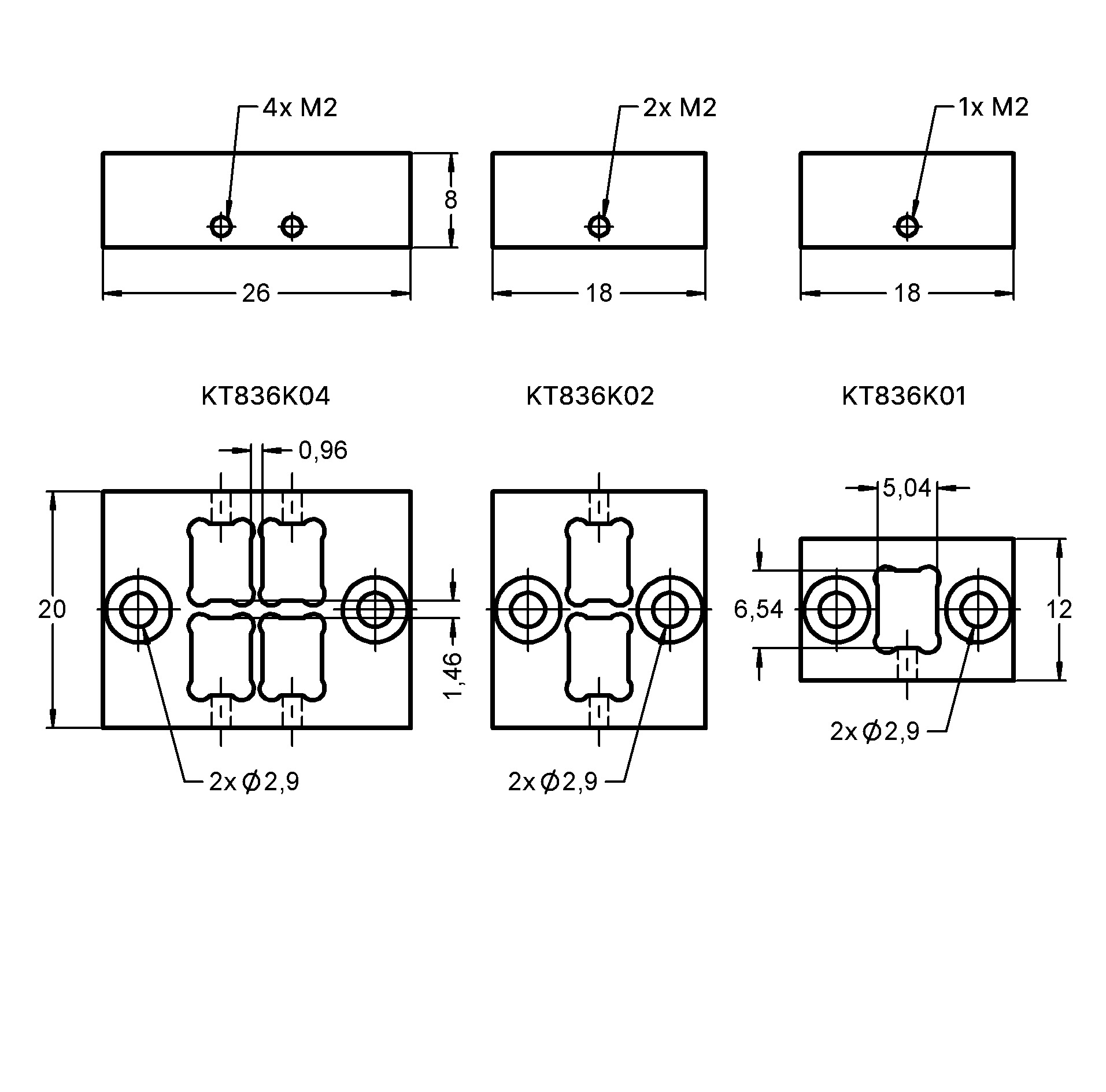

| Dimensions | |
|---|---|
| Total length (mm) | 26 |
| Materials and surfaces |
|---|
Graphics
Beschreibung des Produkts

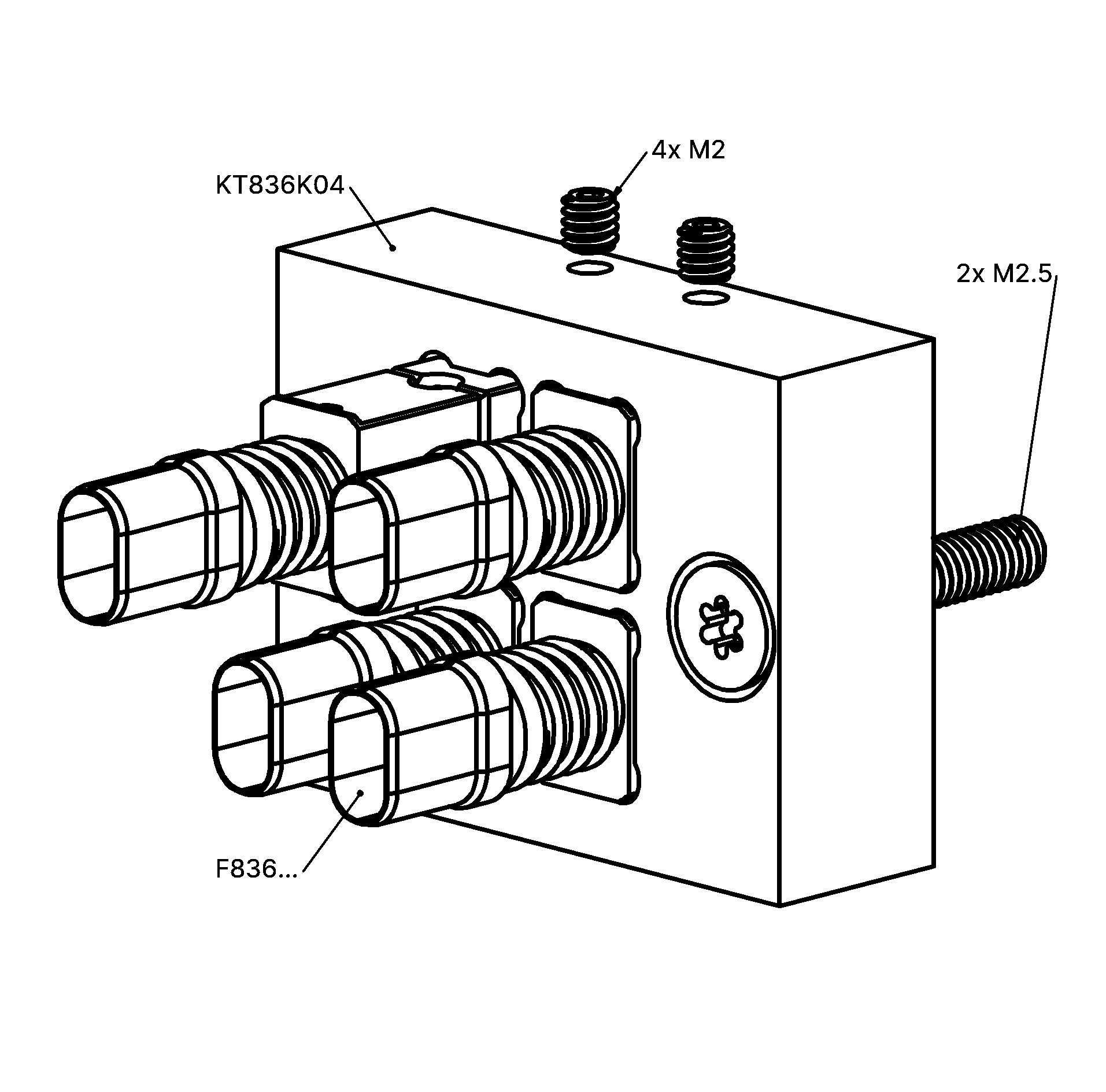

The interface solution KT836K04 (item number 1168148) transfers electrical signals between the test fixture, DUT and test system. As a modular interface, KT836K04 links contacting and signal transfer in ICT and Functional Test setups. For KT836K04, short defined signal paths and controlled geometry support repeatable high-frequency transmission within the test setup. Key dimensions include width 20 mm, height 8 mm.
