Technical data
| General | |
|---|---|
| Structure | Double Coaxial Probe |
| Type/family | F836 MTD |
| Temperature | -45°C...+100°C |
| Dimensions | |
|---|---|
| Total length (mm) | 26.8 |
| Protrusion height (mm) | 12.8 |
| Tip style diameter (mm) | 7 |
| Barrel diameter (mm) | 8 |
| Materials and surfaces | |
|---|---|
| Tip style | 50 |
| Tip style material | Brass |
| Tip style plating | Gold |
| Plunger material | Brass |
| Plunger plating | Gold |
| Barrel material | Brass |
| Barrel plating | Gold |
| Spring material | Spring steel |
| Spring plating | Gold |
| Mechanical specifications | |
|---|---|
| Preload (cN) | 150 |
| Spring force (cN) | 450 |
| Nominal travel (mm) | 1.5 |
| Maximum travel (mm) | 2 |
| Connection | Solder Connection |
| DUT | DINEFER E7Z009 |
| Electrical specifications | |
|---|---|
| Continuous current (A) | 1 |
| Typical contact resistance (mOhm) | 100 |
Beschreibung des Produkts

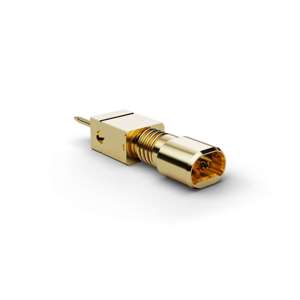

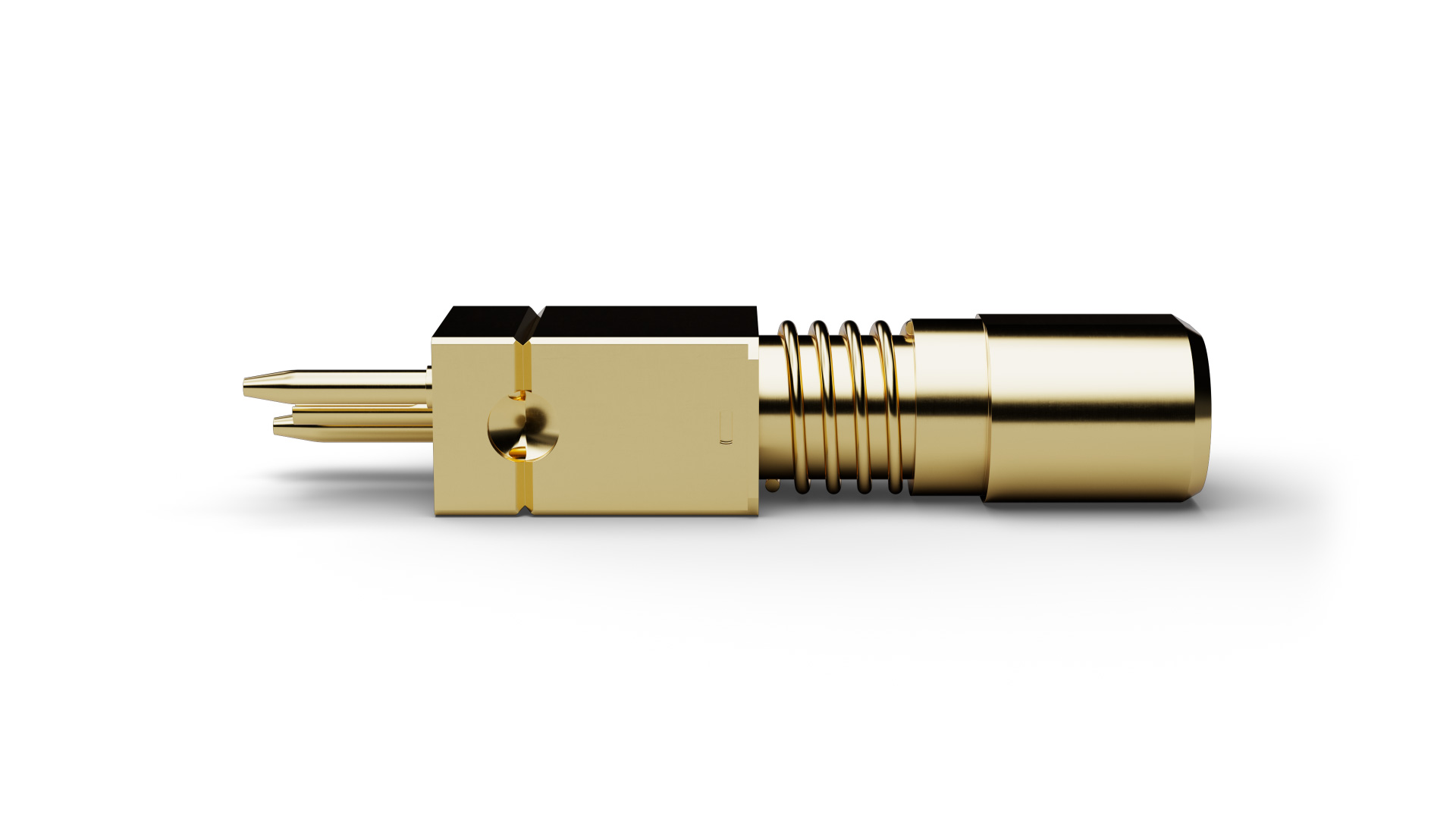

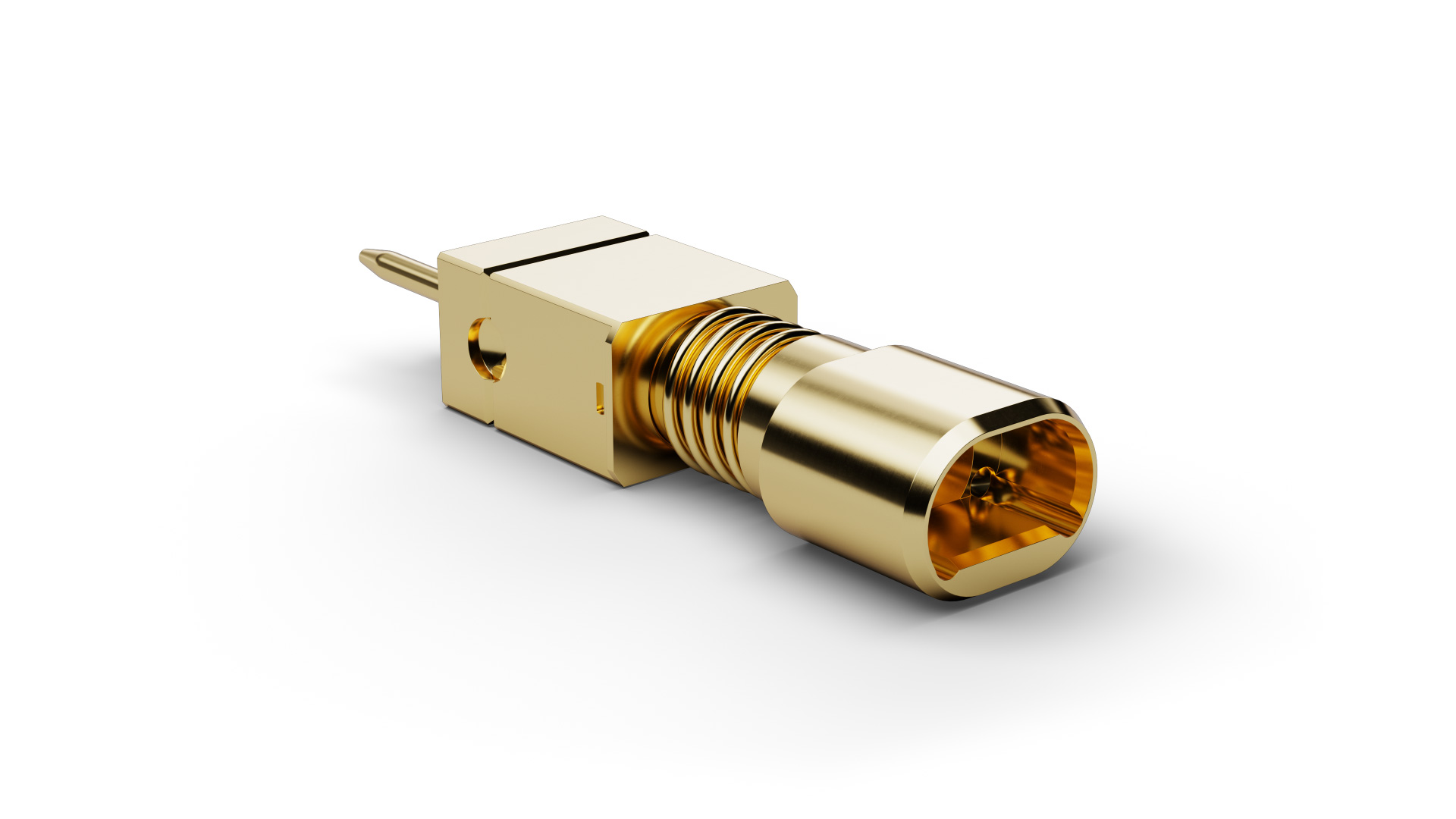

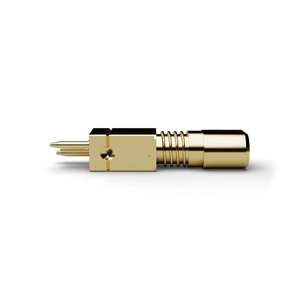

The Kelvin Probe F83611S053L535-MTDf (item number 1168297) is designed for precise four-wire resistance measurements. The separate current and voltage paths in F83611S053L535-MTDf support four-wire measurements in which lead and contact resistance have minimal influence on the result. Tip style 50 (Concave with drill hole stepped) has a diameter of 7 mm. For F83611S053L535-MTDf, spring force is 450 cN at a nominal travel of 1.5 mm. For F83611S053L535-MTDf, the specified continuous current is 1 A. The plunger in F83611S053L535-MTDf is made of brass and is gold-plated.
