Technical data
| General | |
|---|---|
| Structure | Basic Contact Probe |
| Type/family | F075 |
| Pitch (mm/mil) | 1,90 / 75 |
| Temperature | -45°C...+80°C |
| Dimensions | |
|---|---|

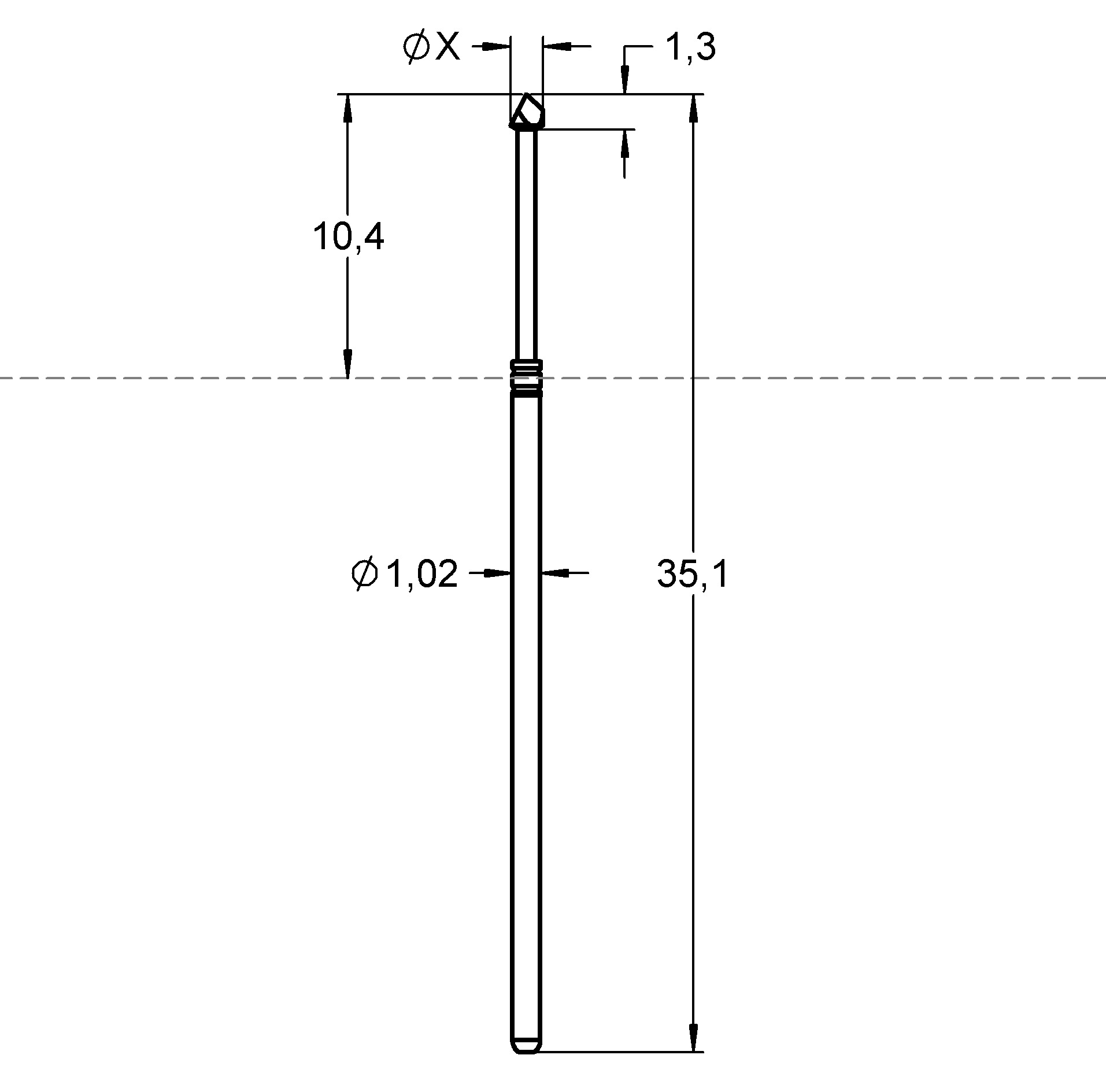

| Total length (mm) | 35.1 |
| Protrusion height (mm) | 10.5 |
| Tip style diameter (mm) | 1.2 |
| Barrel diameter (mm) | 1.02 |
| Materials and surfaces | |
|---|---|
| Tip style | 05 |
| Plunger material | Beryllium copper |
| Plunger plating | Gold |
| Barrel material | Bronze |
| Barrel plating | Gold |
| Spring material | High-grade steel |
| Spring plating | Uncoated |
| Mechanical specifications | |
|---|---|
| Preload (cN) | 90 |
| Spring force (cN) | 200 |
| Nominal travel (mm) | 4.3 |
| Maximum travel (mm) | 6.4 |
| Pointing accuracy +/- (mm) | 0.08 |
| Electrical specifications | |
|---|---|
| Continuous current (A) | 4 |
| Typical contact resistance (mOhm) | 20 |
Graphics
Beschreibung des Produkts

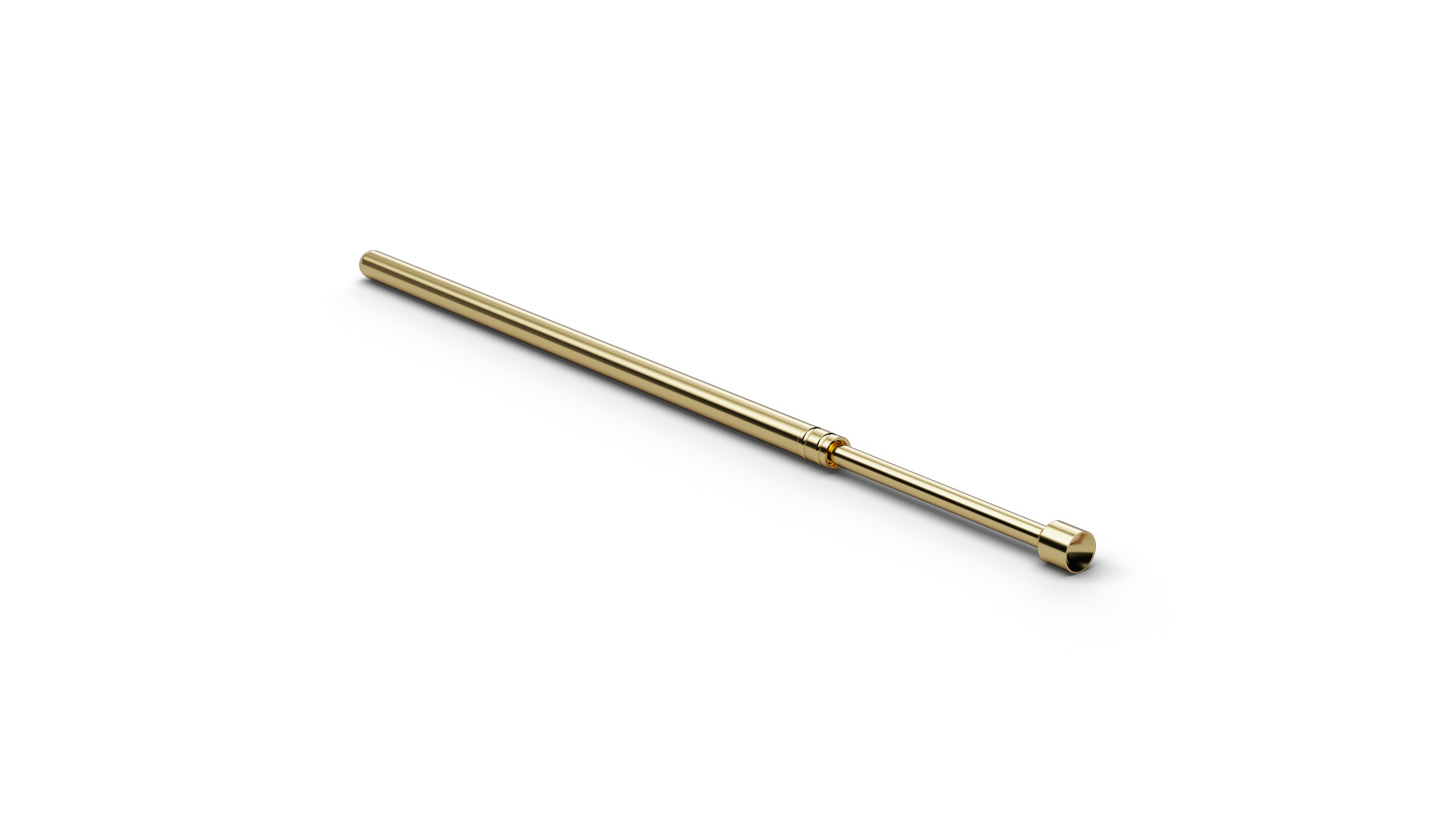

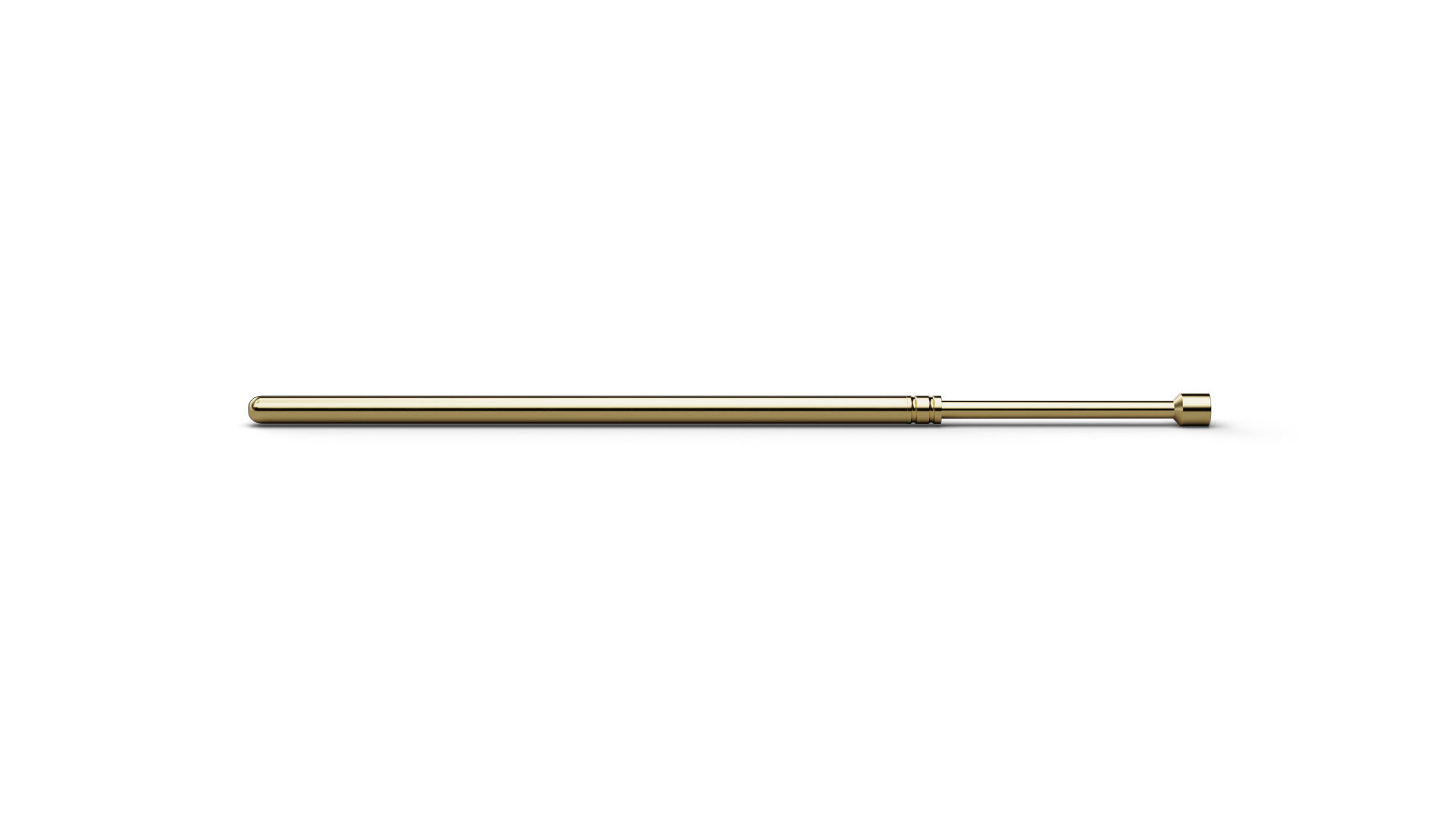

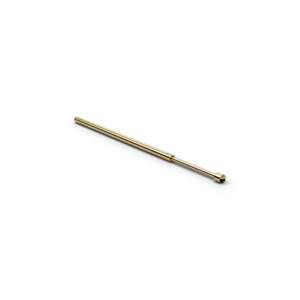

F07505B120G200L (item number 1169667) is a Basic Contact Probe for repeatable temporary electrical connections between the test system and a test point. With tip style 05 (Concave stepped), F07505B120G200L combines ICT/FCT use with a geometry intended for pins and wire-wrap posts with a guided, smooth contacting action. F07505B120G200L combines a pitch of 1.9 mm / 75 mil with tip style 05 (Concave stepped) and a tip diameter of 1.2 mm. F07505B120G200L operates with 200 cN spring force and 4.3 mm nominal travel. The continuous-current rating of F07505B120G200L is 4 A.
