Technical data
| General | |
|---|---|
| Structure | Basic Contact Probe |
| Type/family | F075 |
| Pitch (mm/mil) | 1,90 / 75 |
| Temperature | -45°C...+80°C |
| Dimensions | |
|---|---|
| Total length (mm) | 33.1 |
| Protrusion height (mm) | 8.5 |
| Tip style diameter (mm) | 0.64 |
| Barrel diameter (mm) | 1.02 |
| Materials and surfaces | |
|---|---|
| Tip style | 79 |
| Plunger material | Beryllium copper |
| Plunger plating | Progressive |
| Barrel material | Bronze |
| Barrel plating | Gold |
| Spring material | Spring steel |
| Spring plating | Silver |
| Mechanical specifications | |
|---|---|
| Preload (cN) | 80 |
| Spring force (cN) | 150 |
| Nominal travel (mm) | 4.3 |
| Maximum travel (mm) | 6.4 |
| Pointing accuracy +/- (mm) | 0.08 |
| Electrical specifications | |
|---|---|
| Continuous current (A) | 4 |
| Typical contact resistance (mOhm) | 20 |
Graphics
Beschreibung des Produkts

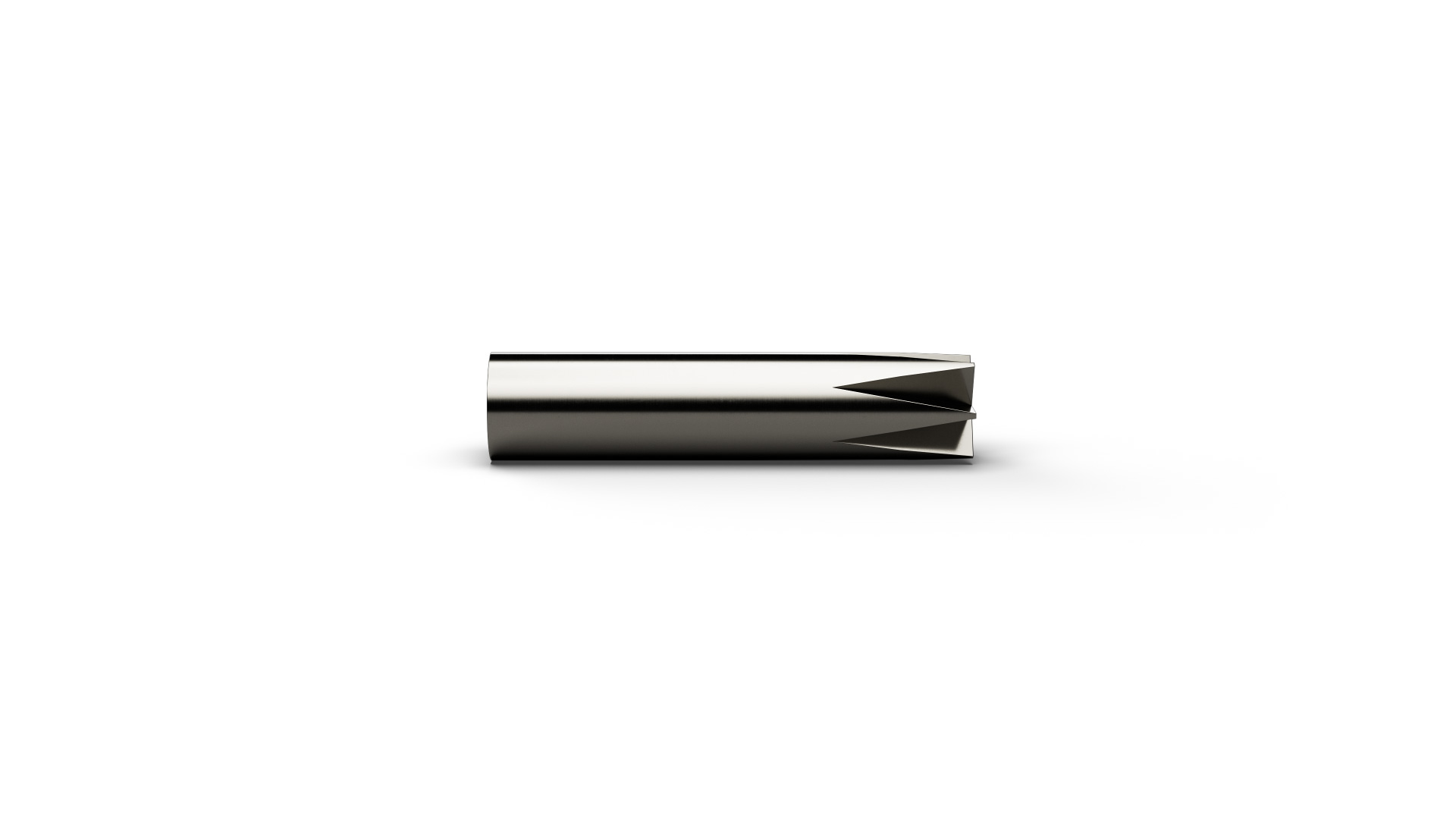

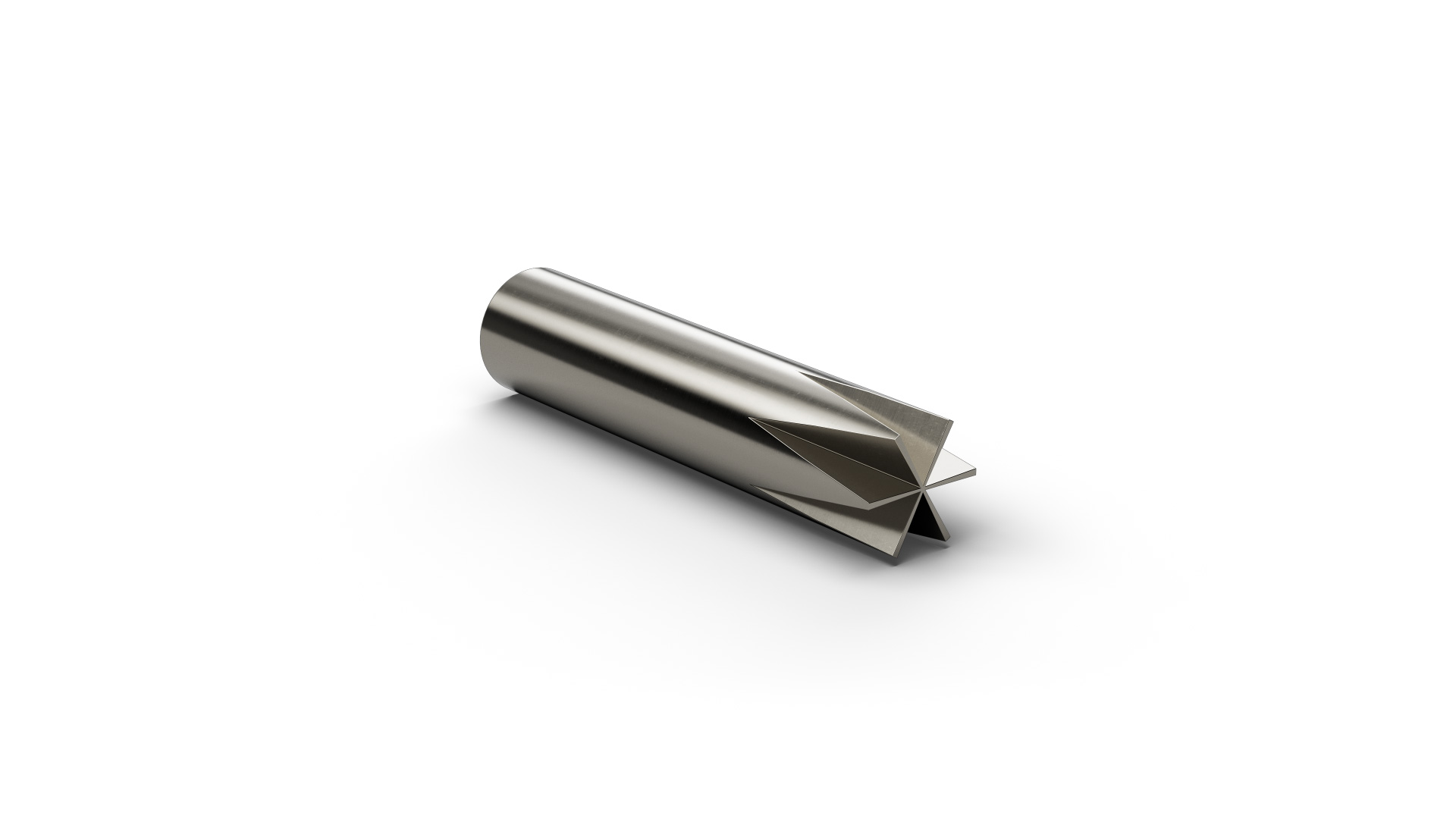

F07579B064P150HP (item number 1169693) belongs to the Basic Contact Probe range for precise, repeatable contacting of electronic test points. F07579B064P150HP belongs to the basic probe range for ICT/FCT, where tip geometry, spring force and surface finish are matched to the target test point. F07579B064P150HP combines a pitch of 1.9 mm / 75 mil with tip style 79 (6-point crown flattened) and a tip diameter of 0.64 mm. F07579B064P150HP operates with 150 cN spring force and 4.3 mm nominal travel. F07579B064P150HP is specified for 4 A continuous current. Two features address difficult surface conditions on F07579B064P150HP: Progressive Coating reduces contamination sensitivity, while the HP spring provides increased preload at the start of the contact stroke.
