Technical data
| General | |
|---|---|
| Structure | Basic Contact Probe |
| Type/family | F075HP |
| Pitch (mm/mil) | 1,90 / 75 |
| Temperature | -45°C...+100°C |
| Additional definition | HP |
| Dimensions | |
|---|---|
| Total length (mm) | 33.1 |
| Protrusion height (mm) | 8.2 |
| Tip style diameter (mm) | 0.3 |
| Barrel diameter (mm) | 1.02 |
| Materials and surfaces | |
|---|---|
| Tip style | 37 |
| Plunger material | Beryllium copper |
| Plunger plating | Progressive |
| Barrel material | Bronze |
| Barrel plating | Gold |
| Spring material | Spring steel |
| Spring plating | Silver |
| Mechanical specifications | |
|---|---|
| Preload (cN) | 120 |
| Spring force (cN) | 200 |
| Nominal travel (mm) | 4.3 |
| Maximum travel (mm) | 6.4 |
| Pointing accuracy +/- (mm) | 0.08 |
| Electrical specifications | |
|---|---|
| Continuous current (A) | 4 |
| Typical contact resistance (mOhm) | 40 |
Graphics
Beschreibung des Produkts

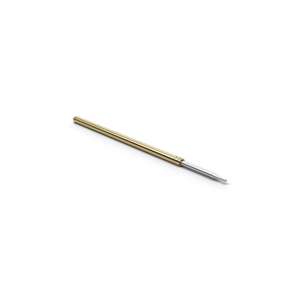

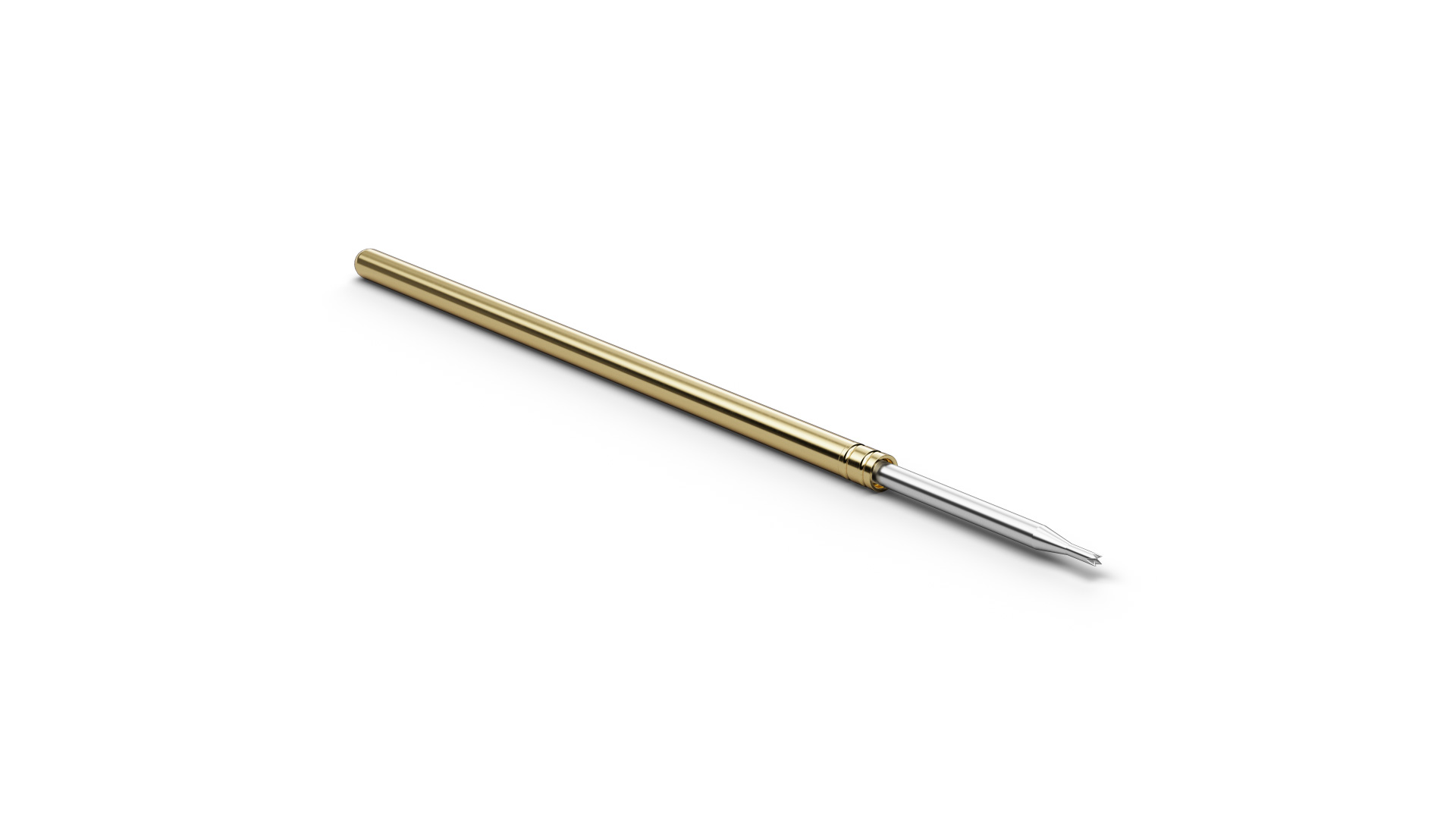

The Mini Bump Probe F07537B030P200HP (item number 1169773) is designed for precise contacting of very small, densely spaced mini bumps on printed circuit boards. Its tip style 37 (4-point crown stepped) with a tip diameter of only 0.3 mm focuses the contact on the individual bump and reduces the risk of touching adjacent structures at the same time. With a pitch of 1.90 mm / 75 mil and 200 cN spring force, F07537B030P200HP combines a compact contact geometry with defined mechanical loading. The continuous-current rating is 4 A. In this P/HP version, Progressive Coating and increased spring preload work together so that F07537B030P200HP is suited to difficult contacting conditions involving OSP, flux residues or contaminated test points.
