Technical data
| General | |
|---|---|
| Structure | Basic Contact Probe |
| Type/family | F563 |
| Pitch (mm/mil) | 3,00 / 118 |
| Temperature | -45°C...+80°C |
| Dimensions | |
|---|---|
| Total length (mm) | 33 |
| Protrusion height (mm) | 16 |
| Tip style diameter (mm) | 2.5 |
| Barrel diameter (mm) | 2.03 |
| Materials and surfaces | |
|---|---|
| Tip style | 06 |
| Plunger material | Beryllium copper |
| Plunger plating | Gold |
| Barrel material | Bronze |
| Barrel plating | Gold |
| Spring material | High-grade steel |
| Spring plating | Uncoated |
| Mechanical specifications | |
|---|---|
| Preload (cN) | 85 |
| Spring force (cN) | 200 |
| Nominal travel (mm) | 4.3 |
| Maximum travel (mm) | 6.4 |
| Pointing accuracy +/- (mm) | 0.1 |
| Electrical specifications | |
|---|---|
| Continuous current (A) | 6 |
| Typical contact resistance (mOhm) | 100 |
Graphics
Beschreibung des Produkts

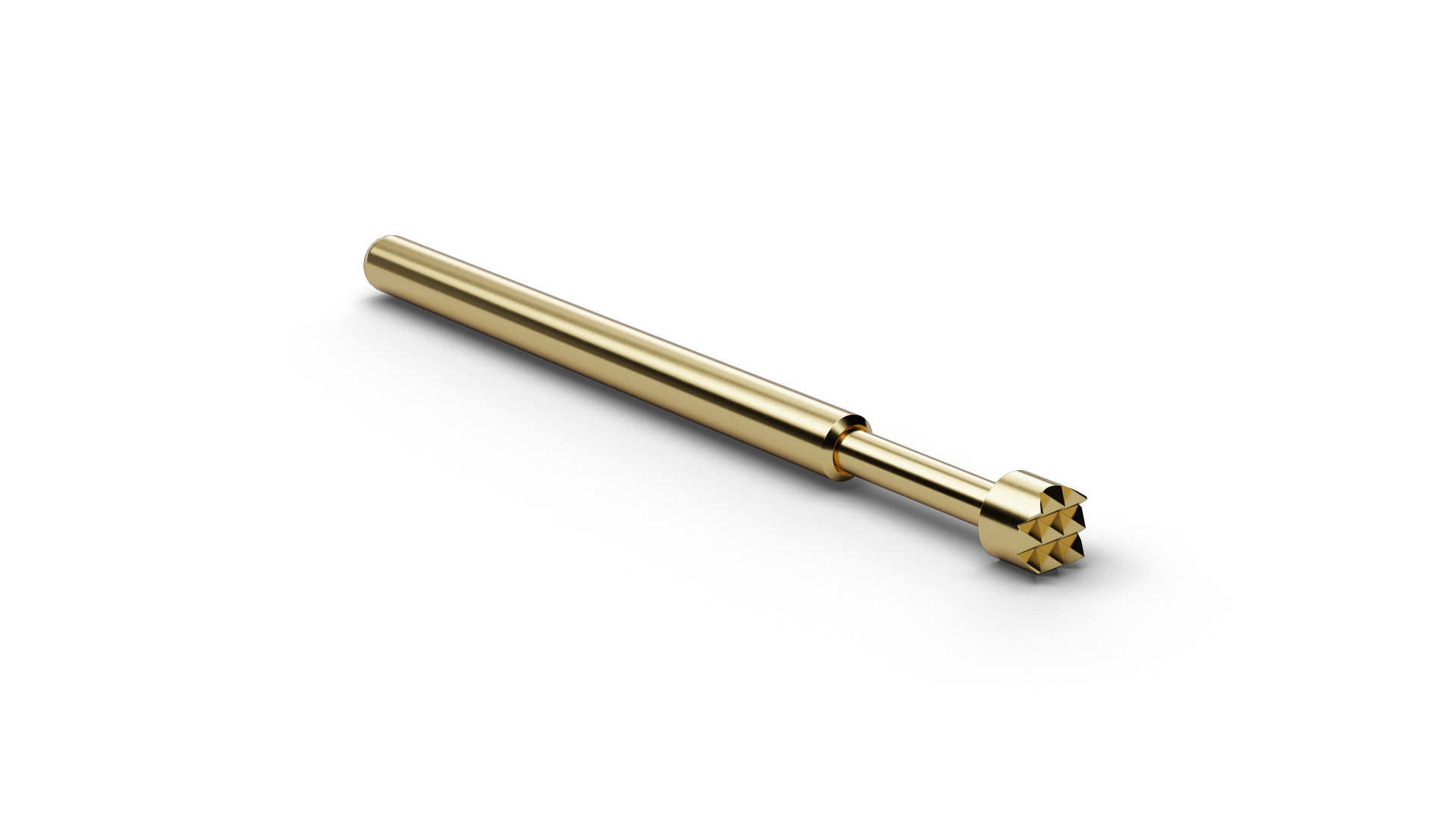

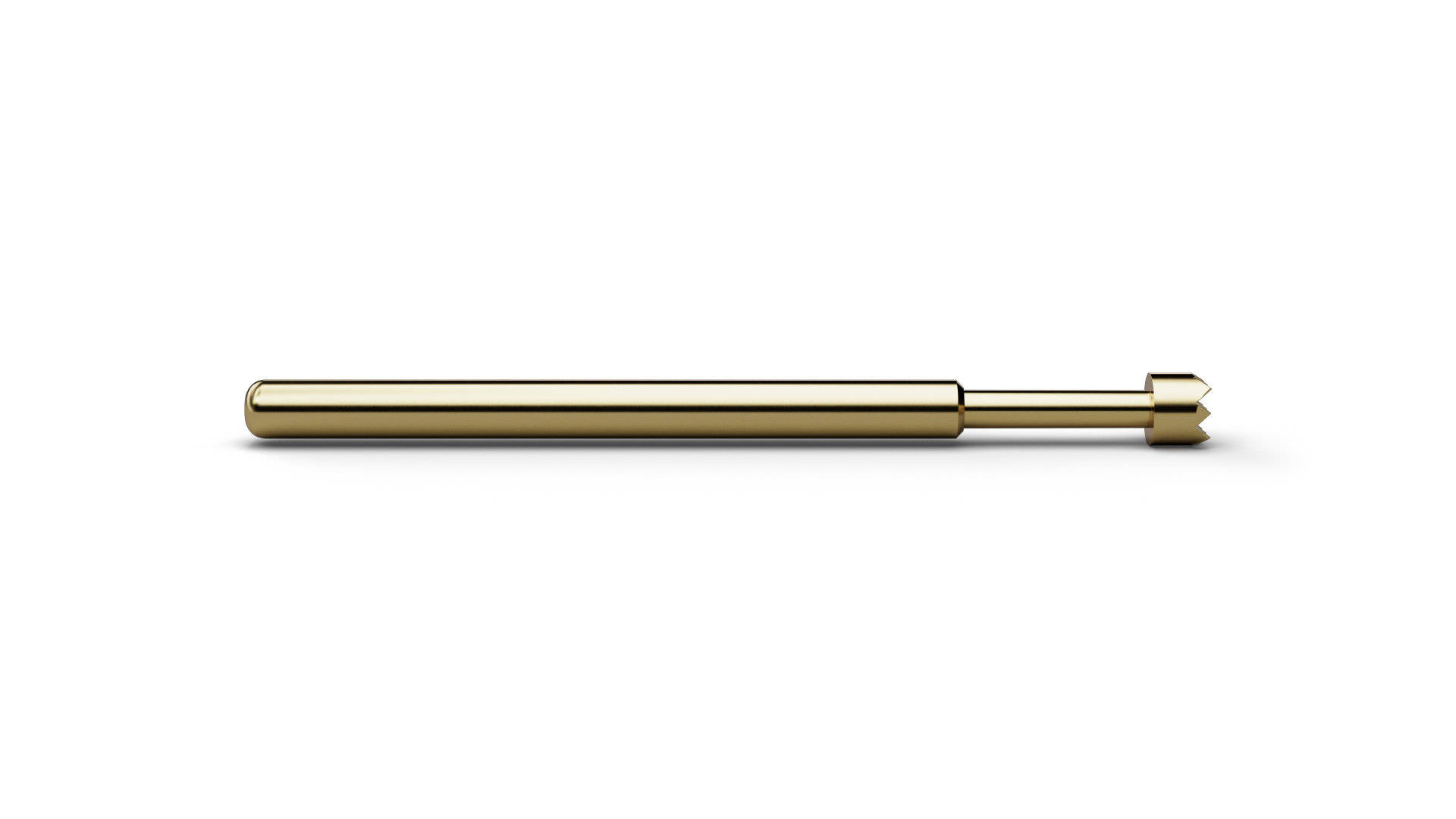

F56306B250G200 (item number 1169811) belongs to the Basic Contact Probe range for precise, repeatable contacting of electronic test points. With tip style 06 (Serrated stepped), F56306B250G200 combines ICT/FCT use with a geometry intended for wires, pins and wire-wrap posts; the geometry is also suited to slightly bent contacts. F56306B250G200 combines a pitch of 3 mm / 118 mil with tip style 06 (Serrated stepped) and a tip diameter of 2.5 mm. For F56306B250G200, spring force is 200 cN at a nominal travel of 4.3 mm. The continuous-current rating of F56306B250G200 is 6 A.
