Technical data
| General | |
|---|---|
| Structure | Basic Contact Probe |
| Type/family | BP100 |
| Pitch (mm/mil) | 2,54 / 100 |
| Temperature | -45°C...+100°C |
| Dimensions | |
|---|---|
| Total length (mm) | 33.1 |
| Protrusion height (mm) | 8.4 |
| Tip style diameter (mm) | 0.64 |
| Barrel diameter (mm) | 1.37 |
| Materials and surfaces | |
|---|---|
| Tip style | 06 |
| Plunger material | Beryllium copper |
| Plunger plating | Gold |
| Barrel material | Bronze |
| Barrel plating | Gold |
| Spring material | Spring steel |
| Spring plating | Gold |
| Mechanical specifications | |
|---|---|
| Preload (cN) | 90 |
| Spring force (cN) | 200 |
| Nominal travel (mm) | 4.3 |
| Maximum travel (mm) | 6.4 |
| Pointing accuracy +/- (mm) | 0.08 |
| Electrical specifications | |
|---|---|
| Continuous current (A) | 5 |
| Typical contact resistance (mOhm) | 20 |
Graphics
Beschreibung des Produkts

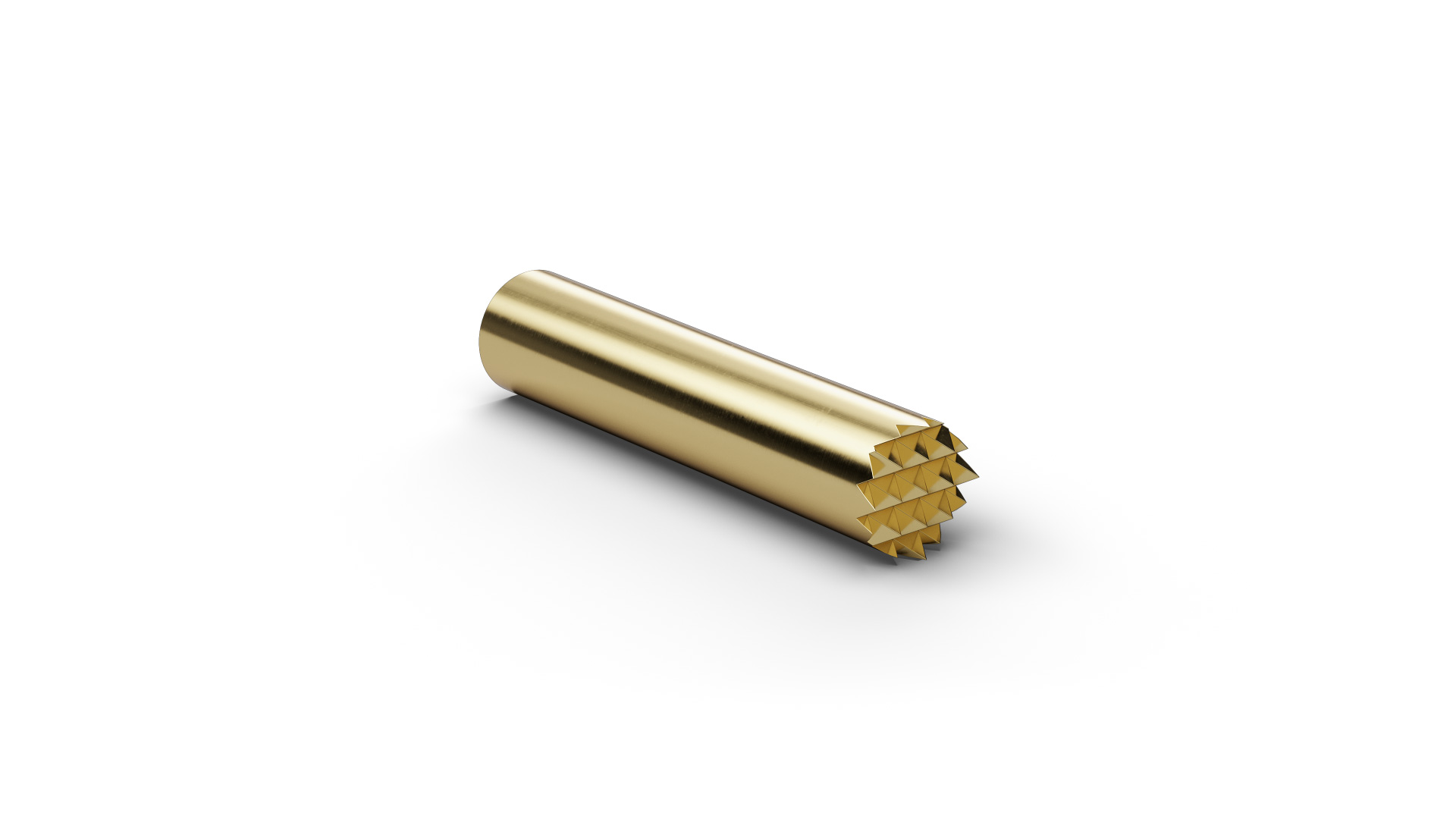

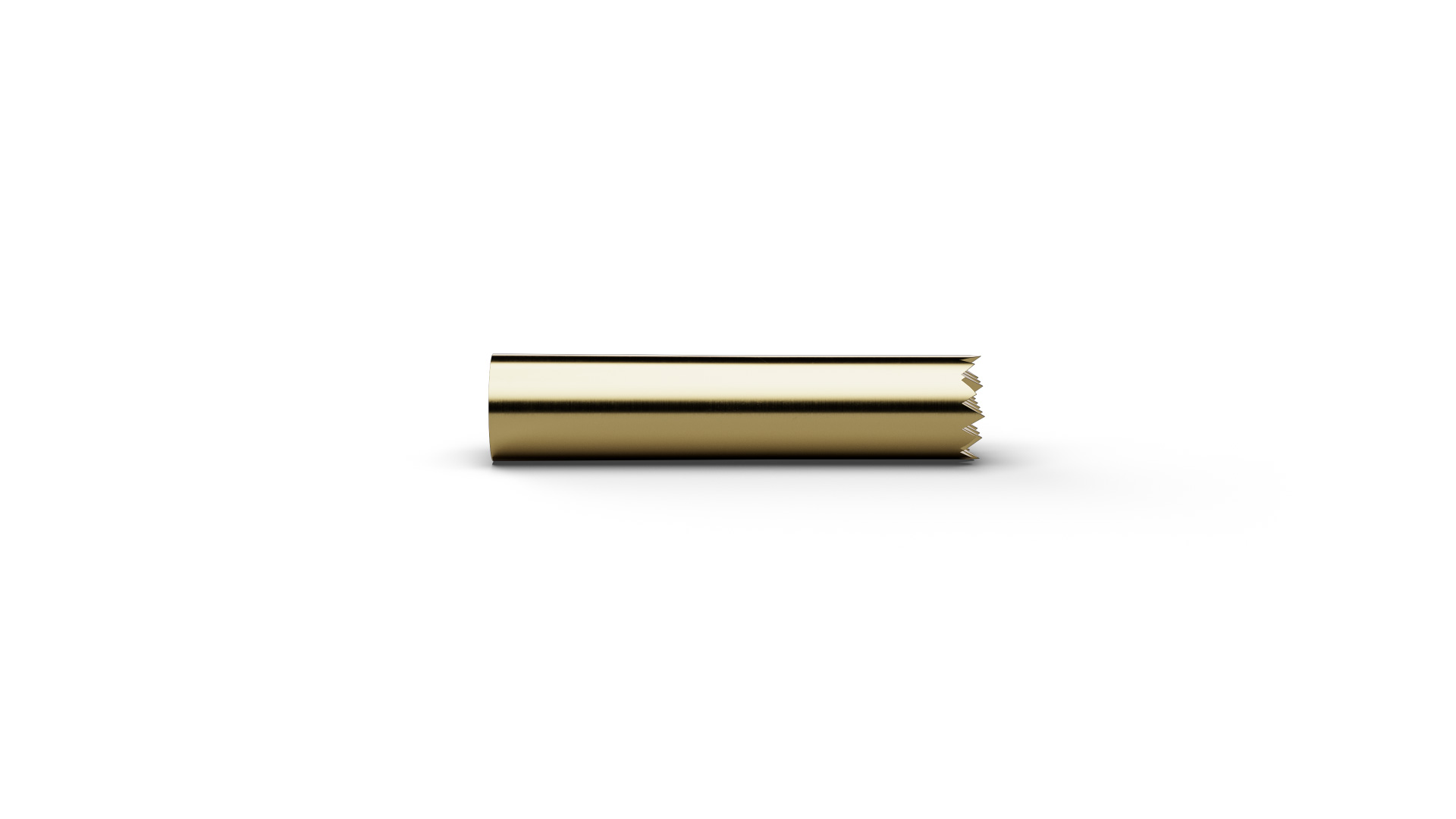

The Bead Probe BP10006B064G200 (item number 1170232) was developed specifically for contacting solder beads on printed circuit boards. Its tip style 06 (Serrated stepped) with a 0.64 mm tip diameter is matched to small solder-bead geometries and provides targeted contacting without unnecessarily loading the surrounding PCB track. BP10006B064G200 is specified with a pitch of 2.54 mm / 100 mil, 200 cN spring force and 4.3 mm nominal travel. The electrical rating allows 5 A continuous current. The Beryllium copper plunger of BP10006B064G200 is gold-plated.
