Technical data
| General | |
|---|---|
| Structure | Basic Contact Probe |
| Type/family | F588 |
| Pitch (mm/mil) | 2,54 / 100 |
| Temperature | -45°C...+100°C |
| Dimensions | |
|---|---|
| Total length (mm) | 39 |
| Protrusion height (mm) | 14.1 |
| Tip style diameter (mm) | 0.9 |
| Barrel diameter (mm) | 1.37 |
| Materials and surfaces | |
|---|---|
| Tip style | 33 |
| Plunger material | Steel |
| Plunger plating | Longtime Gold |
| Barrel material | Bronze |
| Barrel plating | Gold |
| Spring material | Spring steel |
| Spring plating | Silver |
| Mechanical specifications | |
|---|---|
| Preload (cN) | 90 |
| Spring force (cN) | 180 |
| Nominal travel (mm) | 9.3 |
| Maximum travel (mm) | 11.7 |
| Pointing accuracy +/- (mm) | 0.1 |
| Electrical specifications | |
|---|---|
| Continuous current (A) | 5 |
| Typical contact resistance (mOhm) | 30 |
Graphics
Beschreibung des Produkts

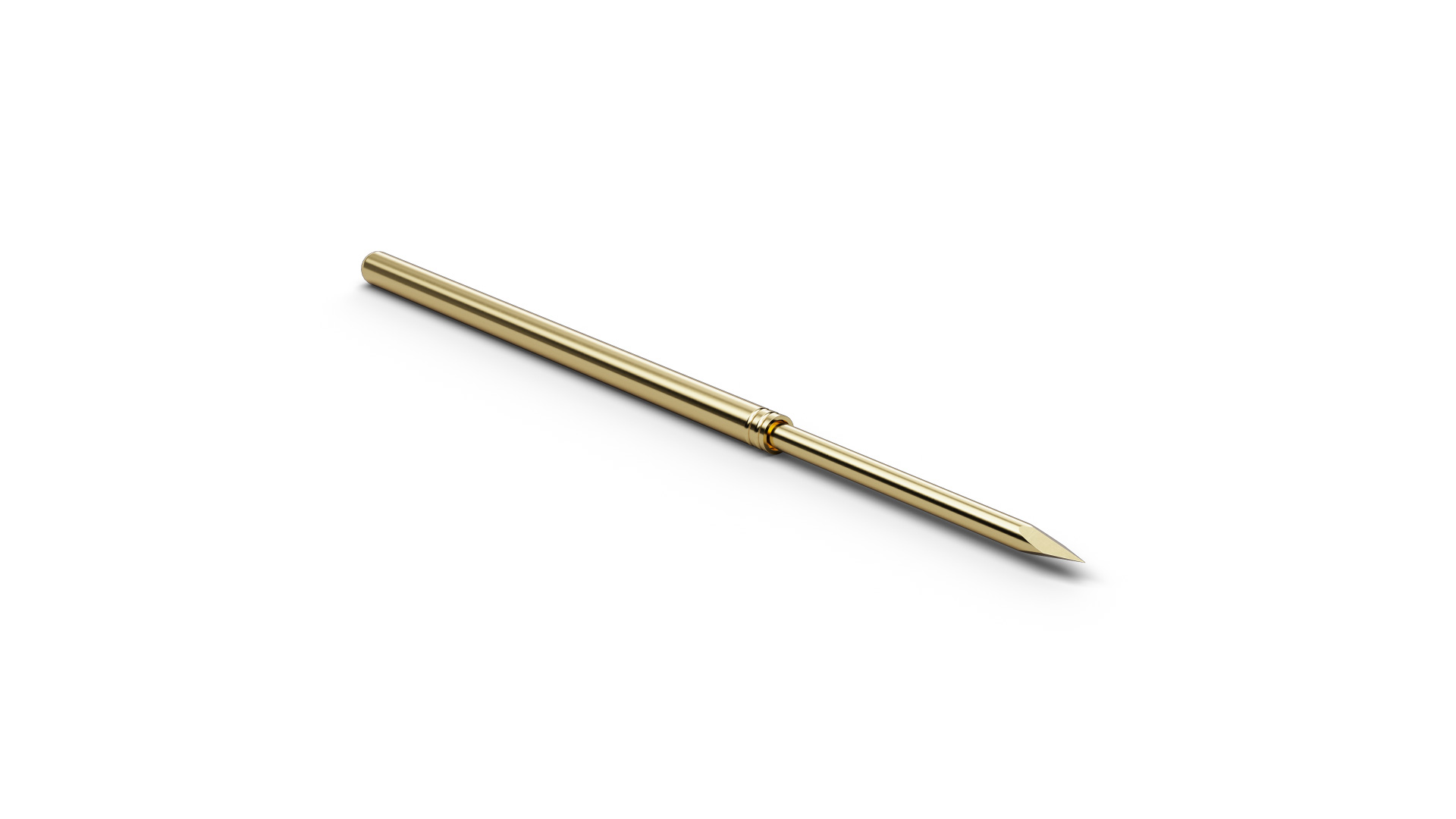

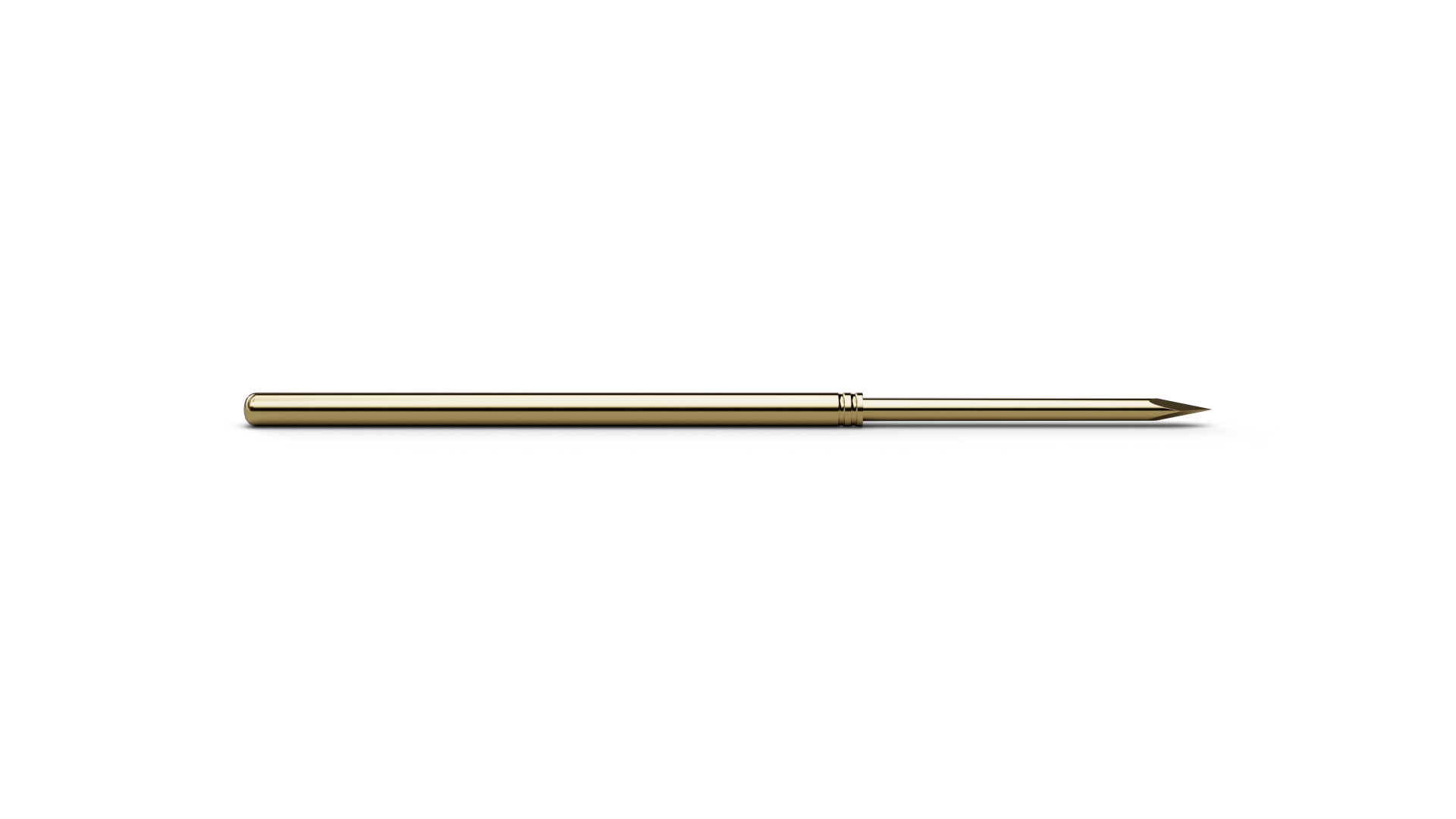

F58833S090L180HP (item number 1170313) provides a Basic Contact Probe for defined electrical contact in ICT and Functional Test fixtures. With tip style 33 (Square lance 38°), F58833S090L180HP combines ICT/FCT use with a geometry intended for vias and solder pads where the edges can break through residues and oxide layers. F58833S090L180HP combines a pitch of 2.54 mm / 100 mil with tip style 33 (Square lance 38°) and a tip diameter of 0.9 mm. For F58833S090L180HP, spring force is 180 cN at a nominal travel of 9.3 mm. For F58833S090L180HP, the specified continuous current is 5 A.
