Technical data
| General | |
|---|---|
| Structure | Basic Contact Probe |
| Type/family | FL100 |
| Pitch (mm/mil) | 2,54 / 100 |
| Temperature | -45°C...+100°C |
| Additional definition | E21 |
| Dimensions | |
|---|---|
| Total length (mm) | 47.5 |
| Protrusion height (mm) | 21.4 |
| Tip style diameter (mm) | 0.15 |
| Barrel diameter (mm) | 1.65 |
| Collar diameter (mm) | 2.3 |
| Materials and surfaces | |
|---|---|
| Tip style | 10 |
| Plunger material | Steel |
| Plunger plating | Longtime Gold |
| Barrel material | Brass |
| Barrel plating | Gold |
| Spring material | Spring steel |
| Spring plating | Gold |
| Mechanical specifications | |
|---|---|
| Preload (cN) | 30 |
| Spring force (cN) | 40 |
| Nominal travel (mm) | 4.3 |
| Maximum travel (mm) | 6.4 |
| Pointing accuracy +/- (mm) | 0.08 |
| Thread | M1,6 |
| Tool size (mm) | 1,7 |
| Electrical specifications | |
|---|---|
| Continuous current (A) | 5 |
| Typical contact resistance (mOhm) | 25 |

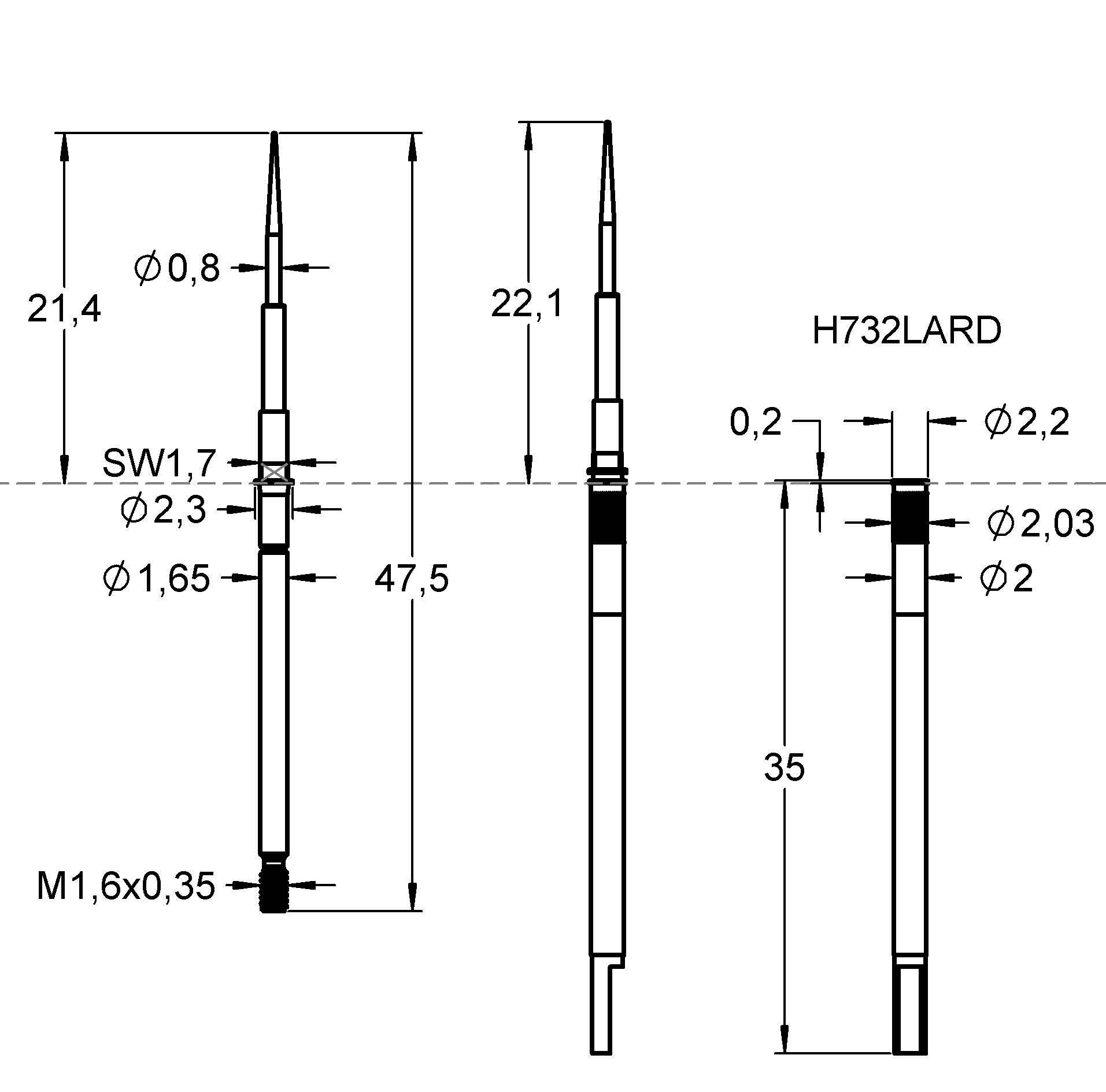

Graphics
Beschreibung des Produkts

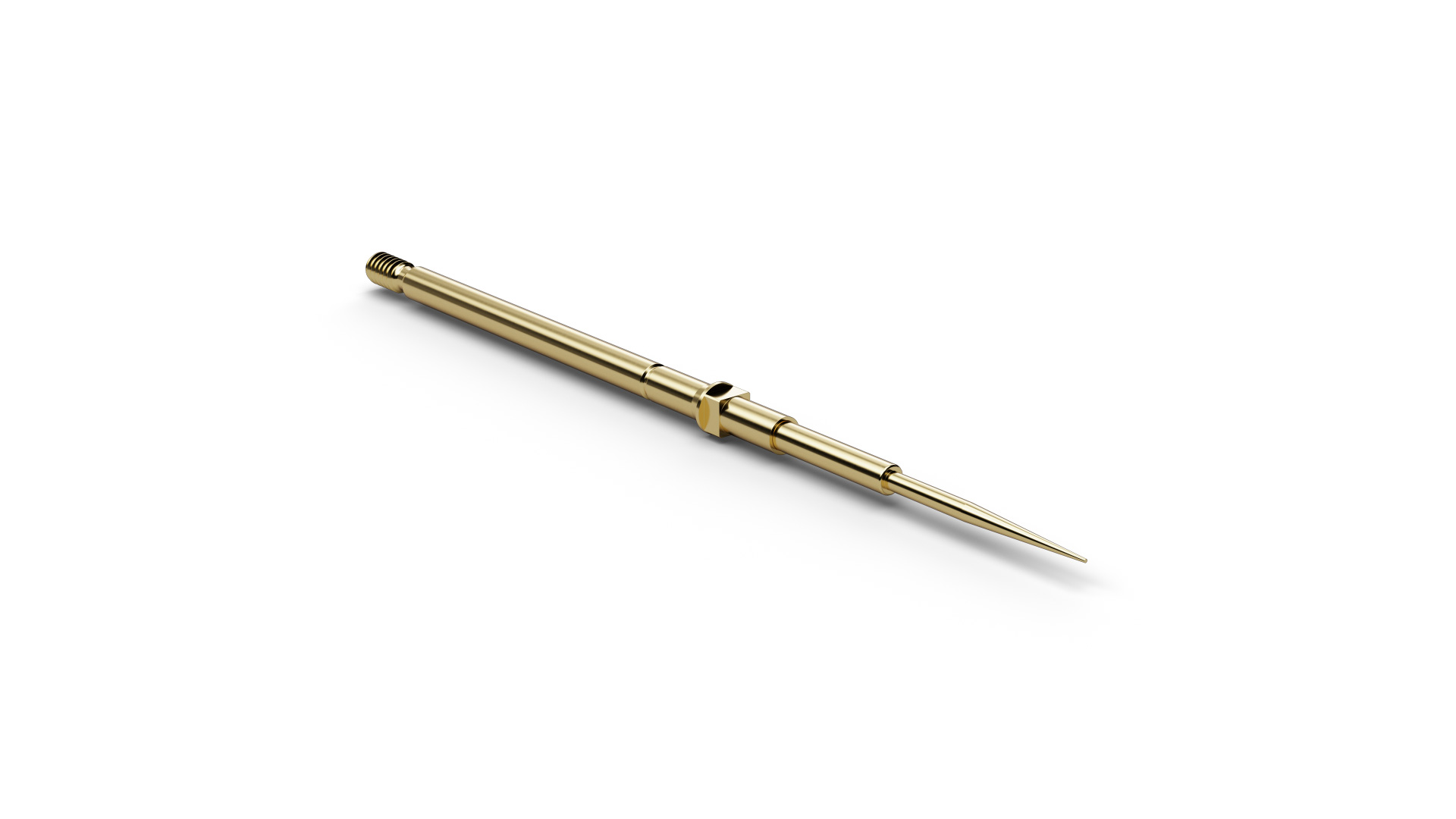

FL10010S015L040E21M (item number 1172321) is a Flying Probe for flexible PCB testing without a fixed bed-of-nails fixture. As a Flying Probe, FL10010S015L040E21M can access individual test points without a fixed bed-of-nails fixture, making it suitable for prototypes, small batches and frequently changing layouts. Flying-probe systems move to individual test points and are therefore well suited to prototypes, small production runs and frequently changing layouts. The design combines a pitch of 2.54 mm / 100 mil with tip style 10 (Flexible needle) and a tip diameter of 0.15 mm. Spring force is 40 cN at a nominal travel of 4.3 mm. The continuous-current rating of FL10010S015L040E21M is 5 A.
