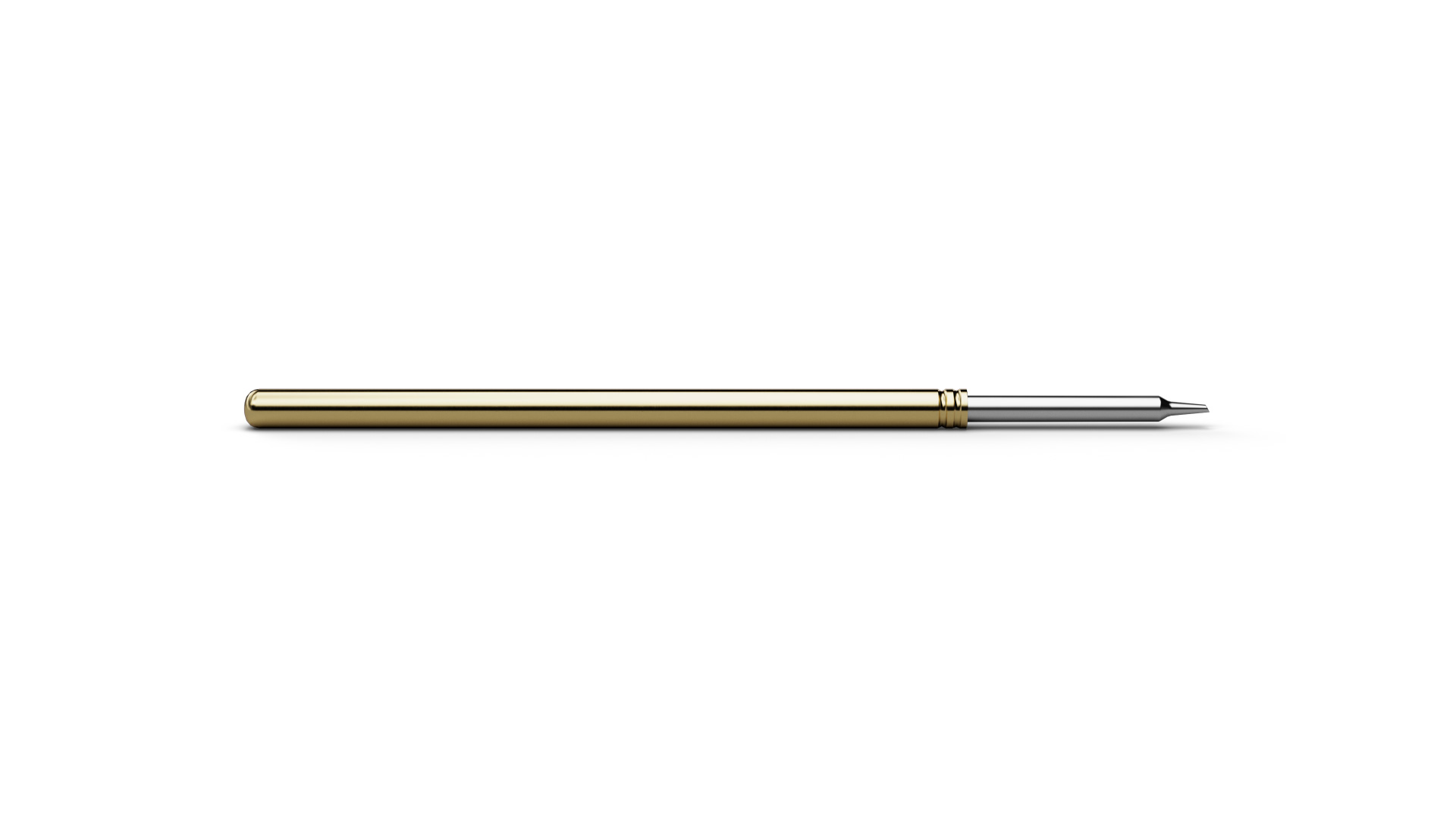

F10044S026P300HP (item number 1172564) is a Basic Contact Probe for repeatable temporary electrical connections between the test system and a test point. F10044S026P300HP belongs to the basic probe range for ICT/FCT, where tip geometry, spring force and surface finish are matched to the target test point. F10044S026P300HP combines a pitch of 2.54 mm / 100 mil with tip style 44 (Rigid needle with eccentric-cut) and a tip diameter of 0.26 mm. For F10044S026P300HP, spring force is 300 cN at a nominal travel of 4.3 mm. The continuous-current rating of F10044S026P300HP is 5 A. On F10044S026P300HP, Progressive Coating works together with the higher preload of the HP version, targeting test points affected by OSP, flux, oxidation or other contamination rather than treating the coating as an isolated feature.
