Technical data
| General | |
|---|---|
| Structure | Basic Contact Probe |
| Type/family | F075 |
| Pitch (mm/mil) | 1,90 / 75 |
| Temperature | -45°C...+80°C |
| Dimensions | |
|---|---|
| Total length (mm) | 35.1 |
| Protrusion height (mm) | 10.5 |
| Tip style diameter (mm) | 0.64 |
| Barrel diameter (mm) | 1.02 |
| Materials and surfaces | |
|---|---|
| Tip style | 62 |
| Plunger material | Steel |
| Plunger plating | Longtime Gold |
| Barrel material | Bronze |
| Barrel plating | Gold |
| Spring material | Spring steel |
| Spring plating | Silver |
| Mechanical specifications | |
|---|---|
| Preload (cN) | 110 |
| Spring force (cN) | 280 |
| Nominal travel (mm) | 4.3 |
| Maximum travel (mm) | 6.4 |
| Electrical specifications | |
|---|---|
| Continuous current (A) | 4 |
| Typical contact resistance (mOhm) | 20 |

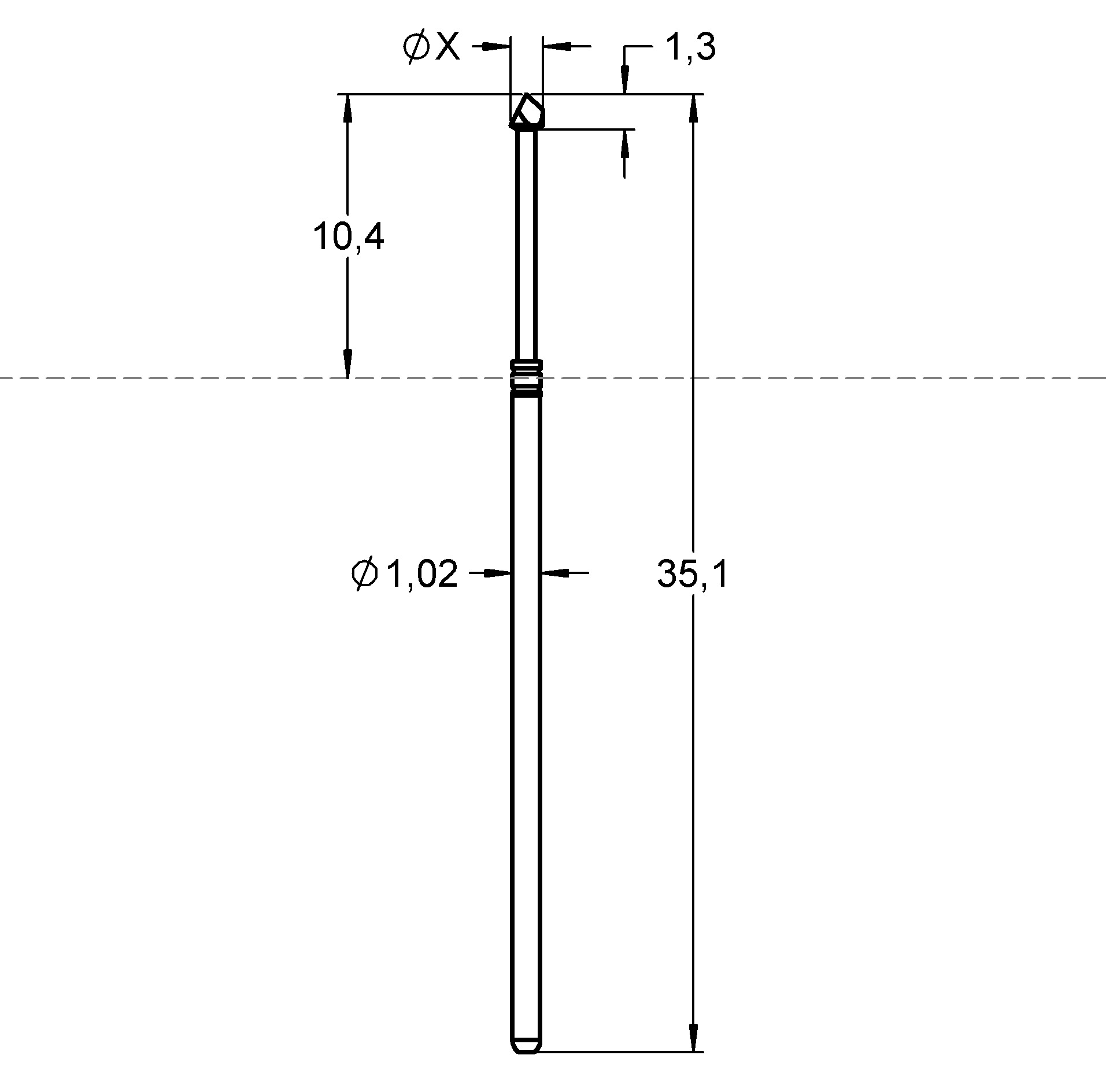

Graphics
Beschreibung des Produkts
F07562S064L280L (item number 1172579) provides a Basic Contact Probe for defined electrical contact in ICT and Functional Test fixtures. With tip style 62 (Triangular 30°), F07562S064L280L combines ICT/FCT use with a geometry intended for vias and solder pads where sharp edges can penetrate flux residues or oxide layers. F07562S064L280L combines a pitch of 1.9 mm / 75 mil with tip style 62 (Triangular 30°) and a tip diameter of 0.64 mm. F07562S064L280L operates with 280 cN spring force and 4.3 mm nominal travel. F07562S064L280L is specified for 4 A continuous current.
