Technical data
| General | |
|---|---|
| Structure | Basic Contact Probe |
| Type/family | F100 |
| Pitch (mm/mil) | 2,54 / 100 |
| Temperature | -45°C...+80°C |
| Additional definition | ML |
| Dimensions | |
|---|---|
| Total length (mm) | 38.4 |
| Protrusion height (mm) | 8.4 |
| Tip style diameter (mm) | 0.9 |
| Barrel diameter (mm) | 1.37 |
| Materials and surfaces | |
|---|---|
| Tip style | 62 |
| Plunger material | Steel |
| Plunger plating | Longtime Gold |
| Barrel material | Bronze |
| Barrel plating | Gold |
| Spring material | Spring steel |
| Spring plating | Silver |
| Mechanical specifications | |
|---|---|
| Preload (cN) | 80 |
| Spring force (cN) | 200 |
| Nominal travel (mm) | 4.3 |
| Maximum travel (mm) | 6.4 |
| Pointing accuracy +/- (mm) | 0.08 |
| Electrical specifications | |
|---|---|
| Continuous current (A) | 5 |
| Typical contact resistance (mOhm) | 20 |
Graphics
Beschreibung des Produkts

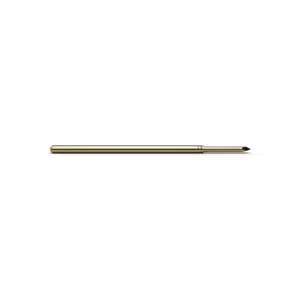

F10062S090L200L (item number 1172586) provides a Basic Contact Probe for defined electrical contact in ICT and Functional Test fixtures. With tip style 62 (Triangular 30°), F10062S090L200L combines ICT/FCT use with a geometry intended for vias and solder pads where sharp edges can penetrate flux residues or oxide layers. F10062S090L200L combines a pitch of 2.54 mm / 100 mil with tip style 62 (Triangular 30°) and a tip diameter of 0.9 mm. F10062S090L200L operates with 200 cN spring force and 4.3 mm nominal travel. F10062S090L200L is specified for 5 A continuous current.
