Technical data
| General | |
|---|---|
| Structure | Basic Contact Probe |
| Type/family | F039 |
| Pitch (mm/mil) | 1,00 / 39 |

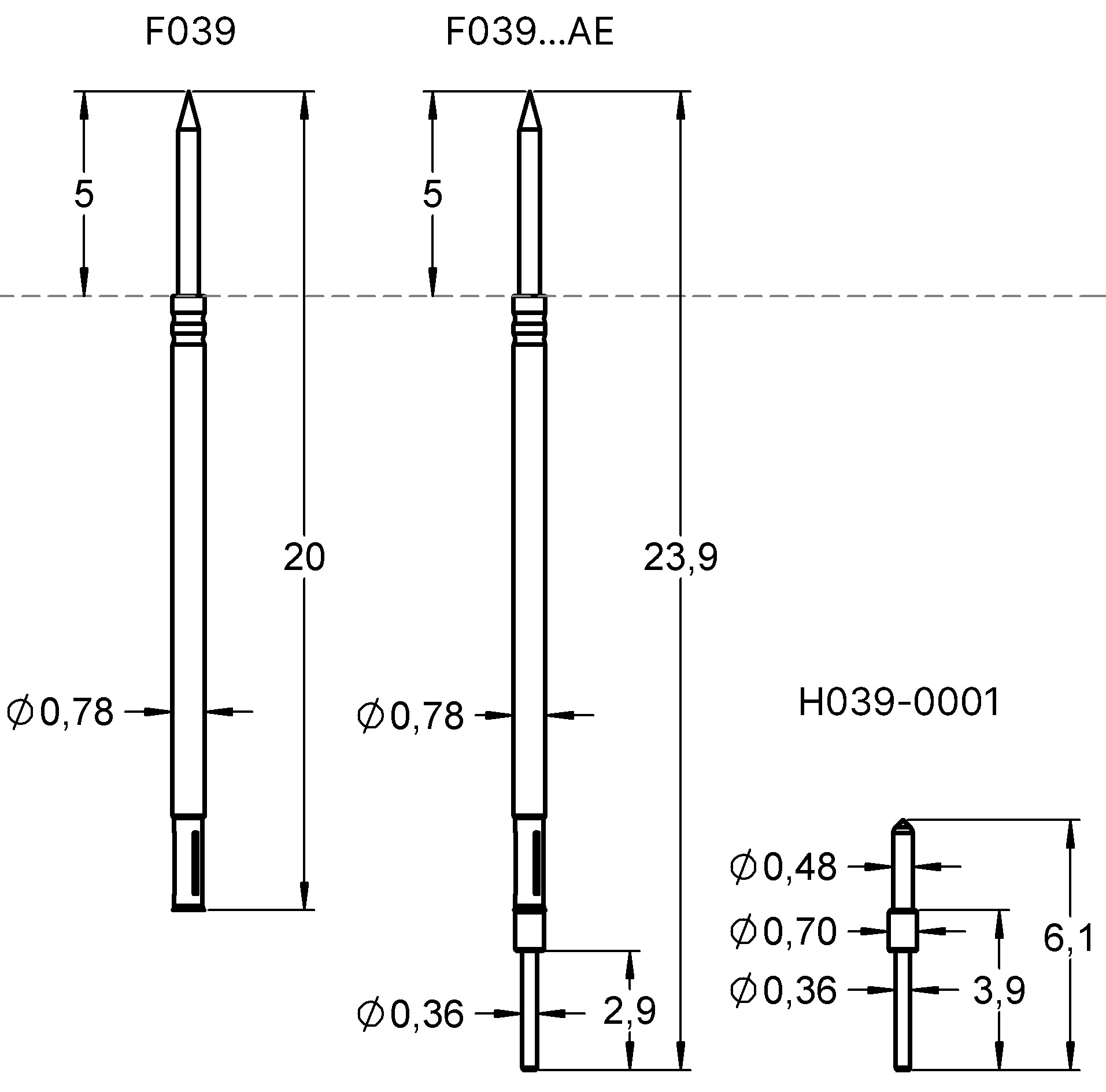

| Dimensions | |
|---|---|
| Total length (mm) | 20 |
| Protrusion height (mm) | 5 |
| Tip style diameter (mm) | 0.5 |
| Barrel diameter (mm) | 0.78 |
| Materials and surfaces | |
|---|---|
| Tip style | 18 |
| Plunger material | Sandvik |
| Plunger plating | Multiplex Gold |
| Barrel material | Bronze |
| Barrel plating | Gold |
| Spring material | High-grade steel |
| Spring plating | Gold |
| Mechanical specifications | |
|---|---|
| Preload (cN) | 10 |
| Spring force (cN) | 30 |
| Nominal travel (mm) | 2 |
| Maximum travel (mm) | 3.7 |
| Pointing accuracy +/- (mm) | 0.05 |
| Electrical specifications | |
|---|---|
| Continuous current (A) | 2 |
| Typical contact resistance (mOhm) | 150 |
Graphics
Beschreibung des Produkts

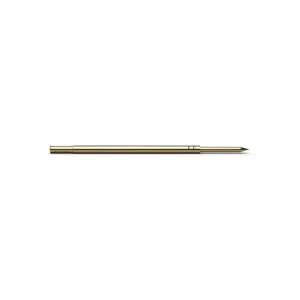

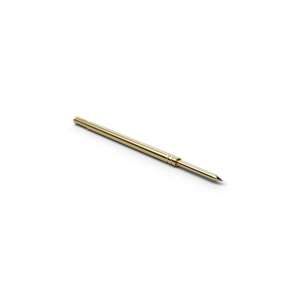

The Basic Contact Probe F03918S050M030 (item number 1176284) is designed for repeated contacting of test points in electronic test fixtures. With tip style 18 (Conical 30°), F03918S050M030 combines ICT/FCT use with a geometry intended for solder pads and vias. F03918S050M030 combines a pitch of 1 mm / 39 mil with tip style 18 (Conical 30°) and a tip diameter of 0.5 mm. F03918S050M030 operates with 30 cN spring force and 2 mm nominal travel. The continuous-current rating of F03918S050M030 is 2 A.
