Technical data
| General | |
|---|---|
| Structure | Basic Contact Probe |

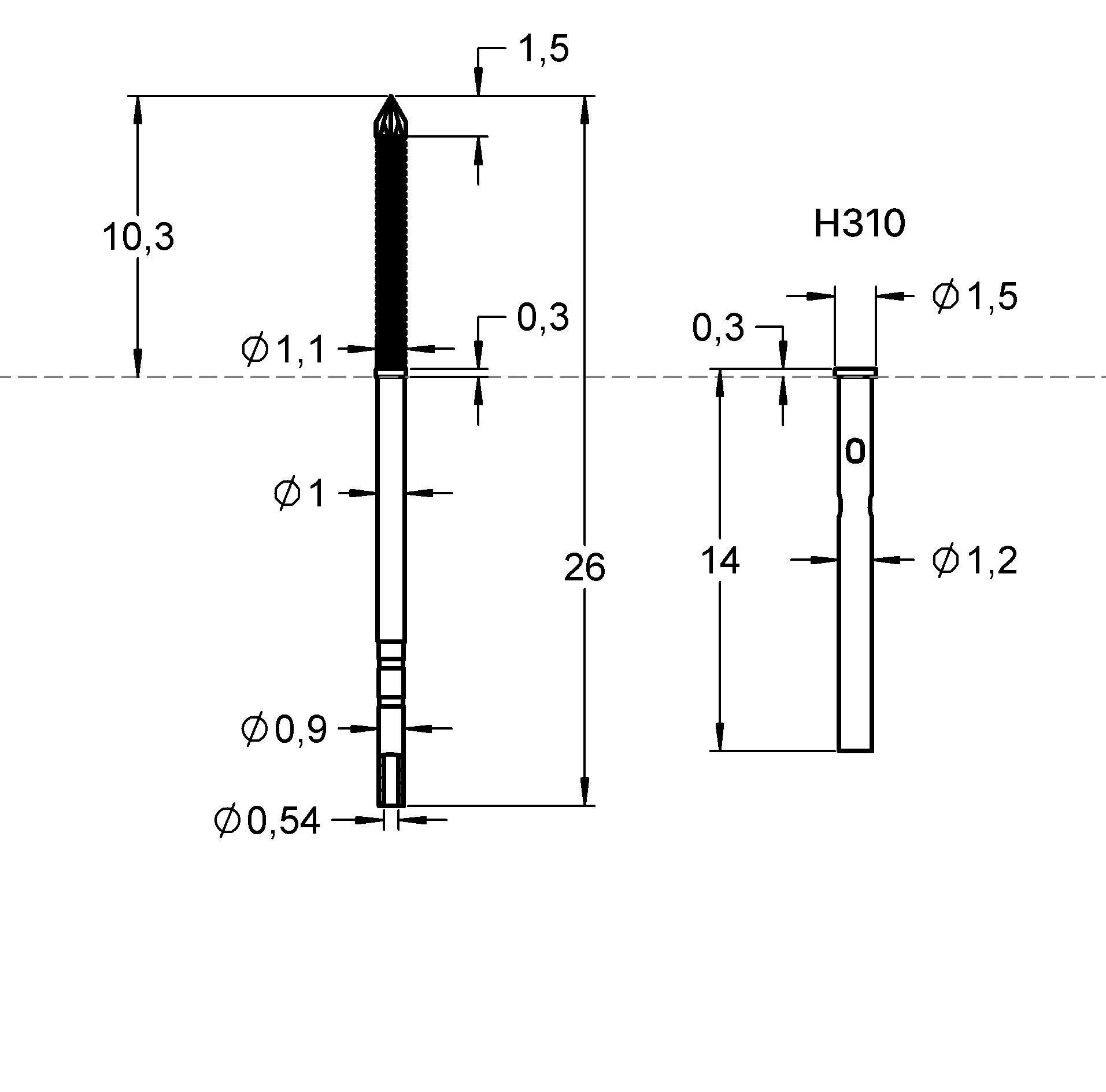

| Type/family | HCF310 |
| Pitch (mm/mil) | 1,90 / 75 |
| Temperature | -45°C...+200°C |
| Dimensions | |
|---|---|
| Total length (mm) | 26 |
| Protrusion height (mm) | 10.2 |
| Tip style diameter (mm) | 1.1 |
| Barrel diameter (mm) | 0.99 |
| Collar diameter (mm) | 1.1 |
| Press ring diameter (mm) | 1.1 |
| Materials and surfaces | |
|---|---|

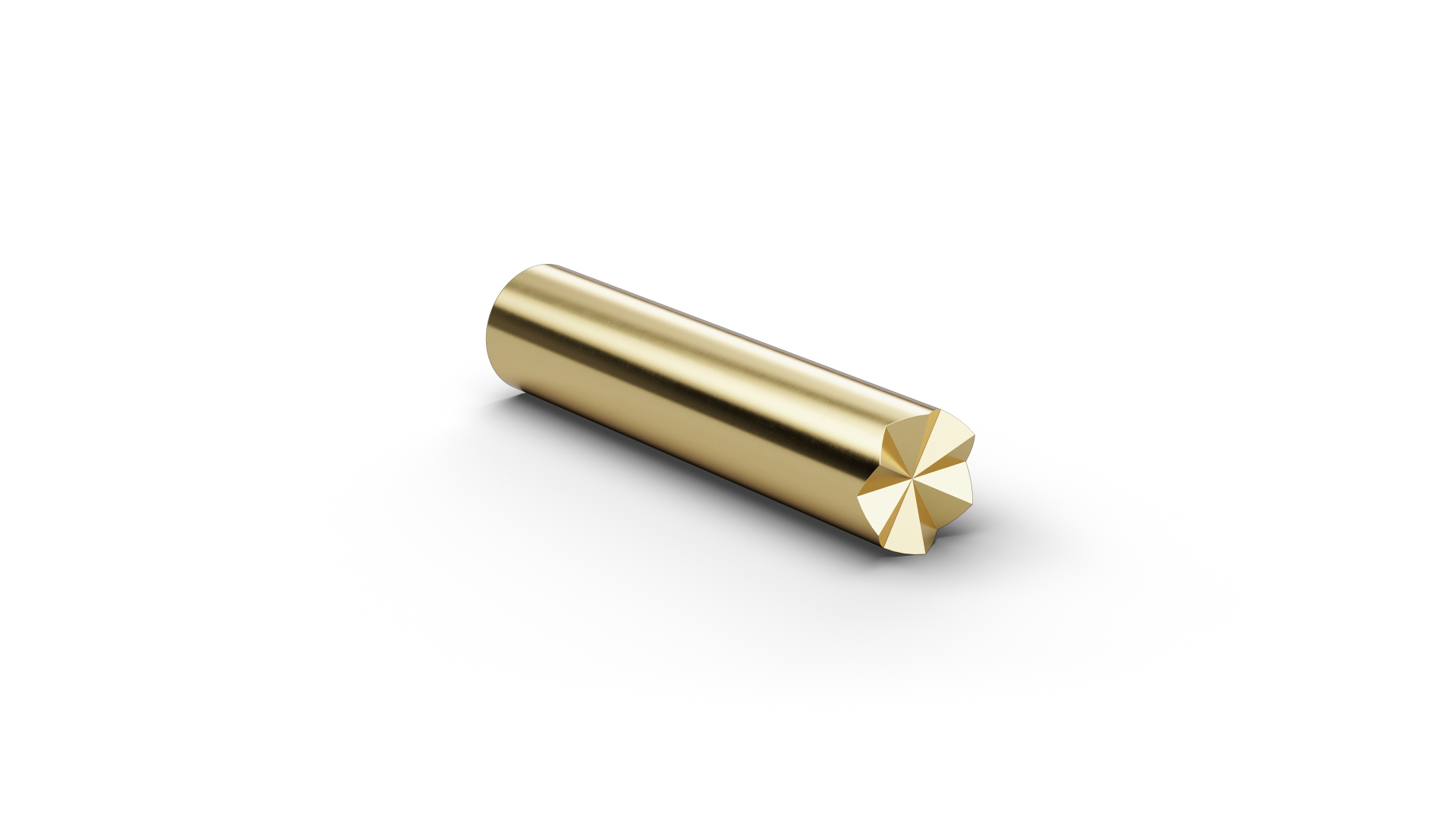

| Tip style | 09 |
| Plunger material | Steel |
| Plunger plating | Longtime Gold |
| Barrel material | Bronze |
| Barrel plating | Uncoated |
| Spring material | High-grade steel |
| Spring plating | Uncoated |
| Mechanical specifications | |
|---|---|
| Preload (cN) | 40 |
| Spring force (cN) | 90 |
| Nominal travel (mm) | 2.4 |
| Maximum travel (mm) | 3 |
| Pointing accuracy +/- (mm) | 0.1 |
| Electrical specifications | |
|---|---|
| Continuous current (A) | 10 |
| Typical contact resistance (mOhm) | 25 |

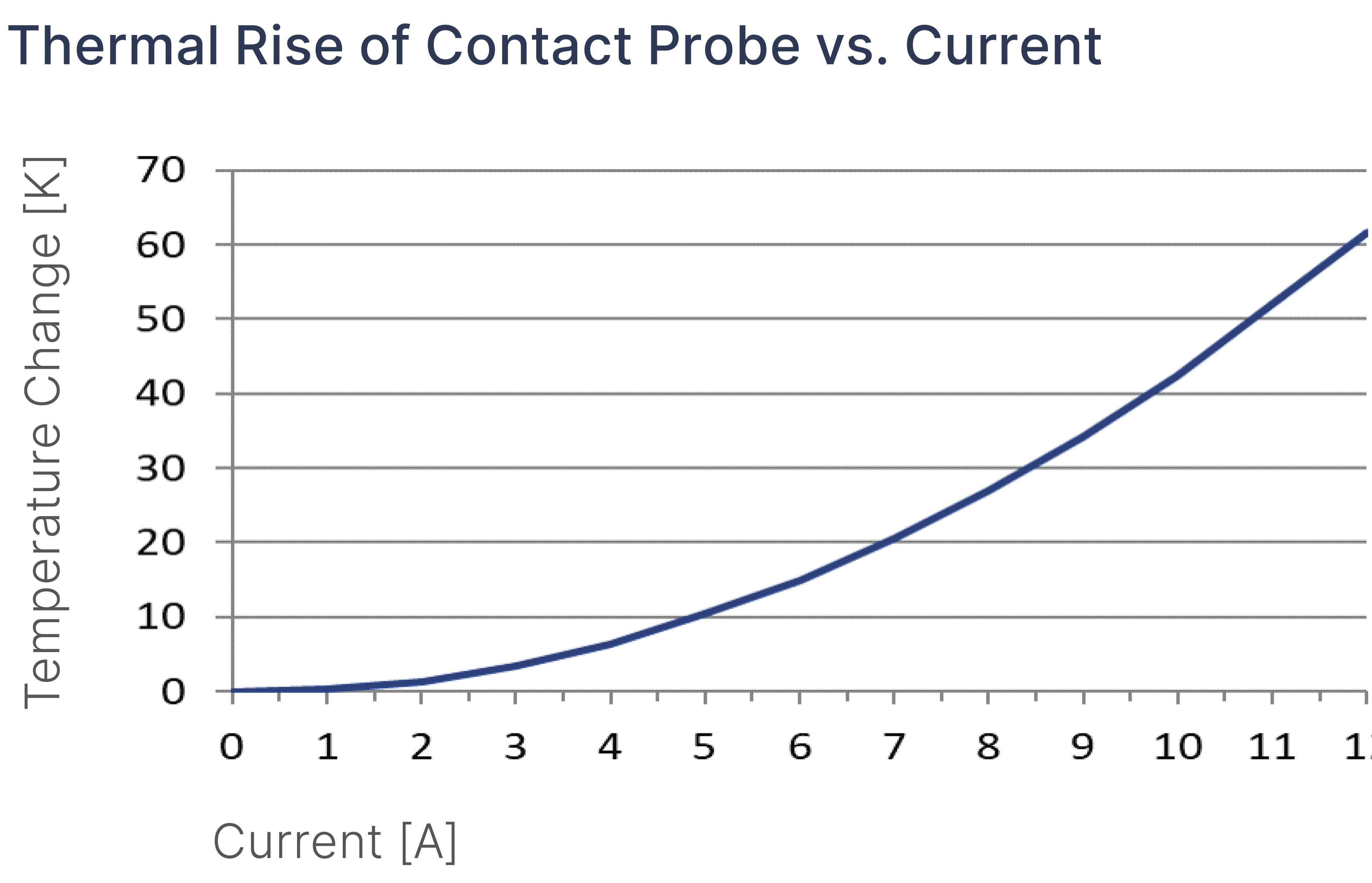

Graphics
Beschreibung des Produkts

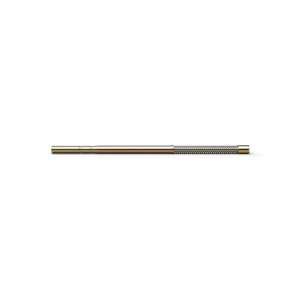

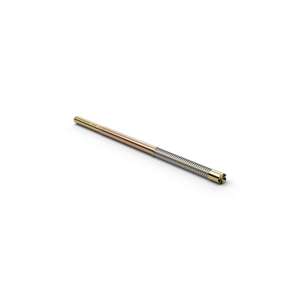

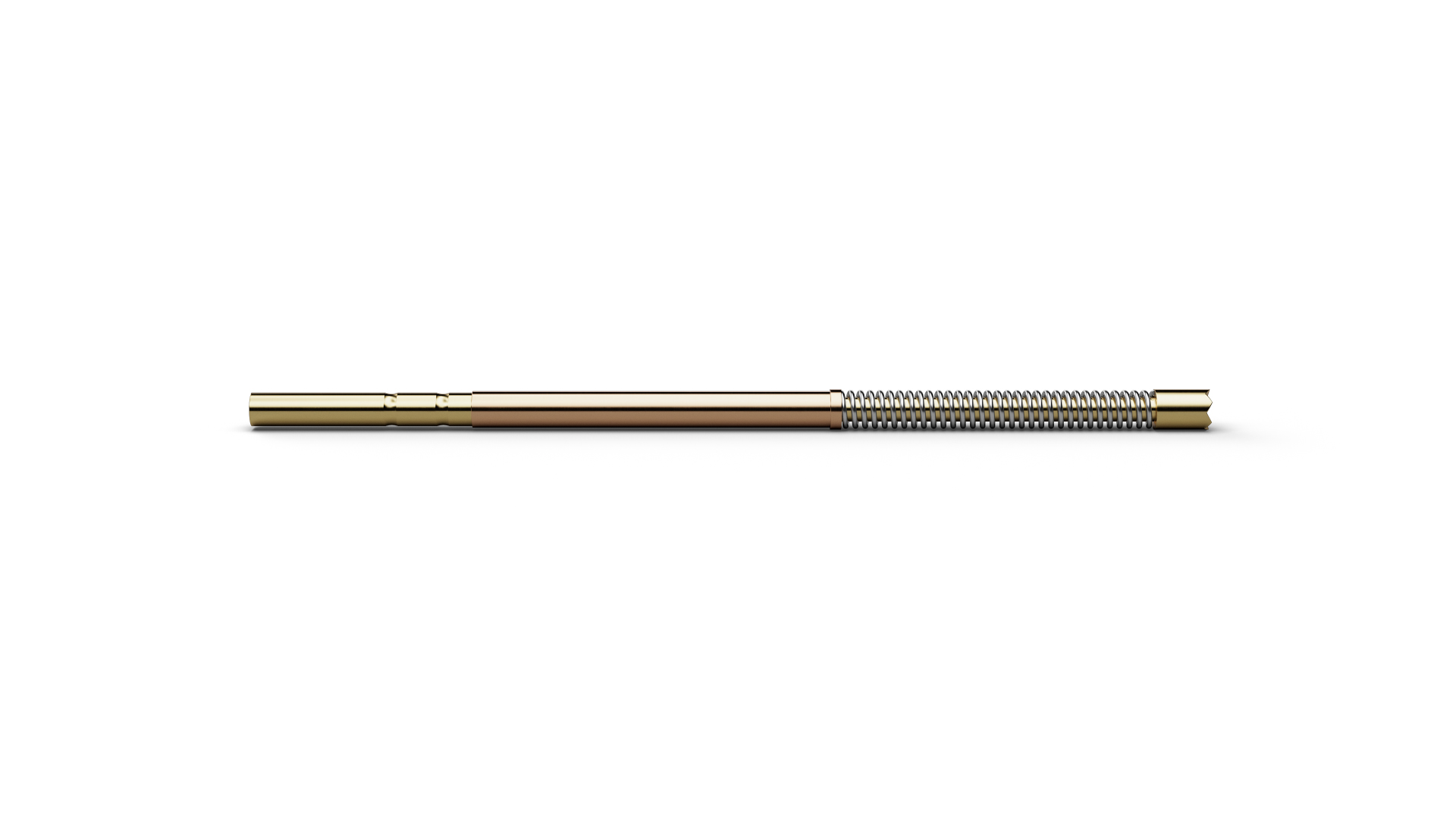

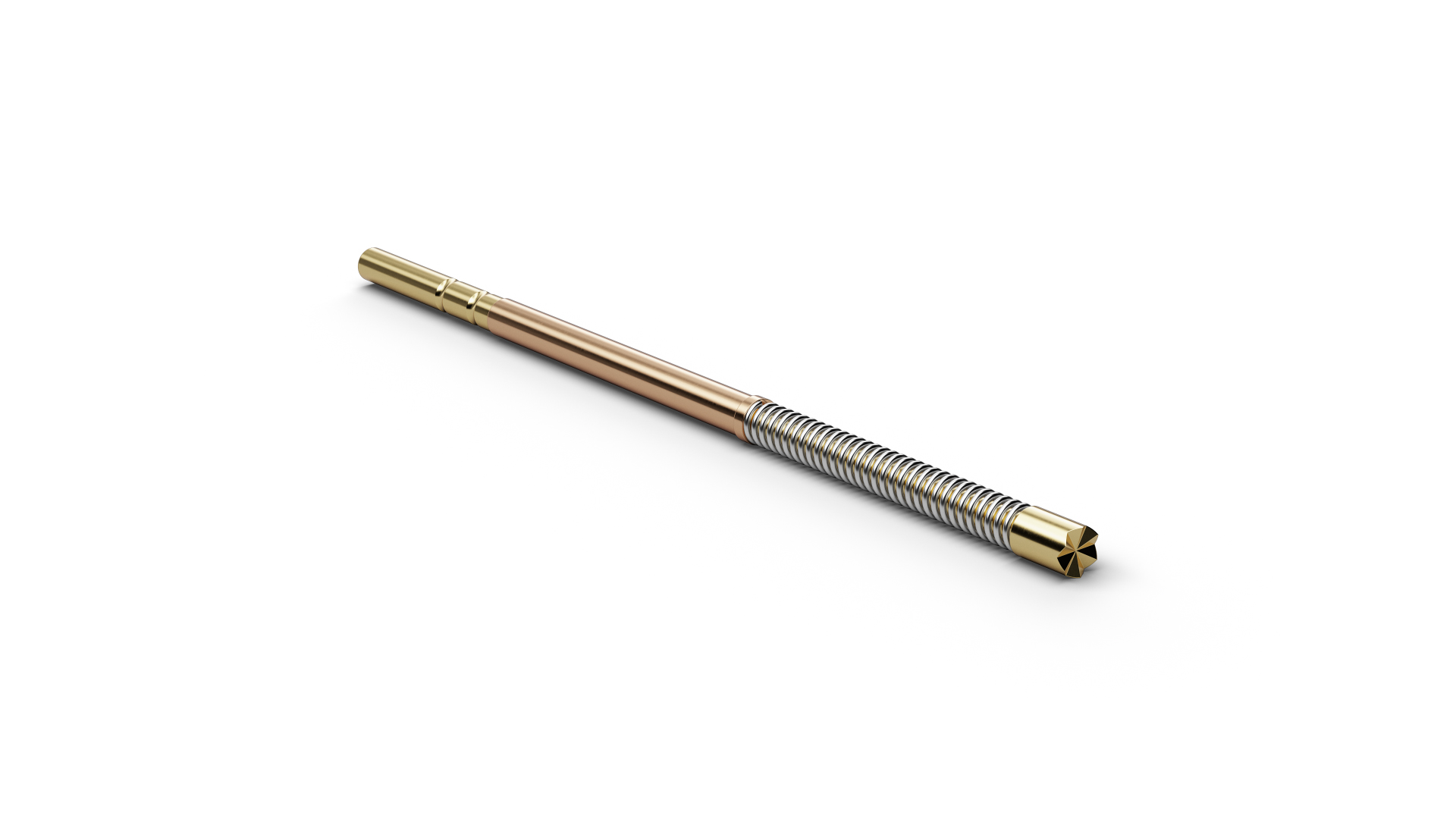

The High Current Probe HCF31009S110L090 (item number 1001358) is designed for safe transmission of high electrical currents in test and contacting applications. HCF31009S110L090 focuses on current capacity and low transition losses, as required in battery testing, formation and other e-mobility applications. For HCF31009S110L090, contact resistance, contact force and thermal behavior must be considered together because they influence voltage drop and temperature rise at the contact point. The intended application area for HCF31009S110L090 includes power-electronics testing. HCF31009S110L090 is rated for 10 A continuous current with a typical contact resistance of 25 mΩ. For HCF31009S110L090, spring force is 90 cN at a nominal travel of 2.4 mm.
