Technical data
| General | |
|---|---|
| Structure | Basic Contact Probe |
| Type/family | F502 |
| Pitch (mm/mil) | 2,54 / 100 |
| Temperature | -45°C...+80°C |
| Dimensions | |
|---|---|
| Total length (mm) | 24.7 |
| Protrusion height (mm) | 6.2 |
| Tip style diameter (mm) | 0.76 |
| Barrel diameter (mm) | 1.37 |
| Materials and surfaces | |
|---|---|
| Tip style | 03 |
| Plunger material | Steel |
| Plunger plating | Nickel |
| Barrel material | Bronze |
| Barrel plating | Silver |
| Spring material | Spring steel |
| Spring plating | Silver |
| Mechanical specifications | |
|---|---|
| Preload (cN) | 60 |
| Spring force (cN) | 130 |
| Nominal travel (mm) | 2.7 |
| Maximum travel (mm) | 4.1 |
| Pointing accuracy +/- (mm) | 0.05 |
| DUT | LP1800 |
| Electrical specifications | |
|---|---|
| Continuous current (A) | 5 |
| Typical contact resistance (mOhm) | 55 |

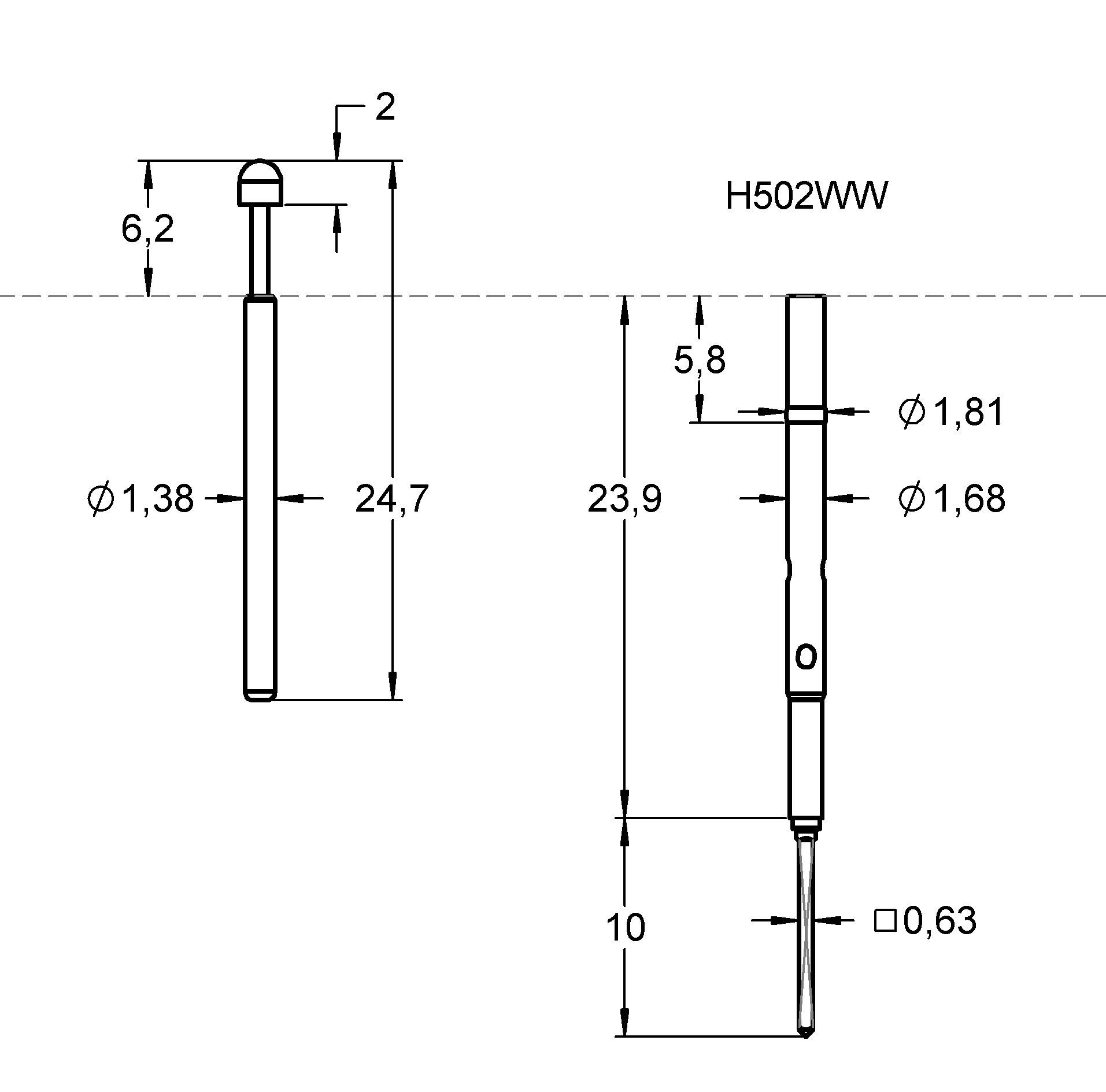

Graphics
Beschreibung des Produkts

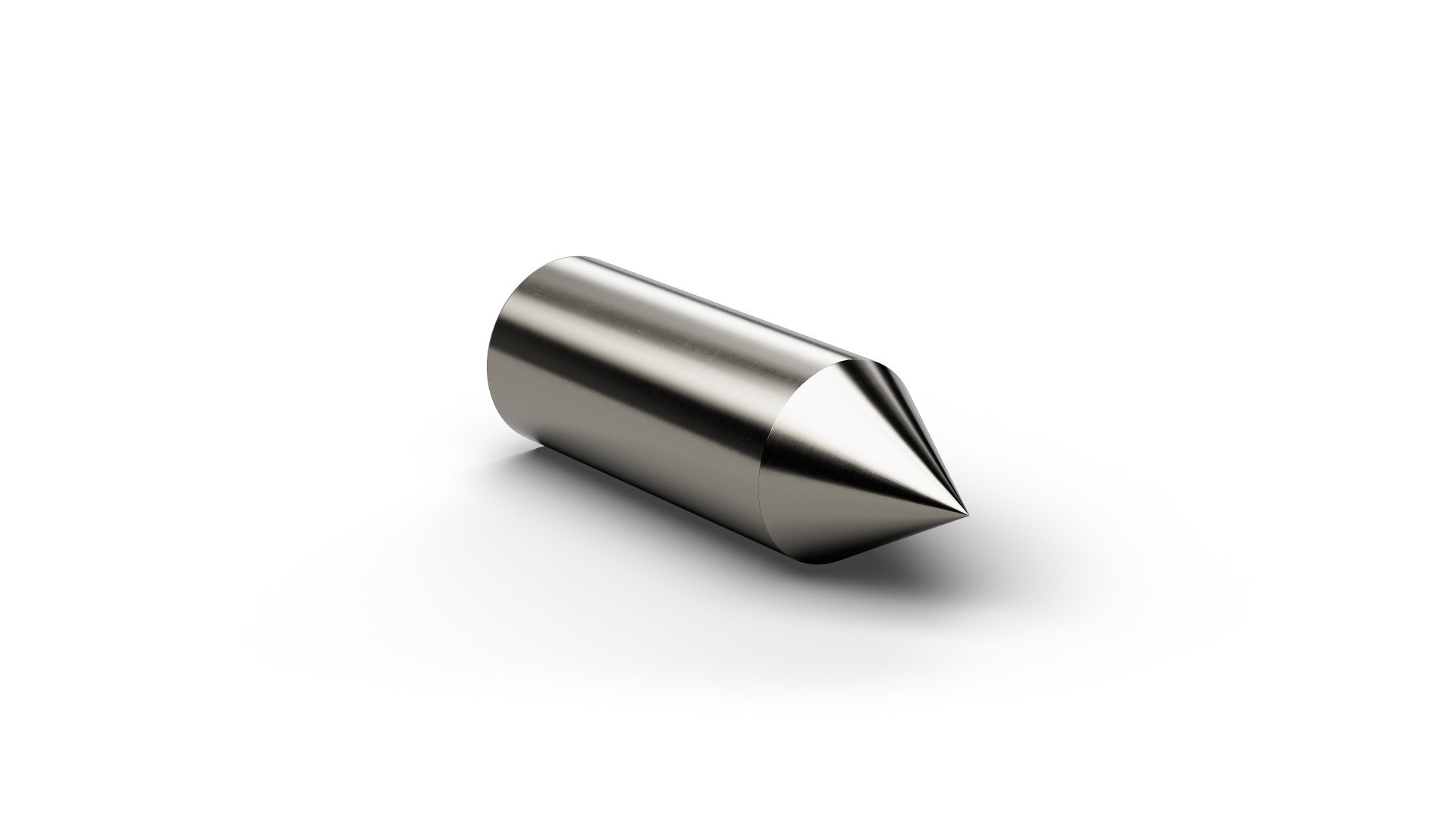

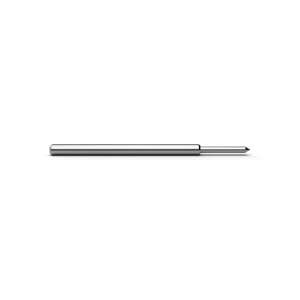

As a Basic Contact Probe, F50203S076N130 (item number 1001375) establishes a spring-loaded electrical connection to the test point. With tip style 03 (Conical 60°), F50203S076N130 combines ICT/FCT use with a geometry intended for solder pads and vias. The design combines a pitch of 2.54 mm / 100 mil with tip style 03 (Conical 60°) and a tip diameter of 0.76 mm. For F50203S076N130, spring force is 130 cN at a nominal travel of 2.7 mm. The electrical rating of F50203S076N130 combines 5 A continuous current with 55 mΩ typical contact resistance. The plunger in F50203S076N130 is made of steel and is Nickel-plated.
