Technical data
| General | |
|---|---|
| Structure | Basic Contact Probe |
| Type/family | F785 |
| Pitch (mm/mil) | 3,50 / 138 |
| Temperature | -45°C...+80°C |
| Additional definition | L |
| Dimensions | |
|---|---|
| Total length (mm) | 44 |
| Protrusion height (mm) | 22 |
| Tip style diameter (mm) | 2.3 |
| Barrel diameter (mm) | 2.65 |
| Collar diameter (mm) | 3 |
| Press ring diameter (mm) | 3 |
| Materials and surfaces | |
|---|---|
| Tip style | 14 |
| Plunger material | Steel |
| Plunger plating | Longtime Gold |
| Barrel material | Bronze |
| Barrel plating | Gold |
| Spring material | Spring steel |
| Spring plating | Silver |
| Mechanical specifications | |
|---|---|
| Preload (cN) | 80 |
| Spring force (cN) | 300 |
| Nominal travel (mm) | 6.4 |
| Maximum travel (mm) | 8 |
| Pointing accuracy +/- (mm) | 0.1 |
| Electrical specifications | |
|---|---|
| Continuous current (A) | 10 |
| Typical contact resistance (mOhm) | 25 |

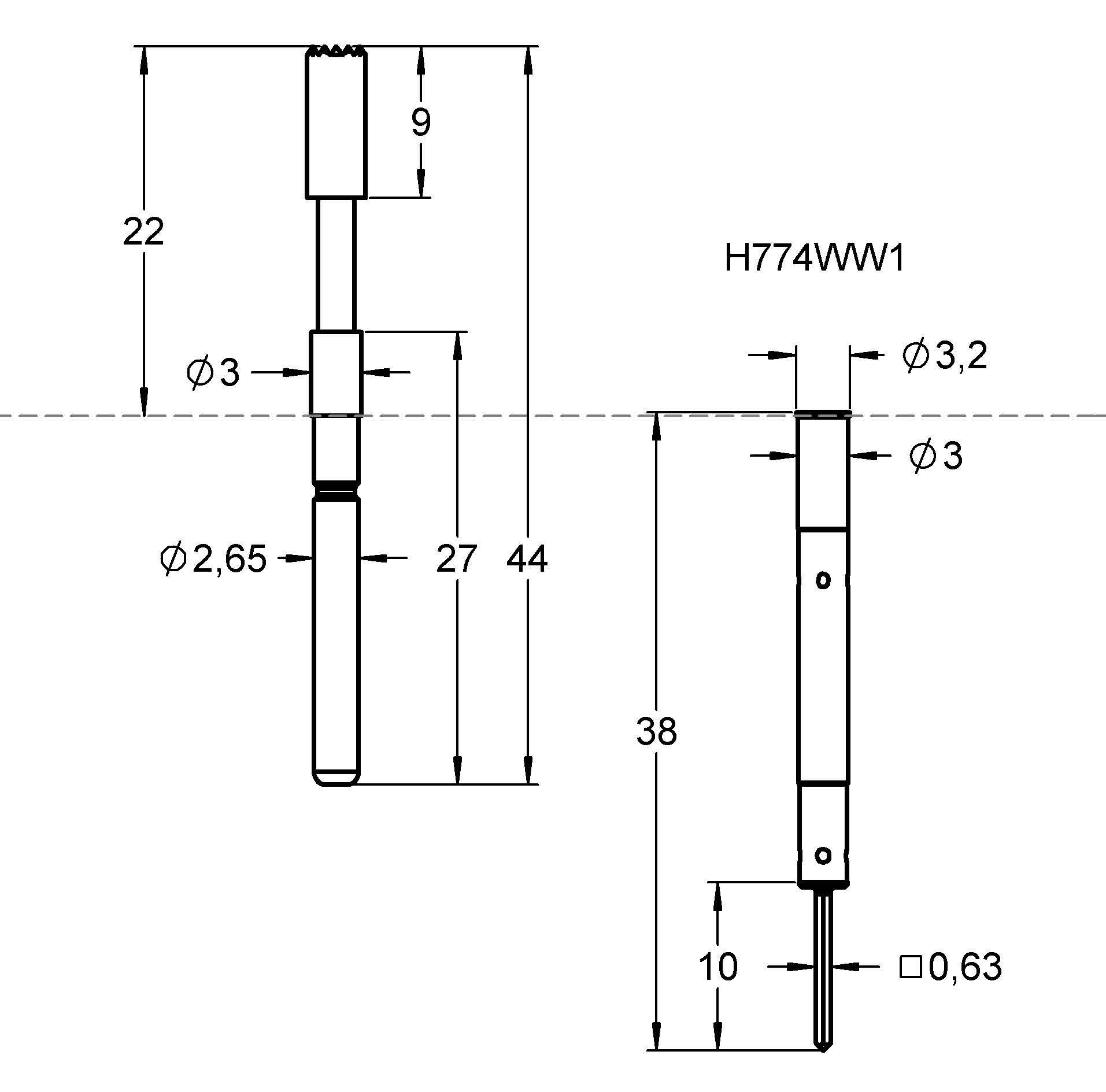

Graphics
Beschreibung des Produkts

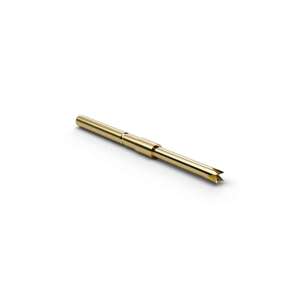

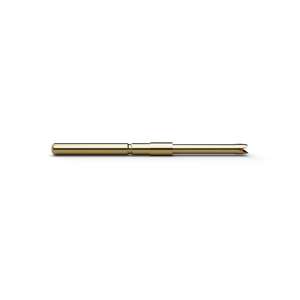

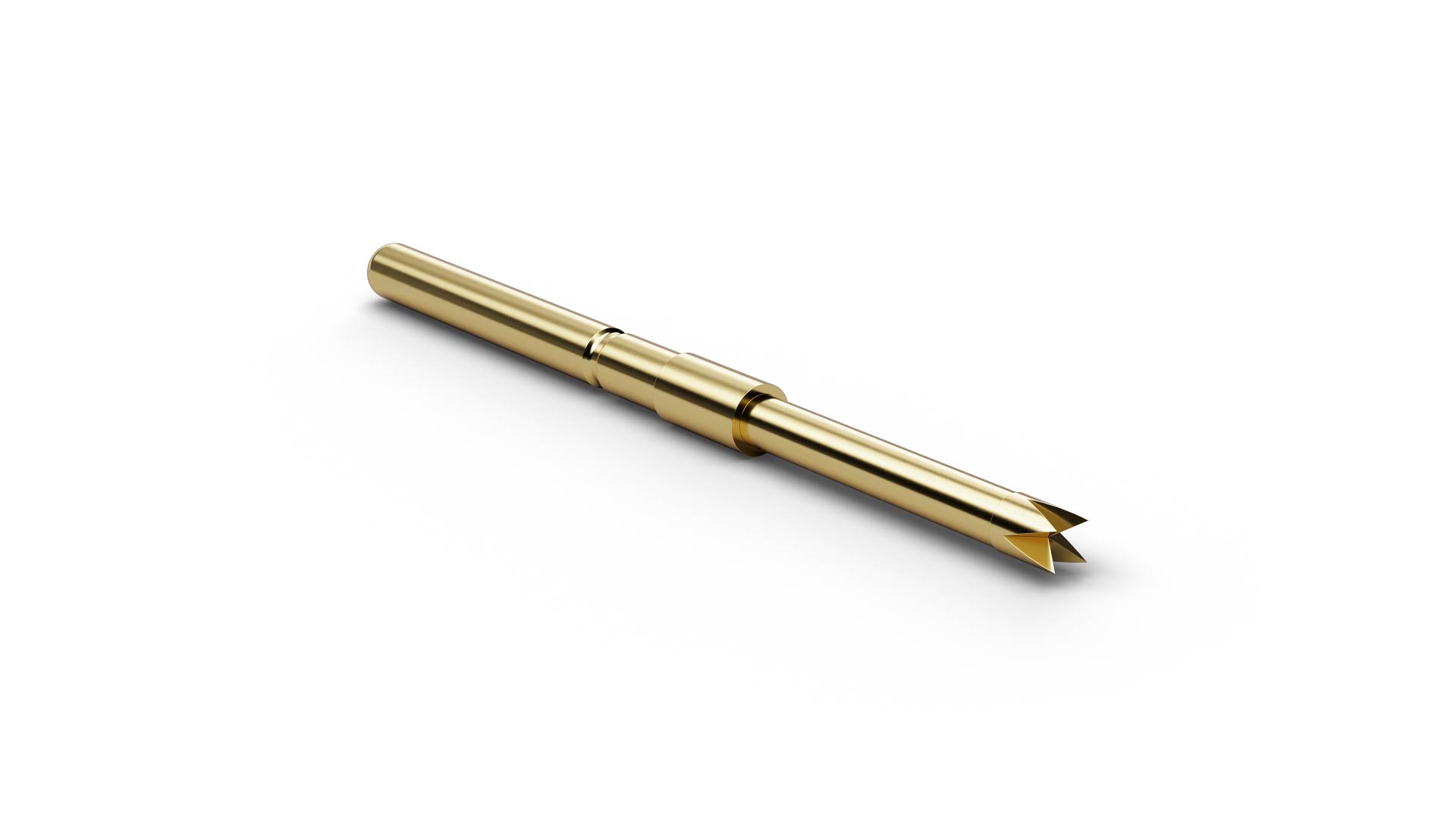

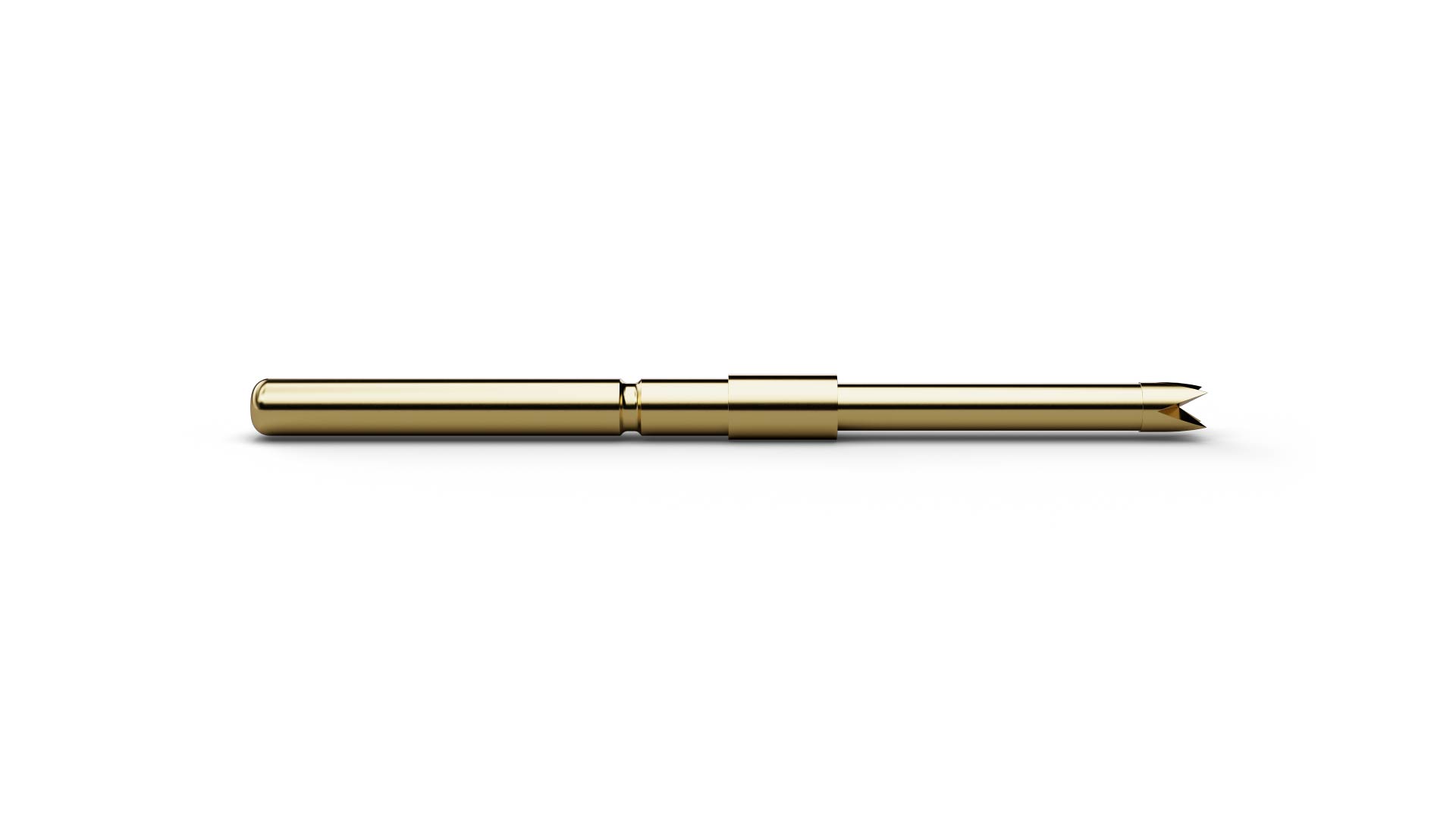

As a Basic Contact Probe, F78514S230L300L (item number 1003144) establishes a spring-loaded electrical connection to the test point. With tip style 14 (4-point crown stepped (self-cleaning)), F78514S230L300L combines ICT/FCT use with a geometry intended for pad surfaces and soldered pins where the crown geometry can penetrate residues or oxide layers. F78514S230L300L combines a pitch of 3.5 mm / 138 mil with tip style 14 (4-point crown stepped (self-cleaning)) and a tip diameter of 2.3 mm. F78514S230L300L operates with 300 cN spring force and 6.4 mm nominal travel. The electrical rating of F78514S230L300L combines 10 A continuous current with 25 mΩ typical contact resistance. The plunger in F78514S230L300L is made of steel and uses Longtime Gold plating.
