Technical data
| General | |
|---|---|
| Structure | Basic Contact Probe |
| Type/family | FP-S |
| Pitch (mm/mil) | 0,70 / 28 |
| Temperature | -45°C...+100°C |
| Dimensions | |
|---|---|
| Total length (mm) | 20.3 |
| Protrusion height (mm) | 4 |
| Tip style diameter (mm) | 0.36 |
| Barrel diameter (mm) | 0.51 |
| Materials and surfaces | |
|---|---|
| Tip style | 01 |
| Plunger material | Steel |
| Plunger plating | Longtime Gold |
| Barrel material | Bronze |
| Barrel plating | Gold |
| Spring material | Spring steel |
| Spring plating | Silver |
| Mechanical specifications | |
|---|---|
| Preload (cN) | 10 |
| Spring force (cN) | 50 |
| Nominal travel (mm) | 2 |
| Maximum travel (mm) | 2.5 |
| Pointing accuracy +/- (mm) | 0.09 |
| Electrical specifications | |
|---|---|
| Continuous current (A) | 1 |
| Typical contact resistance (mOhm) | 70 |

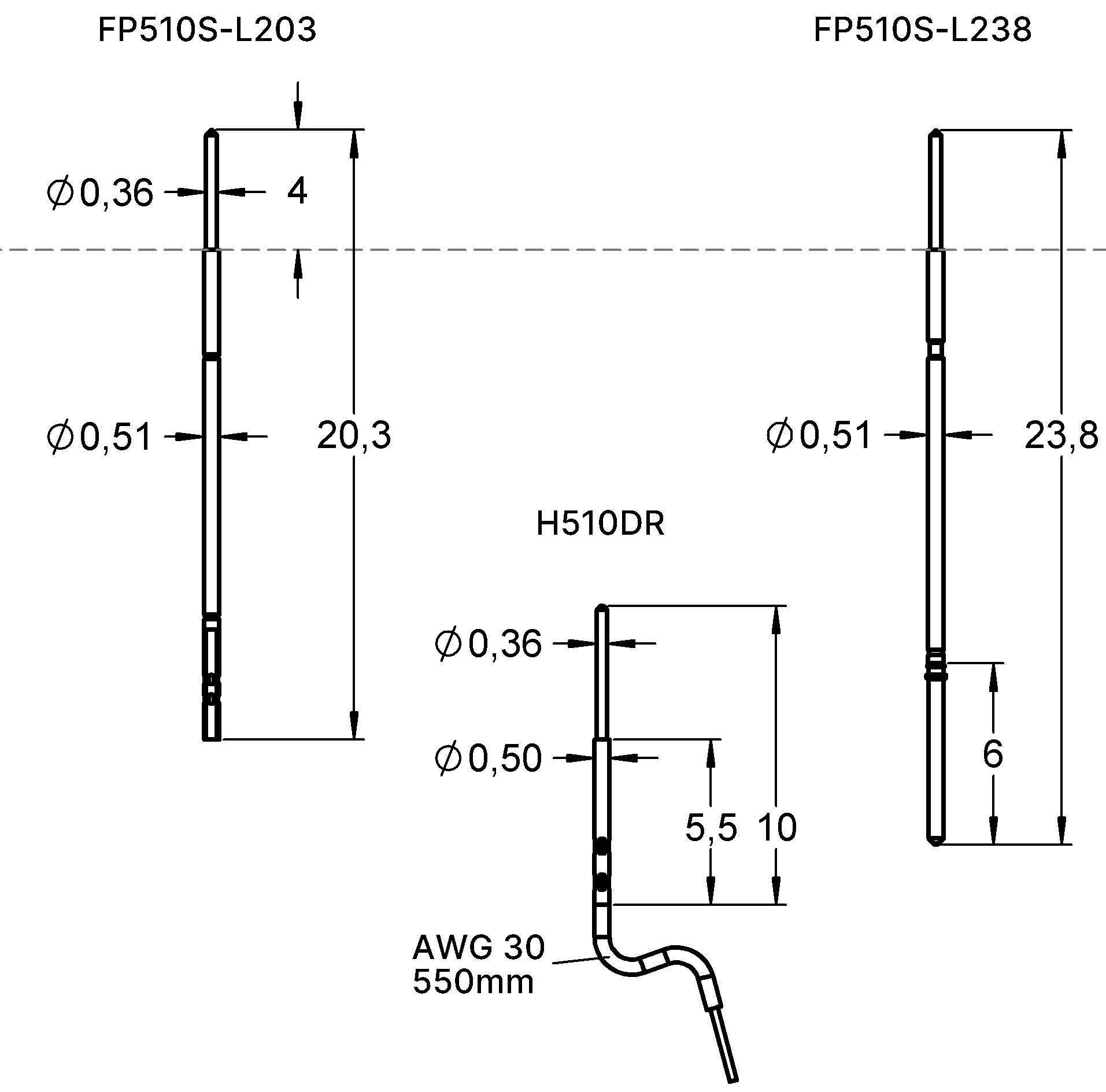

Graphics
Beschreibung des Produkts

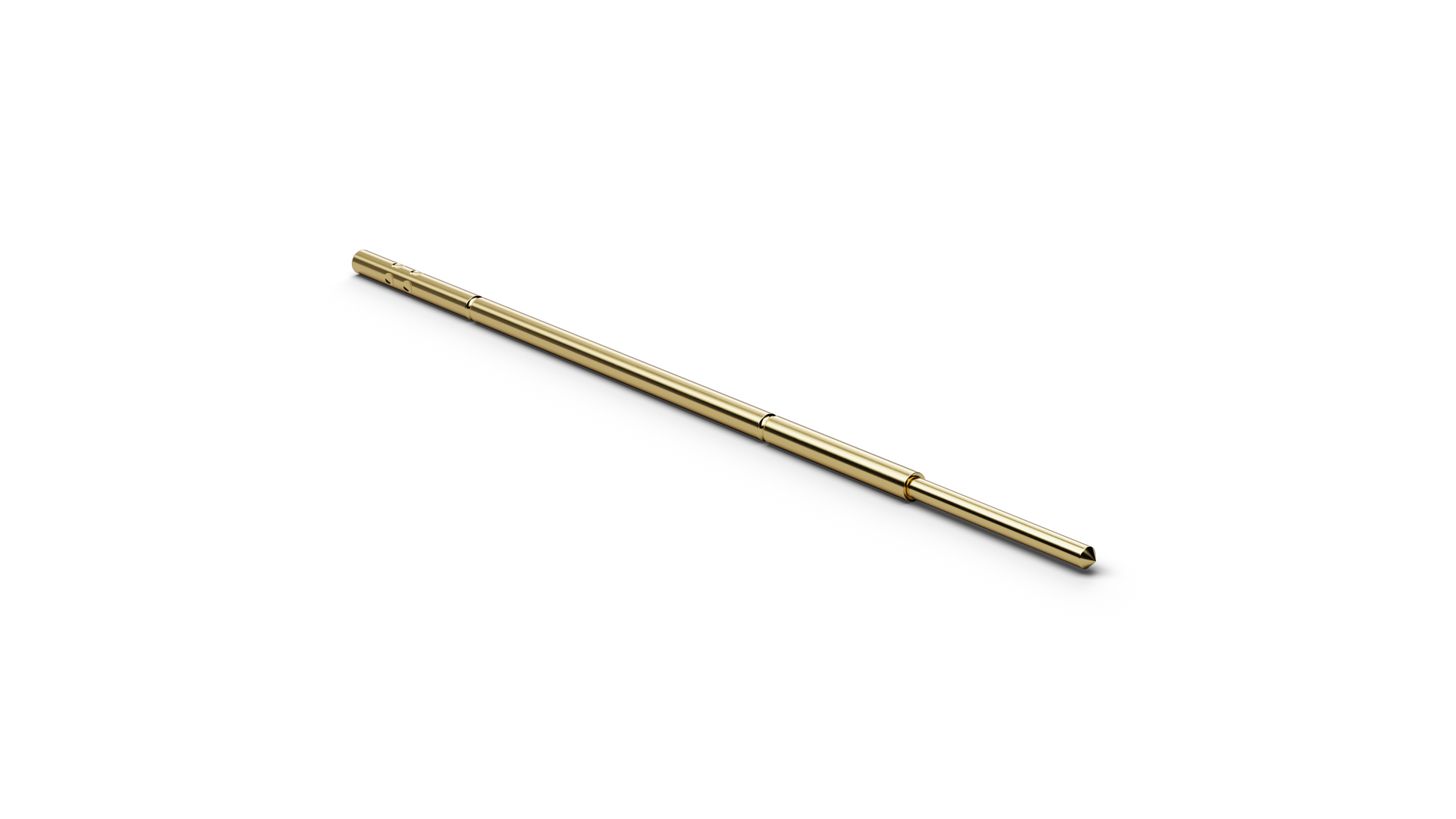

The Fine Pitch Probe FP510S01S036L050L203 (item number 1003758) is designed for precise contacting where installation space is limited. Tip style 01 (Conical 90°) targets FP510S01S036L050L203 at solder pads and vias at small pitches; Fine Pitch Probes are used, among other applications, in semiconductor final test, WLCSP solutions, MEMS and micro-PCB testing. Key design data for FP510S01S036L050L203 includes pitch 0.7 mm / 28 mil, spring force 50 cN, continuous current 1 A. FP510S01S036L050L203 belongs to the FP-S family.
