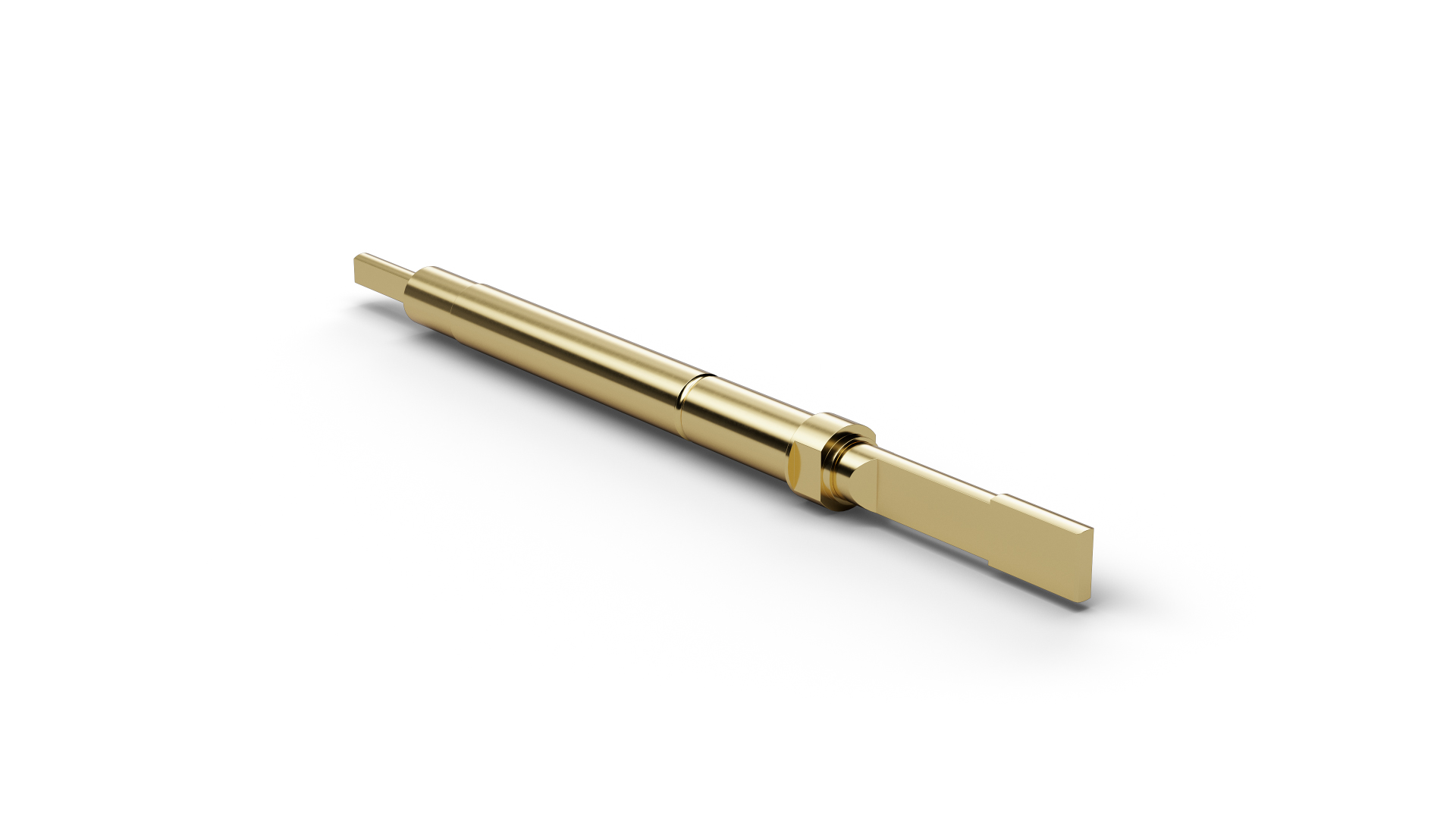

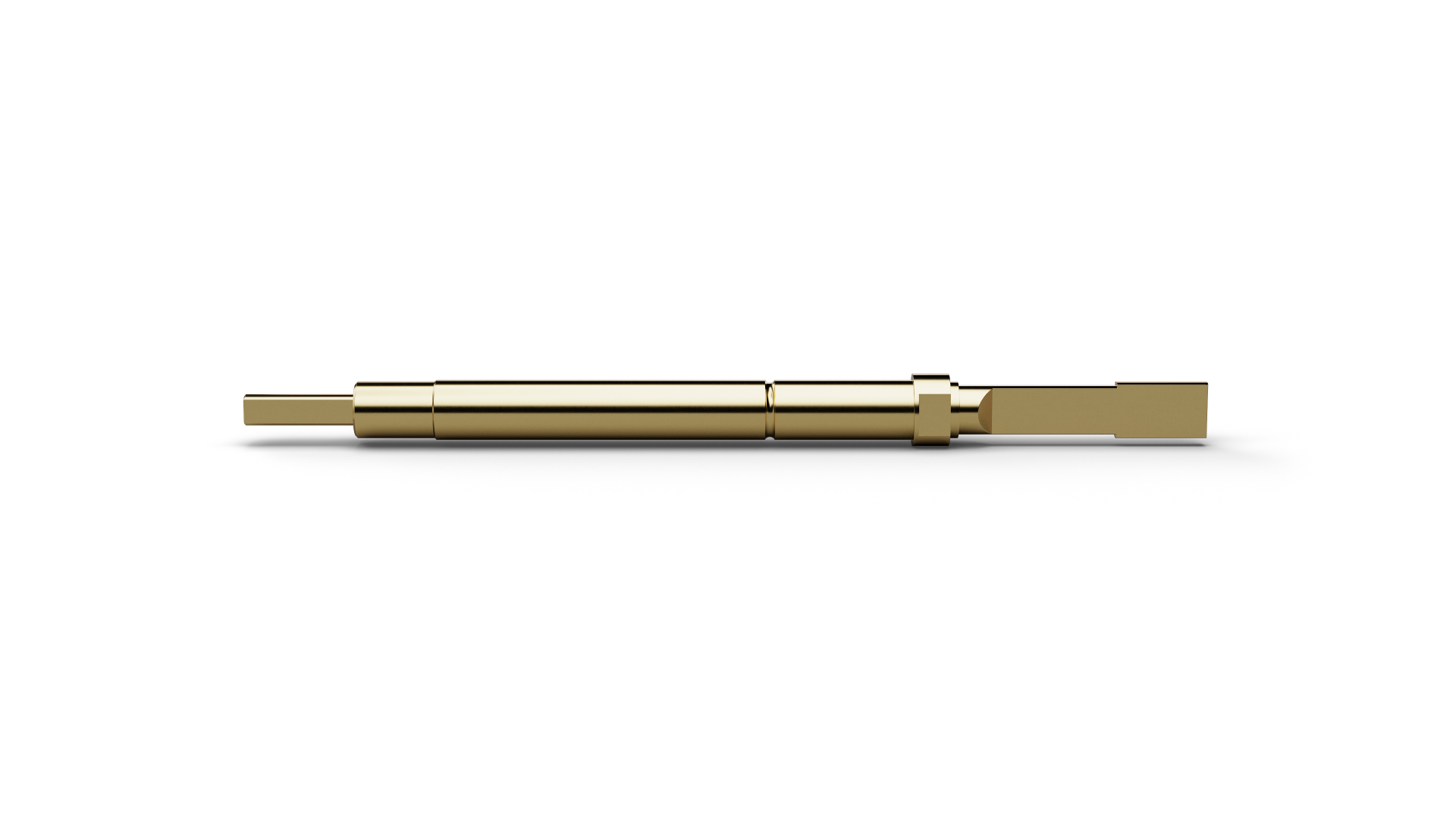

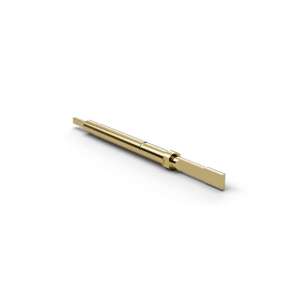

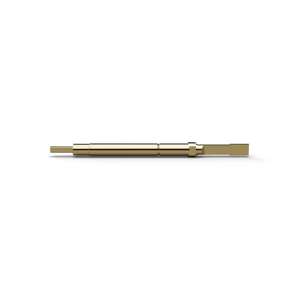

Technical data
| General | |
|---|---|
| Structure | Basic Contact Probe |
| Type/family | F760 |
| Pitch (mm/mil) | 3,50 / 138 |
| Temperature | -45°C...+100°C |
| Additional definition | L |
| Dimensions | |
|---|---|
| Total length (mm) | 42.5 |
| Protrusion height (mm) | 13 |
| Tip style diameter (mm) | 2.5 |
| Barrel diameter (mm) | 2.64 |
| Collar diameter (mm) | 3.2 |
| Press ring diameter (mm) | 3.2 |
| A – spade diameter (mm) | 2.5 |
| B – spade width (mm) | 0.8 |
| C – spade length (mm) | 4 |
| Materials and surfaces | |
|---|---|
| Tip style | 84 |
| Plunger material | Beryllium copper |
| Plunger plating | Gold |
| Barrel material | Brass |
| Barrel plating | Gold |
| Spring material | Spring steel |
| Spring plating | Silver |
| Mechanical specifications | |
|---|---|
| Preload (cN) | 80 |
| Spring force (cN) | 300 |
| Nominal travel (mm) | 4 |
| Maximum travel (mm) | 5 |
| Pointing accuracy +/- (mm) | 0.08 |
| Thread | M2,5 |
| Tool size (mm) | 2,6 |
| Electrical specifications | |
|---|---|
| Continuous current (A) | 10 |
| Typical contact resistance (mOhm) | 25 |

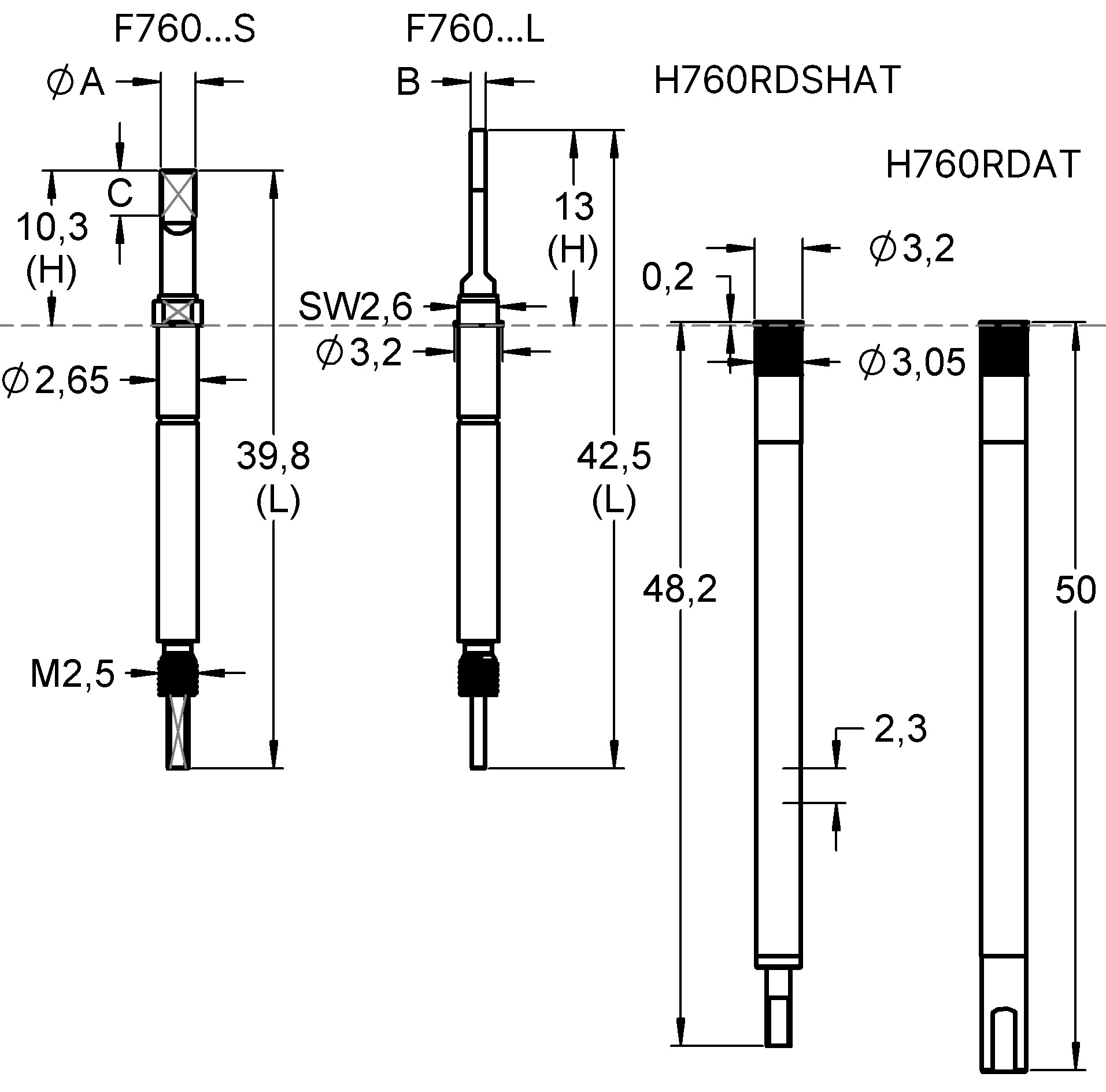

Graphics
