Technical data
| General | |
|---|---|
| Structure | Basic Contact Probe |
| Type/family | F051 |
| Pitch (mm/mil) | 1,27 / 50 |
| Temperature | -45°C...+80°C |
| Dimensions | |
|---|---|
| Total length (mm) | 48.5 |
| Protrusion height (mm) | 12.2 |
| Tip style diameter (mm) | 0.5 |
| Barrel diameter (mm) | 0.78 |
| Materials and surfaces | |
|---|---|
| Tip style | 43 |
| Plunger material | Steel |
| Plunger plating | Progressive |
| Barrel material | Bronze |
| Barrel plating | Gold |
| Spring material | Spring steel |
| Spring plating | Silver |
| Mechanical specifications | |
|---|---|
| Preload (cN) | 35 |
| Spring force (cN) | 150 |
| Nominal travel (mm) | 8 |
| Maximum travel (mm) | 10 |
| Pointing accuracy +/- (mm) | 0.05 |
| Electrical specifications | |
|---|---|
| Continuous current (A) | 3 |
| Typical contact resistance (mOhm) | 40 |
Graphics
Beschreibung des Produkts

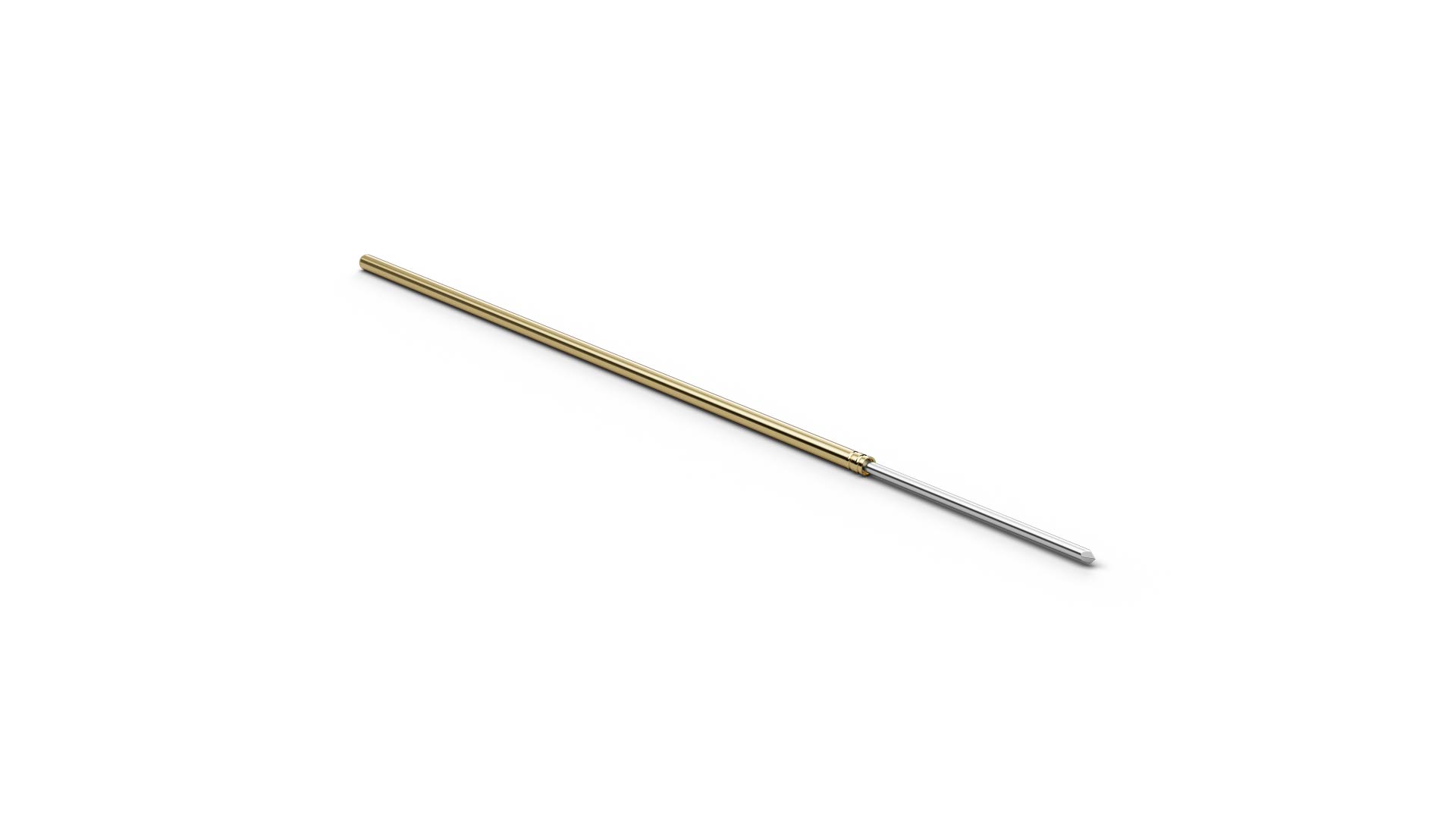

The Basic Contact Probe F05143S050P150 (item number 1011291) is a spring-loaded probe for temporary electrical contact with test points. With tip style 43 (Square lance 90°), F05143S050P150 combines ICT/FCT use with a geometry intended for vias and solder pads where the edges can break through residues and oxide layers. F05143S050P150 combines a pitch of 1.27 mm / 50 mil with tip style 43 (Square lance 90°) and a tip diameter of 0.5 mm. For F05143S050P150, spring force is 150 cN at a nominal travel of 8 mm. F05143S050P150 is rated for 3 A continuous current with a typical contact resistance of 40 mΩ. The plunger in F05143S050P150 is made of steel and uses Progressive Coating.
