Technical data
| General | |
|---|---|
| Structure | Basic Contact Probe |
| Type/family | P-M / P118M-L065 |
| Pitch (mm/mil) | 1,90 / 75 |
| Temperature | -45°C...+100°C |
| Dimensions | |
|---|---|

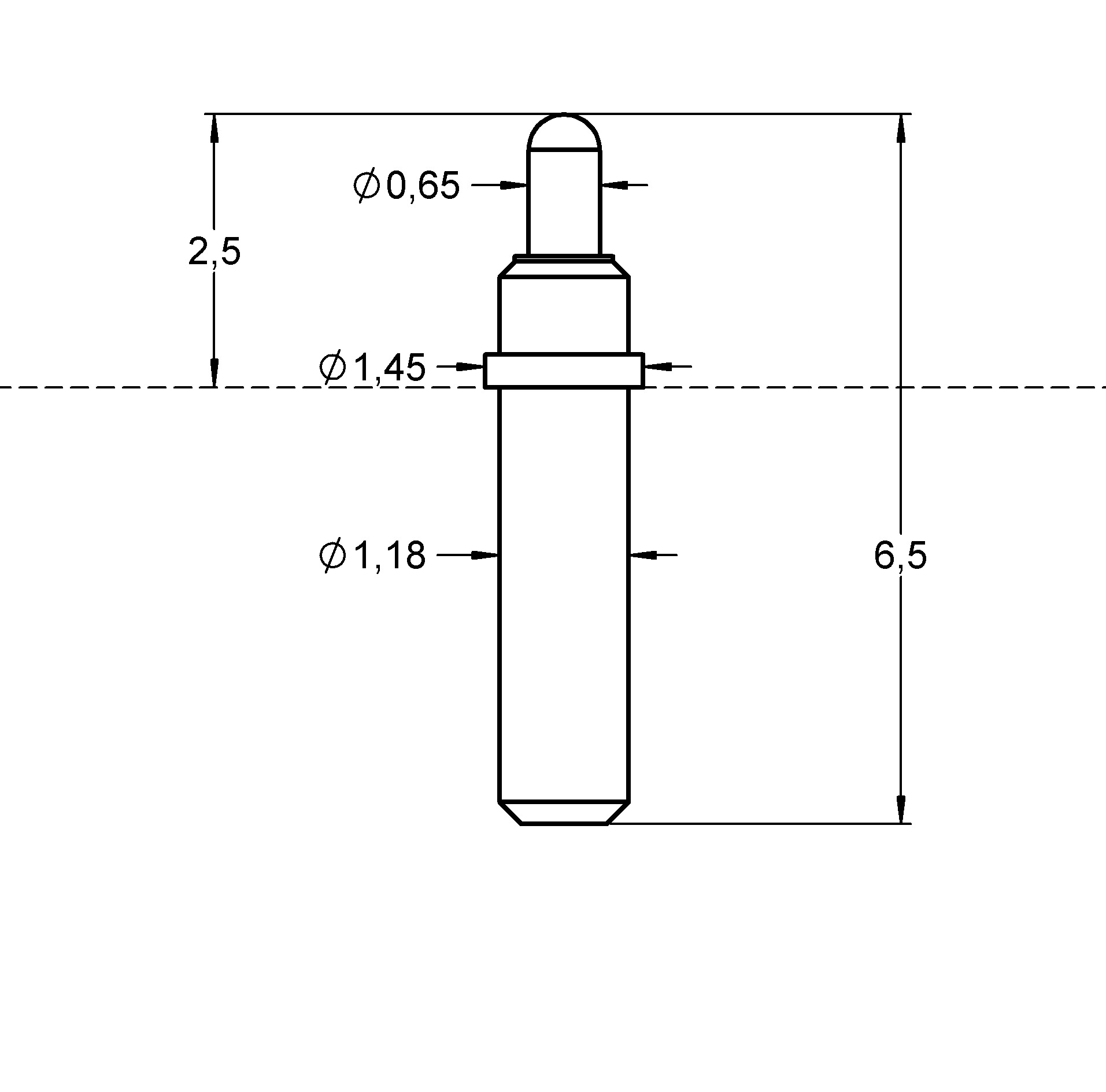

| Total length (mm) | 6.5 |
| Protrusion height (mm) | 2.5 |
| Tip style diameter (mm) | 0.65 |
| Barrel diameter (mm) | 1.18 |
| Collar diameter (mm) | 1.45 |
| Materials and surfaces | |
|---|---|
| Tip style | 11 |
| Plunger material | Beryllium copper |
| Plunger plating | Gold |
| Barrel material | Brass |
| Barrel plating | Gold |
| Spring material | Spring steel |
| Spring plating | Silver |
| Mechanical specifications | |
|---|---|
| Preload (cN) | 30 |
| Spring force (cN) | 100 |
| Nominal travel (mm) | 1 |
| Maximum travel (mm) | 1.2 |
| Pointing accuracy +/- (mm) | 0.08 |
| Electrical specifications | |
|---|---|
| Continuous current (A) | 5 |
| Typical contact resistance (mOhm) | 20 |
Graphics
Beschreibung des Produkts

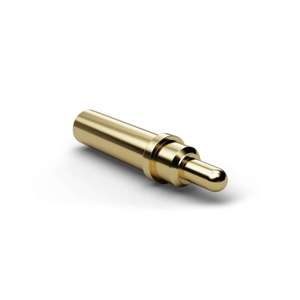

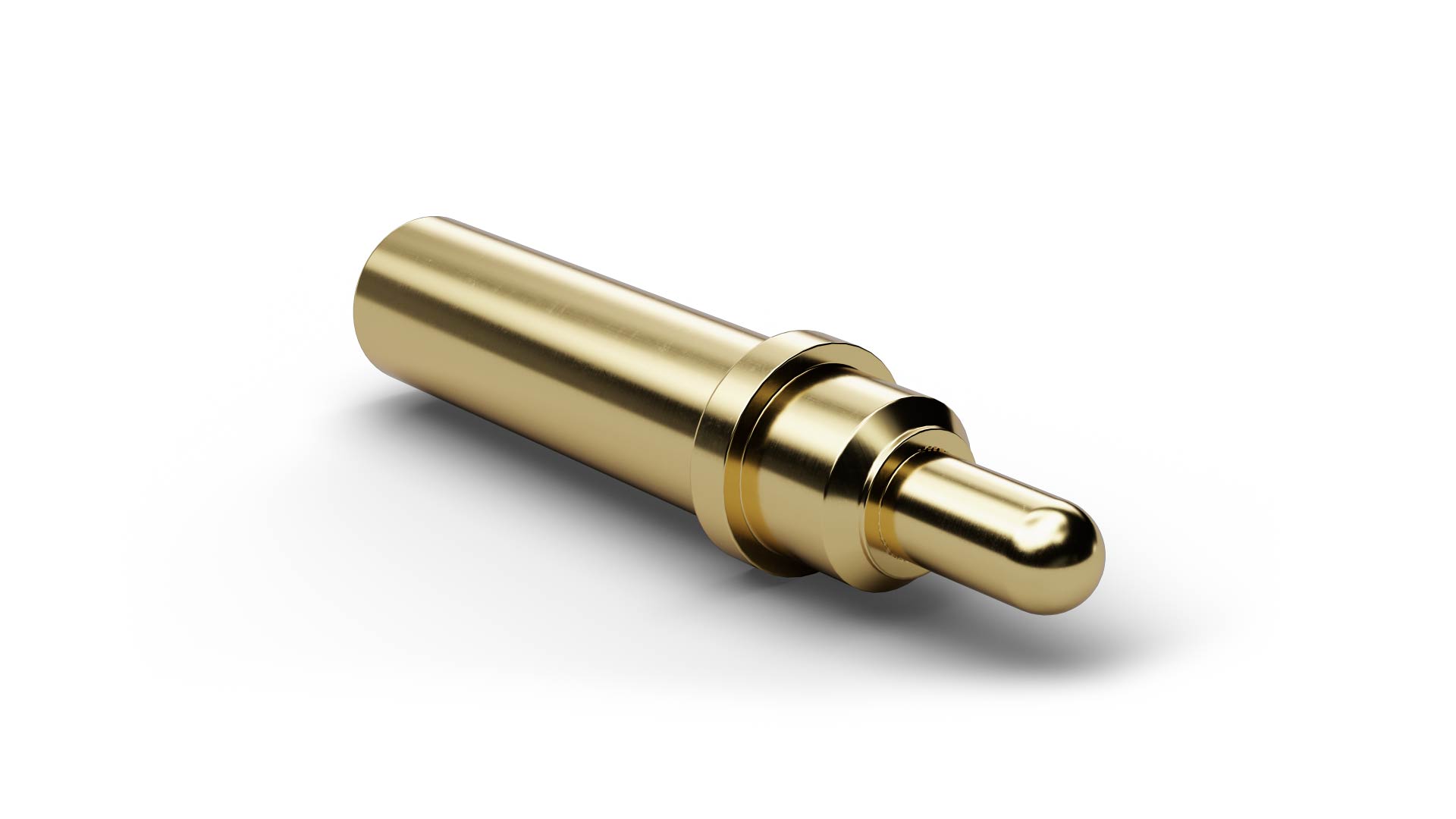

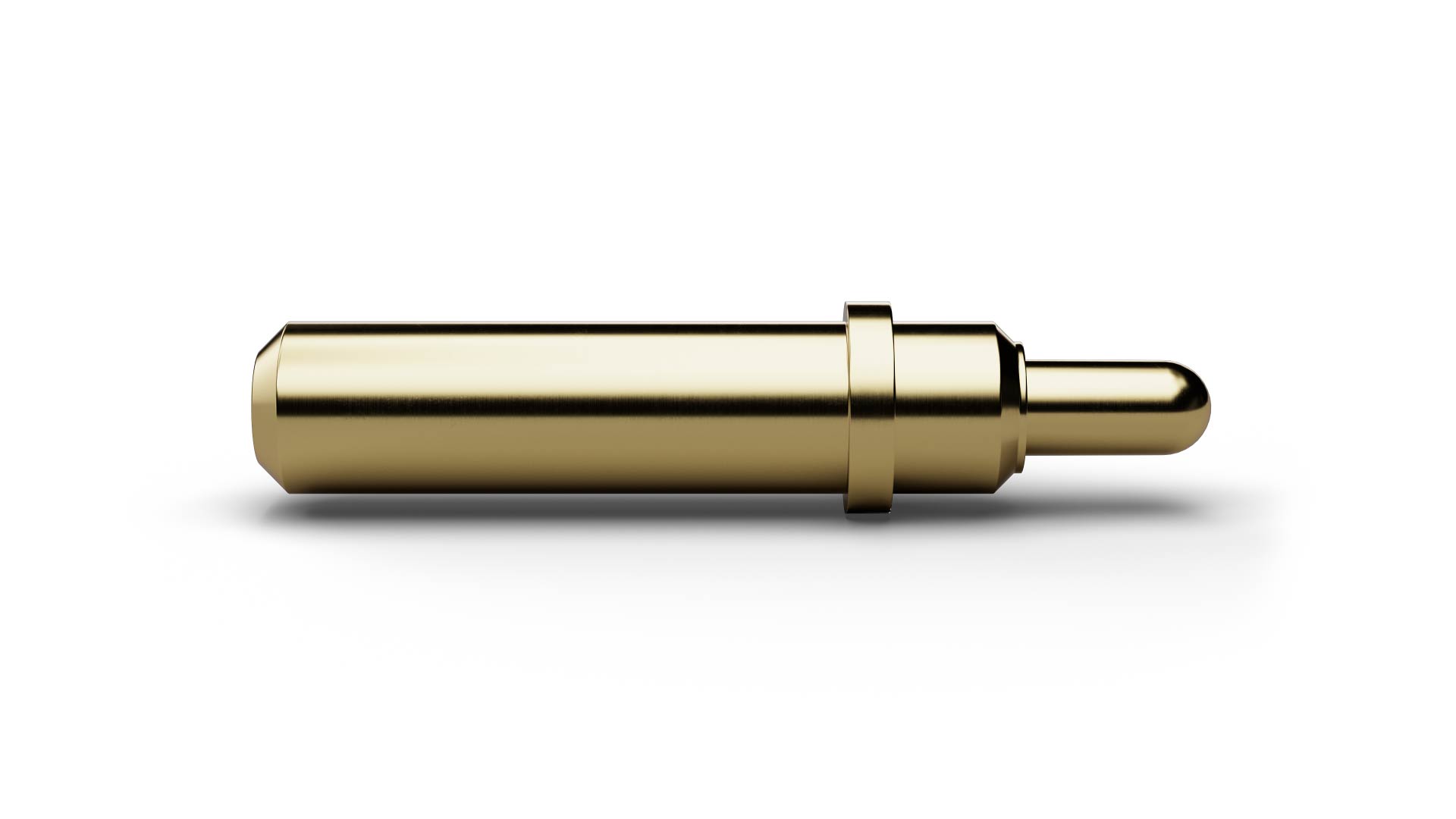

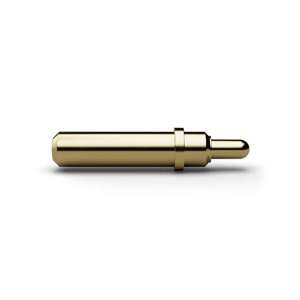

The Pogo Connector P11811B065G100ML065 (item number 1013915) is a spring-loaded contact for electrical connections that are repeatedly mated and disconnected. As a spring-loaded detachable interface, P11811B065G100ML065 is suited to repeated contact cycles such as charging and data contacts or other quick-release electrical connections. As a detachable spring-loaded interface, P11811B065G100ML065 is suited to battery and charging contacts, mobile devices, measurement systems and industrial applications. The design combines a pitch of 1.9 mm / 75 mil with tip style 11 (Spherical) and a tip diameter of 0.65 mm. For P11811B065G100ML065, spring force is 100 cN at a nominal travel of 1 mm. P11811B065G100ML065 is specified for 5 A continuous current.
