Technical data
| General | |
|---|---|
| Structure | Basic Contact Probe |
| Type/family | HC060 |
| Pitch (mm/mil) | 11,0 / 433 |
| Temperature | -45°C...+200°C |
| Additional definition | A |
| Dimensions | |
|---|---|
| Total length (mm) | 30 |
| Protrusion height (mm) | 15 |
| Tip style diameter (mm) | 6 |
| Barrel diameter (mm) | 6.3 |
| Materials and surfaces | |
|---|---|
| Tip style | 06 |
| Plunger material | Beryllium copper |
| Plunger plating | Gold |
| Barrel material | Brass |
| Barrel plating | Uncoated |
| Spring material | High-grade steel |
| Spring plating | Uncoated |
| Mechanical specifications | |
|---|---|
| Preload (cN) | 200 |
| Spring force (cN) | 530 |
| Nominal travel (mm) | 5 |
| Maximum travel (mm) | 7 |
| Pointing accuracy +/- (mm) | 0.1 |
| Thread | M8X1 |
| Tool size (mm) | 9,0 |
| Connection | Thread |
| Electrical specifications | |
|---|---|
| Continuous current (A) | 50 |
| Typical contact resistance (mOhm) | 6 |

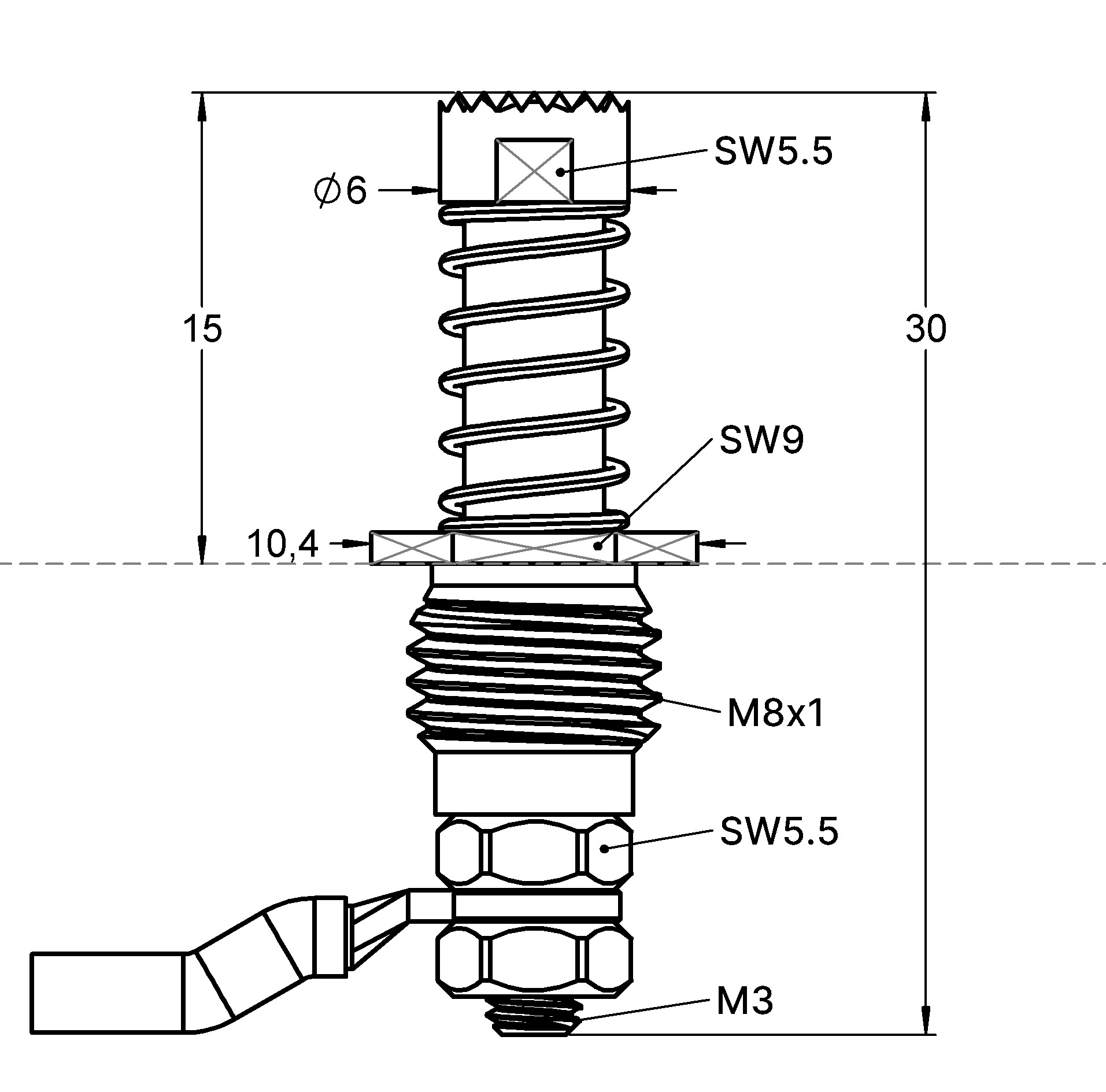

Graphics
Beschreibung des Produkts
The High Current Probe HCF35006B600G530 (item number 1014587) is designed for safe transmission of high electrical currents in test and contacting applications. HCF35006B600G530 focuses on current capacity and low transition losses, as required in battery testing, formation and other e-mobility applications. For HCF35006B600G530, contact resistance, contact force and thermal behavior must be considered together because they influence voltage drop and temperature rise at the contact point. The intended application area for HCF35006B600G530 includes battery and power-electronics testing. The probe is rated for 50 A continuous current with a typical contact resistance of 6 mΩ. Spring force is 530 cN at a nominal travel of 5 mm.
