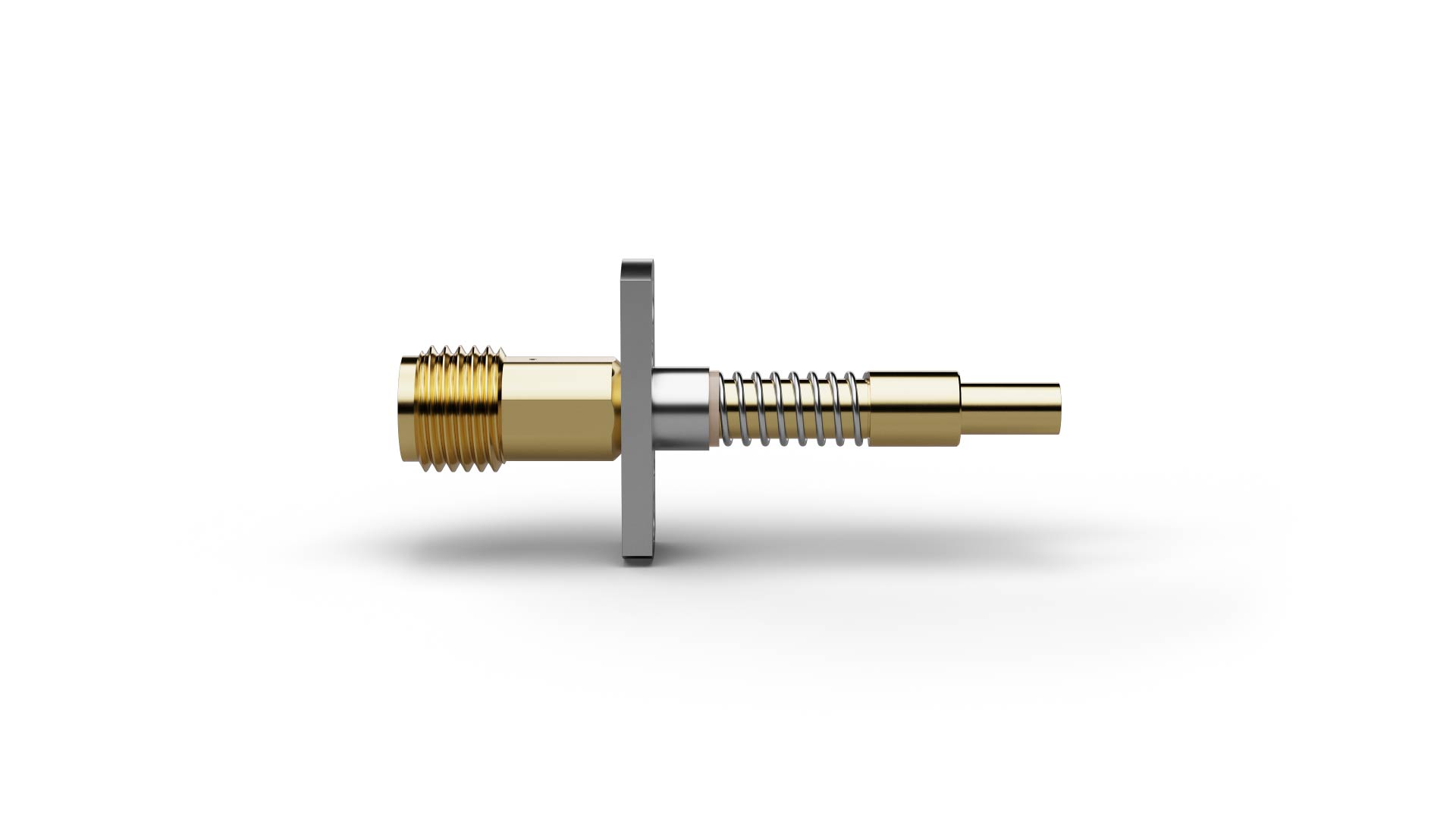

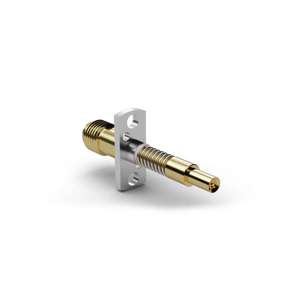

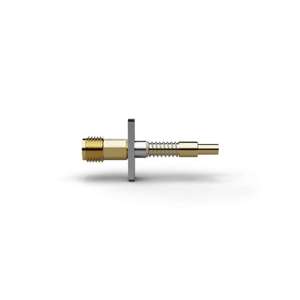

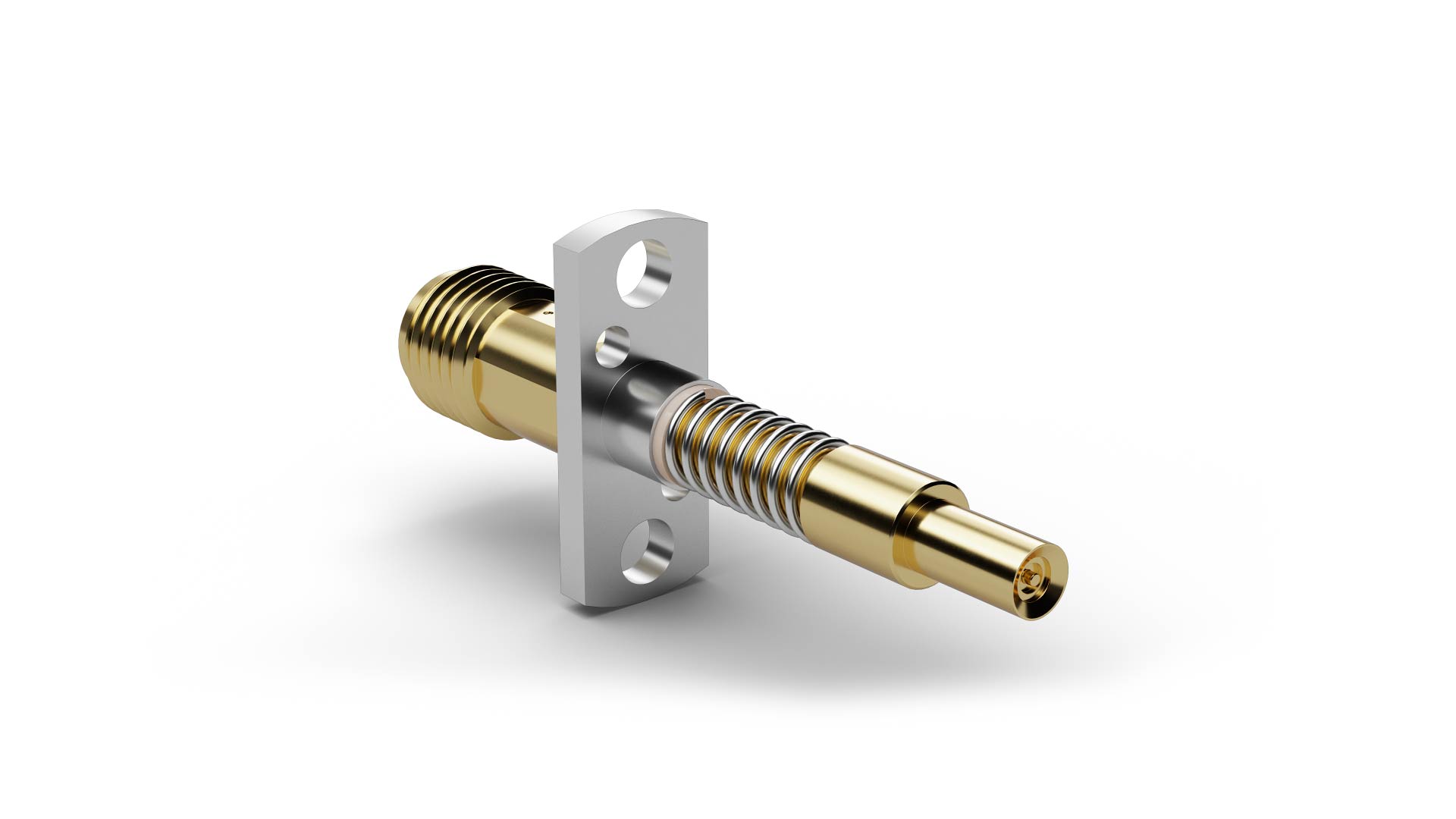

Technical data
| General | |
|---|---|
| Structure | Coaxial Probe |
| Type/family | HF66 |
| Pitch (mm/mil) | 9,00 / 354 |
| Temperature | -45°C...+100°C |
| Dimensions | |
|---|---|
| Total length (mm) | 32.8 |
| Protrusion height (mm) | 20.3 |
| Tip style diameter (mm) | 2.6 |
| Barrel diameter (mm) | 4.2 |
| Collar diameter (mm) | 15 |
| Press ring diameter (mm) | 15 |
| Inside/outside distance (mm) | 0.2 |
| Tip style diameter (mm) 2 | 0.45 |
| Materials and surfaces | |
|---|---|
| Tip style | 05 |
| Tip style 2 | 16 |
| Plunger material | Brass |
| Plunger plating | Gold |
| Barrel material | Beryllium copper |
| Barrel plating | Gold |
| Spring material | High-grade steel |
| Spring plating | Uncoated |
| Plunger material 2 | Beryllium copper |
| Plunger plating 2 | Gold |
| Spring material 2 | Spring steel |
| Spring plating 2 | Gold |
| Mechanical specifications | |
|---|---|
| Preload (cN) | 240 |
| Spring force (cN) | 360 |
| Nominal travel (mm) | 2 |
| Maximum travel (mm) | 3 |
| Tool size (mm) | 5,0 |
| Connection | Jack |
| DUT | HSC |
| Electrical specifications | |
|---|---|
| Continuous current (A) | 0.5 |
| Impedance (ohm) | 50 |
| Frequency (GHz) | 6 |
| Continuous current (A) 2 | 0.1 |
| Internal contact specifications | |
|---|---|
| Nominal travel (mm) 2 | 0.5 |
| Maximum travel (mm) 2 | 0.8 |
| Preload (cN) 2 | 95 |
| Spring force (cN) 2 | 120 |

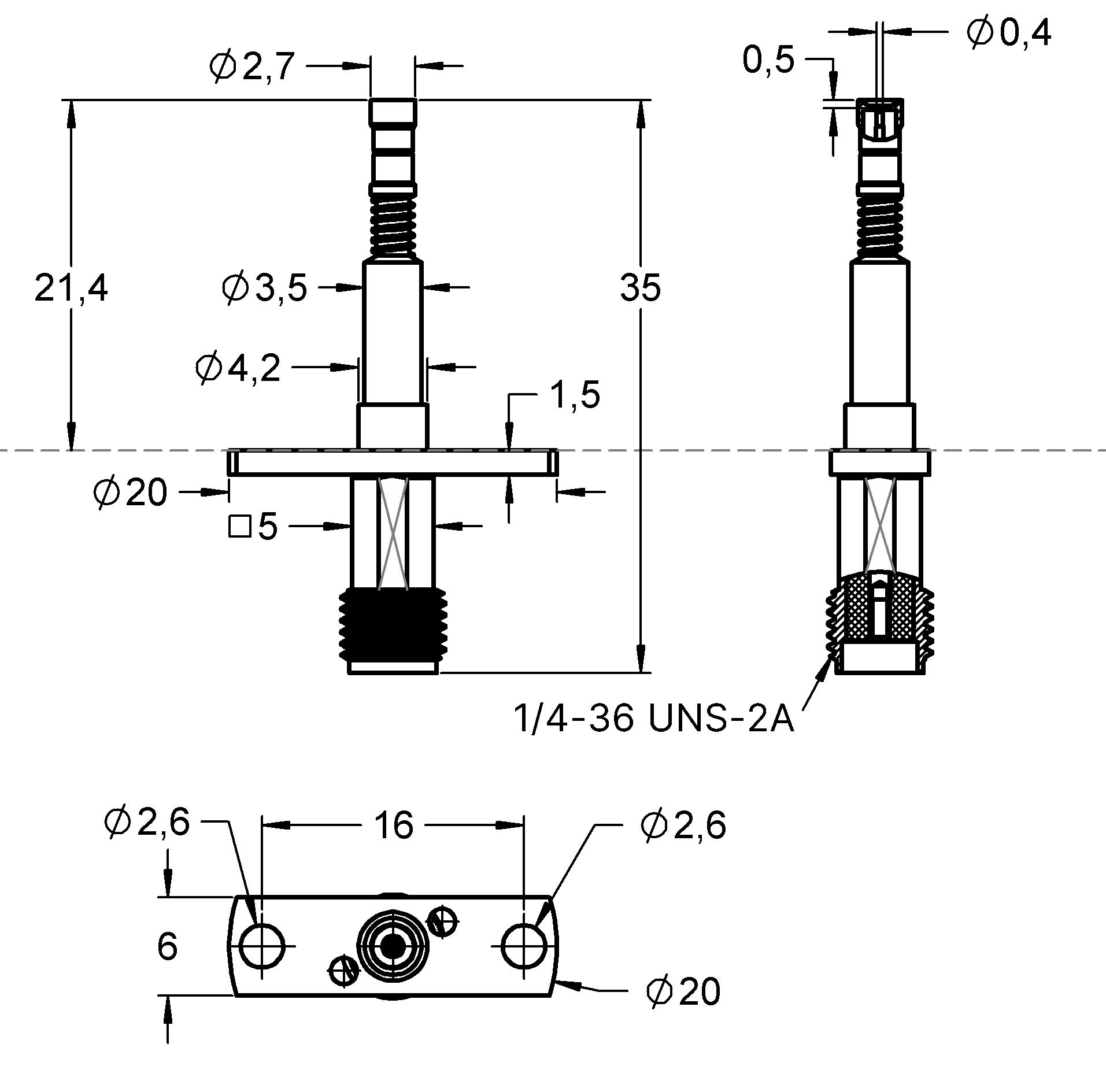

Graphics
