Technical data
| General | |
|---|---|
| Structure | Basic Contact Probe |
| Type/family | P-T / P140T-L080 |
| Pitch (mm/mil) | 2,20 / 87 |
| Temperature | -45°C...+200°C |
| Dimensions | |
|---|---|
| Total length (mm) | 8 |
| Protrusion height (mm) | 3.5 |
| Tip style diameter (mm) | 1.8 |
| Barrel diameter (mm) | 1.4 |
| Collar diameter (mm) | 1.68 |
| Press ring diameter (mm) | 1.68 |
| Materials and surfaces | |
|---|---|
| Tip style | 28 |
| Plunger material | Beryllium copper |
| Plunger plating | Gold |
| Barrel material | Brass |
| Barrel plating | Gold |
| Spring material | High-grade steel |
| Spring plating | Gold |
| Mechanical specifications | |
|---|---|
| Preload (cN) | 40 |
| Spring force (cN) | 120 |
| Nominal travel (mm) | 1.2 |
| Maximum travel (mm) | 2 |
| Pointing accuracy +/- (mm) | 0.08 |
| Electrical specifications | |
|---|---|
| Continuous current (A) | 8 |
| Typical contact resistance (mOhm) | 100 |

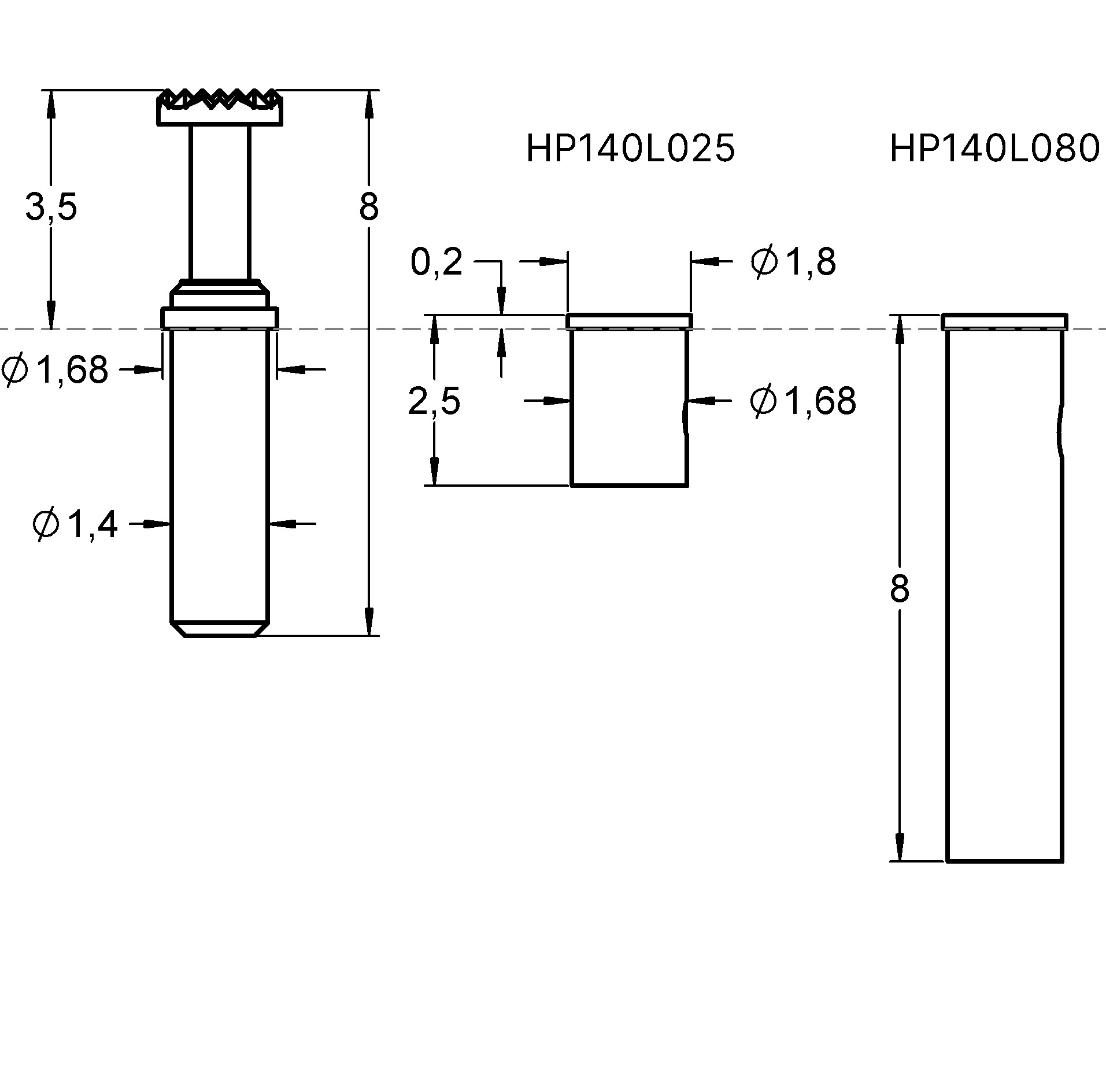

Graphics
Beschreibung des Produkts

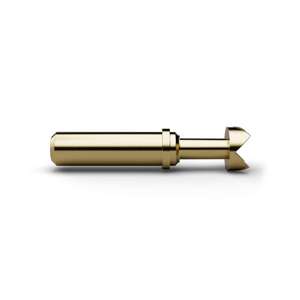

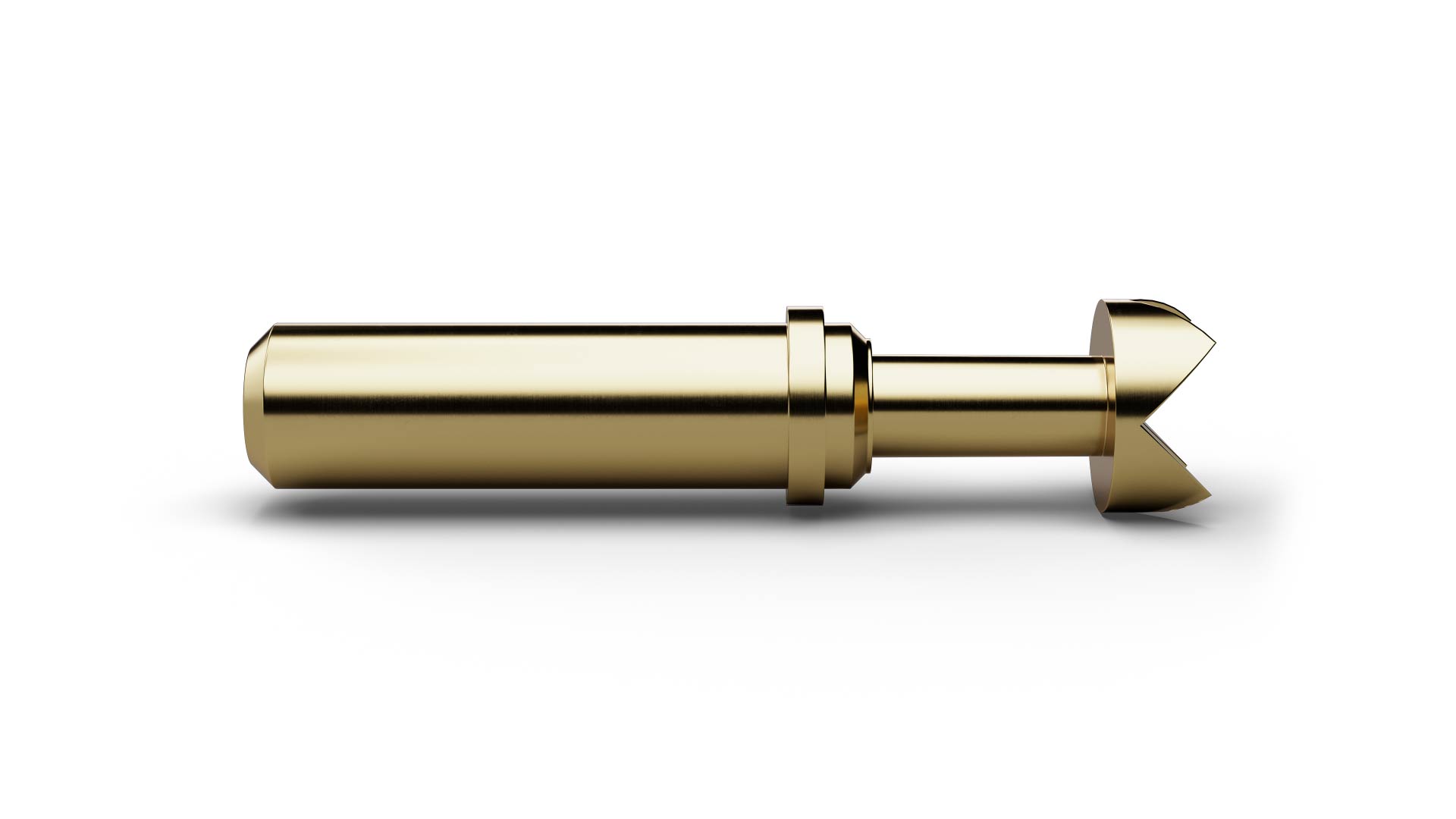

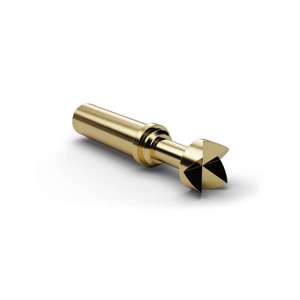

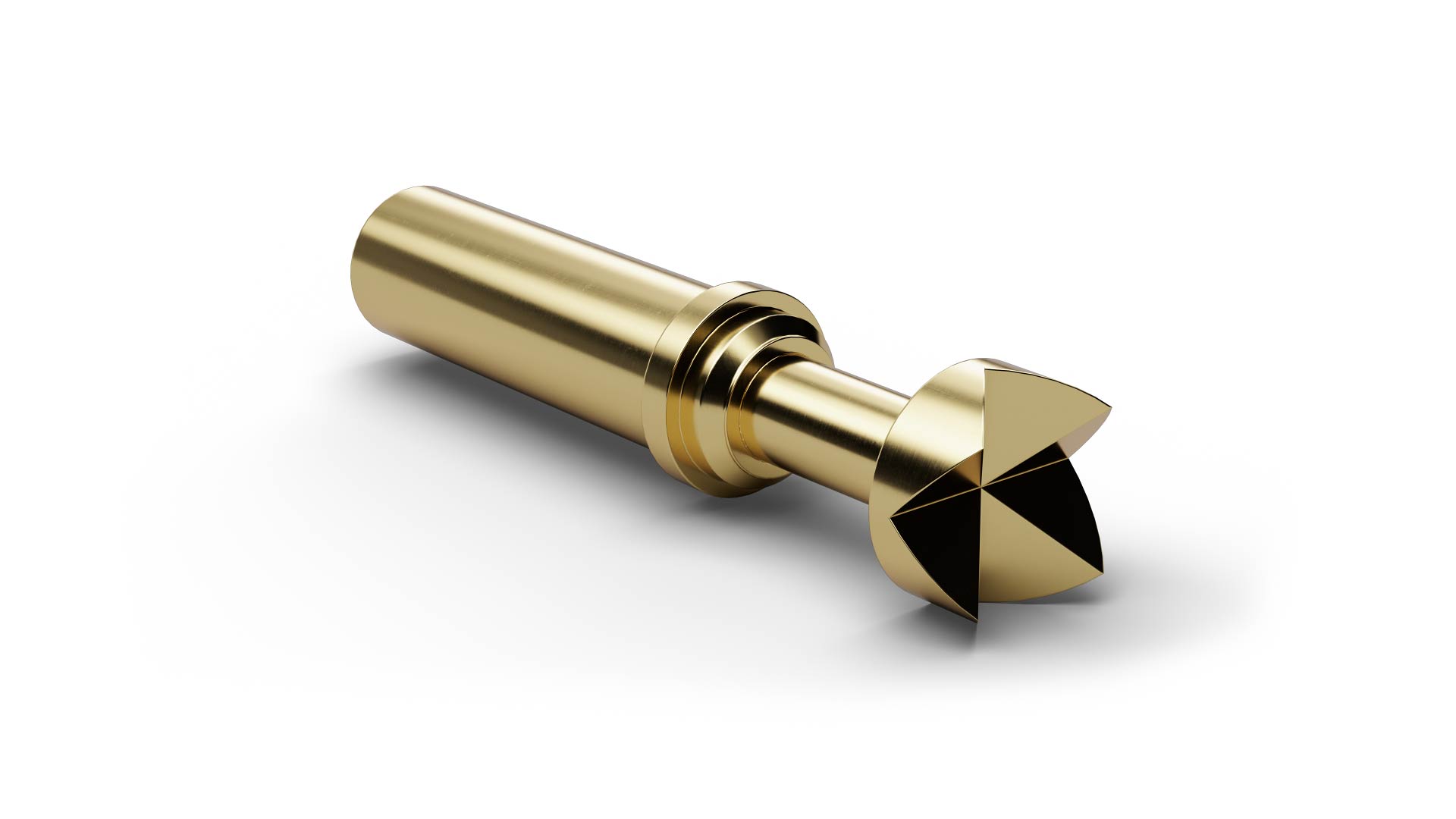

P14028B180G120TL080ST (item number 1024544) is a Pogo Connector for contact points that are connected and released frequently. As a spring-loaded detachable interface, P14028B180G120TL080ST is suited to repeated contact cycles such as charging and data contacts or other quick-release electrical connections. As a detachable spring-loaded interface, P14028B180G120TL080ST is suited to battery and charging contacts, mobile devices, measurement systems and industrial applications. The design combines a pitch of 2.2 mm / 87 mil with tip style 28 (4-point crown stepped) and a tip diameter of 1.8 mm. Spring force is 120 cN at a nominal travel of 1.2 mm. P14028B180G120TL080ST is specified for 8 A continuous current.
