Technical data
| General | |
|---|---|
| Structure | Basic Contact Probe |
| Type/family | F101 |
| Pitch (mm/mil) | 2,54 / 100 |
| Temperature | -45°C...+80°C |
| Dimensions | |
|---|---|
| Total length (mm) | 38.5 |
| Protrusion height (mm) | 16.1 |
| Tip style diameter (mm) | 1.5 |
| Barrel diameter (mm) | 1.68 |
| Collar diameter (mm) | 1.81 |
| Press ring diameter (mm) | 1.81 |
| Materials and surfaces | |
|---|---|
| Tip style | 17 |
| Plunger material | Beryllium copper |
| Plunger plating | Nickel |
| Barrel material | Nickel silver |
| Barrel plating | Gold |
| Spring material | Spring steel |
| Spring plating | Silver |
| Mechanical specifications | |
|---|---|
| Preload (cN) | 30 |
| Spring force (cN) | 60 |
| Nominal travel (mm) | 4.3 |
| Maximum travel (mm) | 6.4 |
| Pointing accuracy +/- (mm) | 0.08 |
| Electrical specifications | |
|---|---|
| Continuous current (A) | 5 |
| Typical contact resistance (mOhm) | 40 |

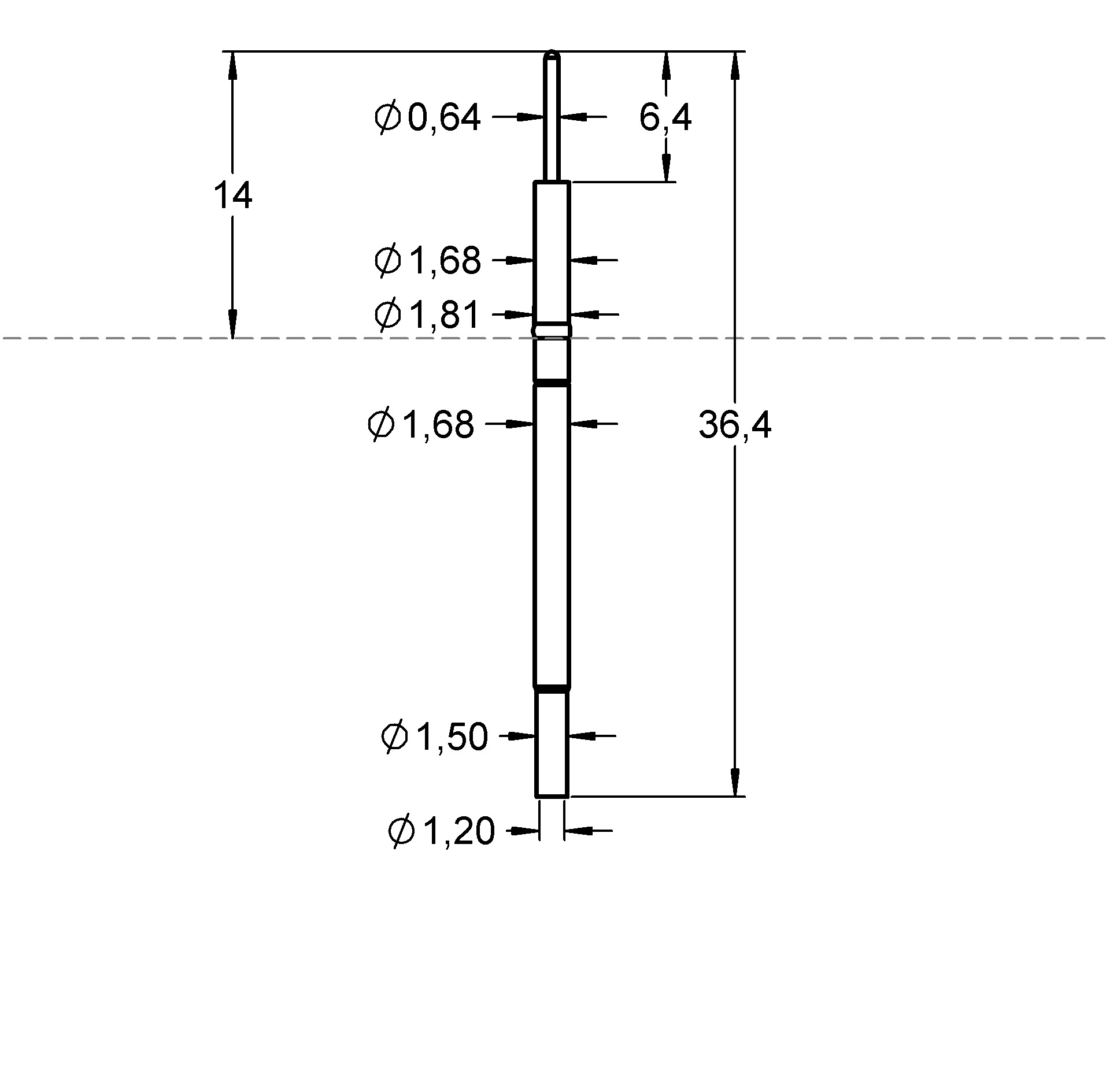

Graphics
Beschreibung des Produkts

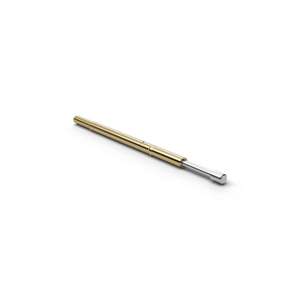

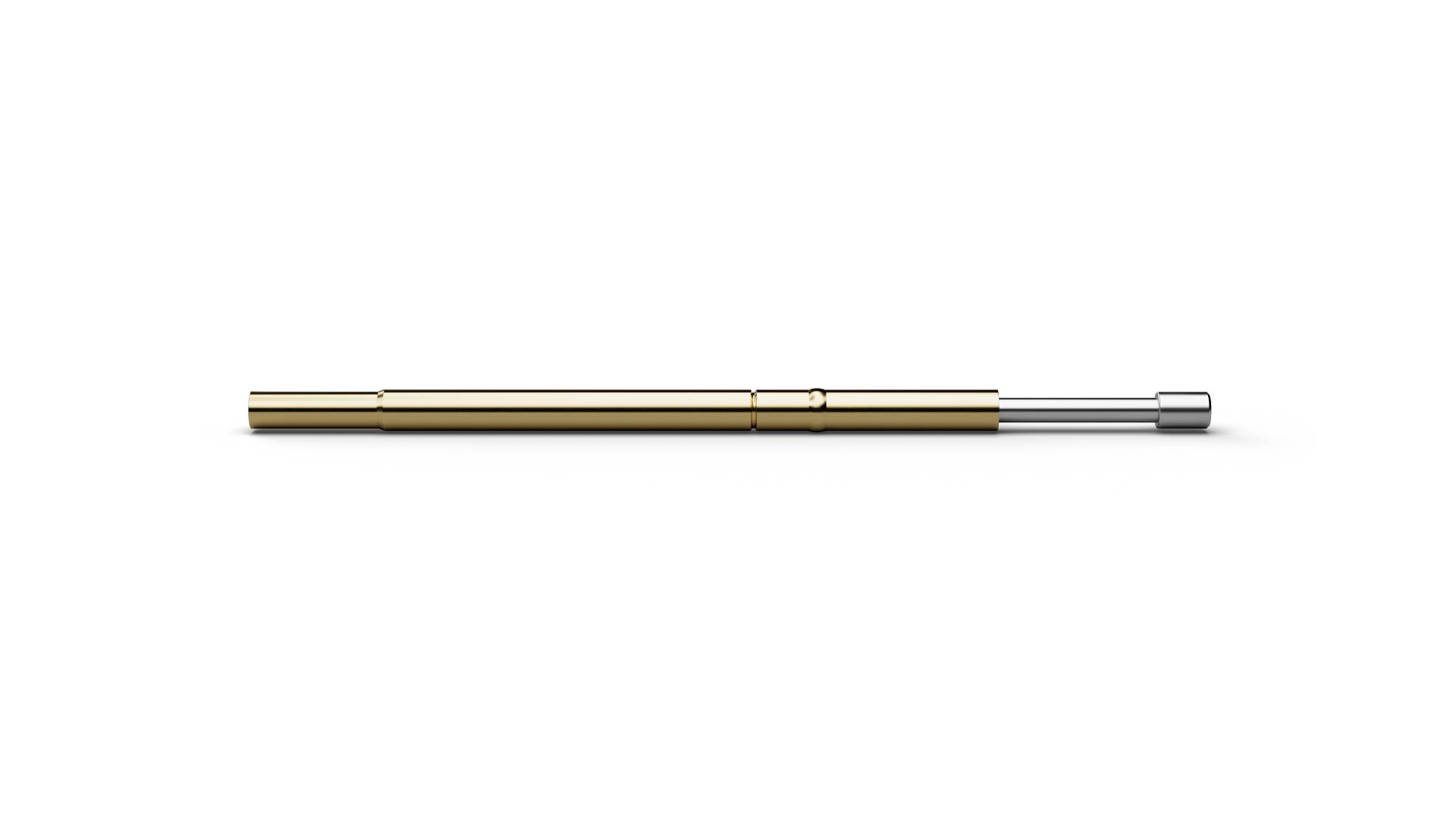

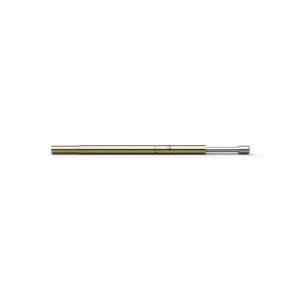

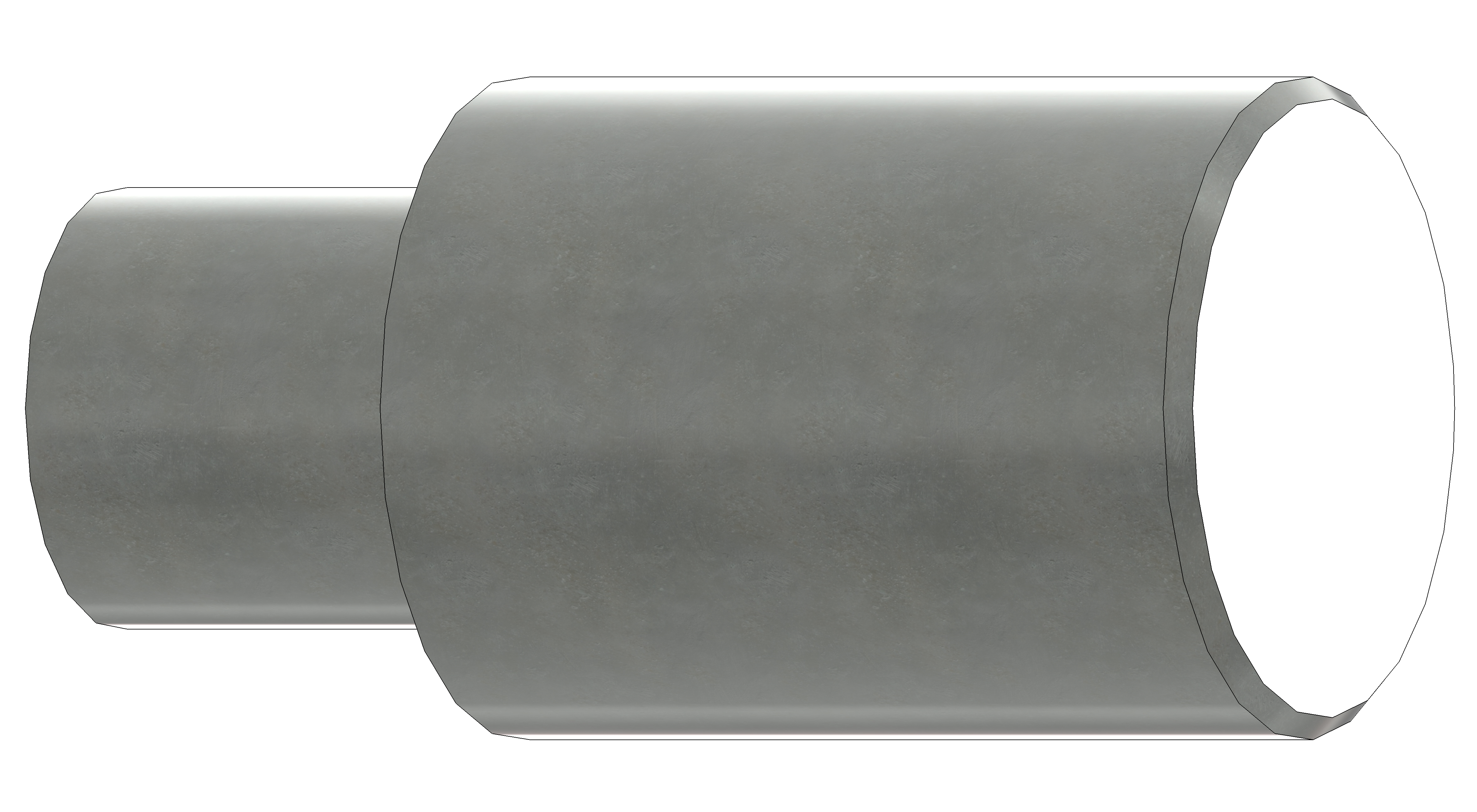

The Basic Contact Probe F10117B150N060E16 (item number 1030410) is a spring-loaded probe for temporary electrical contact with test points. With tip style 17 (Flat stepped), F10117B150N060E16 combines ICT/FCT use with a geometry intended for solder pads and contact pins. F10117B150N060E16 combines a pitch of 2.54 mm / 100 mil with tip style 17 (Flat stepped) and a tip diameter of 1.5 mm. For F10117B150N060E16, spring force is 60 cN at a nominal travel of 4.3 mm. The electrical rating of F10117B150N060E16 combines 5 A continuous current with 40 mΩ typical contact resistance. The plunger is made of beryllium copper and is Nickel-plated.
