Technical data
| General | |
|---|---|
| Structure | Basic Contact Probe |
| Type/family | TS300 |
| Pitch (mm/mil) | 5,00 / 197 |
| Temperature | -45°C...+200°C |
| Sensor type | NTC |
| Dimensions | |
|---|---|

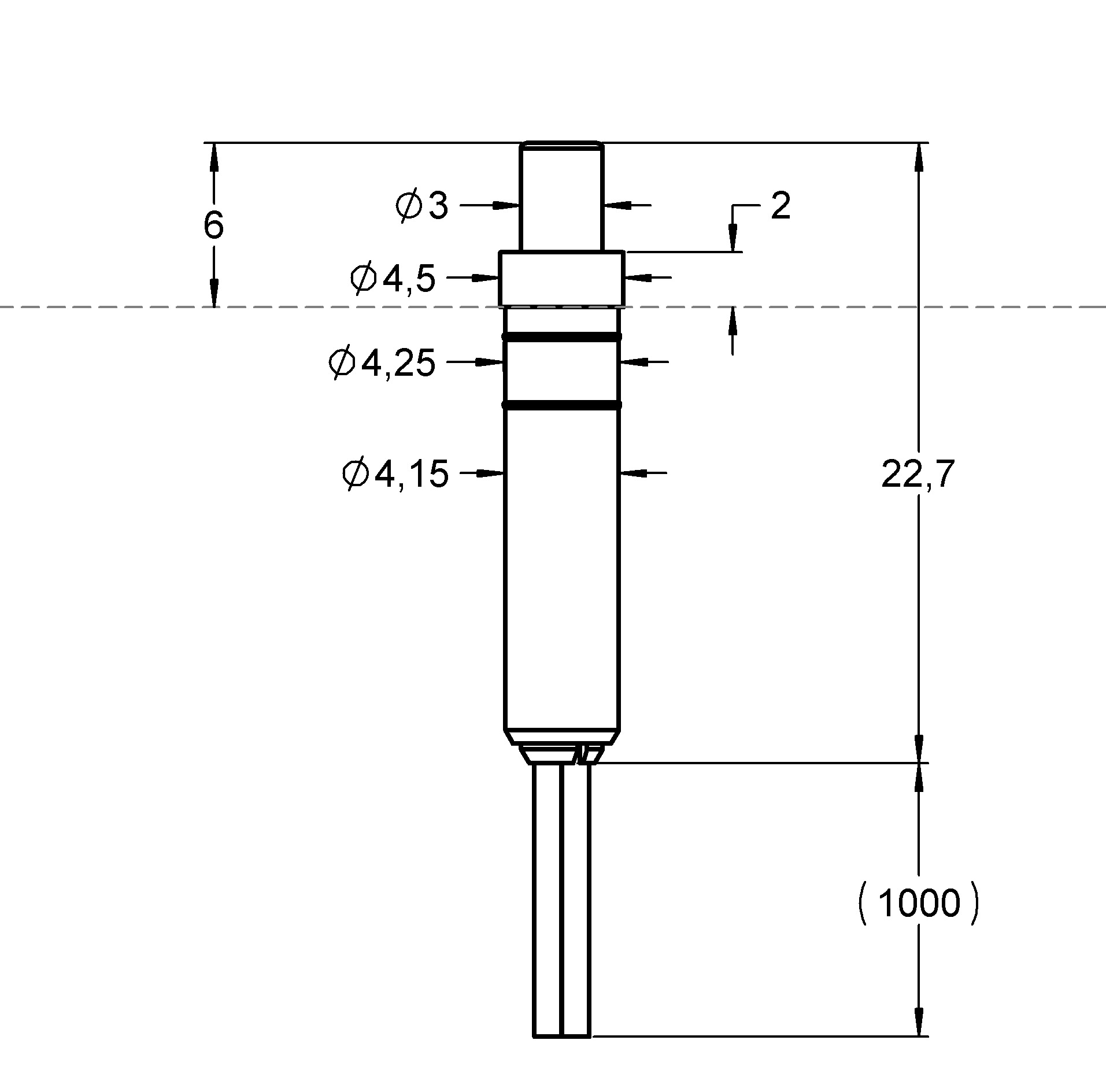

| Total length (mm) | 22.7 |
| Protrusion height (mm) | 6 |
| Tip style diameter (mm) | 3 |
| Barrel diameter (mm) | 4.15 |
| Collar diameter (mm) | 4.5 |
| Materials and surfaces | |
|---|---|

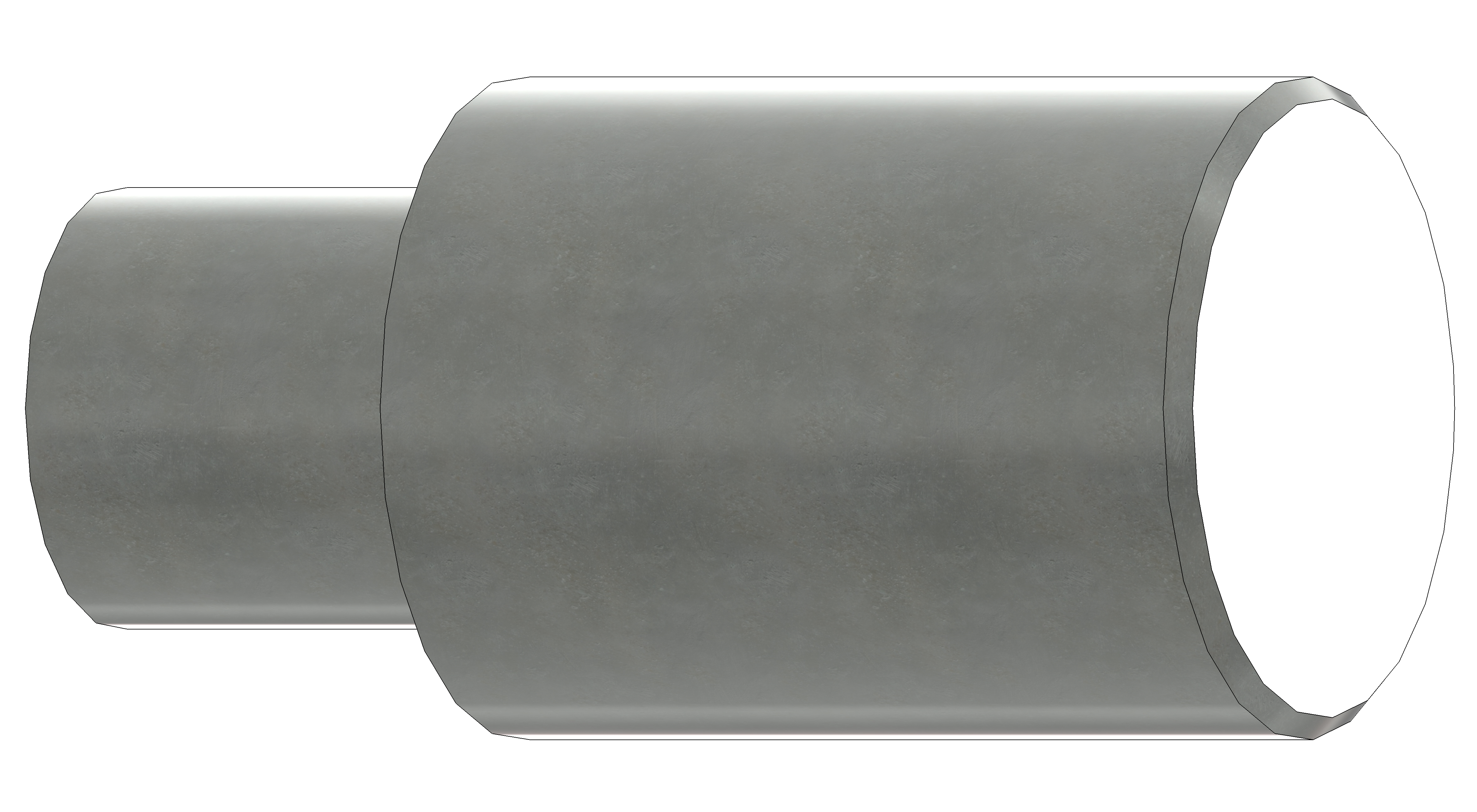

| Tip style | 17 |
| Plunger material | Steel |
| Plunger plating | Uncoated |
| Barrel material | Plastic |
| Barrel plating | Uncoated |
| Spring material | High-grade steel |
| Spring plating | Uncoated |
| Mechanical specifications | |
|---|---|
| Preload (cN) | 70 |
| Spring force (cN) | 200 |
| Nominal travel (mm) | 3 |
| Maximum travel (mm) | 4 |
Graphics
Beschreibung des Produkts

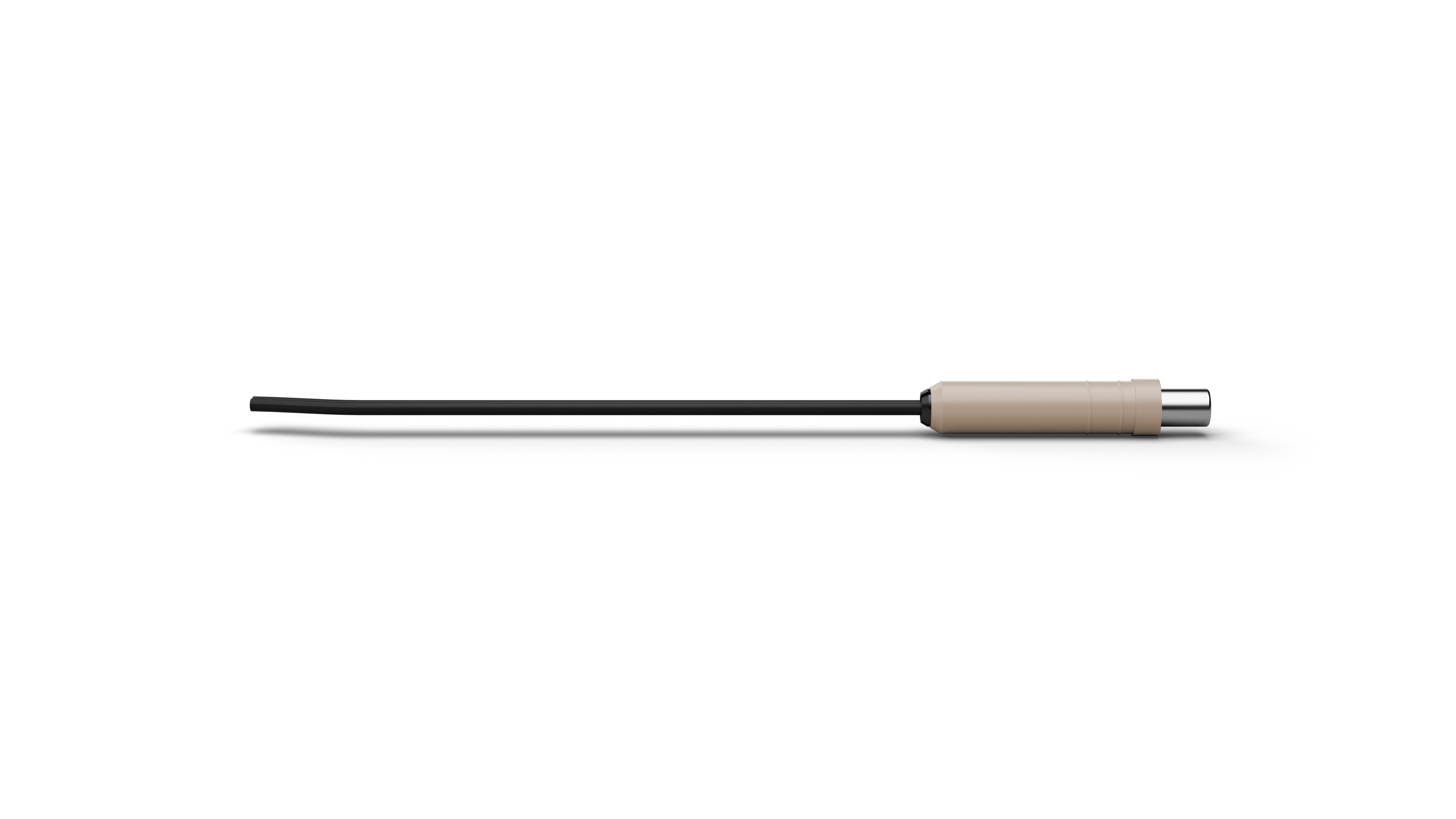

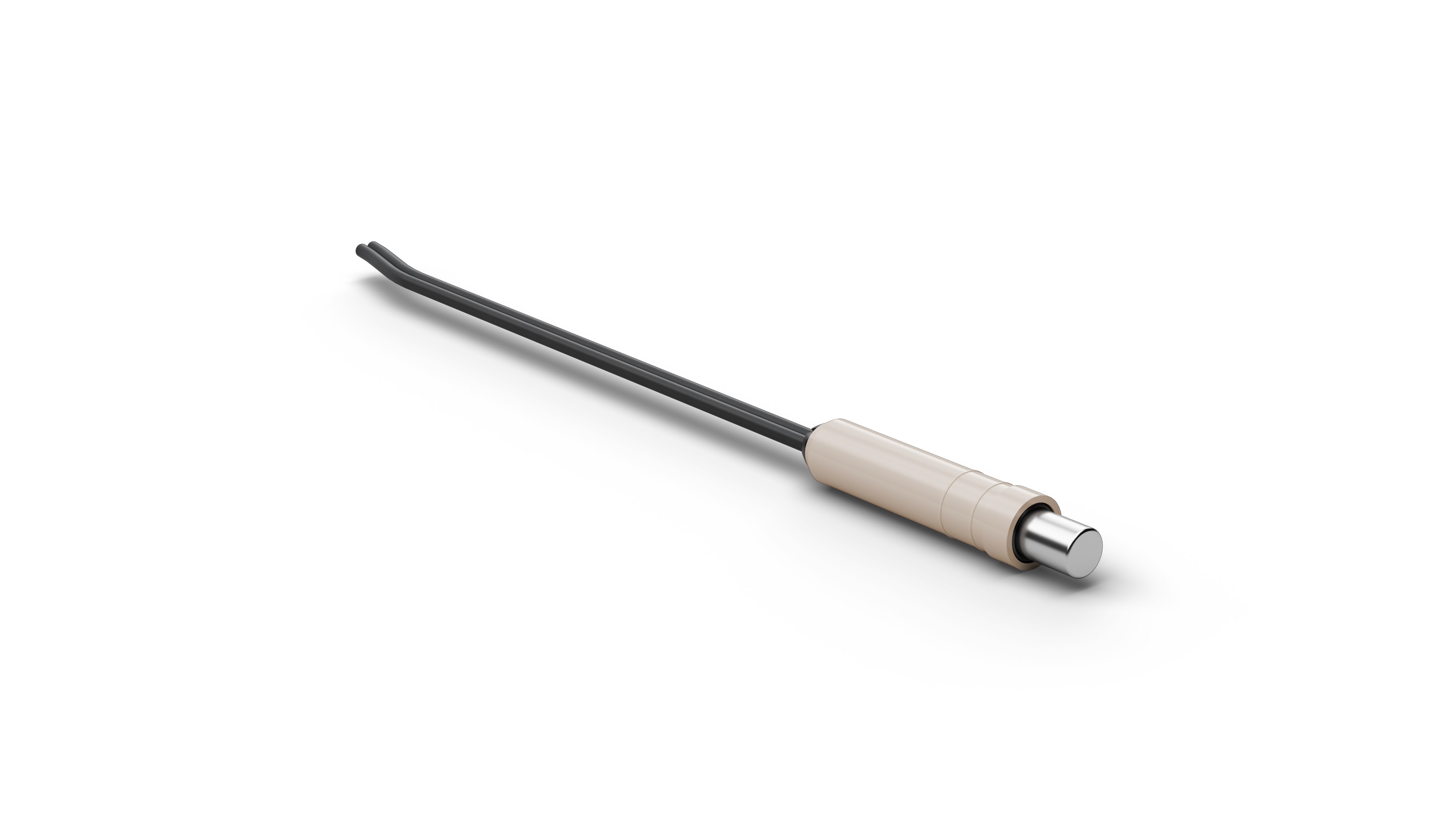

The Temperature Sensor Probe TS300NTC200 (item number 1033193) combines electrical contacting with a temperature-related measurement or monitoring function. TS300NTC200 focuses on current capacity and low transition losses, as required in battery testing, formation and other e-mobility applications. TS300NTC200 supports test setups in which electrical load and thermal behavior need to be evaluated together. For TS300NTC200, tip style 17 (Flat stepped) with a tip diameter of 3 mm is specified for integration. The sensor type specified for TS300NTC200 is NTC. The pitch of TS300NTC200 is 5 mm / 197 mil.
