Technical data
| General | |
|---|---|
| Structure | Basic Contact Probe |
| Type/family | F887-NO |
| Pitch (mm/mil) | 4,00 / 157 |
| Temperature | -45°C...+100°C |
| Additional definition | S2 |
| Dimensions | |
|---|---|
| Total length (mm) | 25 |
| Protrusion height (mm) | 9 |
| Tip style diameter (mm) | 1 |
| Barrel diameter (mm) | 2.46 |
| Collar diameter (mm) | 3.5 |
| Press ring diameter (mm) | 3.5 |
| Materials and surfaces | |
|---|---|
| Tip style | 06 |
| Plunger material | Beryllium copper |
| Plunger plating | Gold |
| Barrel material | Brass |
| Barrel plating | Gold |
| Spring material | Spring steel |
| Spring plating | Silver |
| Mechanical specifications | |
|---|---|
| Preload (cN) | 60 |
| Spring force (cN) | 150 |
| Nominal travel (mm) | 4 |
| Maximum travel (mm) | 5 |
| Pointing accuracy +/- (mm) | 0.1 |
| Thread | M3X0,35 |
| Tool size (mm) | 2,5 |
| Electrical specifications | |
|---|---|
| Continuous current (A) | 10 |
| Typical contact resistance (mOhm) | 40 |
| Switch travel (mm) | 1.7 |
| Continuous current (A) 2 | 1 |

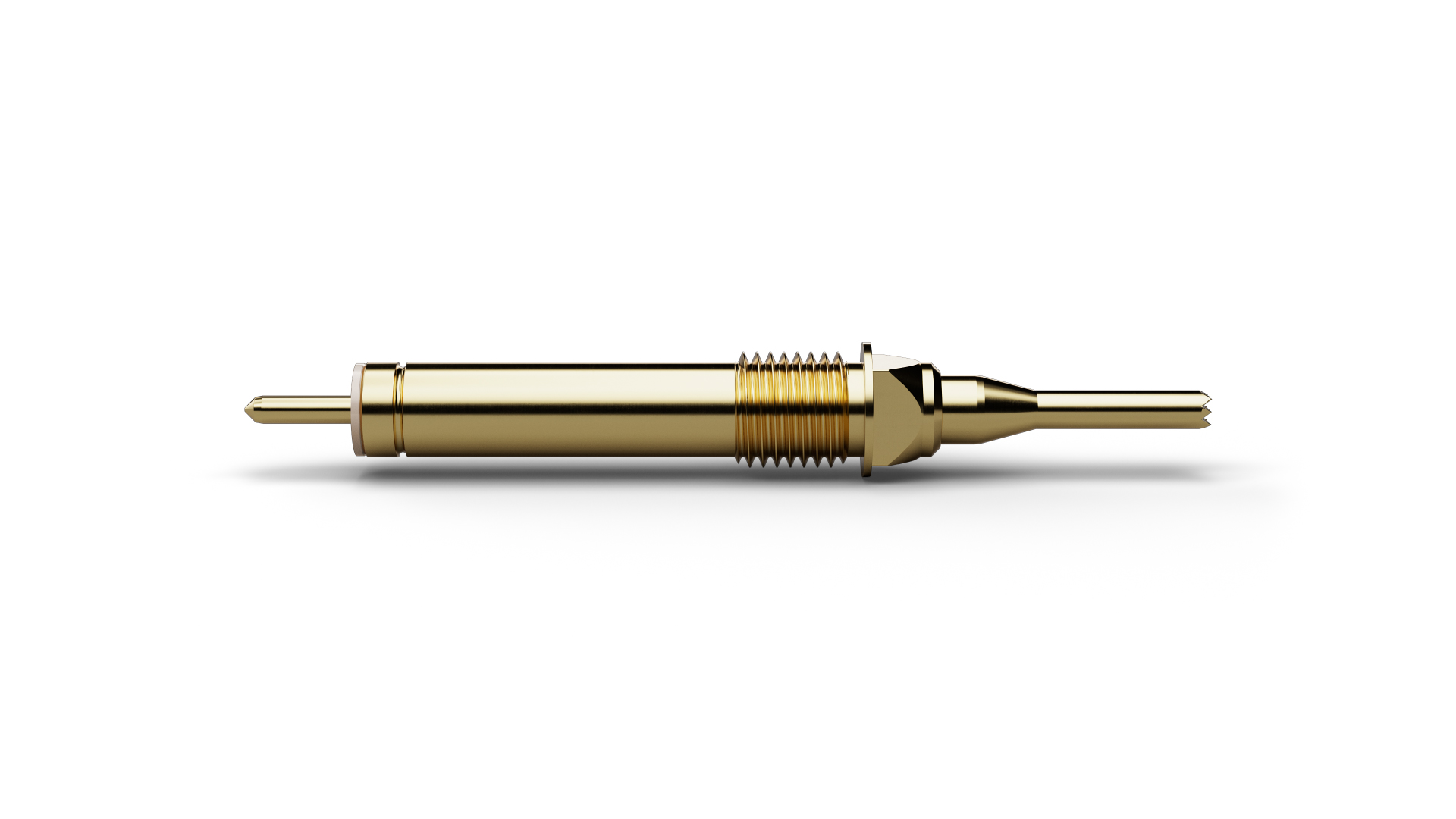

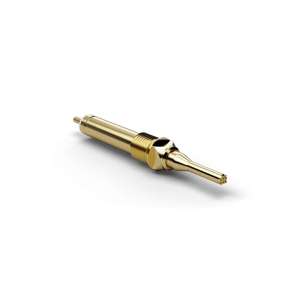

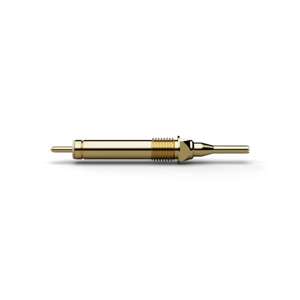

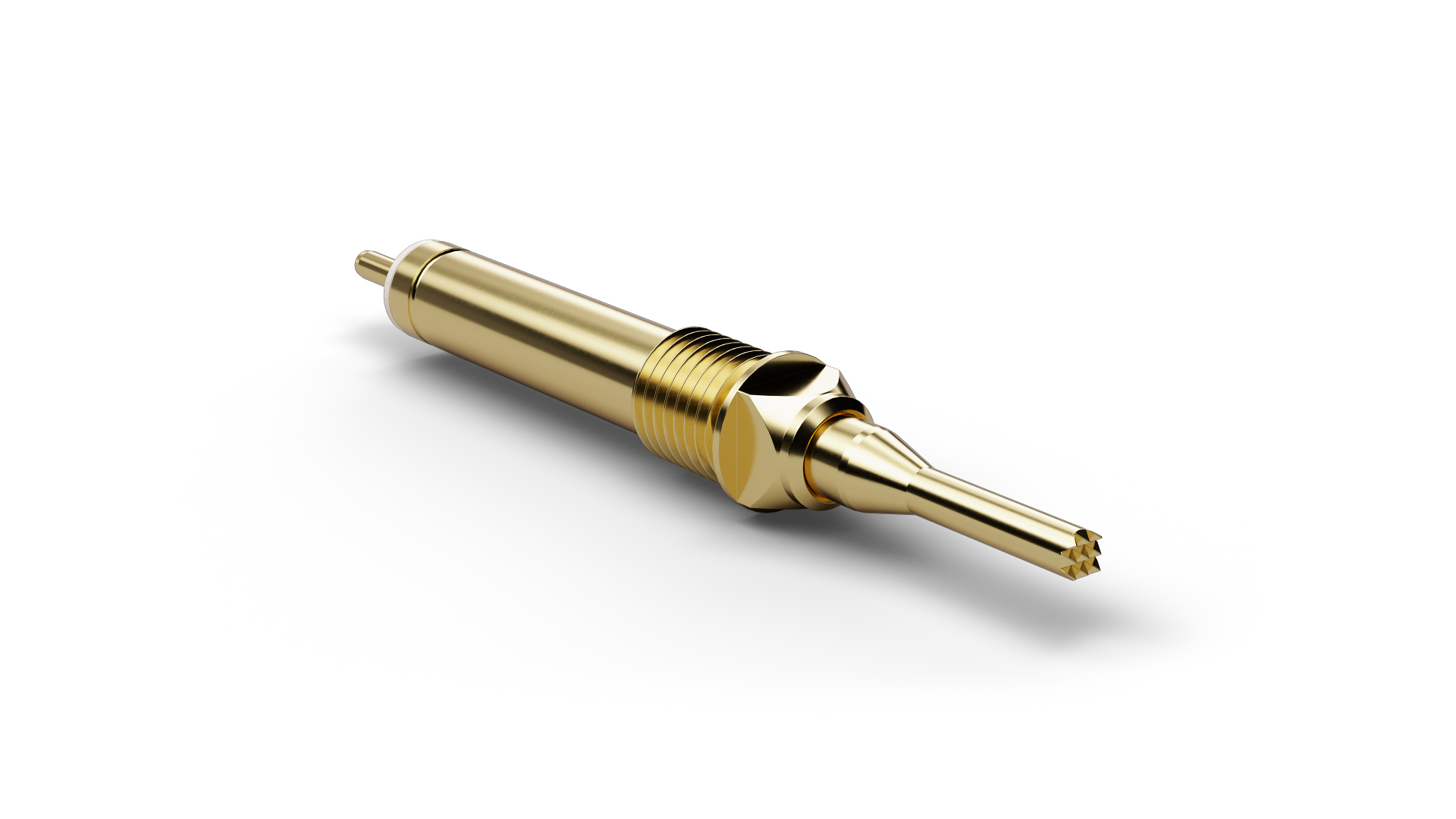

Graphics
Beschreibung des Produkts
For test tasks requiring status feedback, F88706B100G150S2 (item number 1034623) provides spring-loaded contacting with a defined switching function. F88706B100G150S2 combines electrical contacting with a switching signal so that DUT presence or position can be evaluated directly in the test sequence. The switch type specified for F88706B100G150S2 is NO (Normally Open). The switching travel specified for F88706B100G150S2 is 1.7 mm. F88706B100G150S2 combines a pitch of 4 mm / 157 mil with tip style 06 (Serrated stepped) and a tip diameter of 1 mm. For F88706B100G150S2, spring force is 150 cN at a nominal travel of 4 mm.
