Technical data
| General | |
|---|---|
| Structure | Basic Contact Probe |
| Type/family | F756 |
| Pitch (mm/mil) | 2,54 / 100 |
| Temperature | -45°C...+200°C |
| Additional definition | S1 |
| Dimensions | |
|---|---|

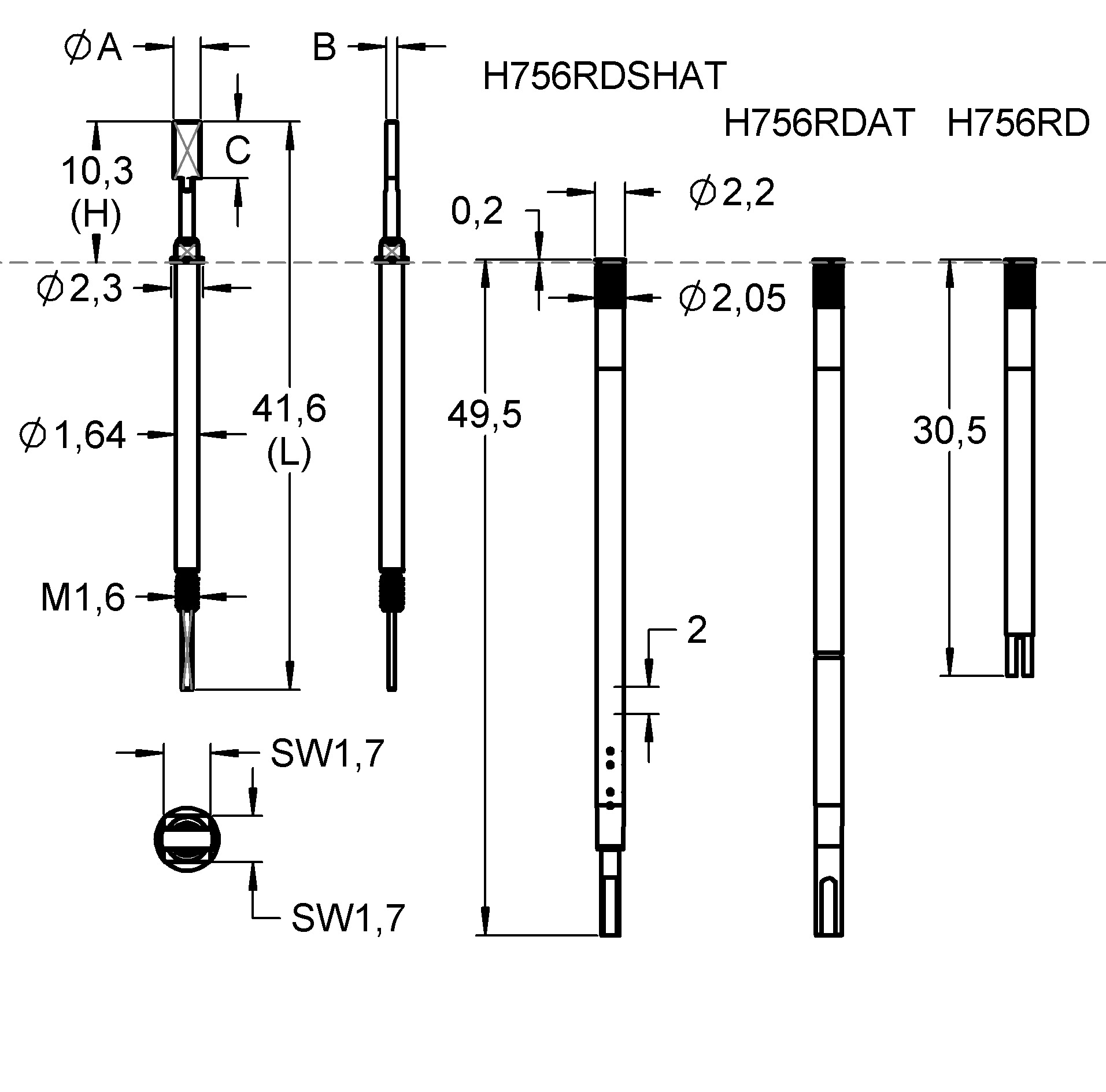

| Total length (mm) | 41.6 |
| Protrusion height (mm) | 10.3 |
| Tip style diameter (mm) | 1.5 |
| Barrel diameter (mm) | 1.64 |
| Collar diameter (mm) | 2.3 |
| Press ring diameter (mm) | 2.3 |
| A – spade diameter (mm) | 1.5 |
| B – spade width (mm) | 0.35 |
| C – spade length (mm) | 5 |
| Materials and surfaces | |
|---|---|
| Tip style | 83 |
| Plunger material | Beryllium copper |
| Plunger plating | Gold |
| Barrel material | Brass |
| Barrel plating | Gold |
| Spring material | High-grade steel |
| Spring plating | Uncoated |
| Mechanical specifications | |
|---|---|
| Preload (cN) | 60 |
| Spring force (cN) | 140 |
| Nominal travel (mm) | 3.4 |
| Maximum travel (mm) | 3.6 |
| Thread | M1,6 |
| Tool size (mm) | 1,7 |
| Electrical specifications | |
|---|---|
| Continuous current (A) | 5 |
| Typical contact resistance (mOhm) | 30 |
Graphics
Beschreibung des Produkts

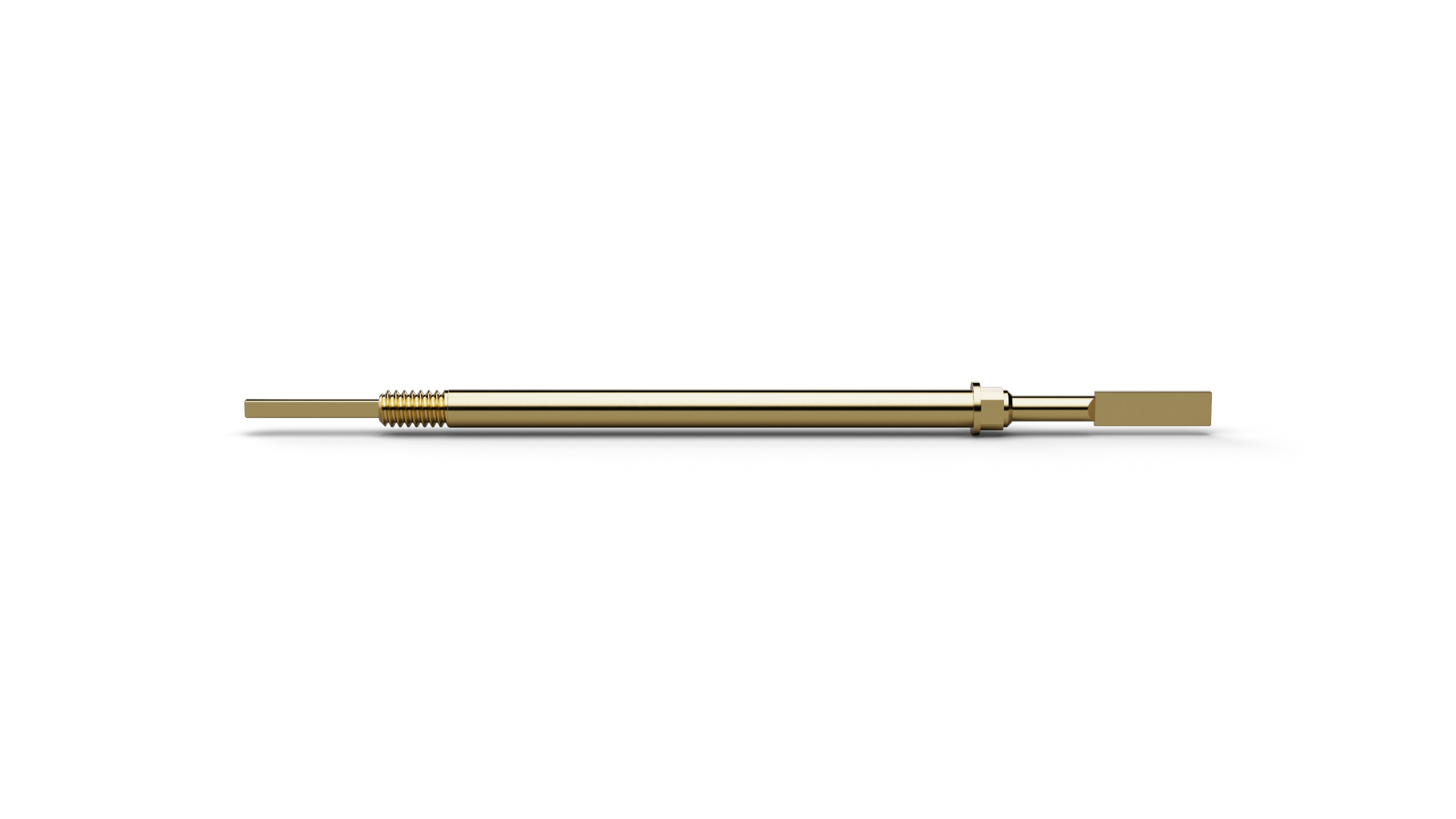

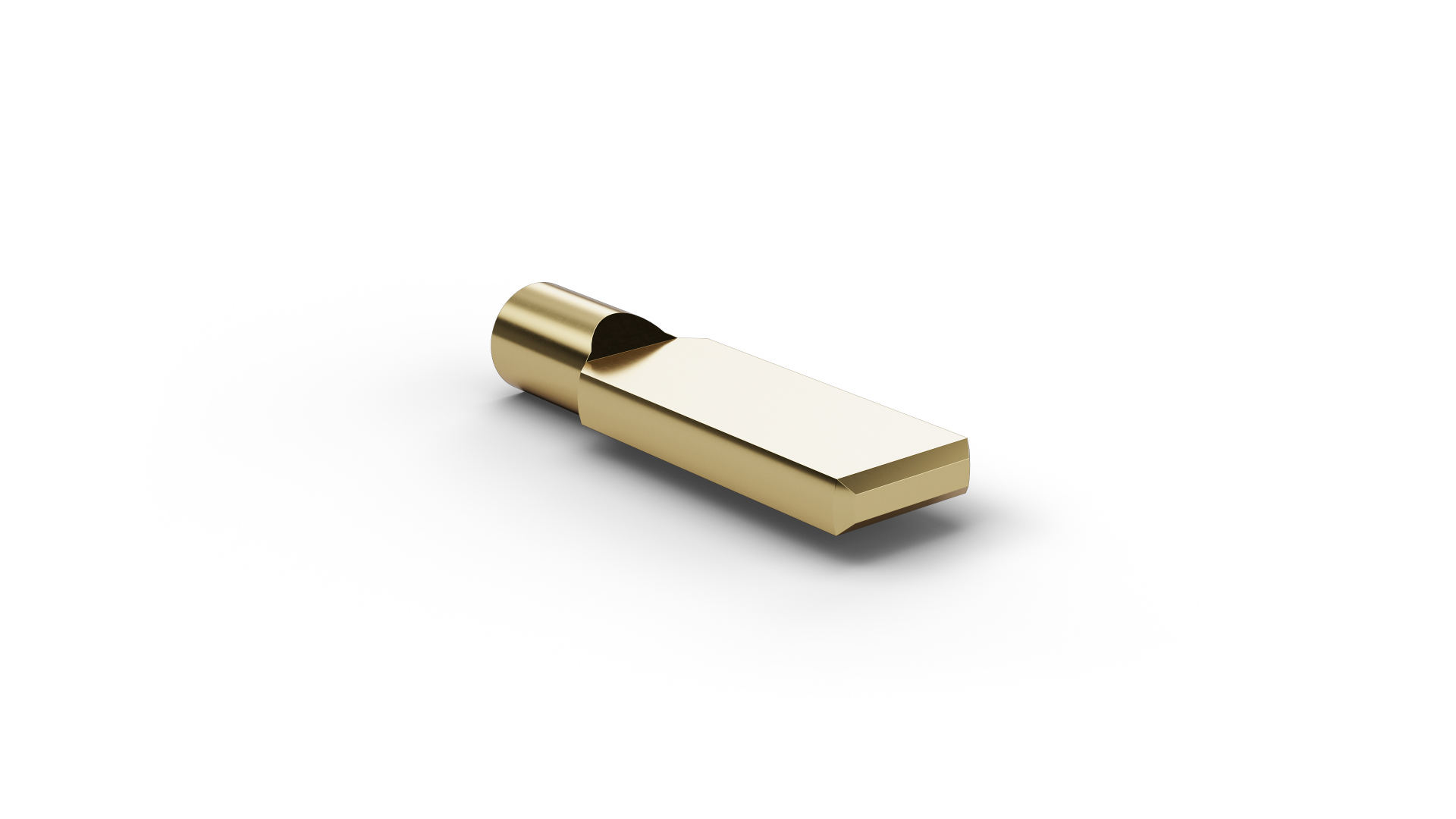

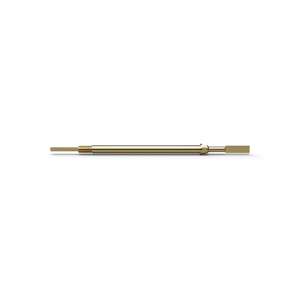

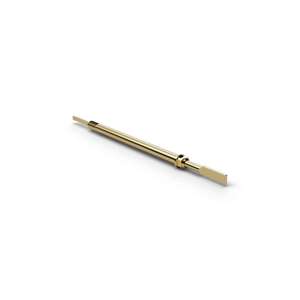

The Twist Proof Probe F75683B0001G140S1 (item number 1037570) is designed for connector tests where the orientation of the contact geometry must remain defined. On F75683B0001G140S1, tip style 83 (SpadeØ > plungerØ) supports twist-proof contacting of connector elements whose orientation must be maintained in the test fixture. Orientation-relevant dimensions include spade diameter 1.5 mm, spade width 0.35 mm, spade length 5 mm. The design combines a pitch of 2.54 mm / 100 mil with tip style 83 (SpadeØ > plungerØ) and a tip diameter of 1.5 mm. Spring force is 140 cN at a nominal travel of 3.4 mm. The continuous-current rating of F75683B0001G140S1 is 5 A.
