Technical data
| General | |
|---|---|
| Structure | Basic Contact Probe |
| Type/family | F563 |
| Temperature | -45°C...+80°C |

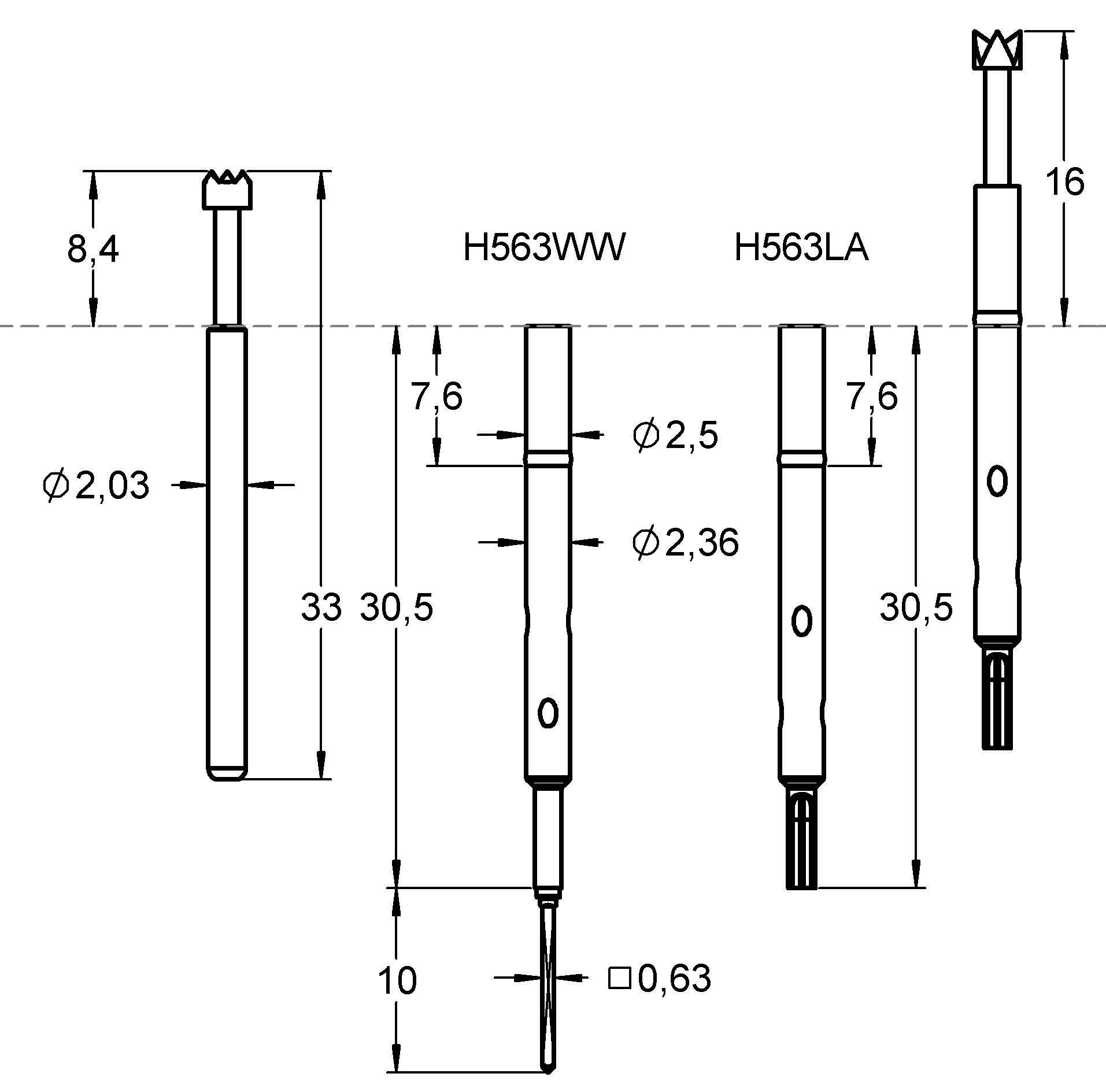

| Dimensions | |
|---|---|
| Total length (mm) | 33 |
| Protrusion height (mm) | 8.4 |
| Tip style diameter (mm) | 1.7 |
| Barrel diameter (mm) | 2.03 |
| Materials and surfaces | |
|---|---|
| Tip style | 17 |
| Plunger material | Beryllium copper |
| Plunger plating | Gold |
| Barrel material | Bronze |
| Barrel plating | Gold |
| Spring material | High-grade steel |
| Spring plating | Uncoated |
| Mechanical specifications | |
|---|---|
| Preload (cN) | 90 |
| Spring force (cN) | 180 |
| Nominal travel (mm) | 4.3 |
| Maximum travel (mm) | 6.4 |
| Pointing accuracy +/- (mm) | 0.1 |
| Electrical specifications | |
|---|---|
| Continuous current (A) | 6 |
| Typical contact resistance (mOhm) | 100 |
Graphics
Beschreibung des Produkts

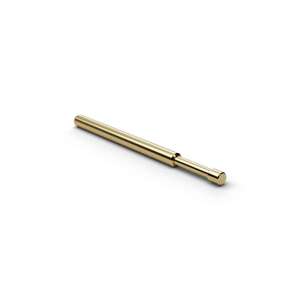

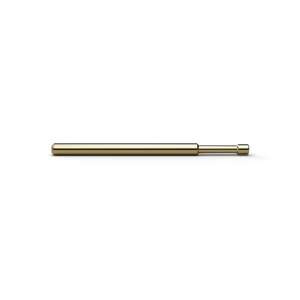

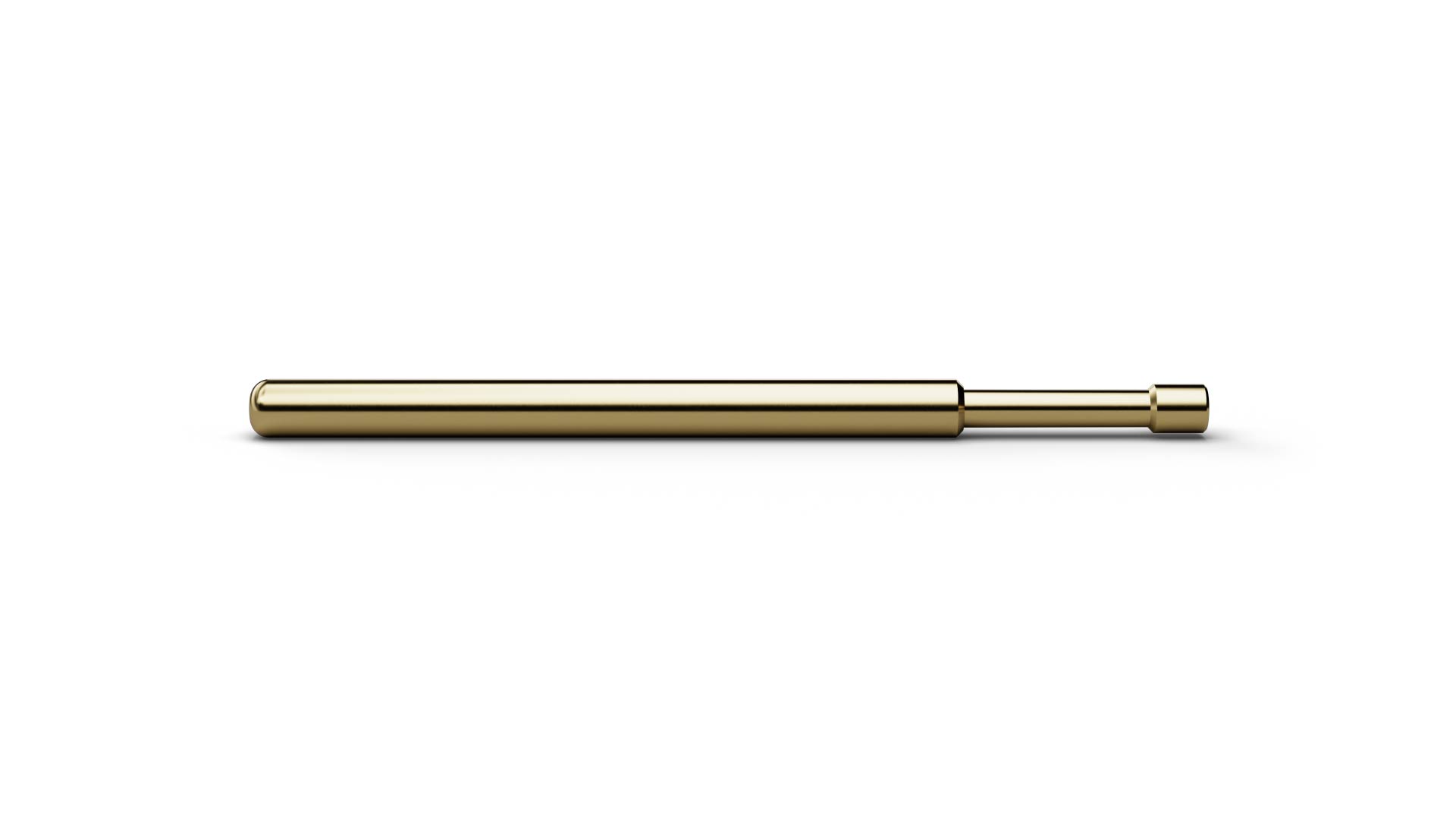

As a Basic Contact Probe, F56317B170G180 (item number 1053967) establishes a spring-loaded electrical connection to the test point. With tip style 17 (Flat stepped), F56317B170G180 combines ICT/FCT use with a geometry intended for solder pads and contact pins. The design combines a pitch of 3 mm / 118 mil with tip style 17 (Flat stepped) and a tip diameter of 1.7 mm. For F56317B170G180, spring force is 180 cN at a nominal travel of 4.3 mm. The electrical rating of F56317B170G180 combines 6 A continuous current with 100 mΩ typical contact resistance. The plunger in F56317B170G180 is made of beryllium copper and is gold-plated.
