Technical data
| General | |
|---|---|
| Structure | Double Plunger Probe |
| Type/family | FP-D |
| Pitch (mm/mil) | 0,75 / 30 |
| Temperature | -45°C...+200°C |
| Additional definition | HS1 |

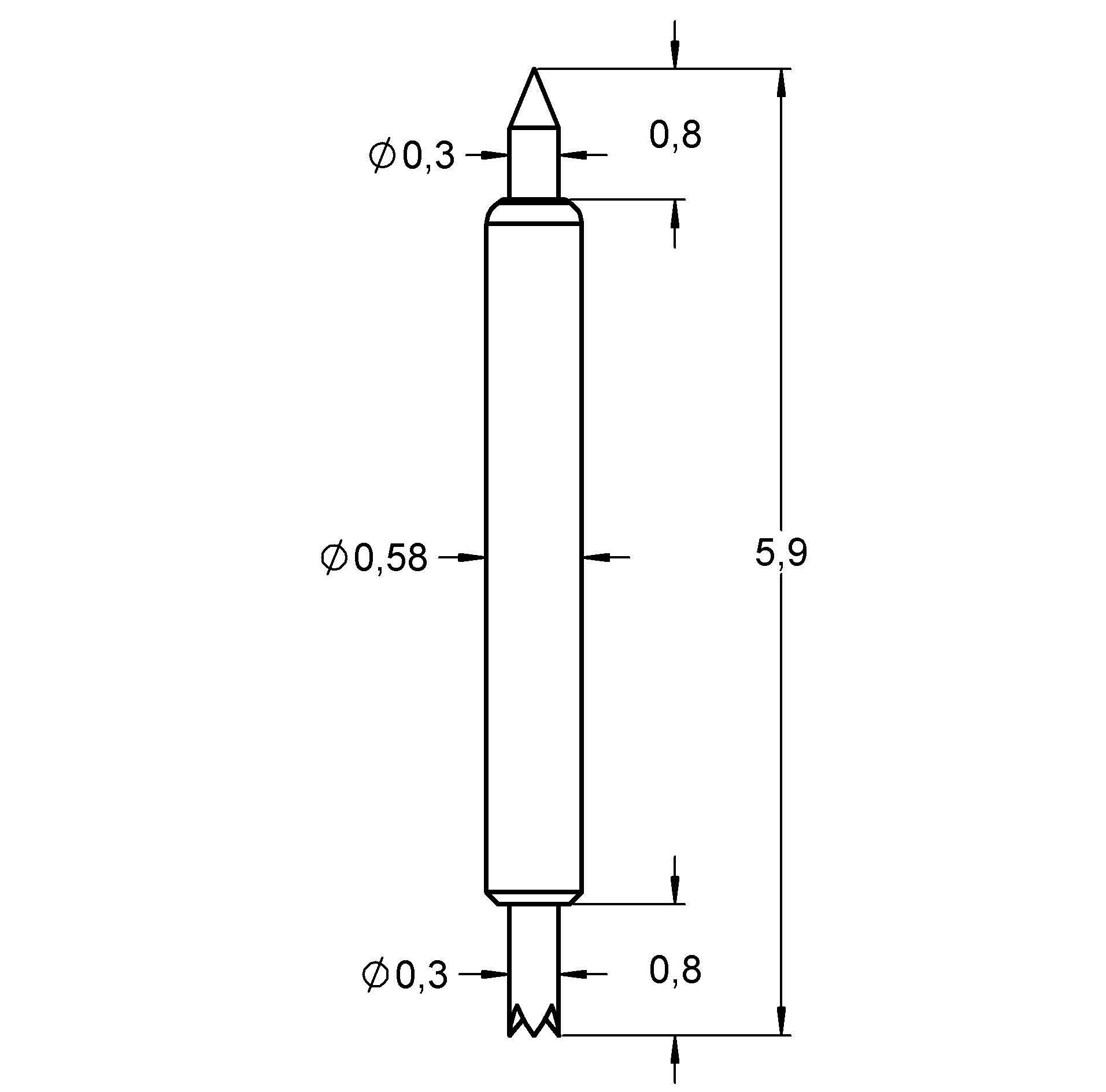

| Dimensions | |
|---|---|
| Total length (mm) | 5.9 |
| Protrusion height (mm) | 0.8 |
| Tip style diameter (mm) | 0.3 |
| Barrel diameter (mm) | 0.58 |
| Tip style diameter (mm) 2 | 0.3 |
| Materials and surfaces | |
|---|---|
| Tip style | 11 |
| Tip style 2 | 11 |
| Plunger material | Beryllium copper |
| Plunger plating | Gold |
| Barrel material | Bronze |
| Spring material | High-grade steel |
| Spring plating | Gold |
| Plunger material 2 | Beryllium copper |
| Plunger plating 2 | Gold |
| Mechanical specifications | |
|---|---|
| Preload (cN) | 30 |
| Spring force (cN) | 60 |
| Nominal travel (mm) | 0.5 |
| Maximum travel (mm) | 0.6 |
| Pointing accuracy +/- (mm) | 0.09 |
| Electrical specifications | |
|---|---|
| Continuous current (A) | 3.5 |
| Typical contact resistance (mOhm) | 50 |
Graphics
Beschreibung des Produkts

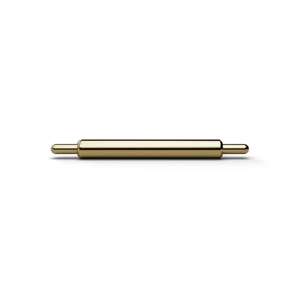

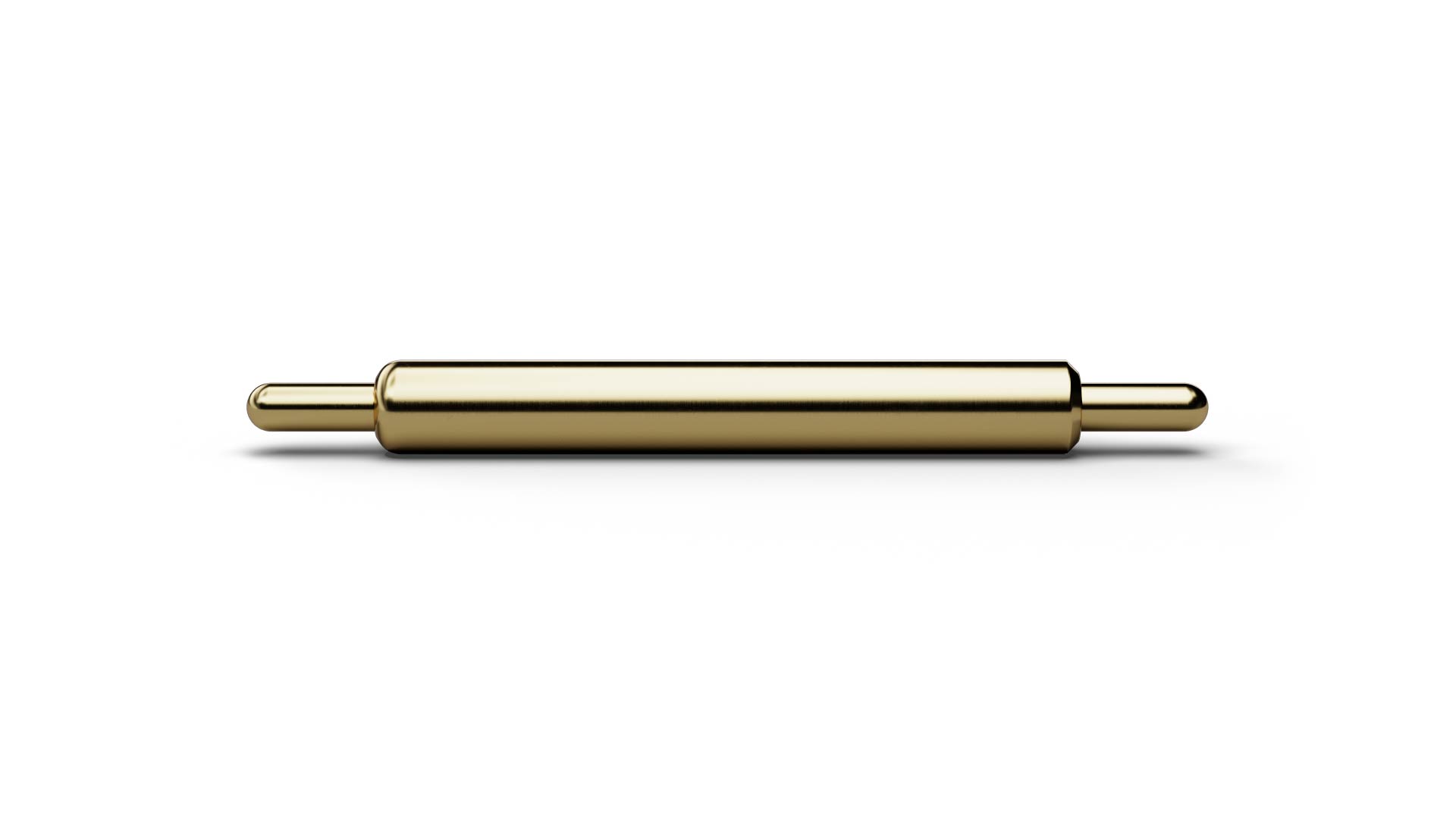

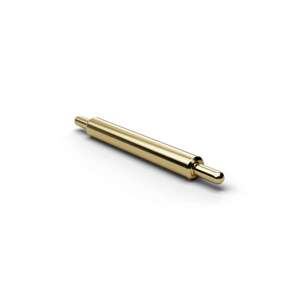

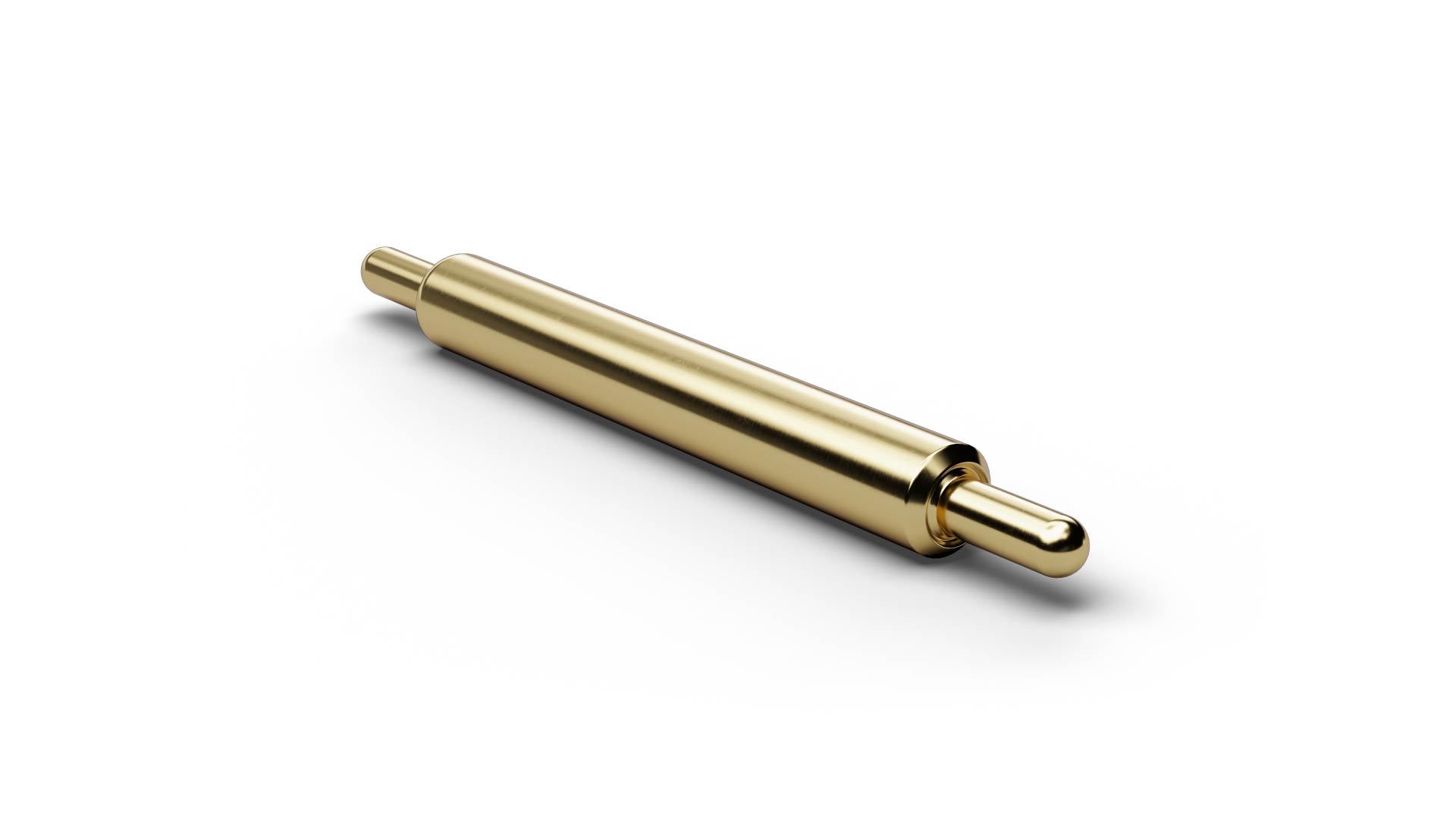

The Fine Pitch Probe FP580D1111B030G060L059HS1 (item number 1093730) is designed for precise contacting at very small pitches. Tip style 11 (Spherical) targets FP580D1111B030G060L059HS1 at clean, sensitive contact surfaces; Fine Pitch Probes are used, among other applications, in semiconductor final test, WLCSP solutions, MEMS and micro-PCB testing. In FP580D1111B030G060L059HS1, the double-plunger design provides spring-loaded contacting on both sides and can compensate for mechanical tolerances in compact interfaces. The design combines a pitch of 0.75 mm / 30 mil with tip style 11 (Spherical) and a tip diameter of 0.3 mm. FP580D1111B030G060L059HS1 operates with 60 cN spring force and 0.5 mm nominal travel. The continuous-current rating of FP580D1111B030G060L059HS1 is 3.5 A.
